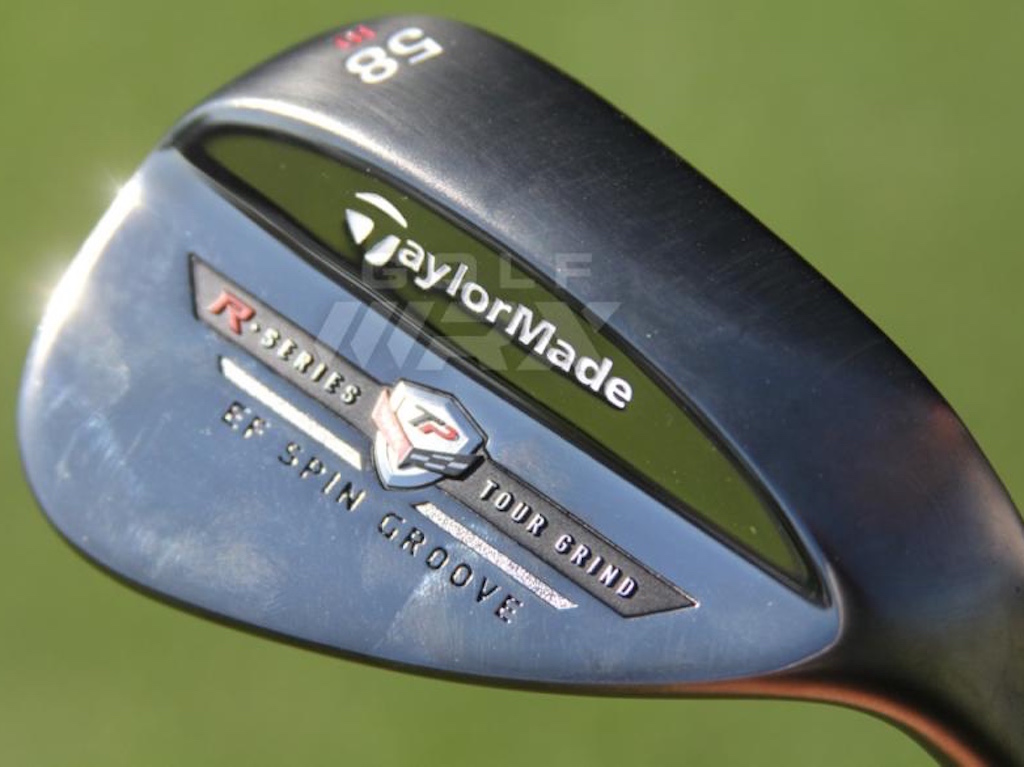

TaylorMade Tour Preferred EF wedges

Published

on

TaylorMade’s Tour Preferred EF wedges use chemistry to offer golfers longer-lasting, higher-spinning grooves.

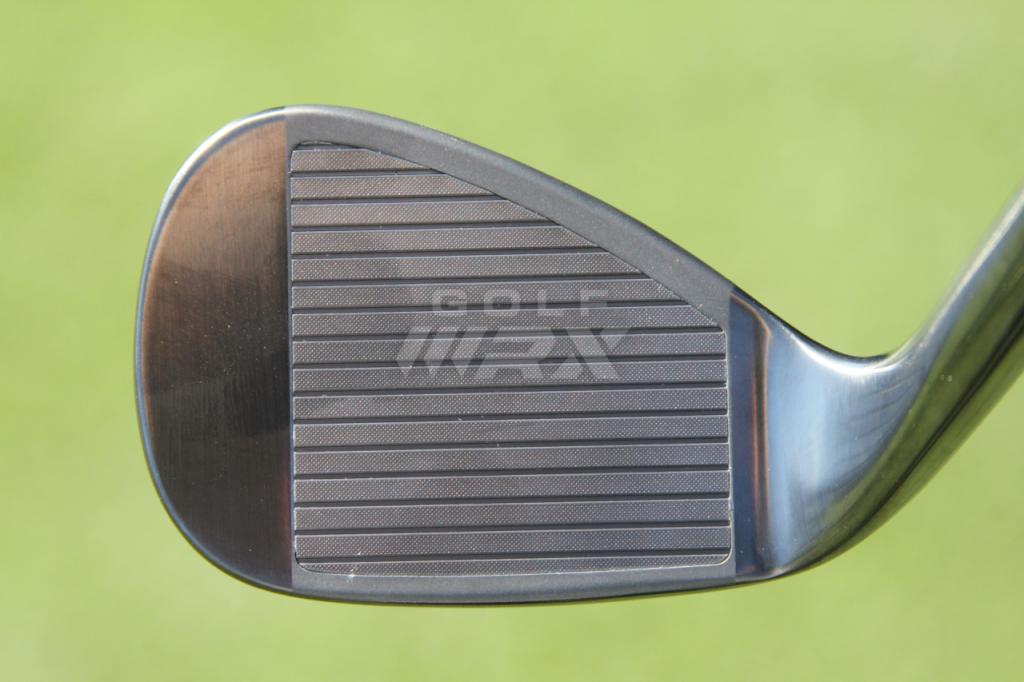

Instead of milling or casting the grooves, like most wedges on the market, TaylorMade uses a chemical process called electroforming — thus the “EF” — to make a face insert with grooves that are consistently sharper and more durable than their predecessors.

The science is complicated, so I’ll do my best to simplify it.

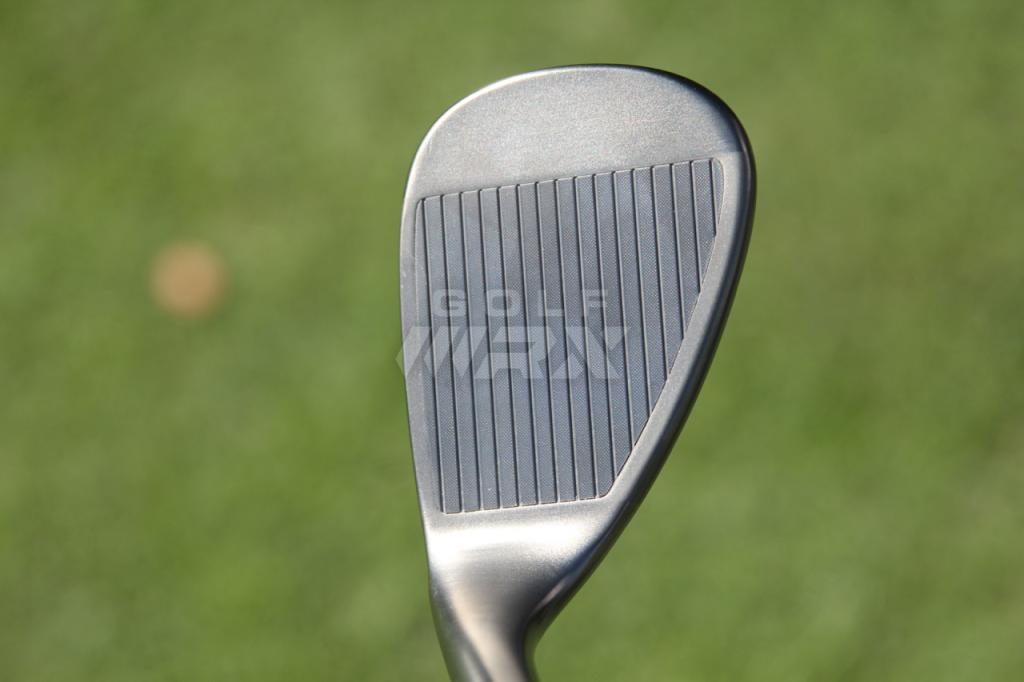

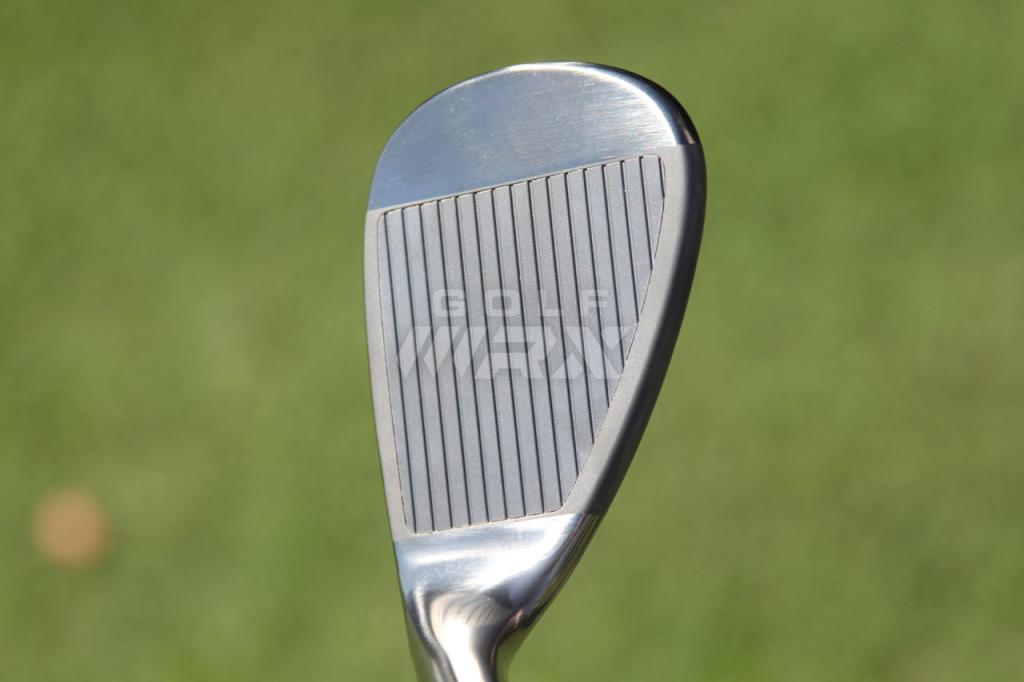

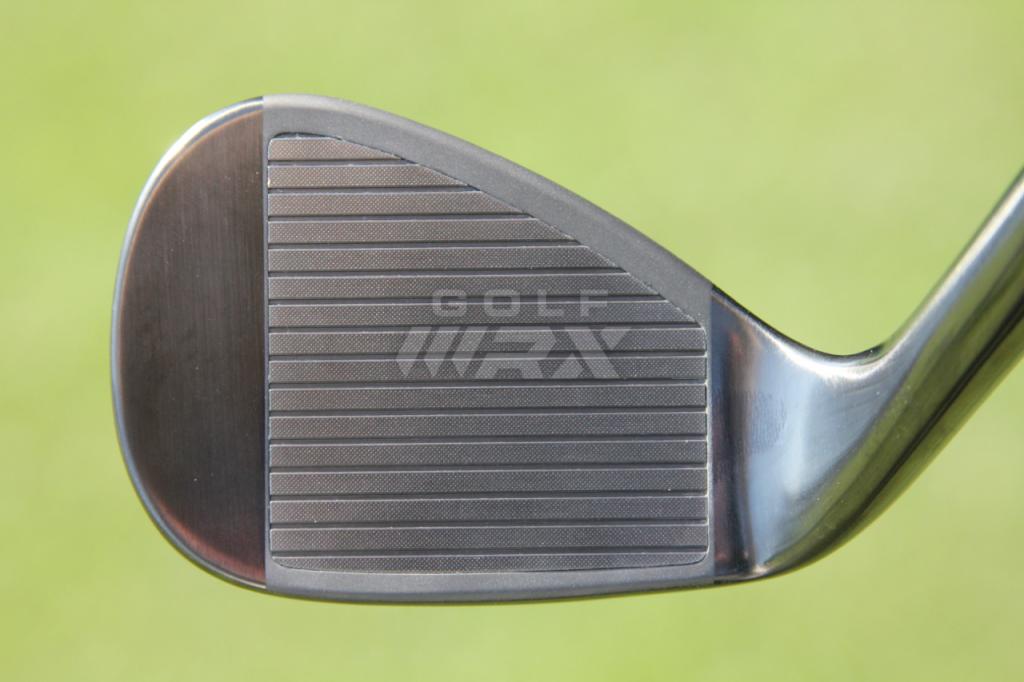

Nickel and cobalt materials go through an ionization process in an electrolytic solution, then ions get plated onto a master model. The “master” is a mold that forms the grooves and micro-milling of the face insert. When the nickel cobalt solution lifts off the master, what’s left is a sheet of material that has taken the shape of the mold.

Think of a loose leaf piece of paper, but the lines are grooves.

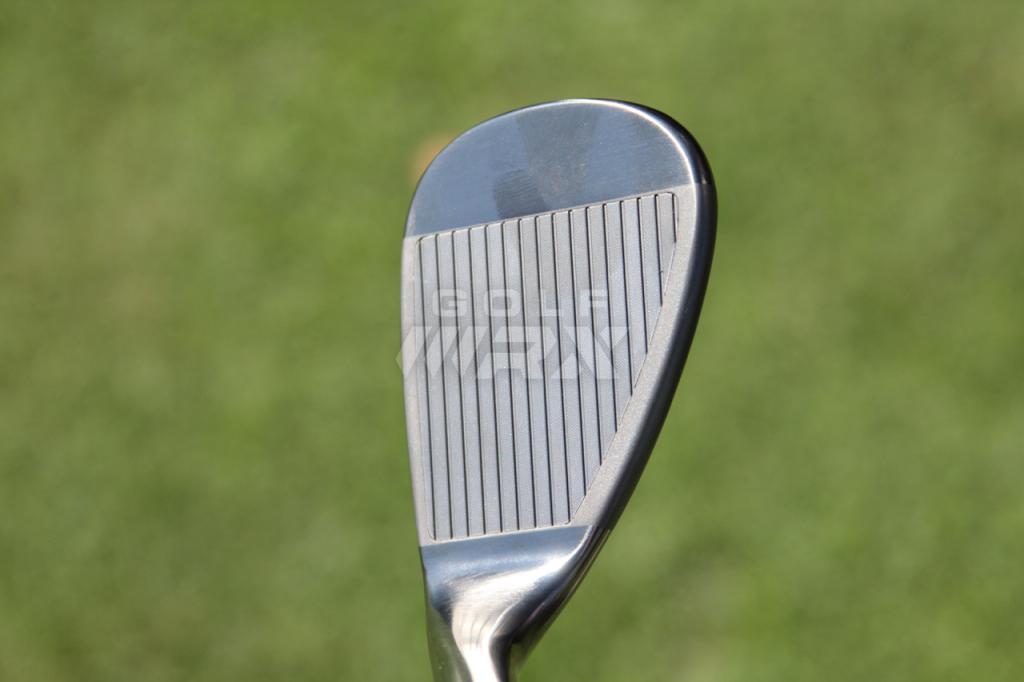

The material is 0.25 millimeters thick — about the size of a piece of paper. Face inserts are then laser-cut from the sheet, and adhered to the 1025 carbon steel body.

[quote_box_center]”The insert material feels like a credit card,” says Clay Long, TaylorMade’s Director of Product Creation for TaylorMade Putters and Wedges. “You can bend it with your fingers.”[/quote_box_center]

The electroformed nickel cobalt insert is about 50 times harder than carbon steel, but according to Long, the increased hardness doesn’t mean a harder feel than the TaylorMade’s previous wedge models.

[quote_box_center]”The feel of the face when hitting a shot is no different than carbon steel,” he says. [/quote_box_center]

Since the insert is made from a master mold, each of the grooves are consistently sharp and won’t dull as fast as milled or cast grooves. The dark PVD finish will show signs of wear, but the grooves will last “for what seems like forever,” Long says.

While PGA Tour players like Dustin Johnson and Sergio Garcia don’t have a problem getting their hands on fresh new wedges whenever they want, both players have put the new wedges in the bag. Johnson won the Northern Trust Open with three Tour Preferred EF wedges (52, 56 and 60 degrees).

The shapes and sole grinds of the EF wedges are consistent with the original Tour Preferred models. They’re offered in two sole grinds, “Tour” and “ATV,” although the ATV grind has a slightly more narrow sole than the original. Also, a few more loft and bounce combinations have been added.

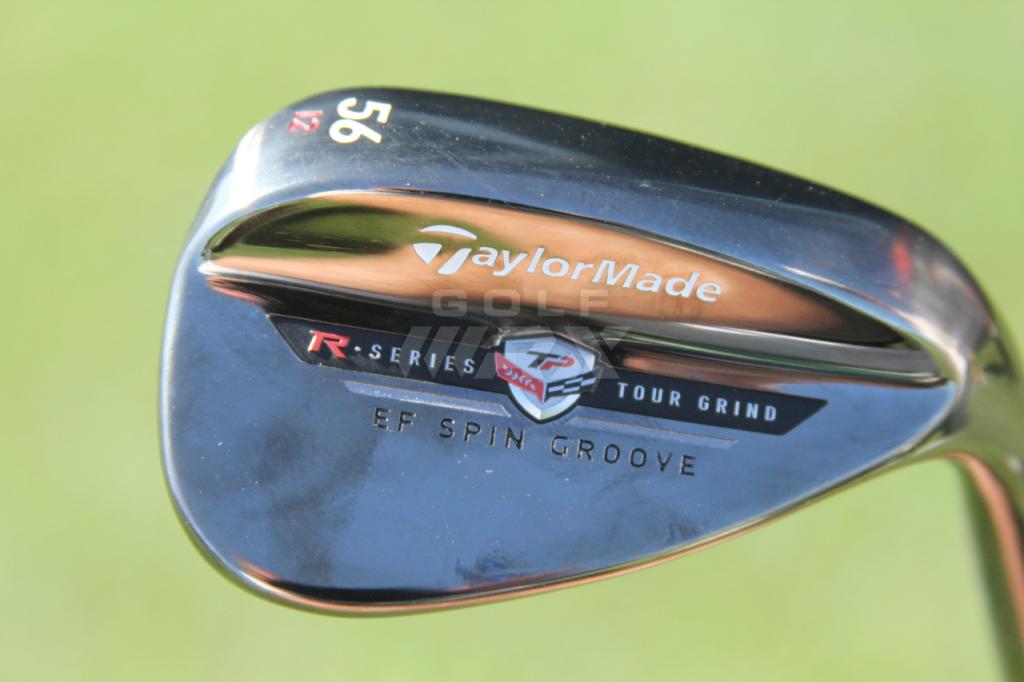

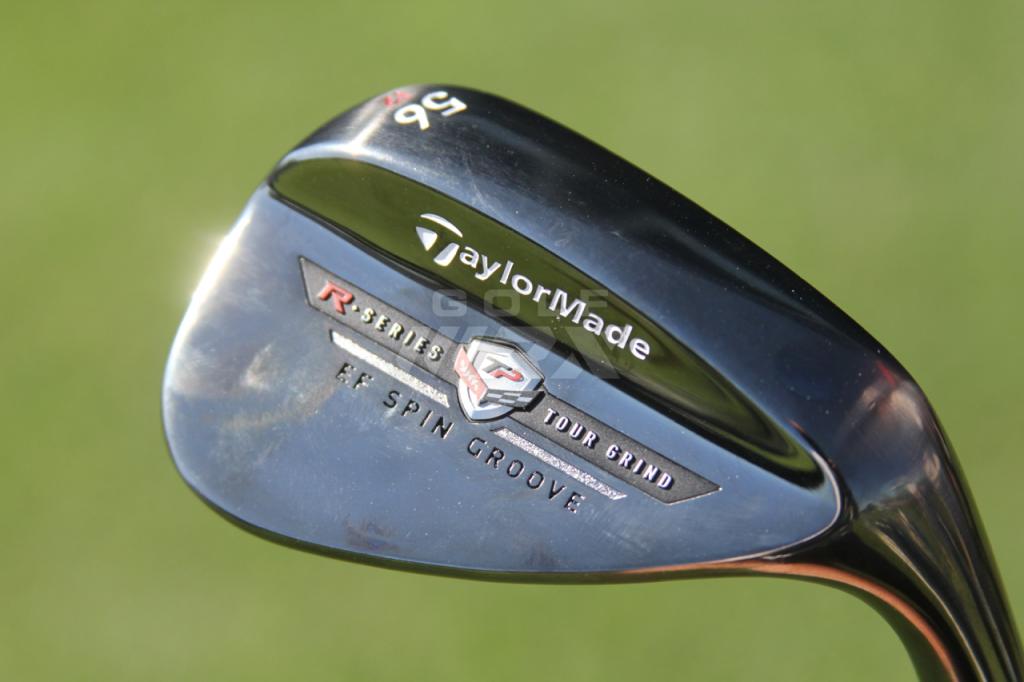

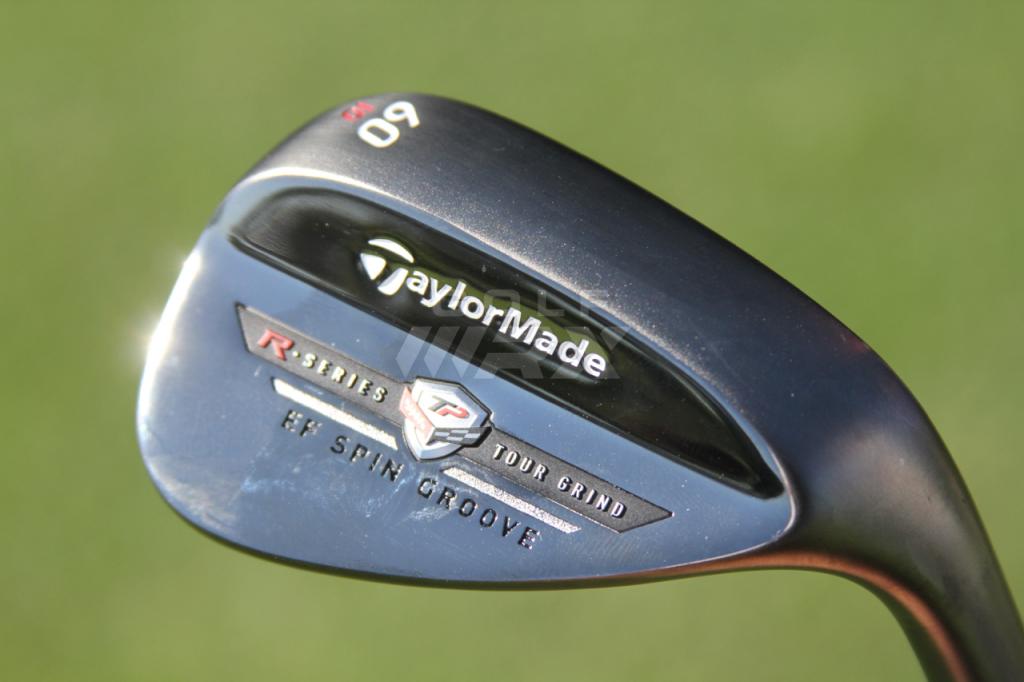

Tour Grind

83feb0d9ba7f568e655dc93d4e92ee8c

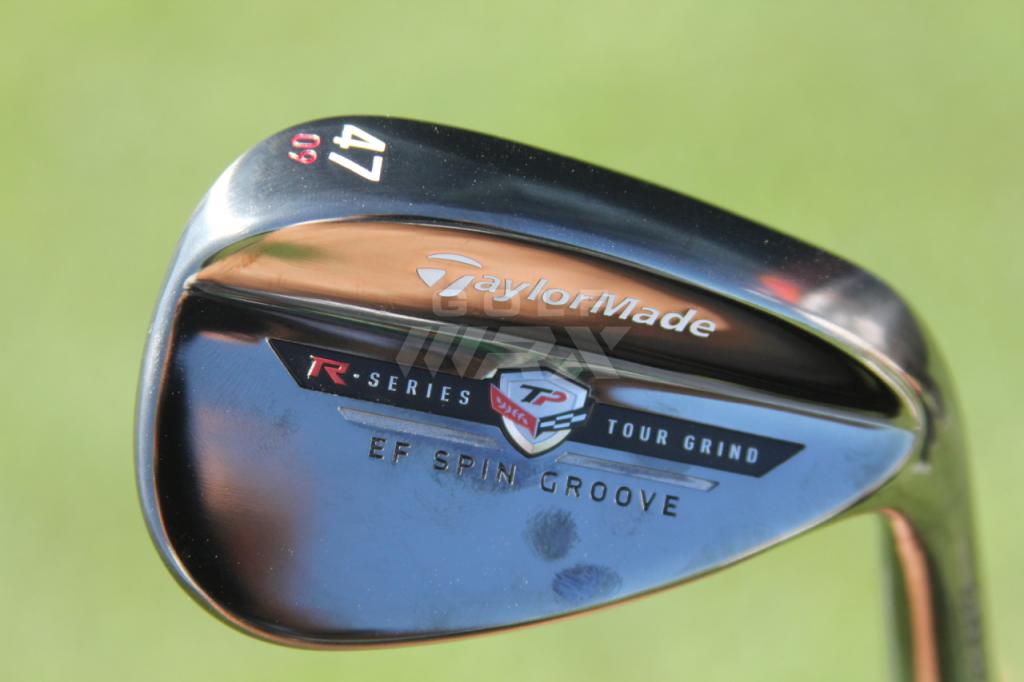

The Tour Grind will be available in eight lofts (47, 50, 52, 54, 56, 58, 60 and 62 degrees) with bounce options ranging from 8 to 15 degrees.

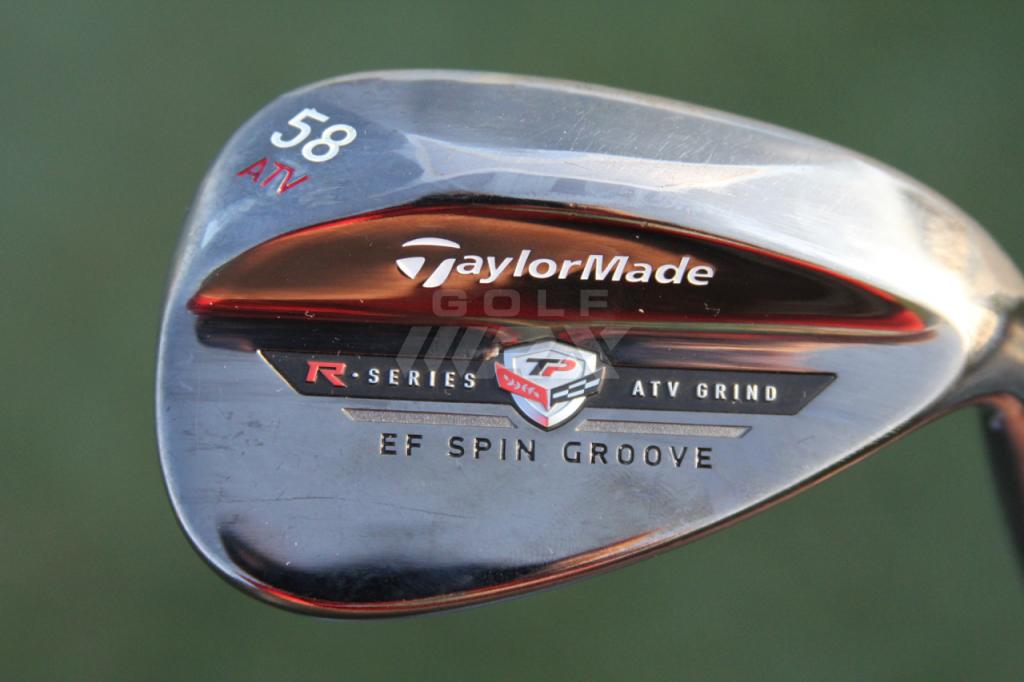

ATV Grind

ATVtaylormade

The ATV grind will be available in five lofts (52, 54, 56, 58 and 60 degrees).

The Tour Preferred EF wedges ($159) come stock with KBS Shafts, and will hit stores on April 10.

For more information, click on the spec sheet below.

Screen Shot 2015-04-06 at 10.57.37 AM

See what GolfWRX members are saying about the wedges in the forums.
