How much do mishits matter in putting?

Published

10 years ago

Mar 31, 2014

Whenever you impact a putt, the ball is programmed with all its directional data. It is at that point that a golfer’s consistency is either compromised or enhanced by the actions of impact alignments.

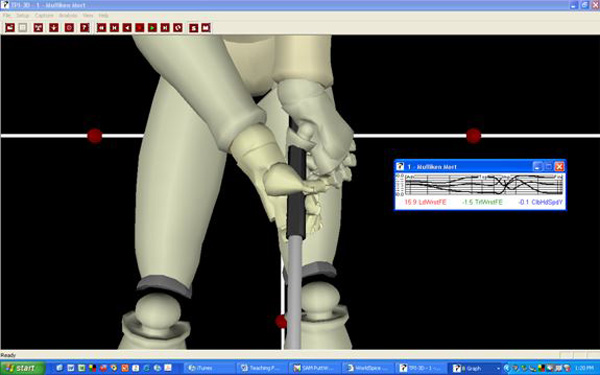

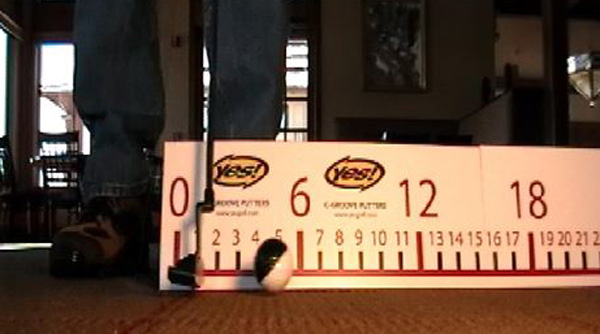

Impact alignments will either make or break a good putter. In this article, I will assume you have perfect alignments (as shown below), which would program the ball’s reactions in a consistent manner from putt to putt and day to day.

Perfect impact alignments provide a neutral club shaft at impact, a flat forward wrist and a bent rear wrist.

In my putting research, I use several high-tech tools to examine the putting strokes of my clients. The two I will use in this article are AMM’s 3D Motion Analysis System, which tracks the biomechanics of the various parts of the body during the stroke, as well as Quintic’s Skid and Roll Putting Launch Monitor, which shows the actions of the ball from zero to 12 inches of movement.

Sample quintic graph showing ball skid versus roll and vertical bounce on a putt.

Ball Roll Angle (BRA): Positive numbers show forward roll, while negative numbers show backspin.
Vertical Bounce (VB): Positive numbers show a ball that is airborne, while a negative number shows a ball on the grass.

There are several things that ball impact programs during the putting stroke, all of which we will correlate here with the data below from Quintic:

Ball Roll: Does the ball have forward-rolling or backward-rolling characteristics? How much at each inch of ball movement (measured in degrees)?
Ball Sidespin: How much sidespin does the ball have and what does this do to the ball’s roll (measured in degrees)?
Ball Speed: How fast does the ball leave the blade (measured in feet per second)?
Vertical Bounce: Does the ball jump into the air or dive into the ground (measured in inches)?

The data below examines three sample putters from leading putter makers. All putters in this study were custom made with the same length, loft and lie to ensure the most accuracy possible in the data below. The three putters also possess and market to their consumers the benefits of their roll-enhancing inserts, which we put to the test for this article.

The takeaway? These putters have inserts with grooves that help impart more forward roll than their smooth-faced counterparts. While no insert can fix issues that you might have with forward roll, they can all enhance the possibility that you will impart more over-spin to your putts than you do currently. However, the combination of proper impact alignments coupled with groove technology will lead to a more consistent roll off the face of the putter for most players.

The Test

Based on the data above we can deduce the following regarding impact points and their effects on the ball’s skid and roll.

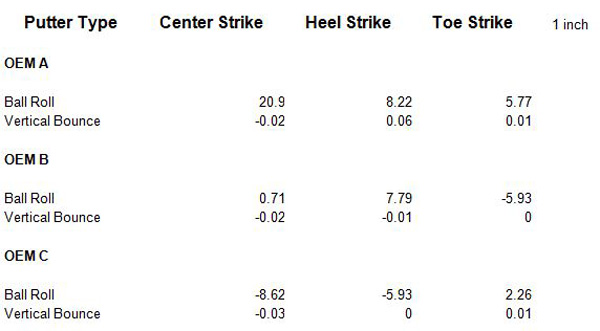

1 Inch After Impact

Loft of the Putter

Whenever the static loft of the putter is set up correctly based on a golfer’s personal impact alignments and mechanics, the ball will leave the blade in a manner that allows for minimal skid and the quickest roll possible.

Not enough loft will drive the ball into the ground, and it will bounce up as a result.

Too much loft will make the ball jump into the air.

Impact Centeredness

There is little difference in the ball’s Vertical Bounce when the ball misses the center of the blade. This is more a function of the loft of the putter in general, not the horizontal impact point.

Ball Speed at Separation

Centered Impact imparted between 8.18 to 8.40 feet/second.
Heel Impact imparted between 7.60 to 7.93 feet/second.
Toe Impact imparted between 7.98 to 8.32 feet/per second.
The Toe Impact ball speed was higher due to the amount of sidespin imparted to the golf ball during impact, but this will soon cause other issues.

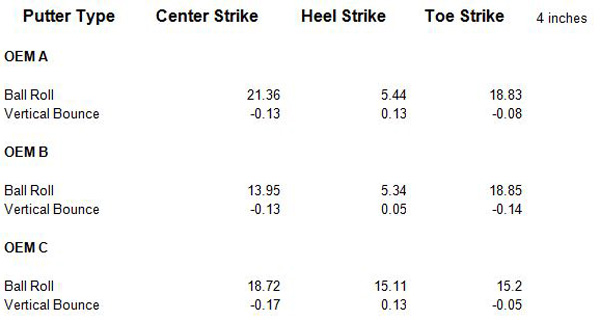

4 Inches After Impact

Impact Centeredness

When the ball is impacted in the center of the blade, it encourages a more aggressive forward rolling of the ball at this stage. Between 15-to-20 degrees of forward roll is normal.
If you are to miss the center of the blade, the toe of the putter imparts the most forward-rolling characteristics at 4 inches, but also imparts more sidespin to the ball than the heel impact.

Sidespin

The average Heel Impact Sidespin was between 15 and 25 degrees, while the average Toe Impact Sidespin was between 25 to 35 degrees.
Toe Impacted Side Spin causes the ball to “roll” quicker off the start, but it contributed to a lower overall “forward rolling” value at 8 inches.

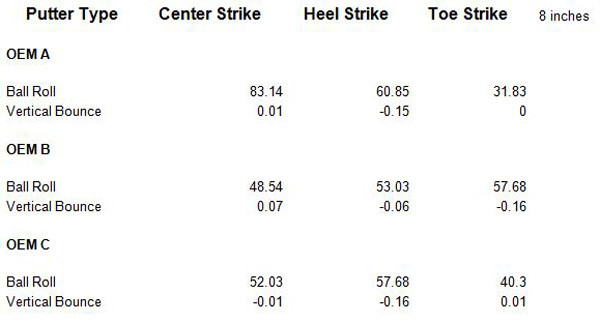

8 Inches After Impact

Impact Centeredness

The Centered Impact imparts 50 to 80 degrees of forward roll.
The Heel Impact imparts 50 to 60 degrees of forward roll.
The Toe Impact imparts 30 to 40 degrees of forward roll.

Sidespin

Toe Impacts affect the ball between 4 and 8 inches, as they slow its forward roll due the amount of side spin.

After the ball has reached the 8-inch mark, it should have stopped bouncing and skidding and hopefully started to reach true roll. The quicker you can reach “true roll” the first actual 360 degree motion of the golf ball without leaving the ground the better the ball will be rolling. We cannot control the ball when it’s bouncing in the air, nor can we influence it after it hits the ground. However, we can do our part to influence and produce impact alignments and roll characteristics that can help us to reach true roll quicker.

Our job as teachers is to put you in a correctly fit putter and give you the fundamental mechanics necessary to create consistency in the ball’s actions off the blade. If we can do this, you will be on your way to becoming a better putter day in and day out because it makes a big difference.
