Equipment

When are your grooves worn out?

Published

11 years ago

Mar 12, 2013

Have you ever heard an announcer during a golf telecast talk about how PGA Tour players “control their spin?” If you’re like me, you probably thought to yourself, “I wish I actually had some spin to control.”

It’s frustrating to hit what looks like a good pitch shot only to see it bound past the pin and off the back of the green. But if you’ve been using the same wedge for awhile, there might be an easy fix to get more grab on your greens, because having sharp grooves in your wedges gives you the best chance at creating the spin you want inside the 100-yard scoring zone.

Before you run to the store, let’s discuss how wedges actually create spin. From there, we can determine if your lack of spin is actually an equipment problem.

How wedges create spin

At impact, the grooves are responsible for biting into the cover of the golf ball. The downward strike on the ball, coupled with the sharp grooves, traps the ball against the ground and creates backspin.

Over time, the lower grooves will start to wear out and eventually will not catch the ball as sharply. The dulling grooves allow the ball to roll up the face just slightly before catching some of the higher grooves. When the ball rolls up the face, spin is lost because friction is lost.

Creating spin is not done by the grooves alone, however. Spin is a function of the golf club as a whole. Research is finding more and more that spin also has a lot to do with the roughness of the face of the wedge. Pick up a new Cleveland wedge and look closely at the new Rotex milled face of the club. The laser milled pattern you see between the grooves creates miniature grooves on the face and increases the “grab” factor at impact, especially on less than full shots.

To research the difference between new and two-year-old grooves, I hit identical 56 degree Titleist Vokey wedges on a launch monitor using Titleist ProV1s. All the shots I charted were 90 to 110 yards. The wedge that I had in my bag for two years spun an average of 9000 rpms; enough to keep the ball within three or four yards on average of where it landed, never spinning back.

When I switched to the new Vokey, I instantly noticed the difference. The feel and sound was completely different. I heard the sharp groves catching the ball on the bottom few grooves, and I felt the ball staying on the lower grooves. Looking at the ball, I noticed the difference as the new wedge bit into the ball and scuffed the cover. The new wedge spun an average of 12,000 rpms and pulled back on the majority of shots.

(Graph from TaylorMade about its XFT wedges with interchangable faces)

What kind of a difference can these numbers make during a round? Let’s say you’re 90 yards away from a front pin that is tucked behind a bunker and your ball lands just three yards beyond the pin. With old grooves, your ball will most likely stop around seven feet beyond where it lands, leaving you with a 15 to 20 foot putt. With new grooves, that same shot will have a chance at stopping where it lands, if not spinning back towards the hole, leaving you inside of 10 feet and a very makeable putt.

One solution to bringing back some sharpness to grooves that have worn down is to purchase a groove sharpening tool. You can buy these tools at any local golf retailer, but you need to be careful about a few things. While the sharpening tools do give a little bite back to an old wedge, they do not come close to the sharpness of new grooves. When I tested an old wedge after groove sharpening, it averaged about 10,500 rpms on 100-yard shots.

It is worth noting that a groove sharpener works by grinding out some of the metal on the club face. The rules of golf state that grooves must be no more than 0.035 inches wide, 0.020 inches deep and 0.075 inches from any adjacent grooves. If you play competitively, using a groove sharpener could make your clubs non-conforming and illegal for competition. In fact, Titleist’s Vokey Wedgeworks shops will not resharpen grooves because the margin is so thin between conforming and non-conforming.

The sole of the wedge can also determine if it is time to replace the club. When you buy a new wedge, the sole of the wedge has a specific grind to it that hopefully fits your swing and the turf conditions you typically play on. Vokey alone offers 11 different sole grinds on their SM4 wedges. Over time, the sole wears down to fit your individual swing print. As the grind changes, so does the performance of the club. Tiger has said he will change his 60-degree wedge about four times per year because of how much he practices.

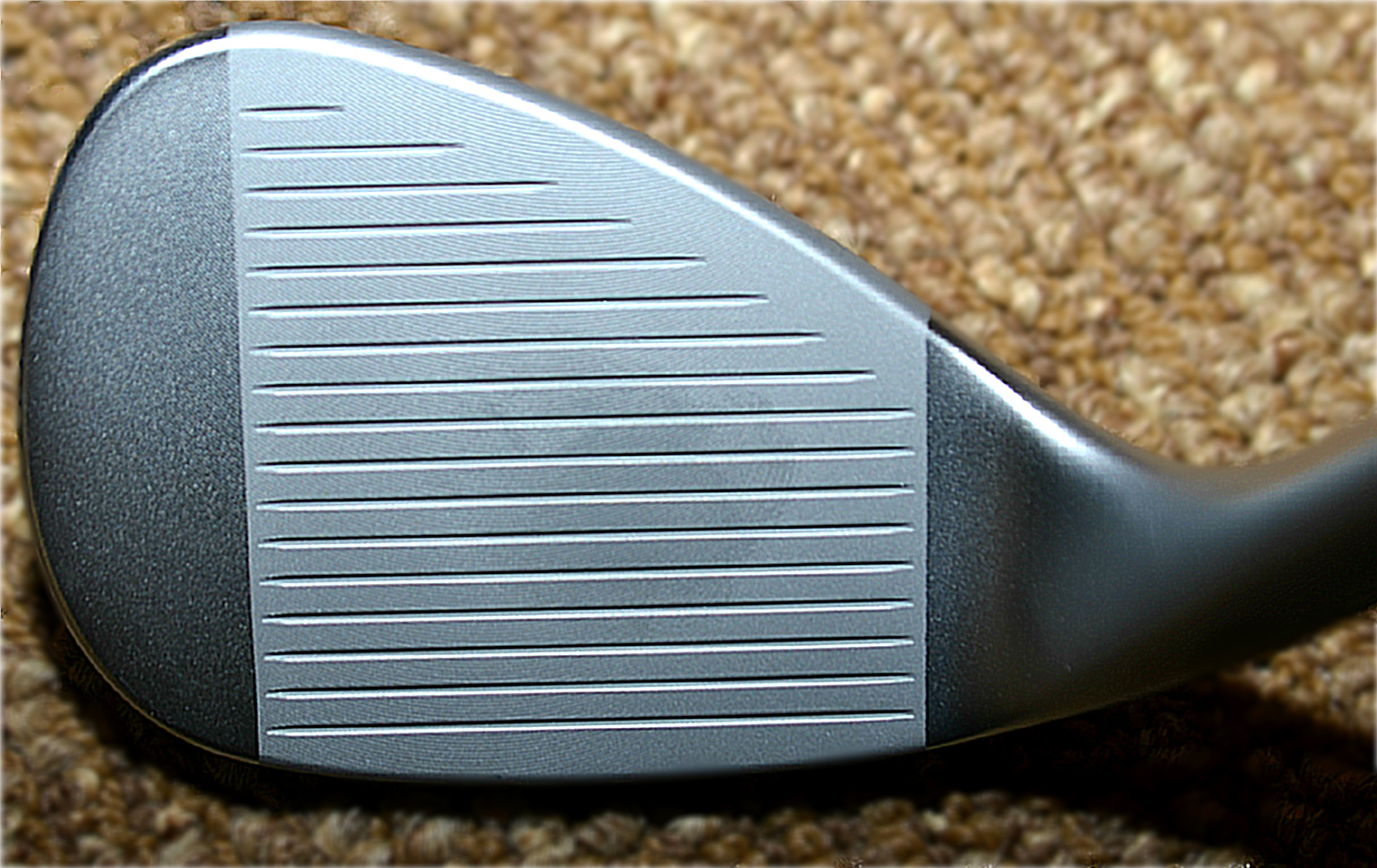

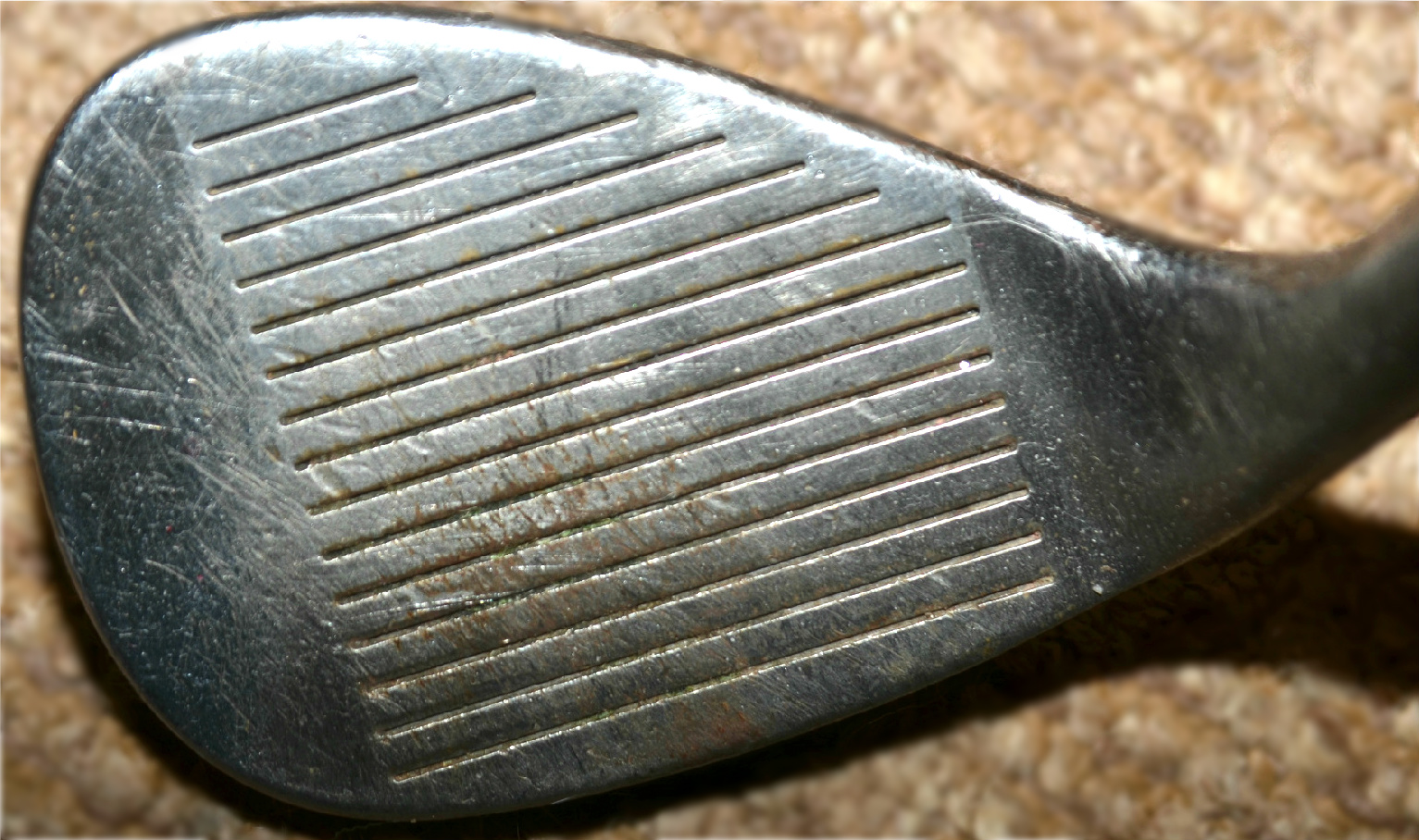

New grooves (left) versus worn out grooves (right)

The Takeaway

The best way to know whether to replace your wedges is to practice with them. Although this may seem counter-intuitive, as using your wedges will only wear down the grooves, it is a great opportunity to get a good feel for how much life is left in them. When you are practicing, take note of your ball flight. Does it come out low with a lot of spin, or does it launch high with little spin?

If you are practicing on grass, hit a few shots with some grass built up in the grooves. Try to feel the ball rolling up the face of the club before being caught by some of the higher grooves. These shots will typical launch high with little spin, and seem to fall out of the sky. After you have felt what a shot feels like with less spin, give your wedges a good cleaning and notice the difference as your next shots come out slightly lower, but with much more spin.

Eventually, your wedges will wear down to the point where it feels like there is grass built up in your grooves even after you have cleaned them. This is when it is time to replace your wedges. To test if your wedges are already at that point, check with your local golf shop to see if they have any wedges available for demo. Take the wedge to the range and try it against your current wedges, or schedule a fitting with a PGA professional who can help you determine if your wedge is worn down enough to be replaced.

Your Reaction?

LIKE208
LEGIT37
WOW13
LOL15
IDHT16
FLOP14
OB11
SHANK40
