What’s your smash factor?

Published

on

One of the most egotistic terms that my Trackman monitor produces is undoubtedly SMASH FACTOR. Often varying between 0.8 and 1.5, smash factor, by nature, speaks to the egos of people wanting the see the highest number. But what really is smash factor?

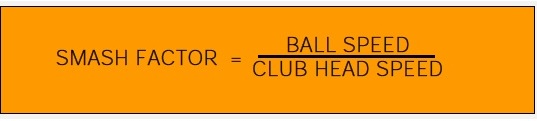

SF

In simple terms, smash factor is an “efficiency rating” on the quality of strike; it shows us how much ball speed we are achieving per 1 mph of club speed that we produce. For example, if your ball speed was 140 mph and your club speed was 100 mph, your smash factor would be 1.4, since 140/100 = 1.4.

Generally, top professionals would be aiming for a 1.5 smash factor with a driver and a 1.4 smash factor with mid irons. But it’s important to note that any level of golfer can achieve these numbers; a young child who has a good relationship between his club speed and ball speed could produce a 1.5 smash factor!

Why is smash factor important?

Primarily, smash factor is highly influential in terms of controlling the distance we hit the ball. From a distance perspective, it is important to understand the importance of ball speed, as it accompanies launch angle and spin rate to complete the three main components of distance. Despite this, I see a lot of players chasing club head speed, and while it is important, it is almost redundant if not accompanied by appropriate ball speed.

Beginner Golfer Cartoon

To match the desire for distance, as a general rule, we should be striving to create the HIGHEST smash factor with our longer clubs; however, this is not the case with shorter clubs and in wedge play. With those clubs, a smash factor of around 1.0 should be targeted as opposed to a 1.1 or 1.2 that I so often see.

This idea of lowering the smash factor is to help with distance control, as a ball that is flying off the club face too quickly can be difficult to control. James Ridyard, a PGA Professional from the UK, has done some great work on smash factor in wedges, discussing specifically the idea of controlling spin loft (explained below). In a recent presentation, James explained how a 4-degree error in spin loft with a club head speed of 60 mph can result in a 30-foot miss!

What affects smash factor?

The two most influential things that can affect smash factor are:

  1. Spin Loft
  2. Strike point

By definition, spin loft is most easily thought of as the difference between the angle of attack (is the club traveling downwards or upwards) and the dynamic loft (loft presented at impact). It is often referred to as a measure of how much energy is transferred into the ball.

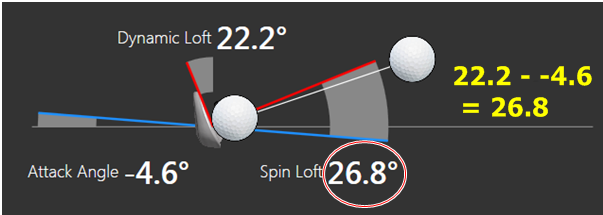

Spin loft

The above picture shows an angle of attack of -4.6 and a dynamic loft of 22.2. The difference between these 2 numbers is 26.8, giving a spin loft of 26.8.

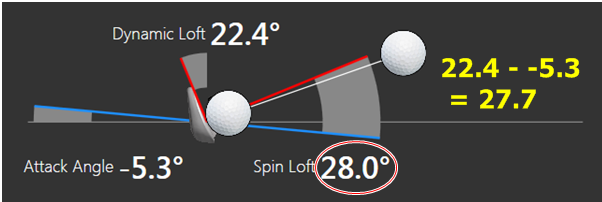

Spin loft 1

BUT in the above example, the difference between the angle of attack and dynamic loft is 27.7, however the spin loft reported is 28.0. This is because spin loft is by exact definition a 3-dimensional number and involves the face-to-path relationship.

 If you think about spin loft as a measure of the amount of energy transferred into the ball and then think about punching a bag with a glancing blow (representing hitting a ball with a club face well open to club path), this should help you visualise how a poor face-to-path relationship could increase spin loft (reduce the energy transferred into the ball).

Striking the ball on the sweet spot of the club is also very important when looking at smash factor. As you know, off-center hits do not always result in long drives and controlling the strike point is pivotal when attempting to achieve a high smash factor. The below picture is a great example of how strike point is important. As you can see, a lower club head speed with a better strike point resulted in more distance.

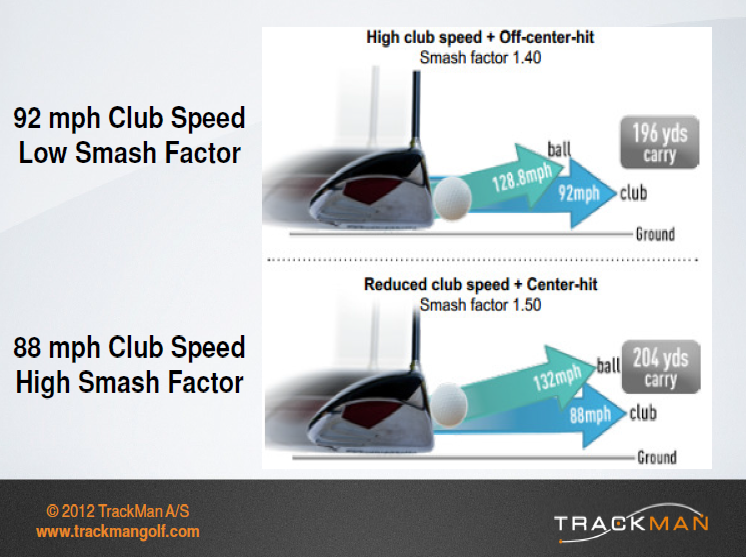

Smash Factor ex

In essence, it is a combination of strike point AND spin loft that will help you achieve a good smash factor!

How can we improve our smash factor?

Before identifying how we can improve smash factor, here is a fact from Trackman that may just motivate you:

[quote_box_center]Reducing Spin Loft from 30 degrees to 25 degrees with a 6 iron will raise Smash Factor by 0.06. For the average amateur, 0.06 equals 5 mph of ball speed or approximately 9 yards.[/quote_box_center]

As shown, reducing spin loft can often drastically help improve smash factor; however, without a ball flight monitor it is impossible to accurately measure spin loft. For this reason I would advise you to go and find your nearest instructor with a monitor and with his or her help you should then be able to gather some information on your current spin loft and discuss whether it actually needs improving.

If you’re not able to use a monitor, however, try this.

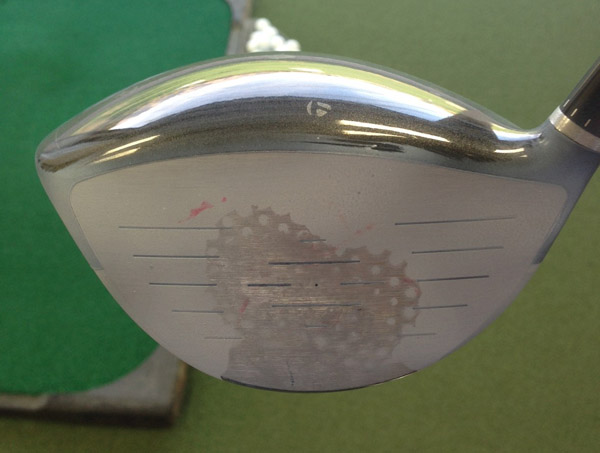

Strike point is an easier variable to measure yourself, and all you need is a little athlete’s foot spray. Simply spray a light coating on the club face and after hitting a shot or two, you will soon be able to get some accurate feedback on your strike point.

Strike point

Remember, one (spin loft) without the other (strike point) is not what we want. So aim to combine the two! Happy smashing!
