Face the facts in putting: Controlling face angle

Published

on

Controlling face angle in putting is a tenacious task. The top players in the world even struggle with this on a daily basis. What about conventional golfers? Can controlling face angle really improve one’s ability to put the ball in the hole?

The short answer is yes, but there are many influencing factors: the style of the putter (face-balanced, plumber-neck, heel-shafted, center-shafted), head weight, posture, alignment, lie and loft, etc. All are factors that can aid a player in controlling face angle, for better or worse!

The purpose of this article is to inform golfers why this is crucial, what to look for when rolling putts and looking for a new putter, and how they can get better.

Note: Through this entire article, we are assuming centered contact with ball and putter head (center mass to center mass). Heel and toe strikes have minimal effect on the direction the ball rolls.

The main purpose of having a square face at impact is to start the ball on your intended start line, but that’s much easier said than done. As the loft on the club gets lower, the more influence face angle has on the direction a ball starts to move or roll. For example, with a 6 iron with a loft of approximately 28 degrees, face angle at impact has a 75 percent effect on the direction the ball launches. The other 25 percent is path. As the loft on the club decreases (i.e. a driver), gear effect aside, face angle has an 85 percent effect. With a putter with a loft of 2 degrees, the influence is greater than 90 percent. This is massive!

A putter face that is open 2 degrees at impact will miss the hole from 5 feet! For a putt to go in at 8 feet, the angle of the face needs to less than 1 degree open or closed to the target. Increase the distance to 15 feet and the putter face needs to less than 0.5 degrees open or closed to the target for the putt to go in. Can you tell the difference between a face angle that is 1-degree closed or open to your target line?

Article #3 Push Putt image

Consider the above statistics. Now consider the PGA Tour average of putts made from inside 5 feet, from 10 feet, and from greater than 10 feet. From the beginning of the 2014/2015 season until now (3.20.2015), here are the best putters from those distances according to PGATour.com.

  • Inside 5 feet: Vaughn Taylor — 99.25 percent
  • From 10 feet: Jerry Kelly — 71.43 percent
  • From greater than 10 feet: John Daly — 22.94 percent

Notice the drop from 10 feet to greater than 10 feet — it’s 48 percent! Remember, a face that is open by 1 degree will miss the hole from 8 feet. This is evidence that face angle outside of 10 feet is unyielding. Outside of 10 feet, most amateur players should focus on getting the proper speed for the putt, but inside 10 feet is where the magic happens. Controlling face angle is what the best players in the world do best.

When selecting a new putter, the style of the putter needs to compliment the style of stroke a player has. That’s why identifying what type of stroke you have is critical.

There are three generalized styles of putting stroke.

  1. Straight back, straight through: The putter moves in a straight line away from the ball and straight through the ball.
  2. Minimum Arc: There’s a slight arc to the path of the putter head with minimal face rotation.
  3. Lots of arc and face rotation: The putter head moves with a noticeable arc and plenty of face rotation.

Golfers who have an arc to their stroke with more face rotation usually prefer or fit into toe-weighted or heel-shafted putters. This gives them more control over face angle at impact.

Golfers with less arc and face rotation generally fit into a plumber’s neck model putter. These putters generally suit strokes with minimal arc and face rotation.

Golfers who like the feel of a “straight-back, straight-through” stroke tend to favor a face-balanced putter. This is a generalized comment, because sometimes different putters feel and perform better to these golfers. Ultimately, the putter should feel comfortable and very natural throughout the stroke. It should also feel very easy to line up to the target.

Checking alignment can be tough to do without a laser or other types of calibrating tools. Typically, most golfers think they are lined up properly, but are not. Using a laser that can sit flush with the putter face is the most accurate way to test this.

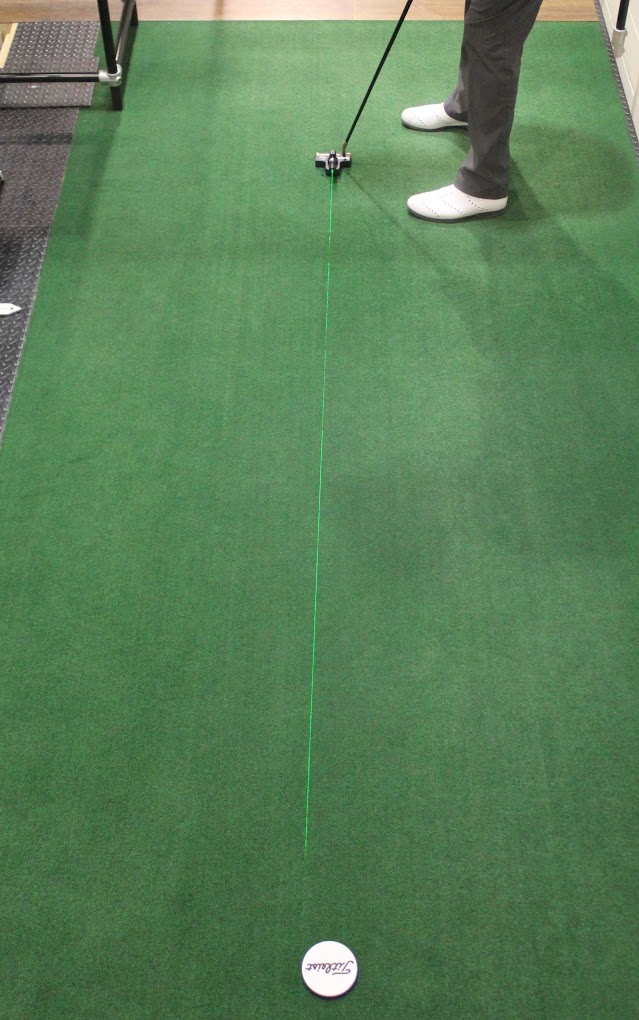

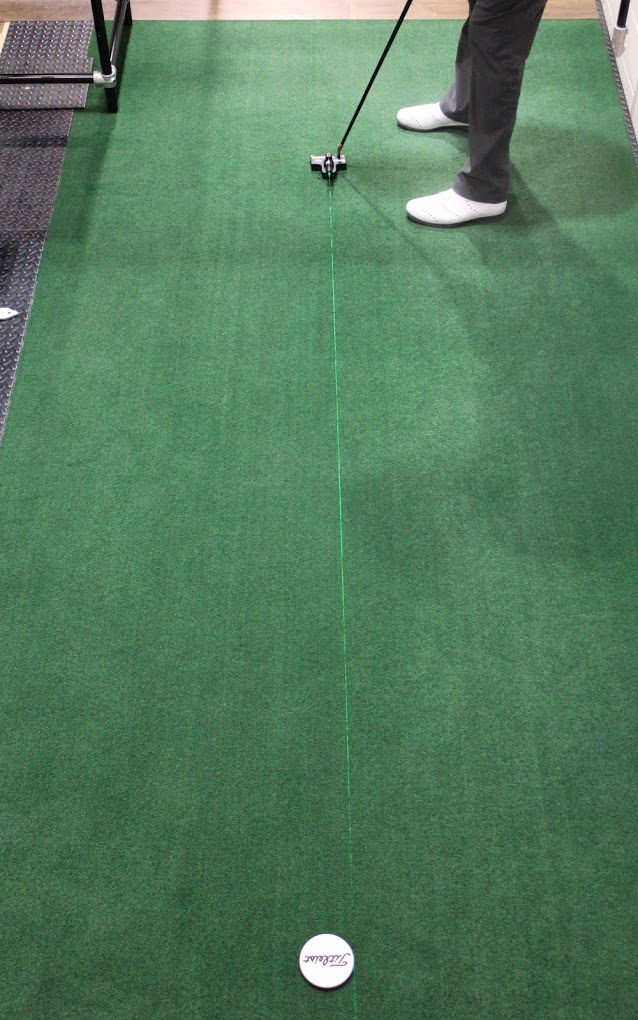

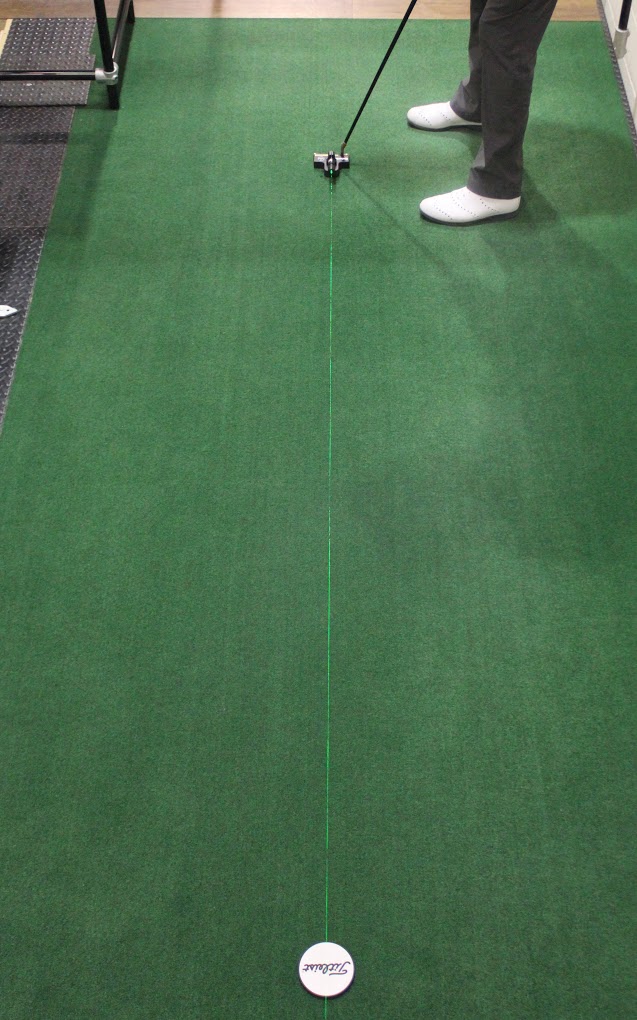

Below is an example of how a laser can help identify face angle at address. If your face angle is not square to your target or start line, something would have to change somewhere through the stroke to get the face to square up.

I know some of you are thinking, “What about Billy Mayfair?” Mayfair cut every single putt he made and missed! His face angle was very open at impact during his prime. What he did very well was match his putter’s path to his face angle, so his path, which only has a 10 percent influence, complimented what direction his face was aligned. At Modern Golf, we would never encourage a player to emulate this style of putting. It is too difficult to repeat and adds a ton of cut spin to the roll of the ball. But if a golfer comes to us with this tendency and putts well, there is often no reason for him to change.

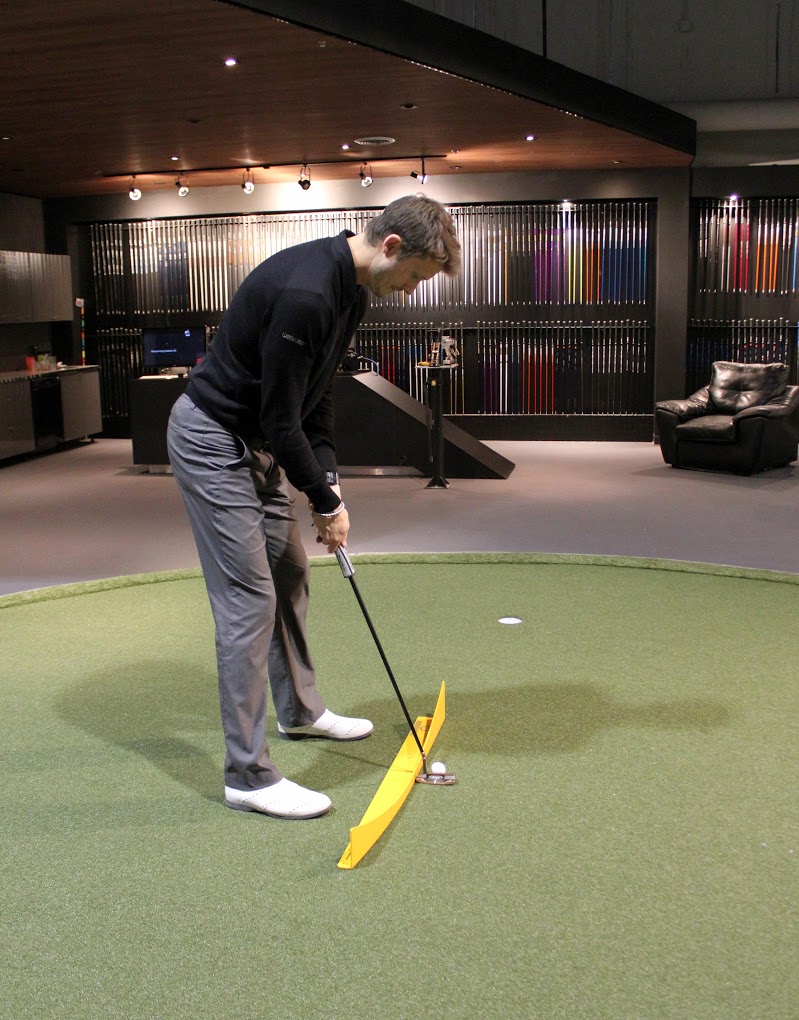

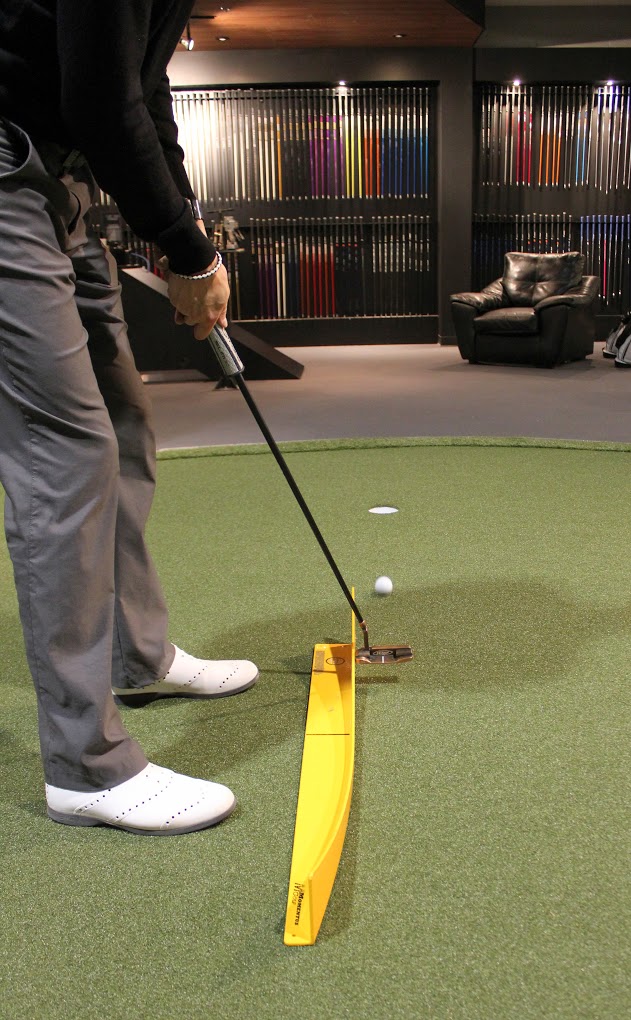

One way to work solely of the face angle of your putter at impact is to eliminate path as a variable. Using a putting arc, or a 2×4 piece of wood to run the heel of the putter along to eliminate any path deviation will isolate face angle, but this is only really applicable to short putts. At some point, there should be some arc in a golfer’s stroke.

If you are looking for a quick way to lower your putts on the course, isolate face angle. Work on putts inside 10 feet. These are the ones that have the highest percentage of going in regardless of outside variables. It takes commitment and some extra tools, but it’s one of the quickest way to lower your handicap.
