Callaway Steelhead XR irons and hybrids

Published

on

Callaway’s new Steelhead XR irons and hybrids each draw from equipment designs and technologies in the company’s history.

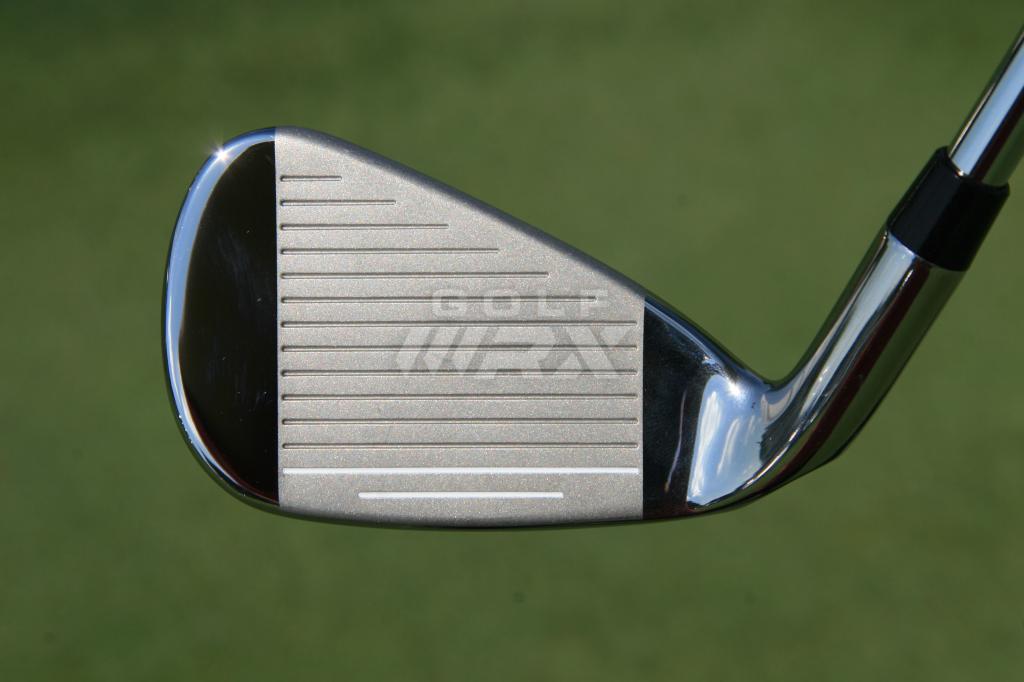

The new Steelhead XR irons are influenced by the Steelhead X-14 irons — some of the most highly coveted irons in Callaway’s catalog — that were released in the year 2000 (click for a reminder of what they look like). For its new release of game-improvement irons, Callaway looked to the classic Steelhead X-14 irons for shaping and mass properties, and used its since-acquired knowledge of iron design to add performance benefits.

88a80ef20ddf40e40f5138f4bea54b0b

A face-on look at the Steelhead XR irons shows they’re reminiscent of the original Steelhead irons.

The Steelhead XR hybrids also implement designs from other Callaway products, albeit from the not-so-distant past. For its Steelhead XR hybrids, which are to be used as replacements or complements to the iron set, Callaway borrowed design concepts from both the Apex hybrids — originally designed for better players, according to Callaway — and the Callaway XR drivers, which were co-engineered with Boeing.

For more specifics, read below. To join the conversation about the Steelhead XR release and see more photos, CLICK HERE.

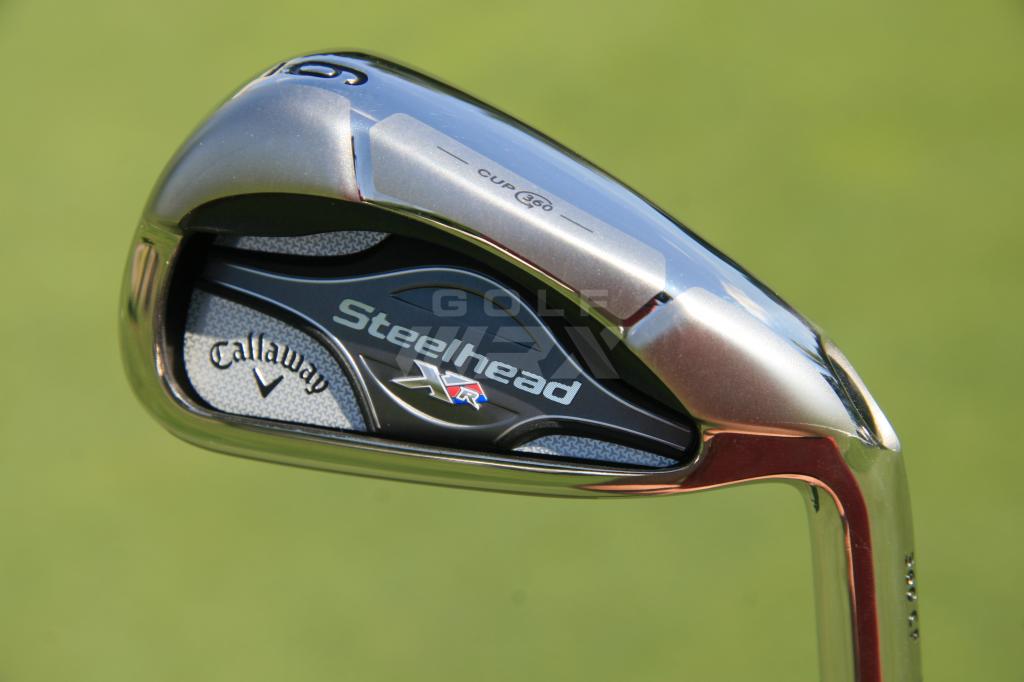

Callaway Steelhead XR irons

cc7240fcf57a5611a0c3be67a8881d72

Callaway’s line of XR clubs have become known for speed and forgiveness. The new releases are no different in that sense.

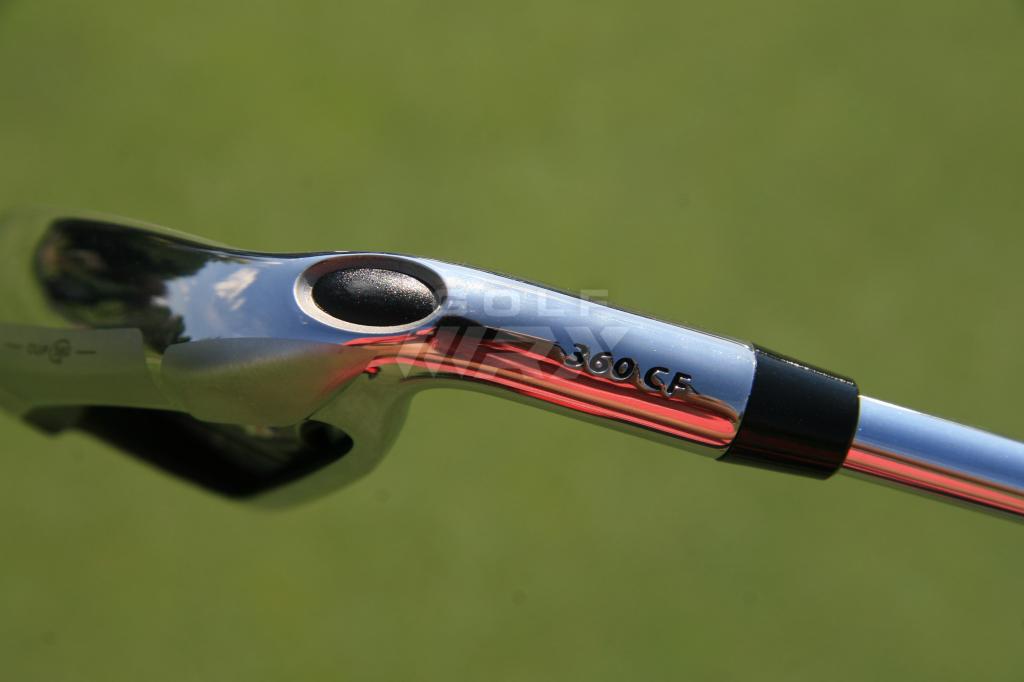

The idea behind looking into its history at the Steelhead X-14 irons was to implement characteristics of shaping and mass properties to make a more forgiving, balanced iron. Visibly, you’ll notice a “hitch in the topline near the heel,” as Dr. Alan Hocknell, Callaway’s Senior VP of R&D, describes it. This allowed Callaway to put the center of gravity (CG) at the direct center of the club head, in relation to the heel and toe. Additionally, there is a bore-through in the heel, helping also to control the CG, and to raise moment of inertia (MOI), according to Hocknell.

b4e7d8468aaa83f7317ae8575280593e

It was important for Callaway to control CG from heel-to-toe, placing it on the center line, as well as controlling it from top to bottom. The irons are designed to have lower CG in the long irons, where higher launch is crucial for more distance, forgiveness and stopping power. On the other hand, the short irons are designed with higher CG, which is important for control, and to avoid producing shots that are “too floaty,” as Hocknell said.

CallawaySteelheadConstruction

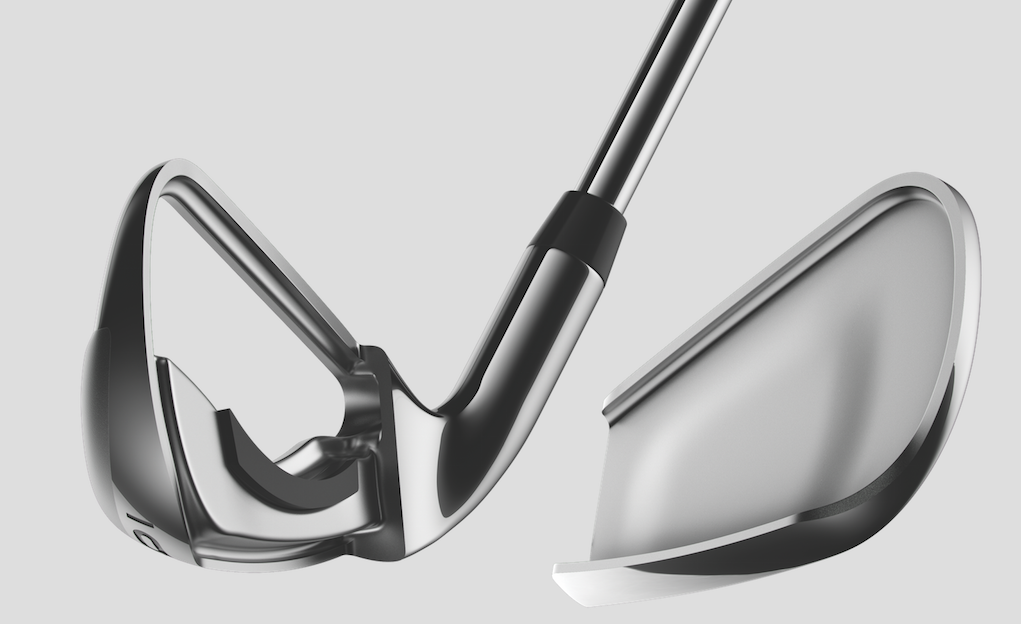

Here is what the construction looks like. Graphic provided by Callaway.

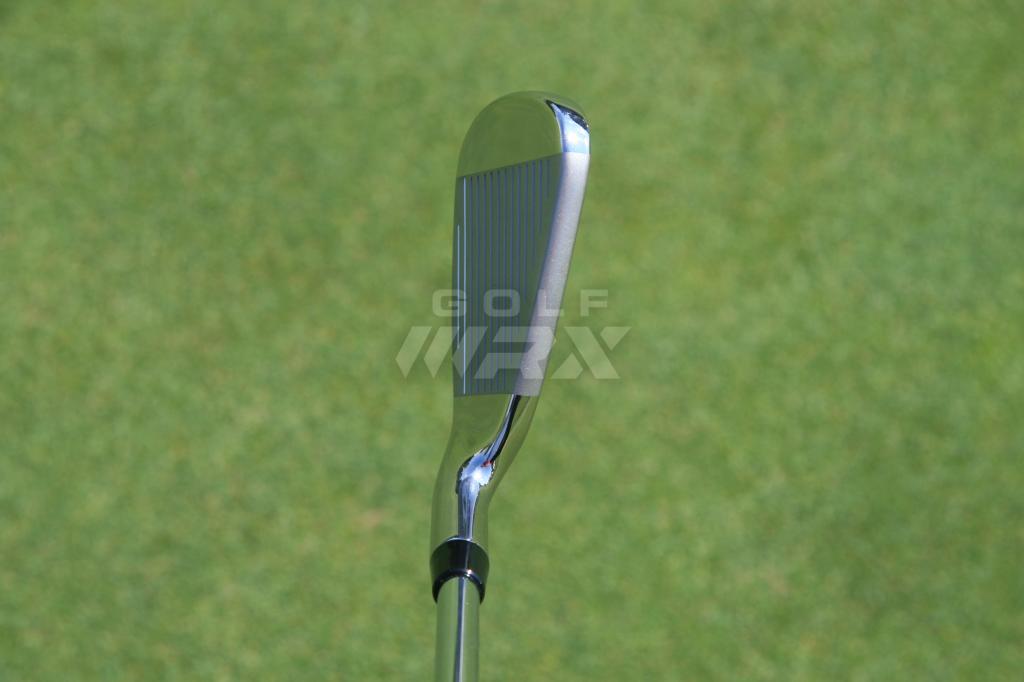

Callaway uses a new material — steel-infused polyurethane — that sits behind the face in the cavity of the irons, which are made from 17-4 stainless steel. The material (pictured above) is placed low in the irons to drive CG downward, and also serves to dampen vibrations at impact, keeping the irons from feeling harsh, according to Callaway.

0001b97ea239fc029e8354ef28eca9da

The Steelhead XR irons were also designed with coefficient of restitution (COR) that goes “as high as anybody dares to go,” Hocknell said. With faster 360 Face Cups — Callaway’s familiar variable-thickness faces that are welded to the bodies — than previous irons, the Steelhead XR irons have thinner perimeters helping to extend the high-COR area, and pushing it right up to the legal limit. This means they will produce extremely fast ball speeds across the face.

8dabf8e0588ad6b8b68b8b4277c564e3

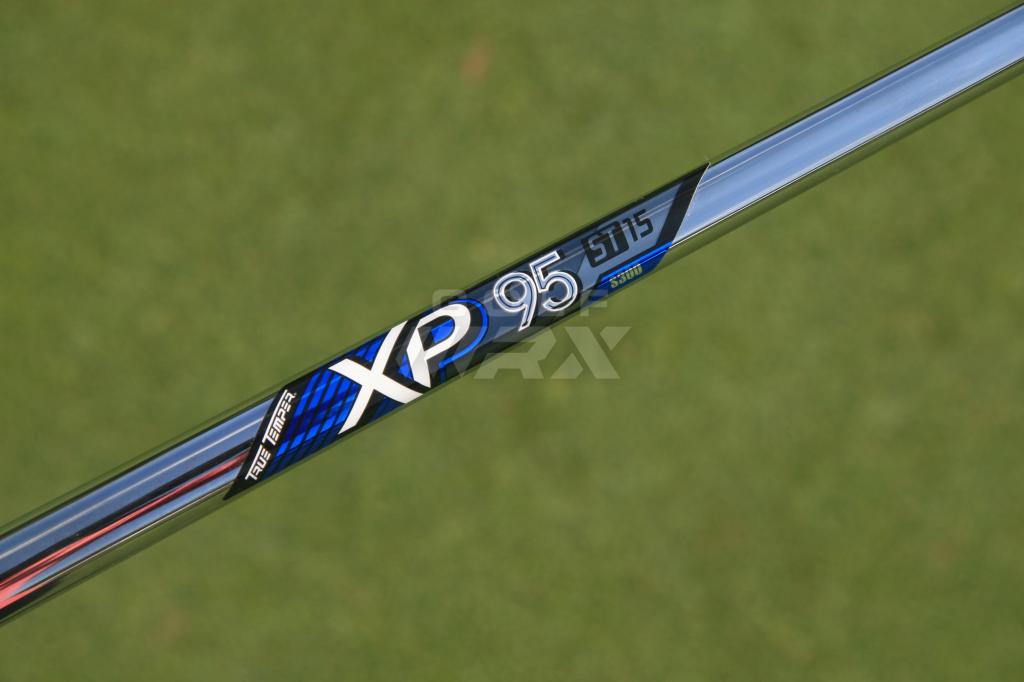

Steelhead XR iron sets (3-LW) will be available in stores on September 2, and will sell for $799 with a steel shaft and $999 for graphite. Stock shafts will be True Temper’s XP 95 Stepless (Steel) and Matrix’s F15 (Graphite), although there is a “wide array” of aftermarket shafts available.

Click here for more photos and discussion.

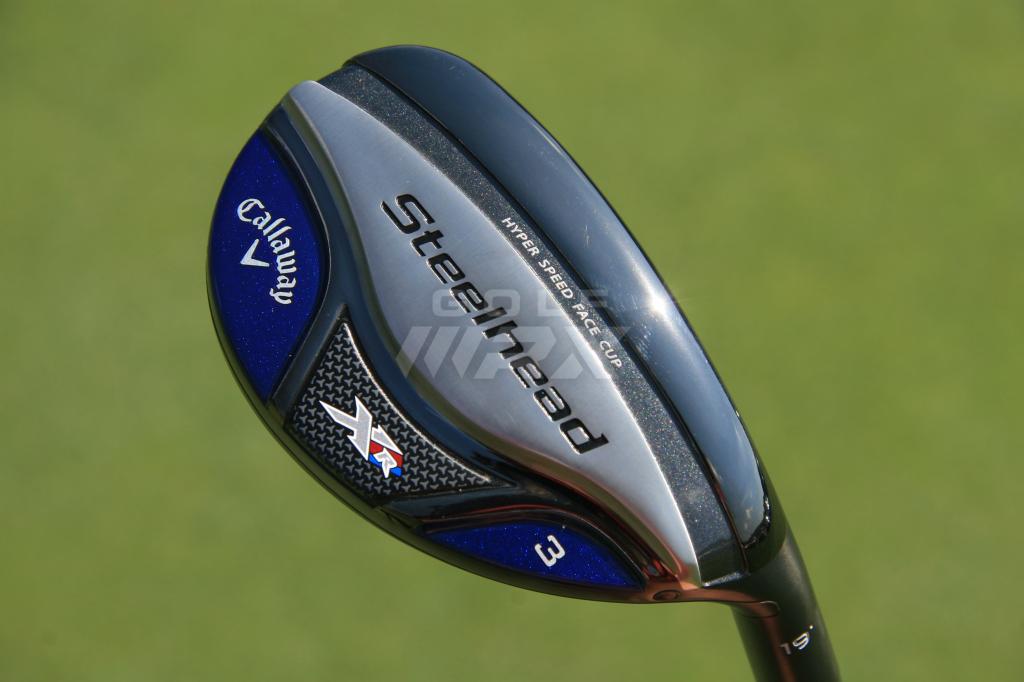

Steelhead XR hybrids

64ce8bc2b17fe481a08976a27c649cc2

To Callaway’s surprise, according to Hocknell, average players showed serious interest in the recently released Apex hybrids, although they were designed for lower-handicaps.

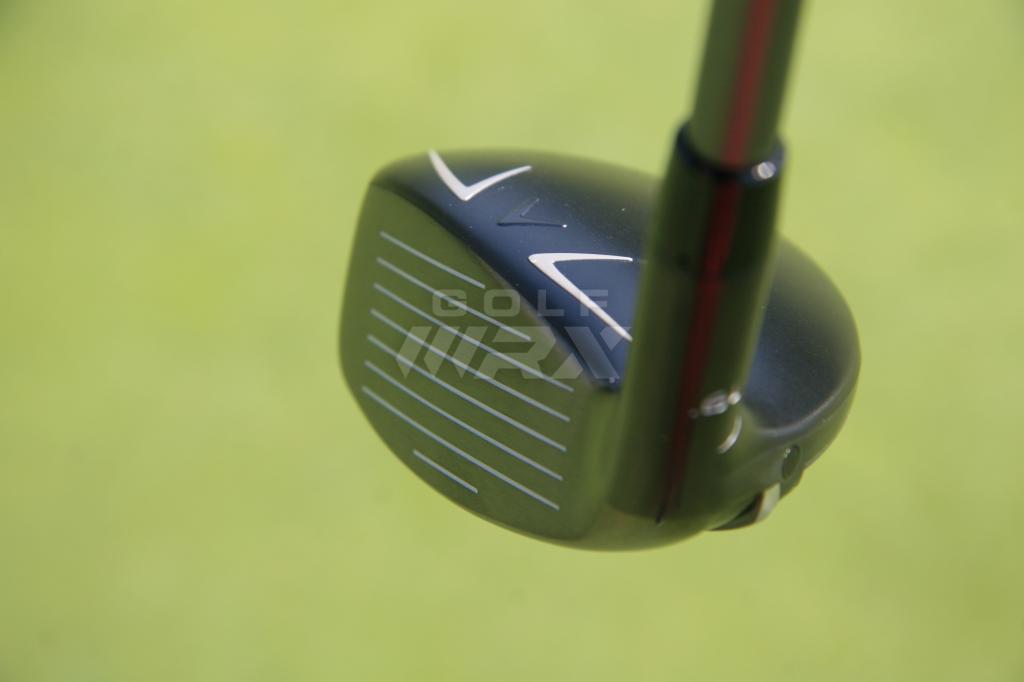

After listening to the feedback, Callaway looked to the Apex design, and made some adjustments for those who need more forgiveness, launch, and ultimately, distance. To do this, Callaway made the blade lengths longer, and made the club heads deeper from front-to-back, while keeping the familiar squared-off toe reminiscent of the Apex hybrids. The bigger surface area of the face allowed the Steelhead XR hybrids to have higher MOI than you’ll find from the Apex hybrids, but a similar head shape.

6b6d1eb37e1702cd78c554fad0d990a5

Also, you’ll notice the Steelhead XR hybrids have Callaway’s Hyper Speed Face Cups welded to the bodies, which are made to enhance ball speeds on mishits.

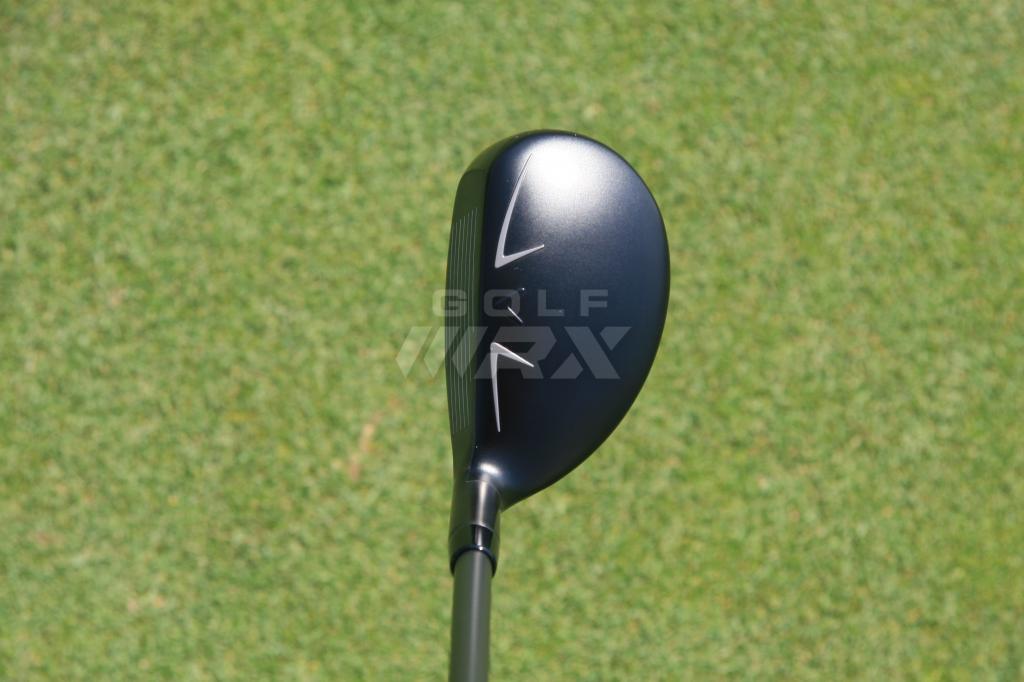

For additional head speed, Callaway implemented the familiar Speed Steps from Callaway’s XR drivers, engineered in tandem with Boeing, that are said to provide better aerodynamics for players who need it.

fe64c1a788e162b9fa2d5c2f67eb7f0f

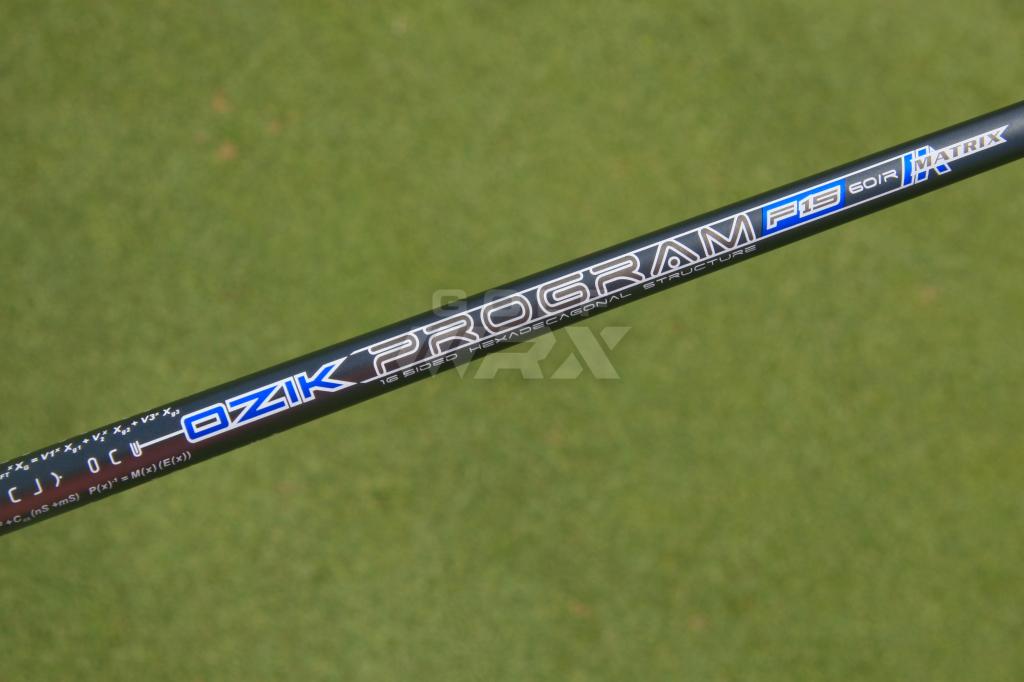

The Steelhead XR hybrids (3-6) will be available in stores on September 2, selling for $219 each. Matching the irons, they too will have True Temper’s XP 95 (Steel) and Matrix’s F15 (Graphite) stock shafts, although there is a “large selection” of aftermarket shafts available.

a912efc34811980264f1334d12bfcf0d

Click here to see more photos of the Steelhead XR irons and hybrids, and join in the discussion.
