Titleist Vokey SM5 Wedges



Titleist’s new Vokey SM5 wedges offer golfers more tour-preferred grind and bounce options, as well as more spin from their larger third-generation Spin Milled grooves.

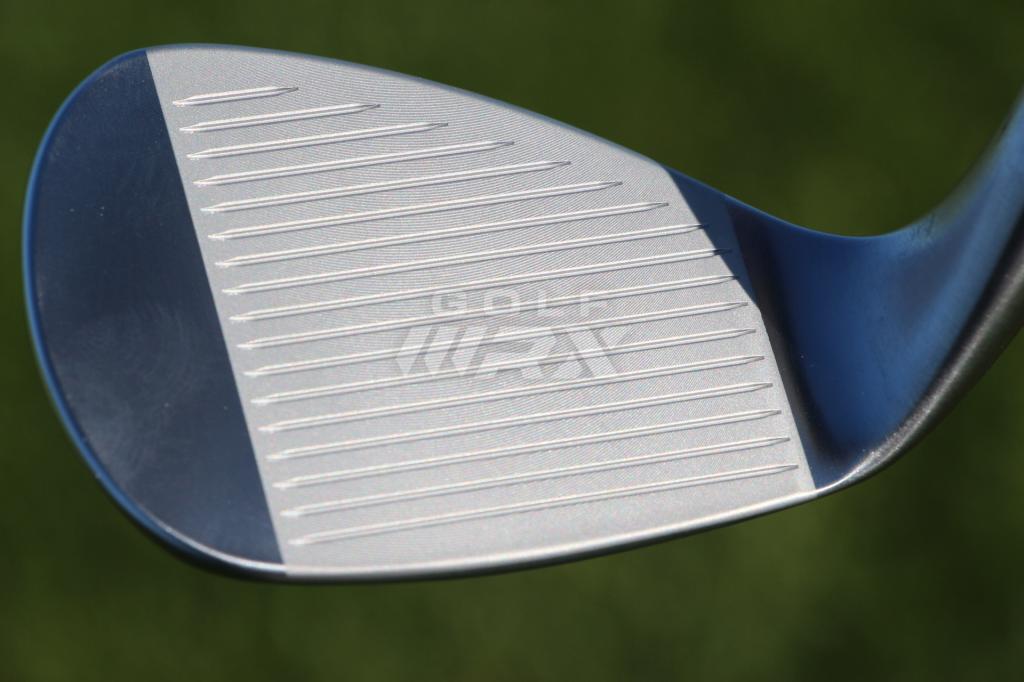

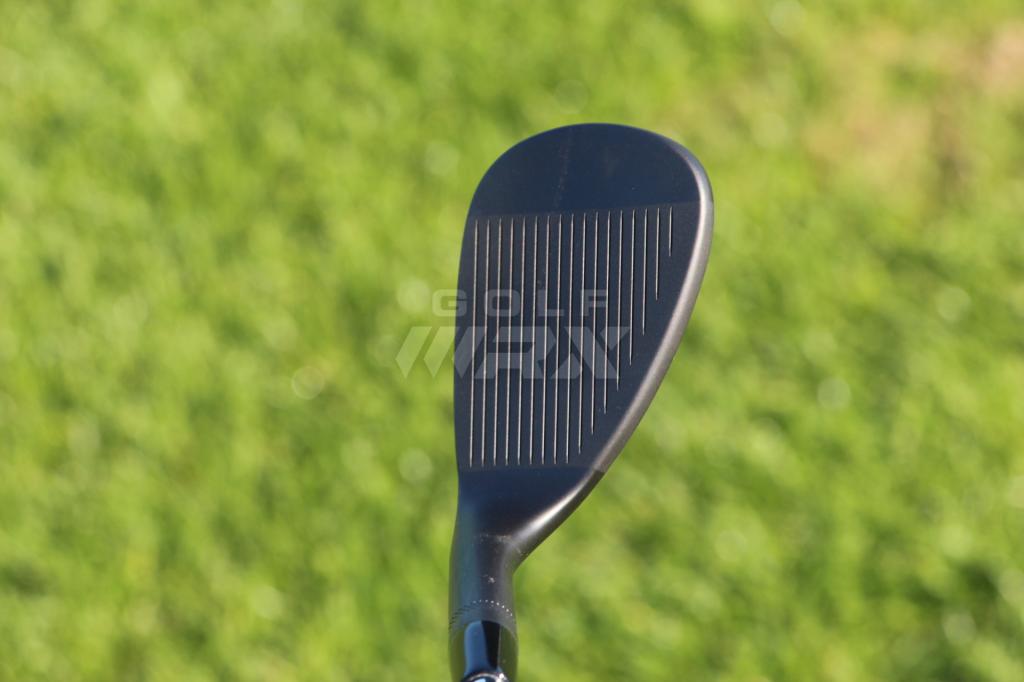

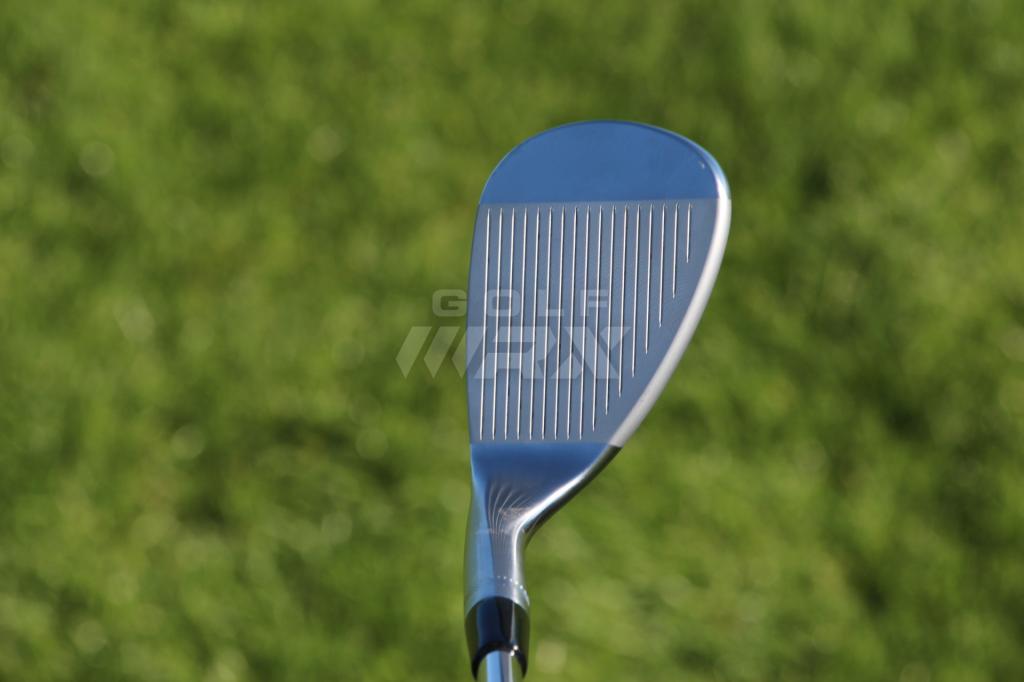

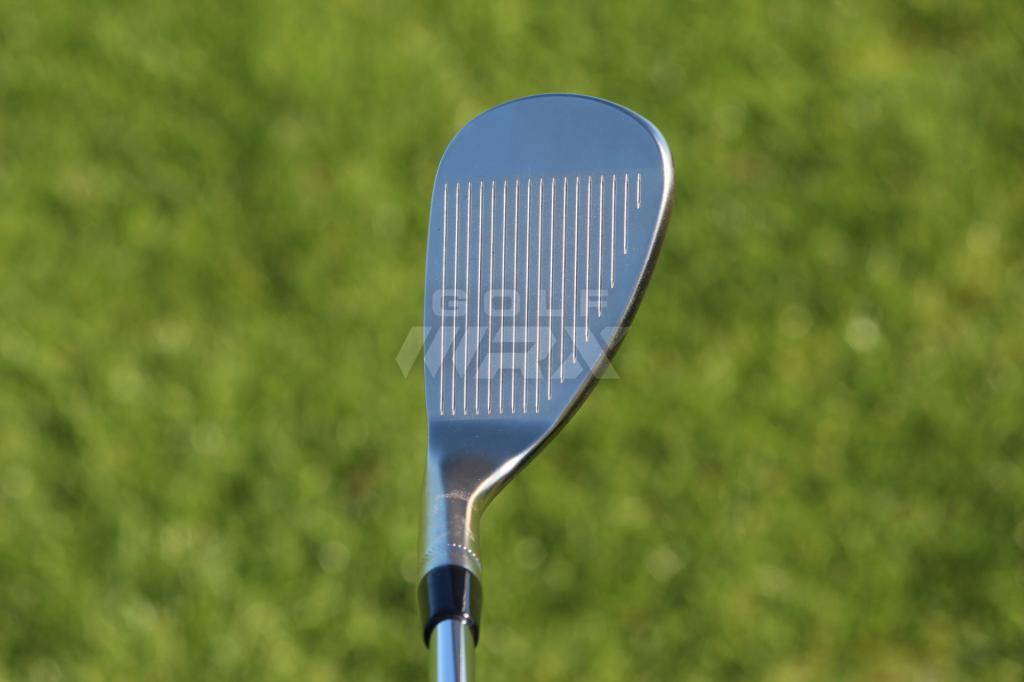

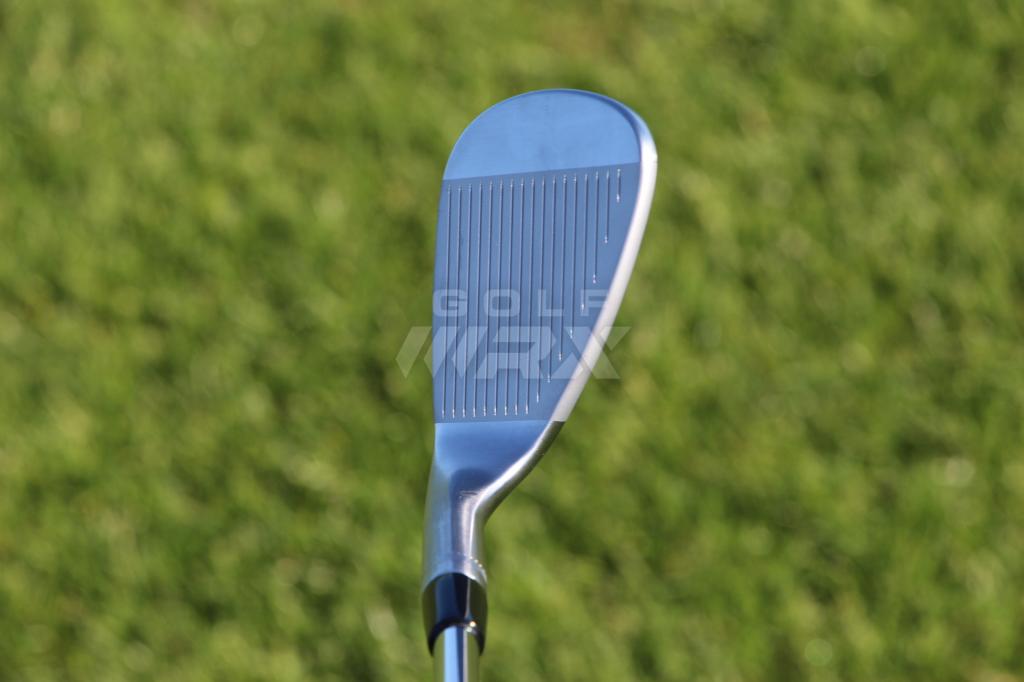

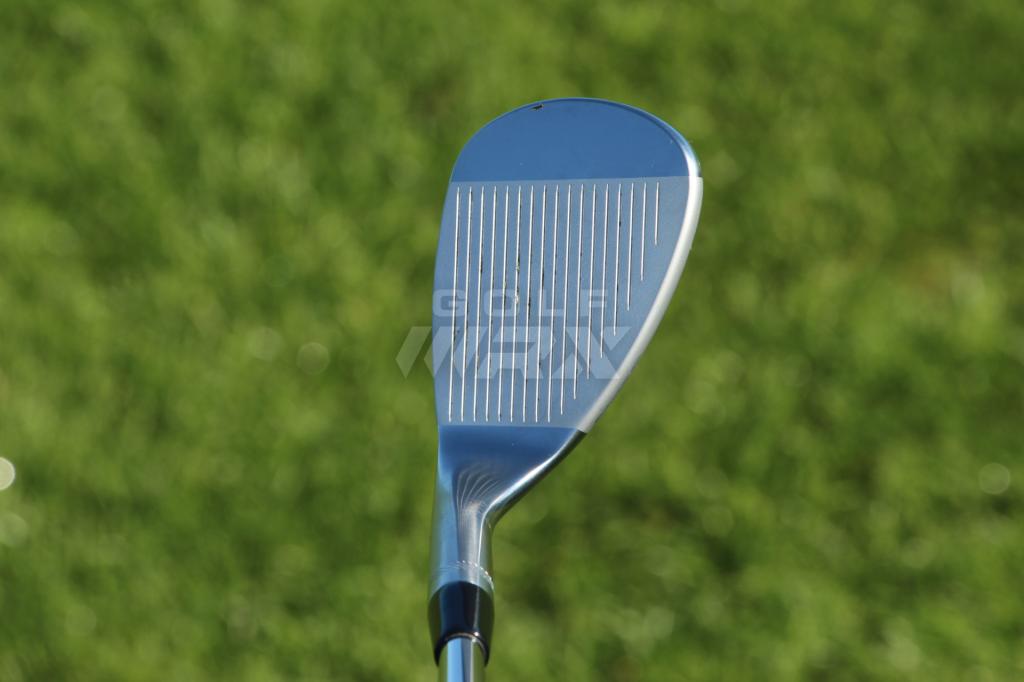

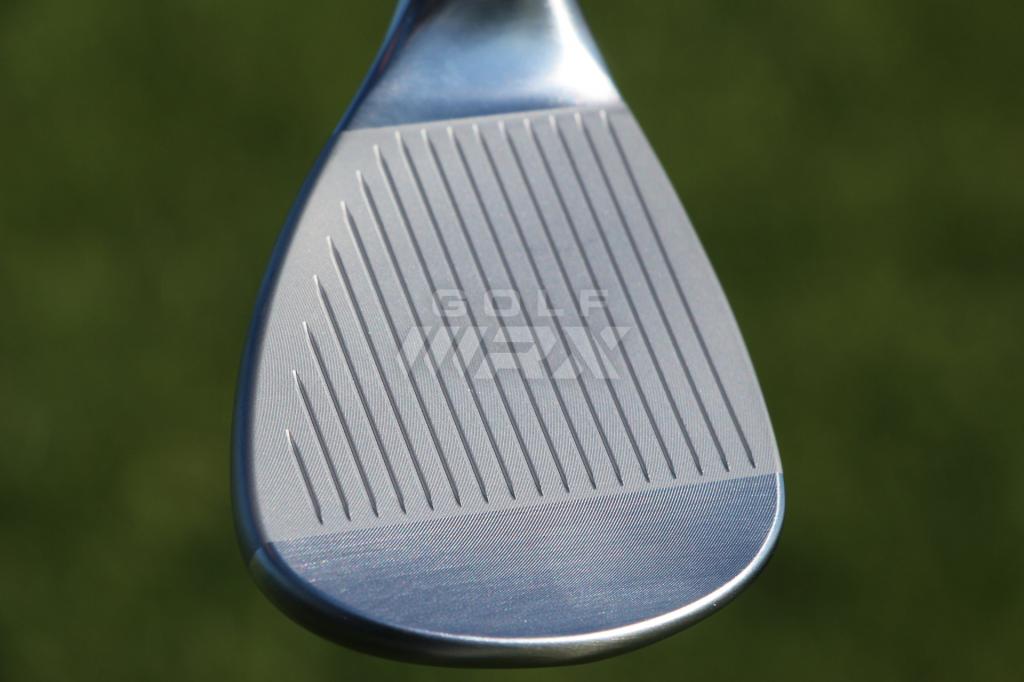

The new “TX3” grooves have a 7-percent larger groove volume in two different configurations. The grooves are deeper and narrower on the 46-to-54 degree wedges than the previous generation to deliver better distance and trajectory control, reducing the chance of flyers from the rough.

“On tour these guys have to aim to a lot of small targets,” said Aaron Dill, who builds and grinds Vokey wedges for PGA Tour players. “They need to trust that their golf ball will travel the exact distance they need it to, even from a tough lie in the rough. The deep and narrow TX3 groove helps push the grass down better, which gives you that increased edge radius contact for more spin and consistent distance.”

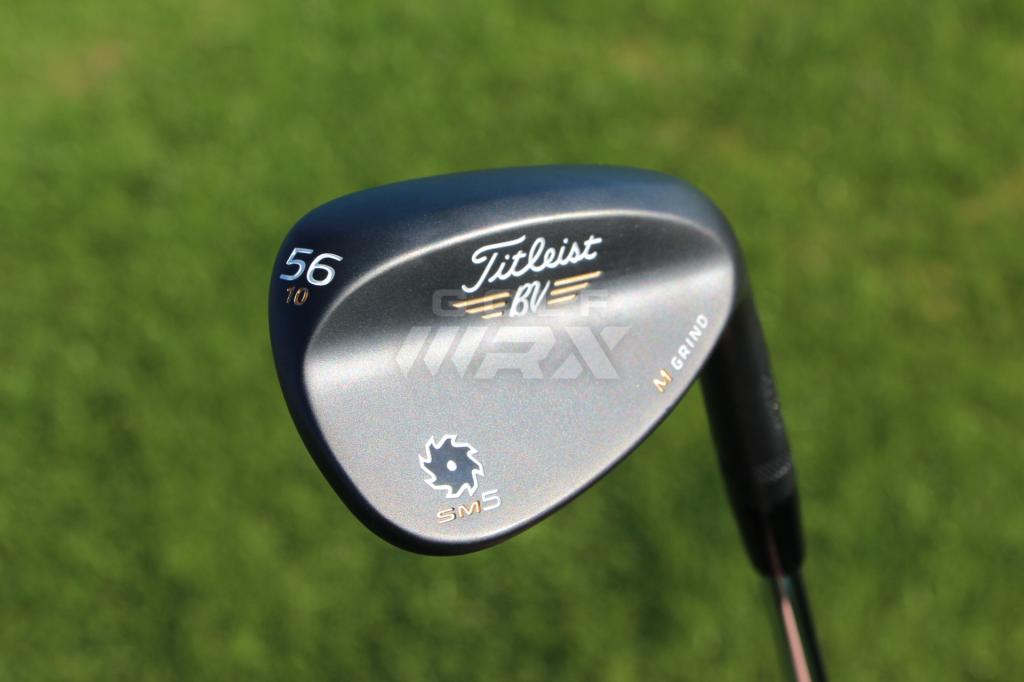

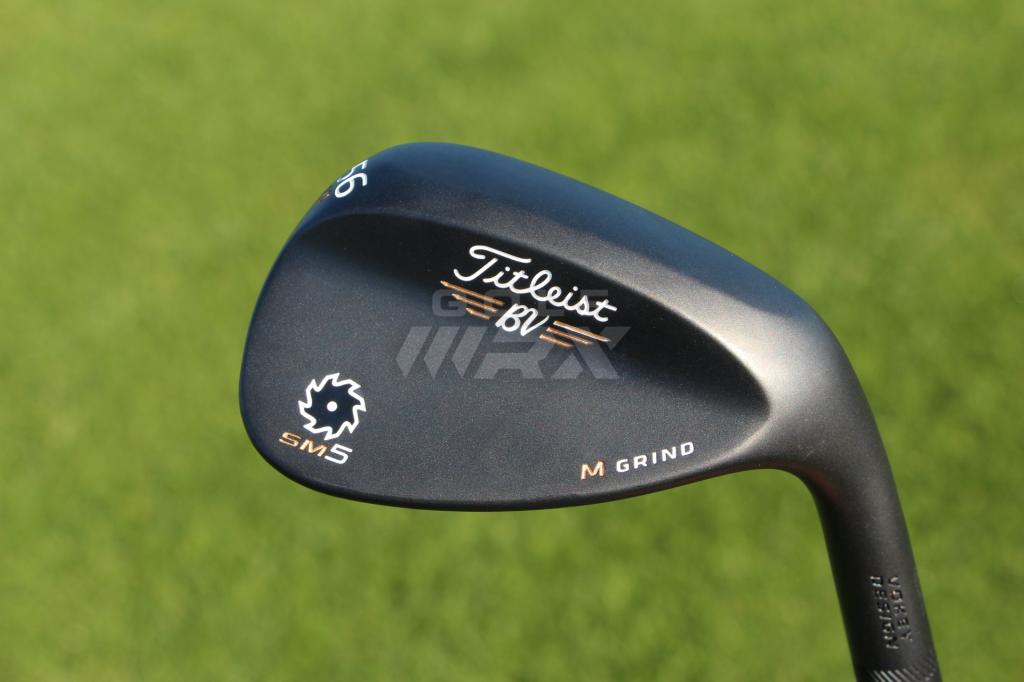

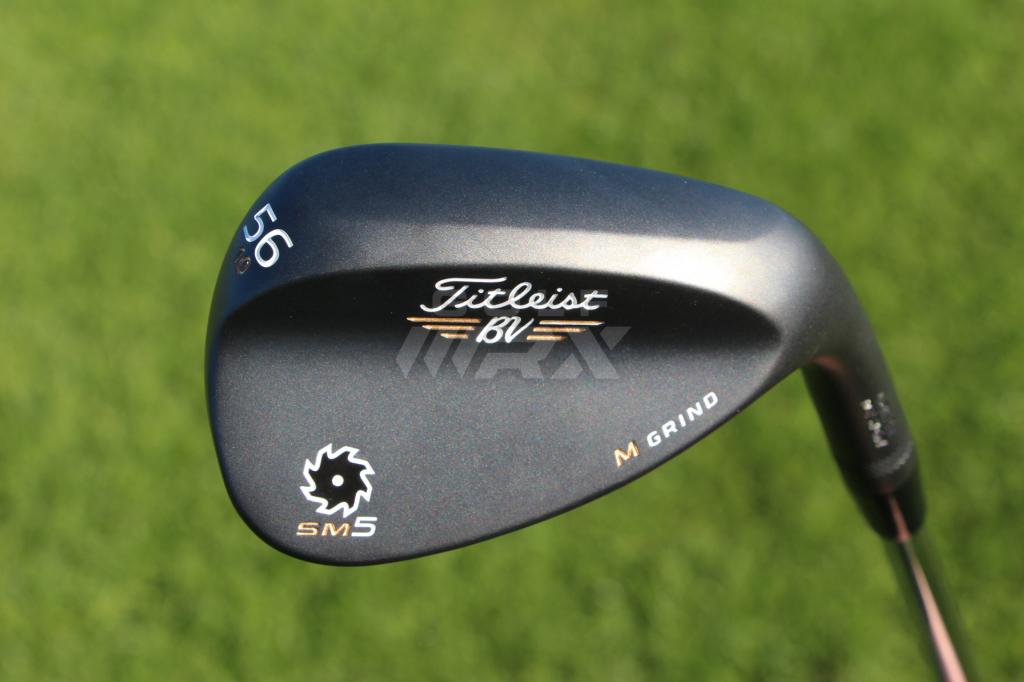

Above: A Vokey SM5 56-degree wedge with 10 degrees of bounce, an “M Grind” and a “Raw Black” finish.

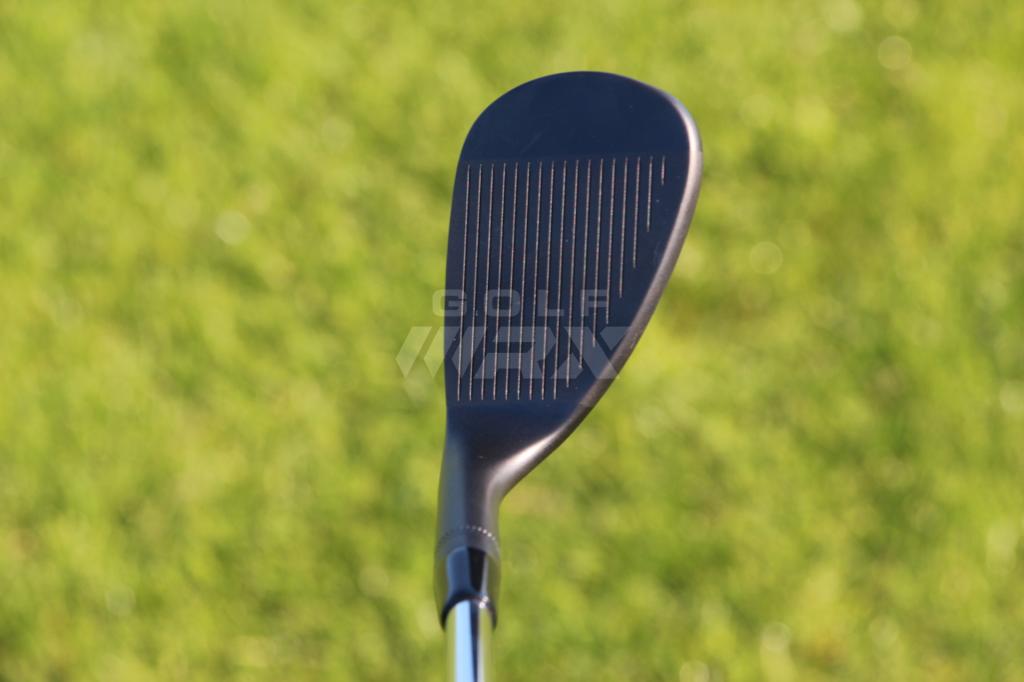

On the 56-to-62 degree SM5 wedges, the grooves are the same width as the previous generation, but they have a greater depth that adds roughly 400 rpm more spin on full shots from the rough, according to company testing.

“The groove configuration changes with the [56-degree] model because this is where testing showed that the player makes a more oblique impact versus a more direct impact in the lower lofts,” said Master Craftsman Bob Vokey. “The wider TX3 groove on the higher lofts will sheer away the grass, rather than pushing it into the groove, and perform better on partial shots.”

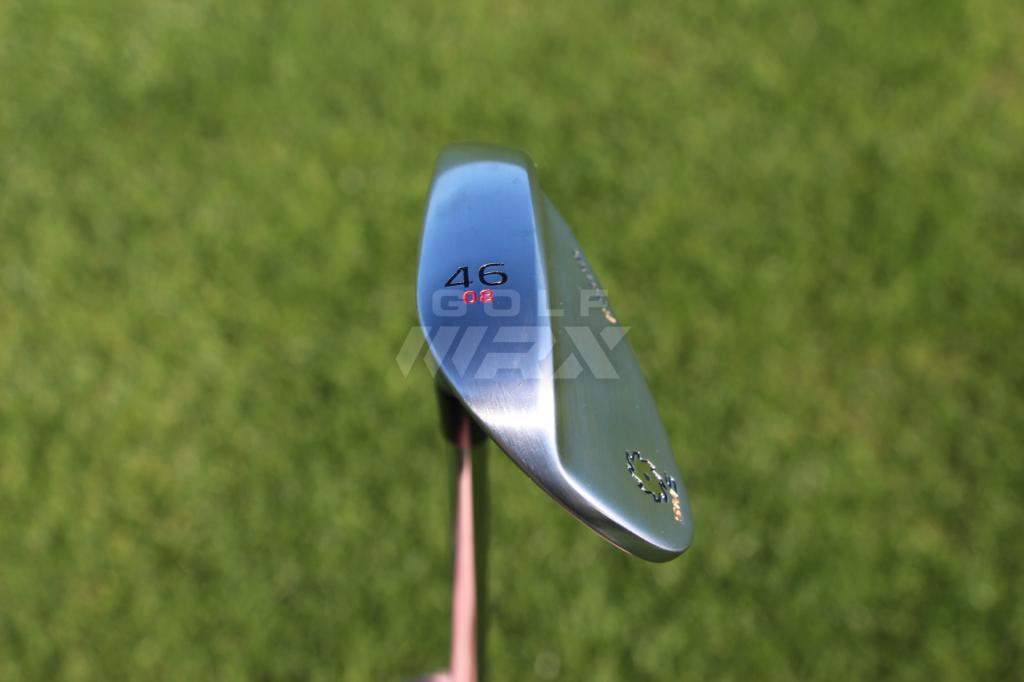

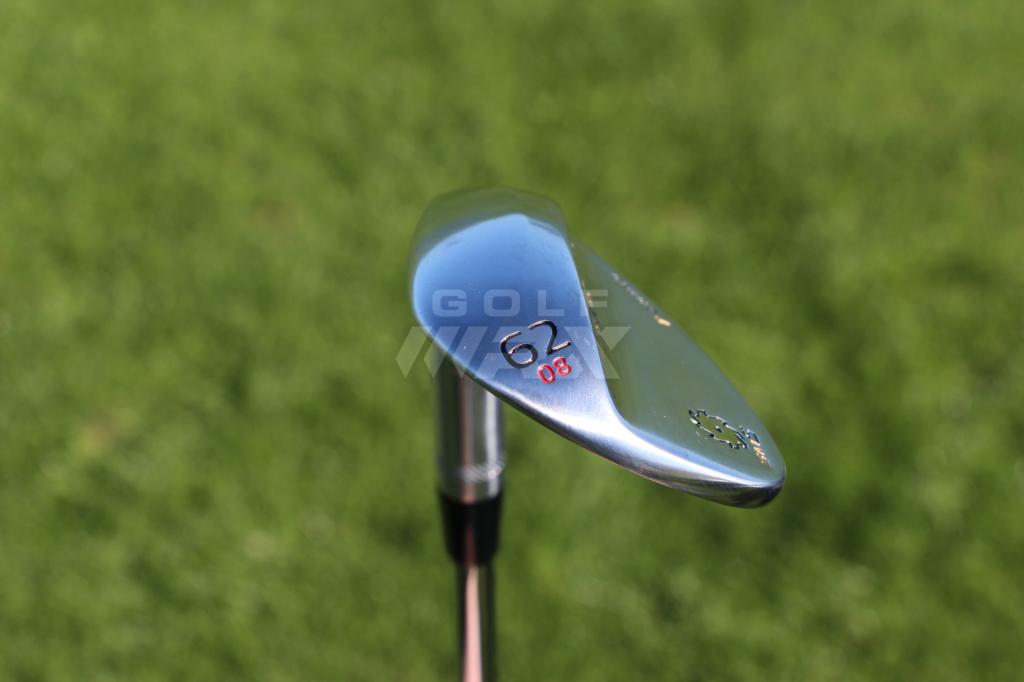

The SM5 wedges are cast from 8620 carbon steel, and are available in lofts from 46 degrees to 62 degrees in two-degree increments. They come in six tour-inspired sole grinds (L, T, S, M, F and K), with each model sorted into low-, mid- and high-bounce categories. That creates a selection of 21 different loft, bounce and grind combinations.

The wedges will be available in stores March 14 in three different finishes — Tour Chrome, Gold Nickel and Raw Black — and will sell for $129. The Tour Chrome and Gold Nickel are plated finishes, while the Raw Black finish will rust over time.

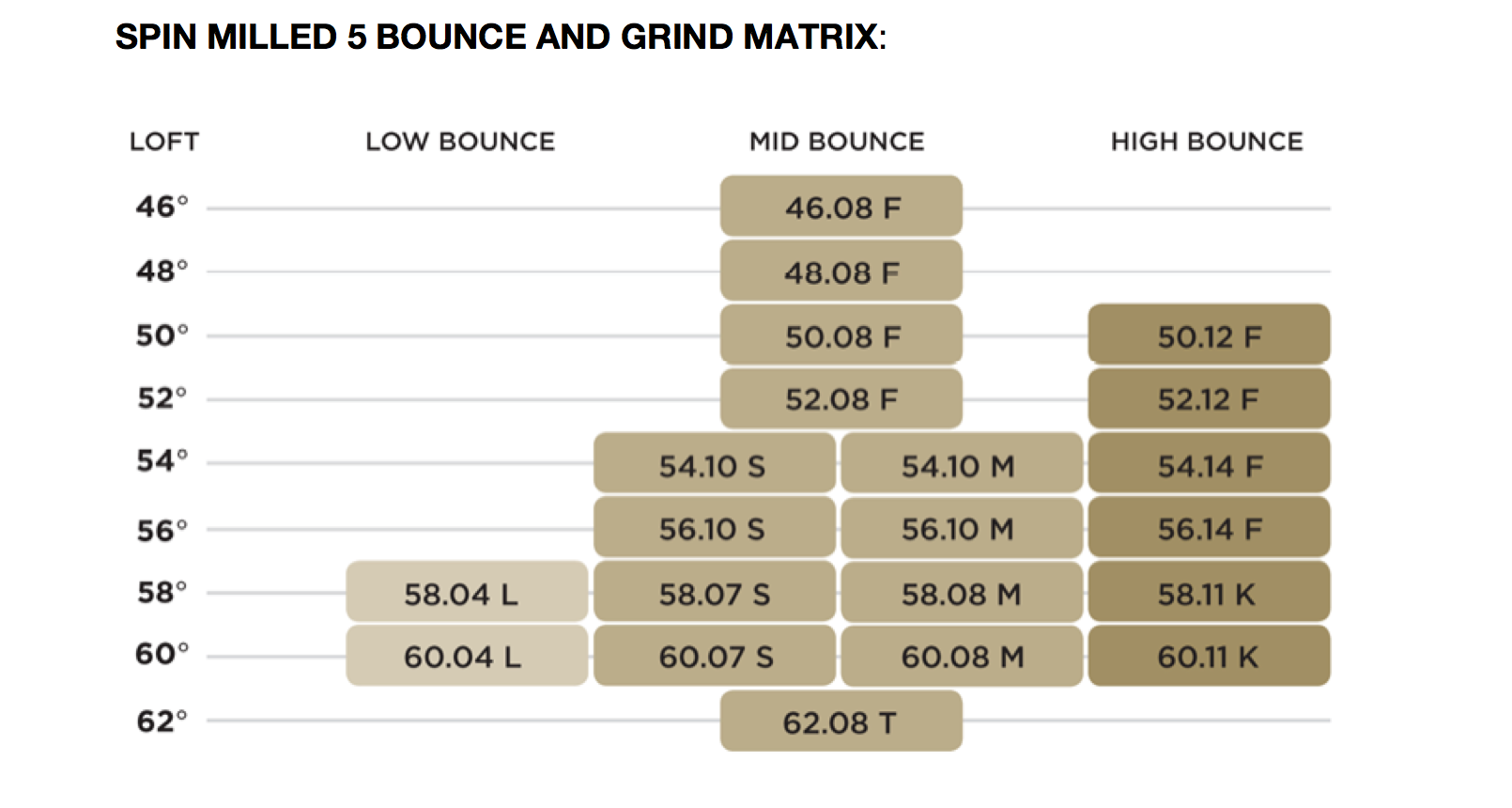

Screen Shot 2014-01-21 at 12.20.01 AM

SM5 Sole Grind Descriptions

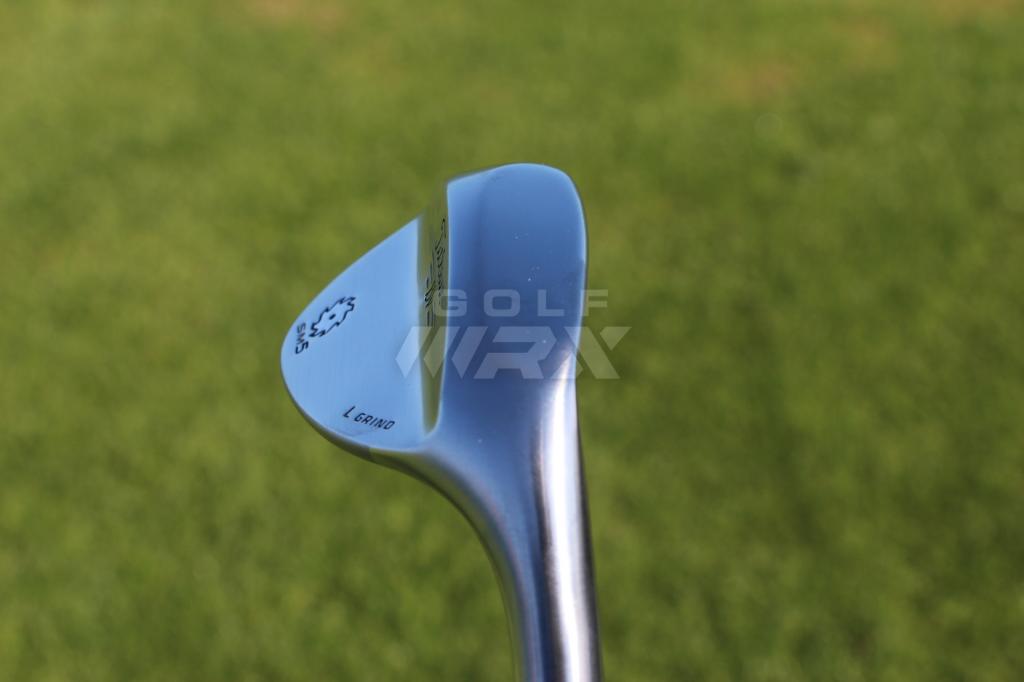

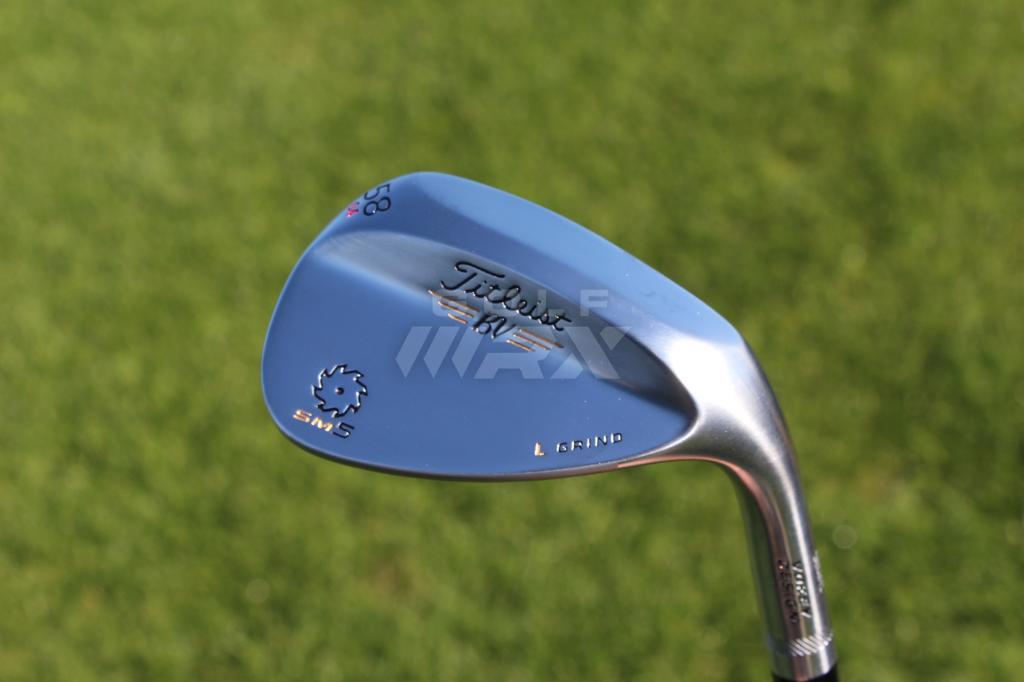

  • L Grind: Narrow crescent sole with small forward bounce surface and minimal camber. Swing type: Slider. Condition type: Firm.

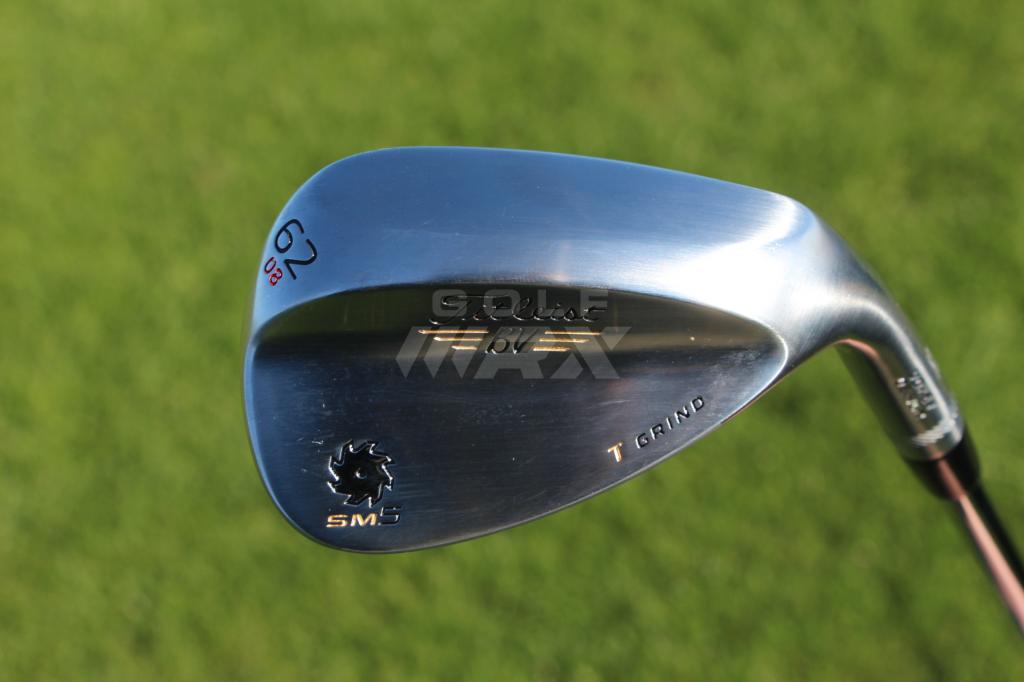

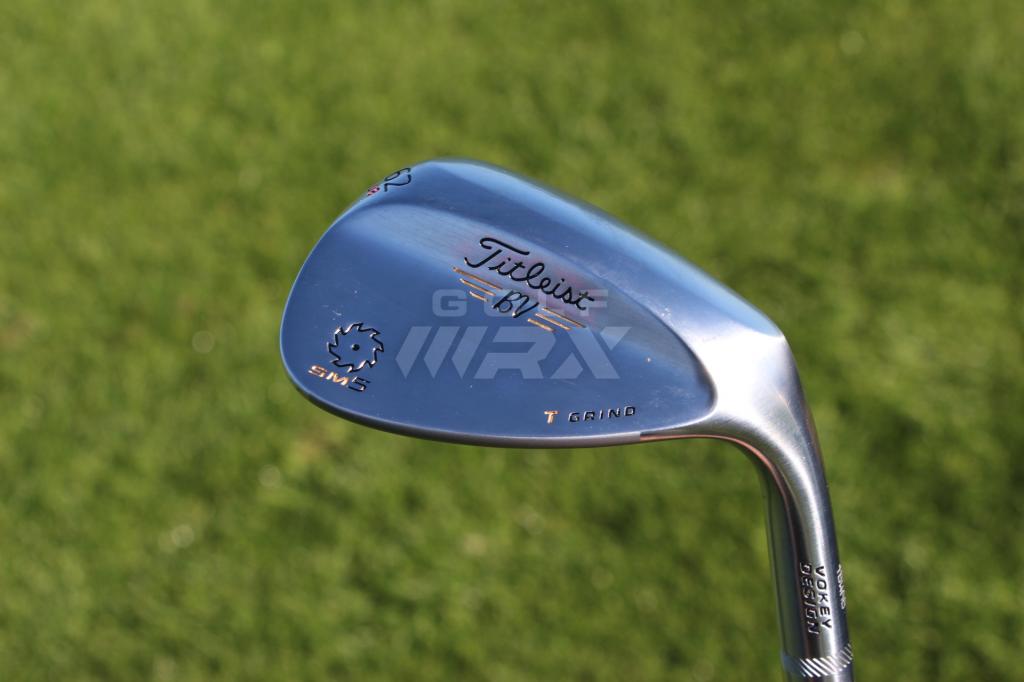

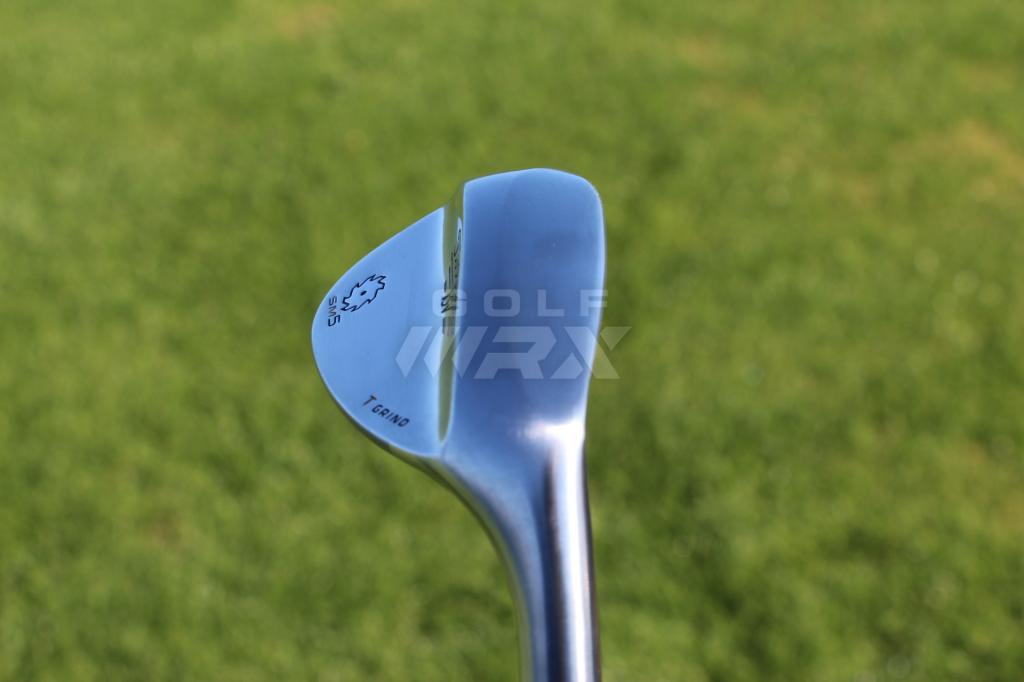

  • T Grind: Dual bounce sole with wide trailing bounce surface. Swing type: Slider/Neutral. Condition type: Firm/Medium.

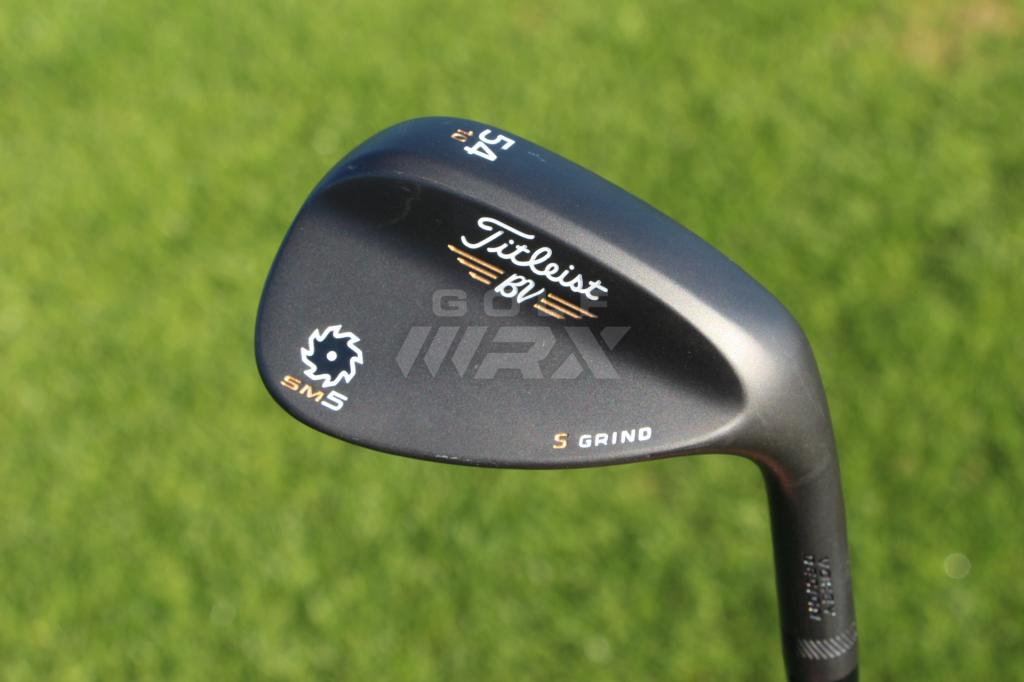

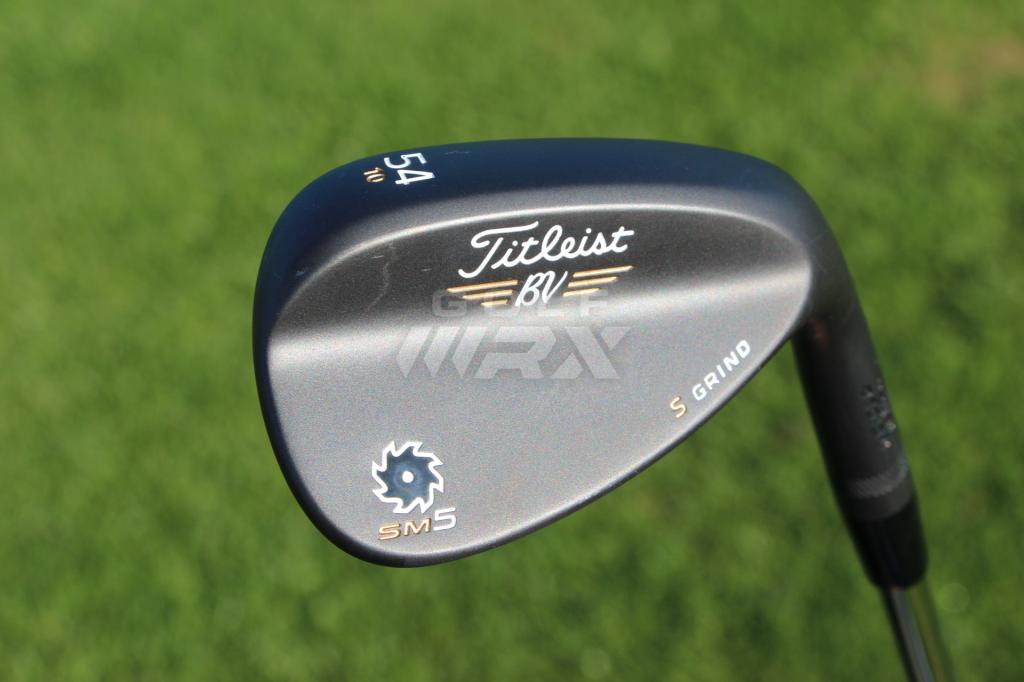

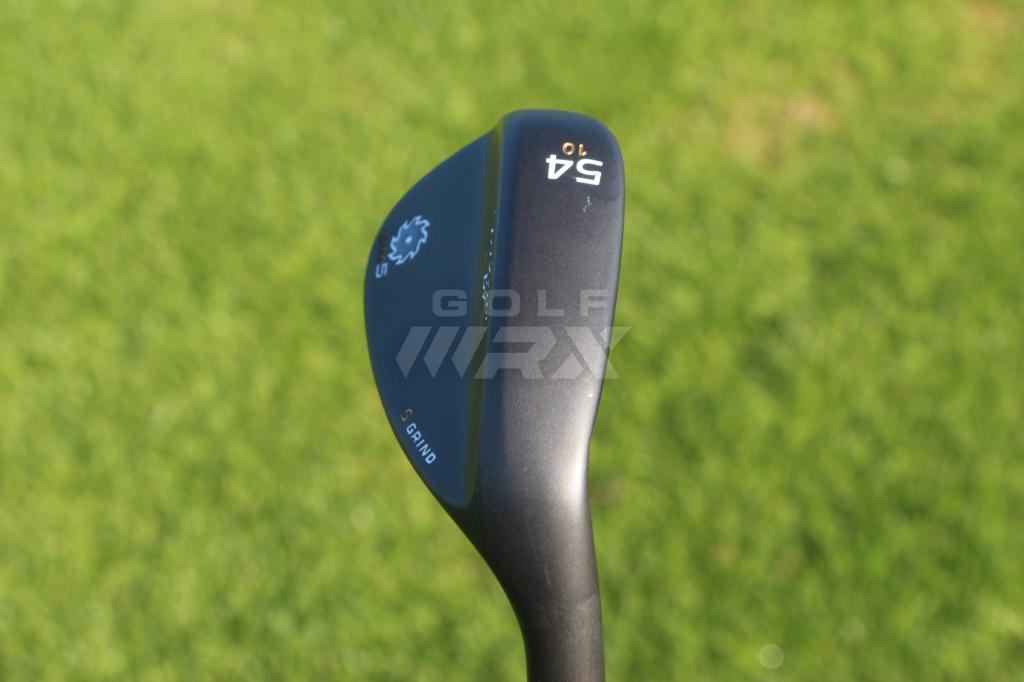

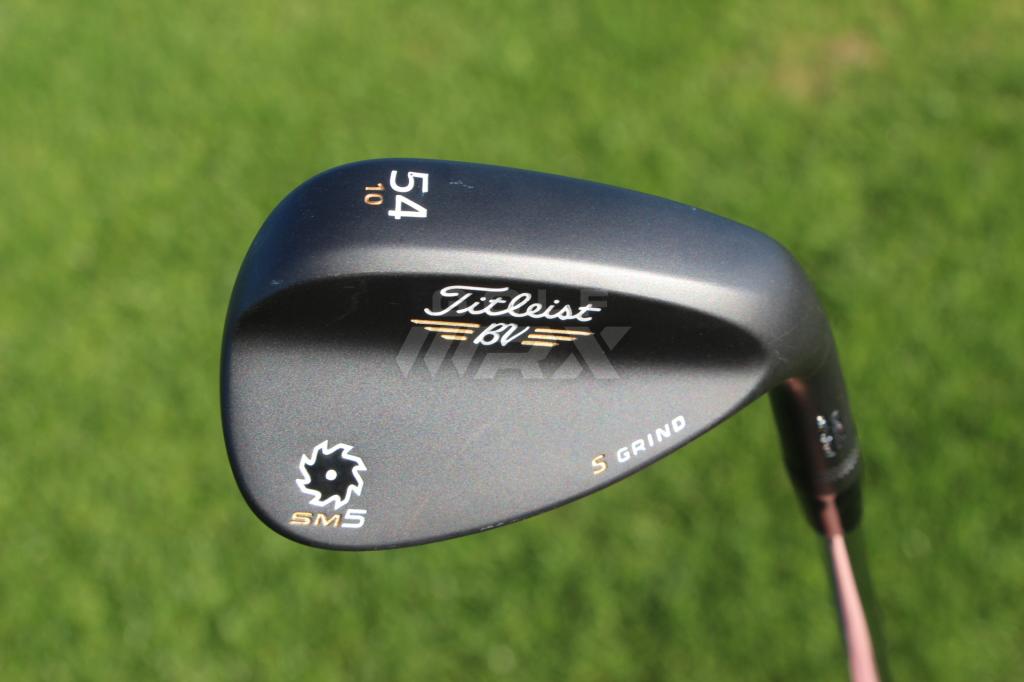

  • S Grind: Full sole with straight trailing edge ribbon and moderate heel relief. Swing type: Slider/Neutral. Condition type: Firm/Medium/Soft.
  • M Grind: Crescent sole with narrow forward bounce surface and moderate camber. Swing type: Slider/Neutral. Condition type: Firm/Medium.

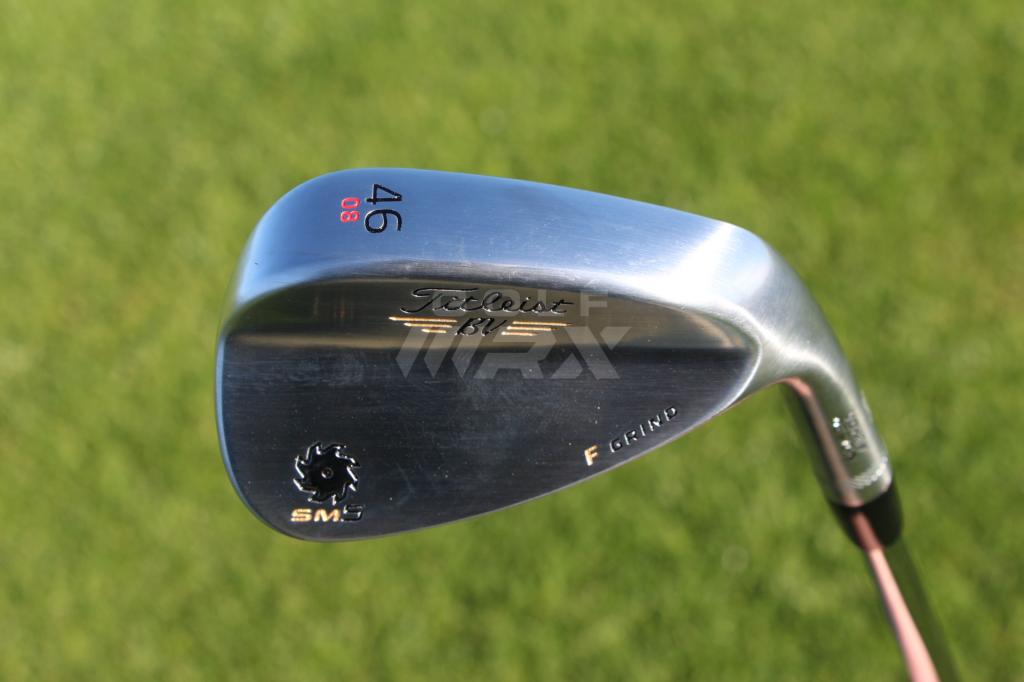

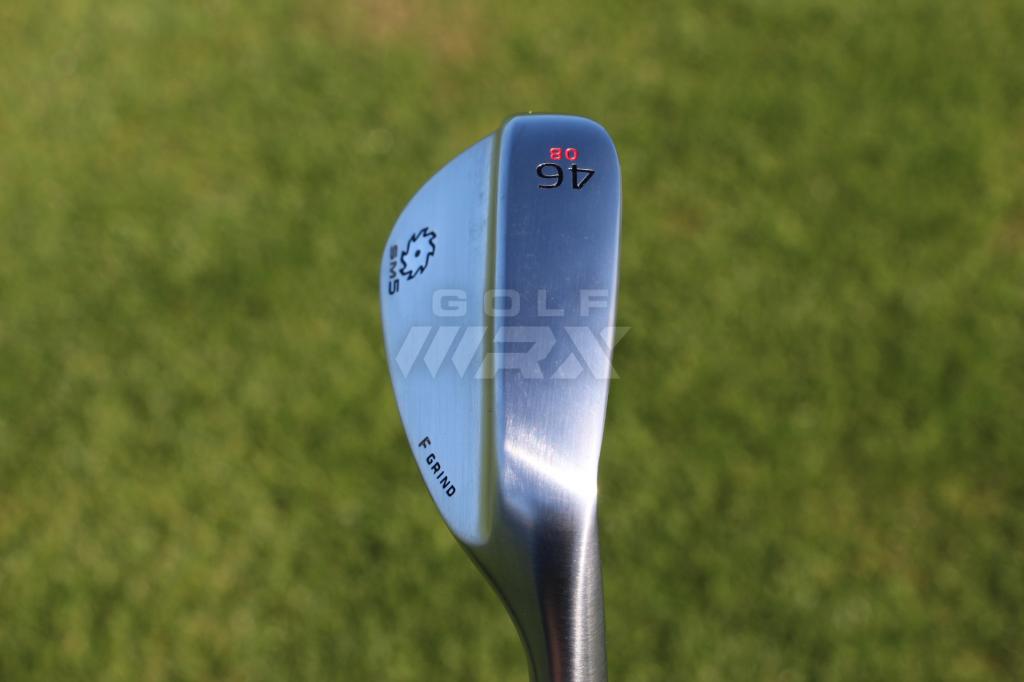

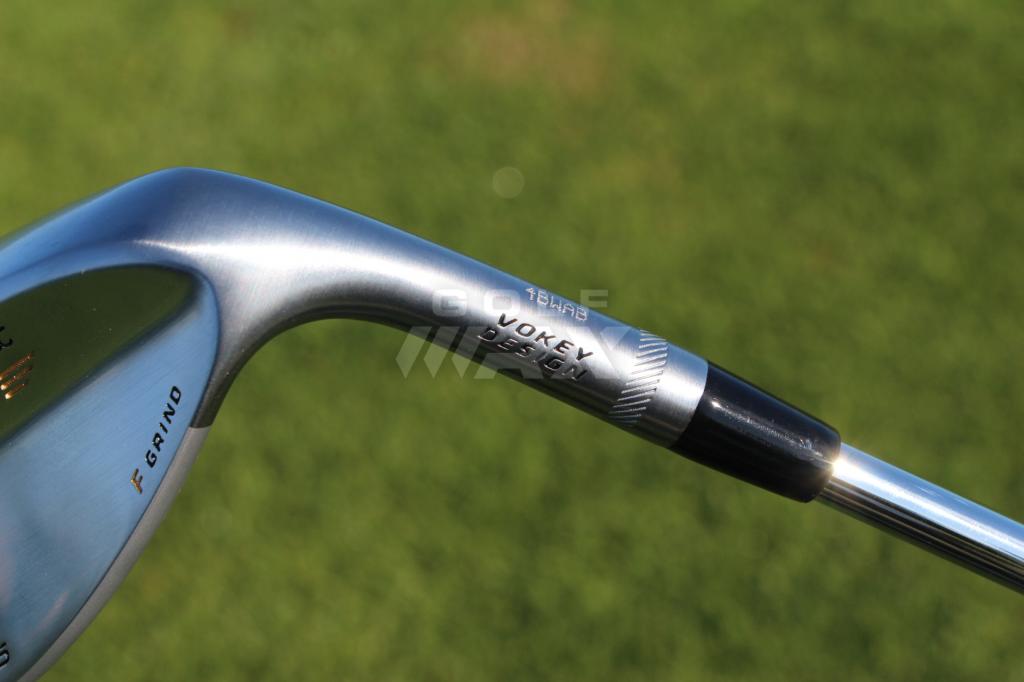

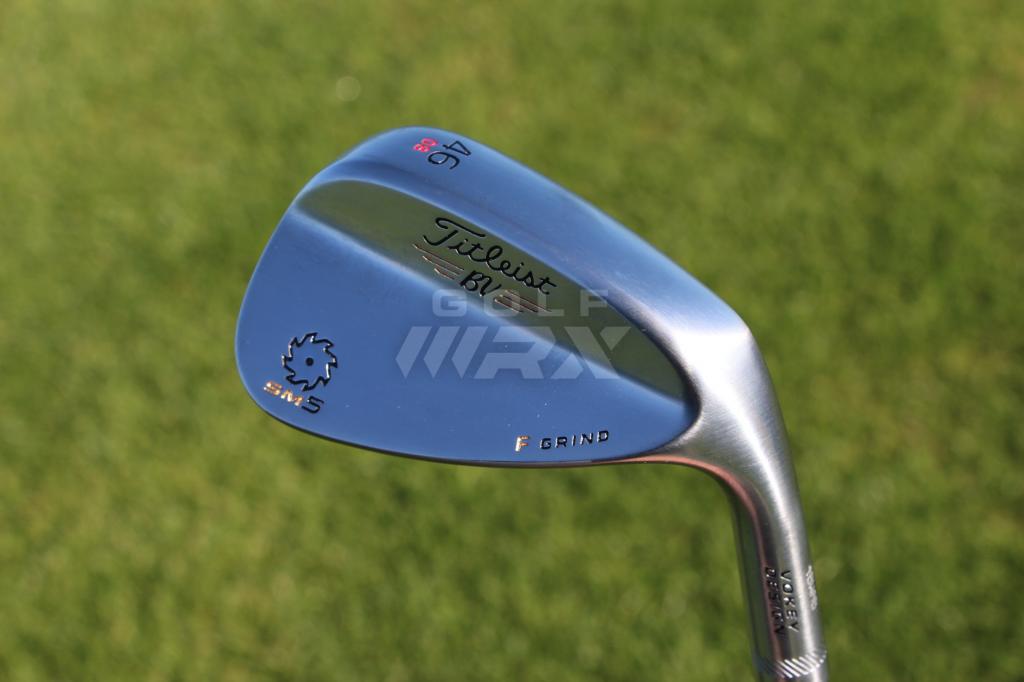

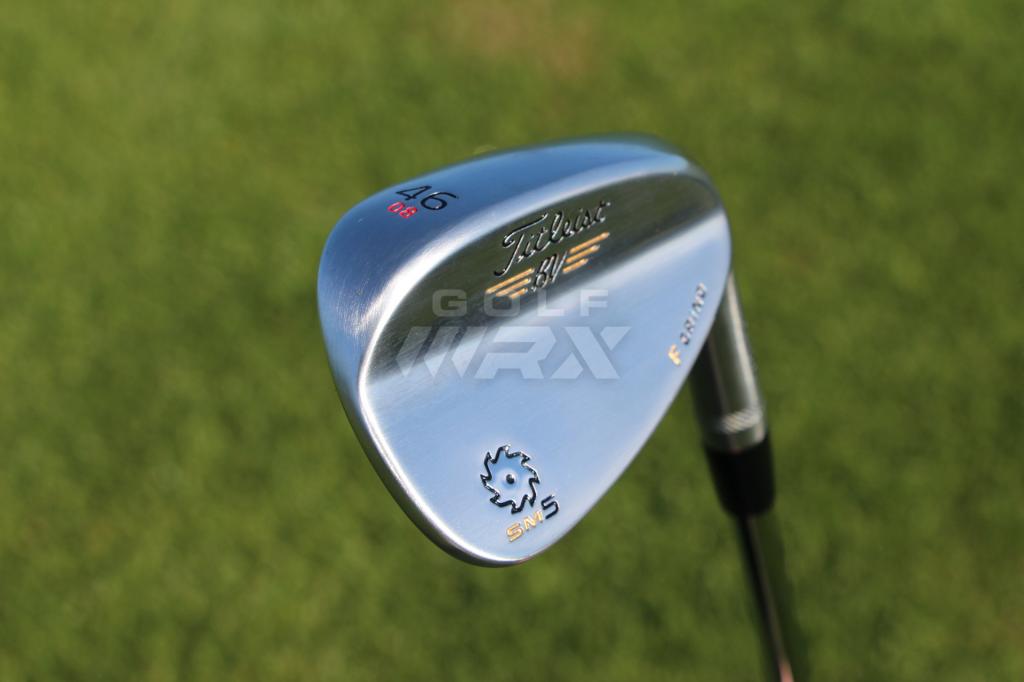

  • F Grind: Full sole with moderate camber and small trailing edge ribbon. Swing type: Slider/Neutral/Digger. Condition type: Firm/Medium/Soft.

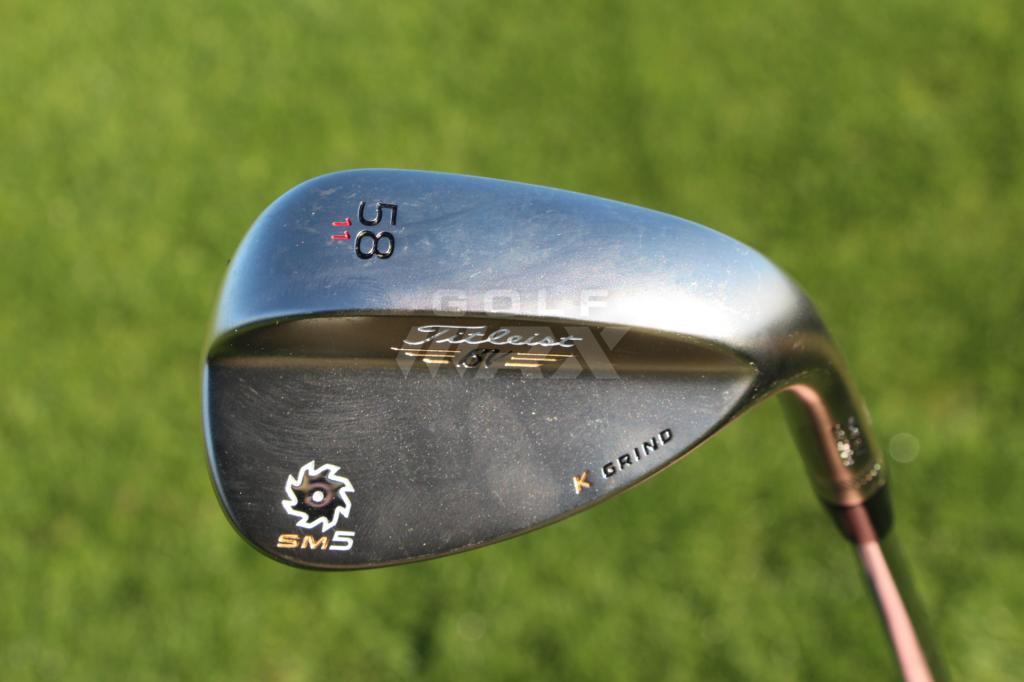

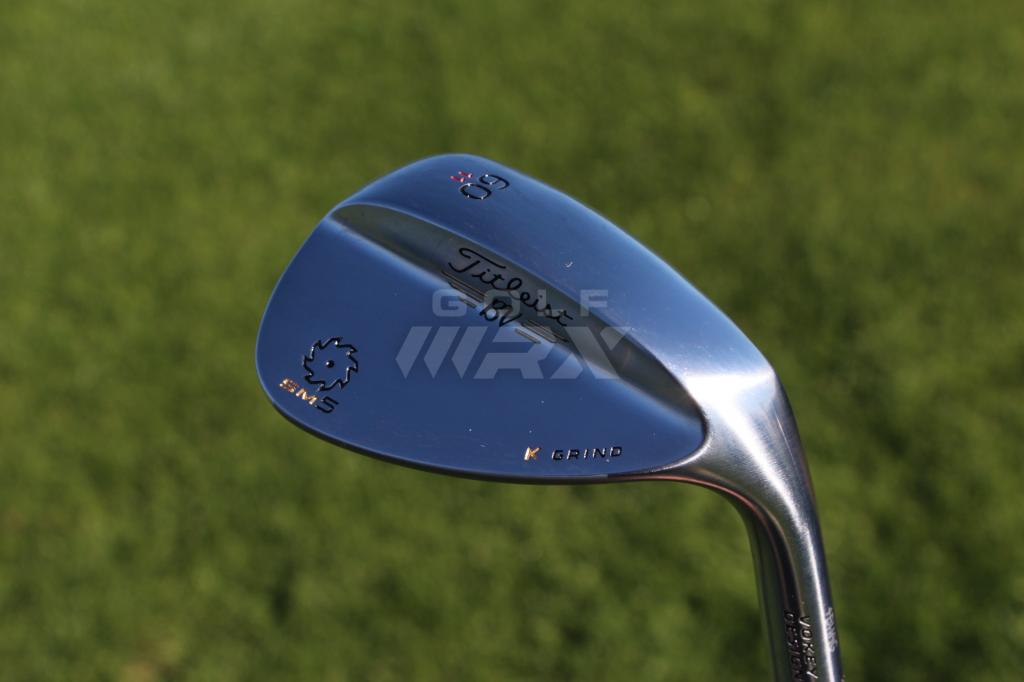

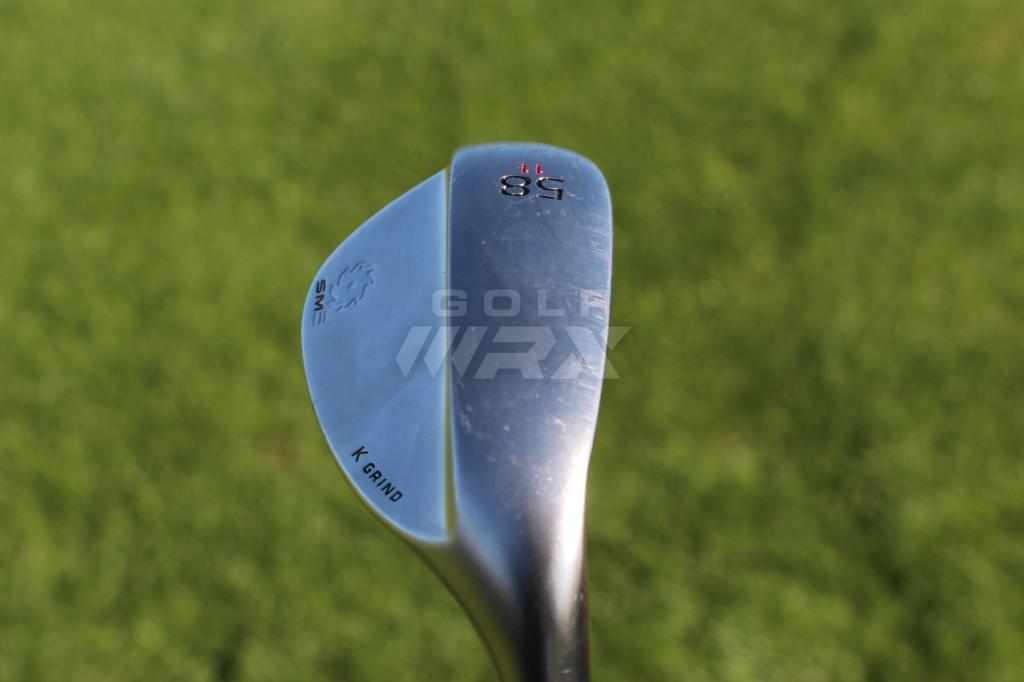

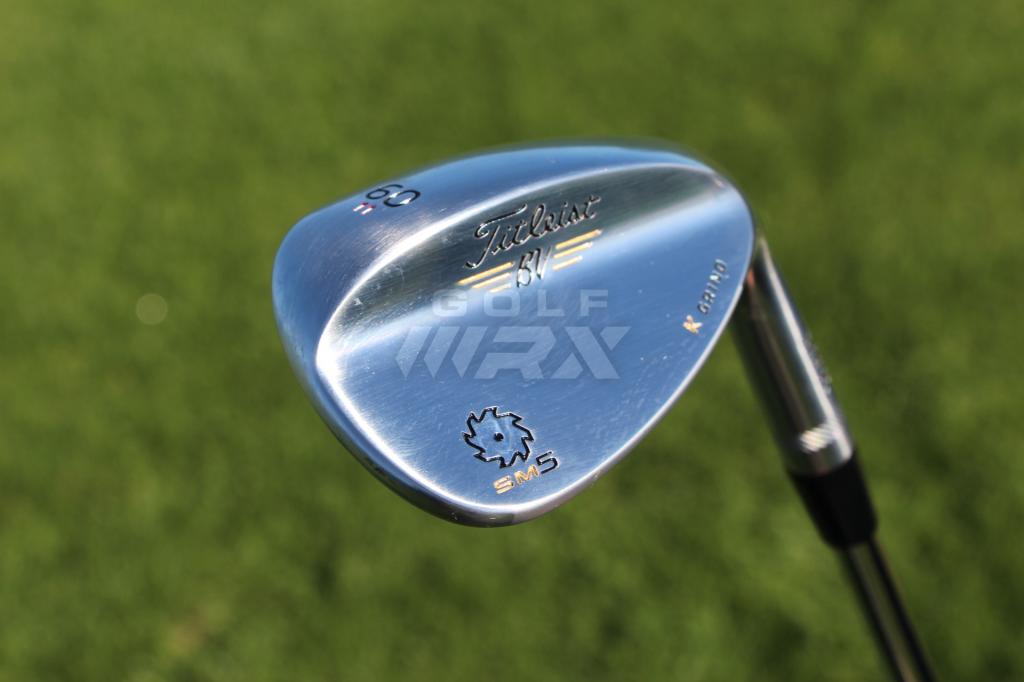

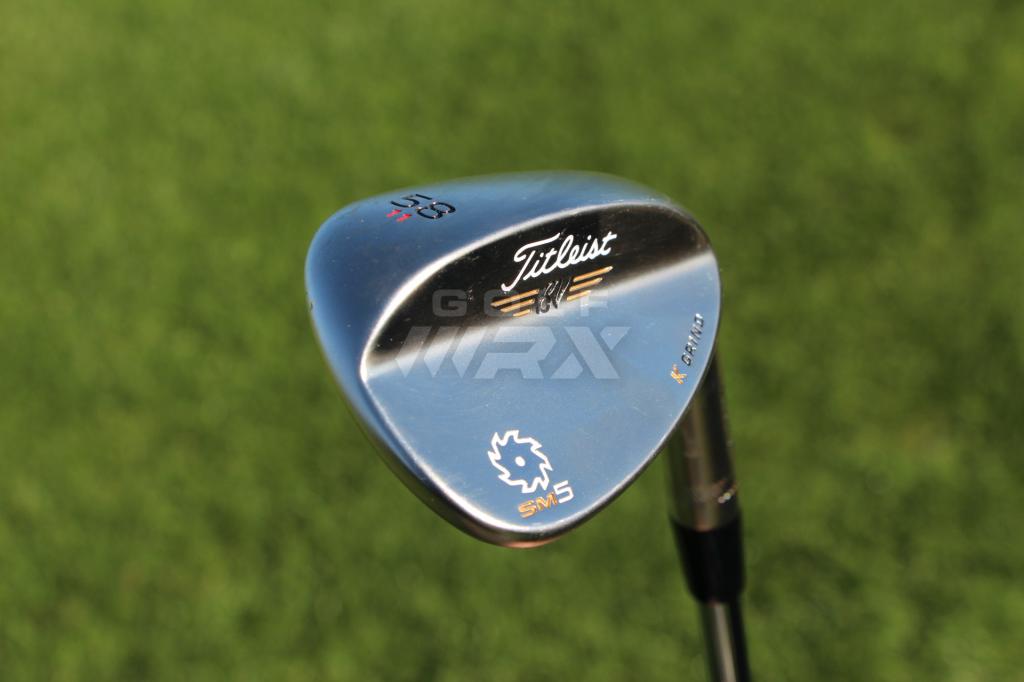

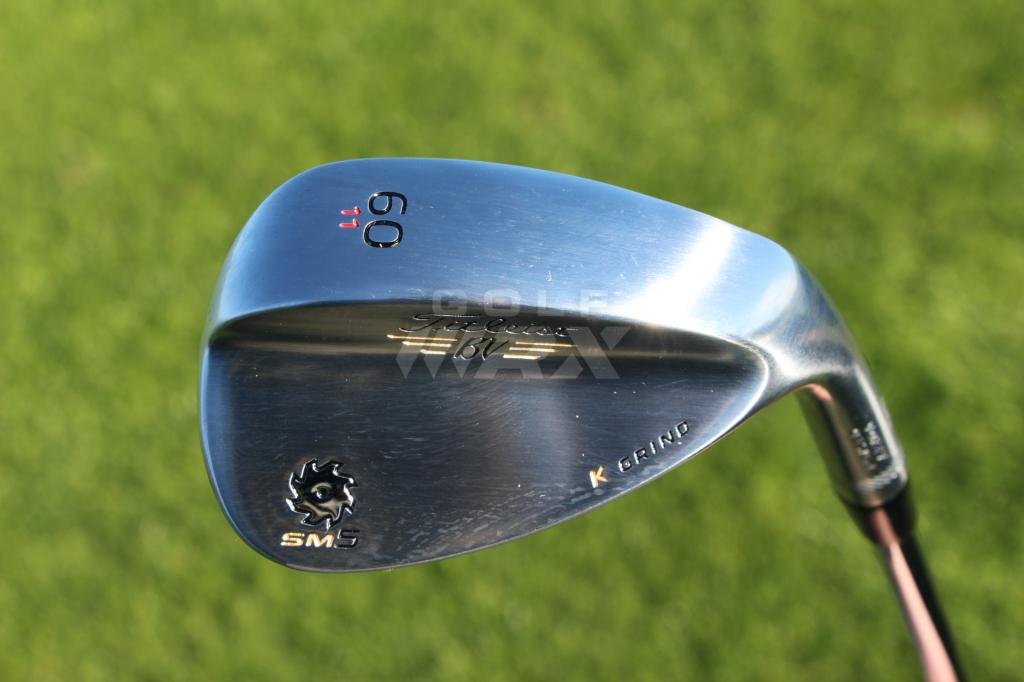

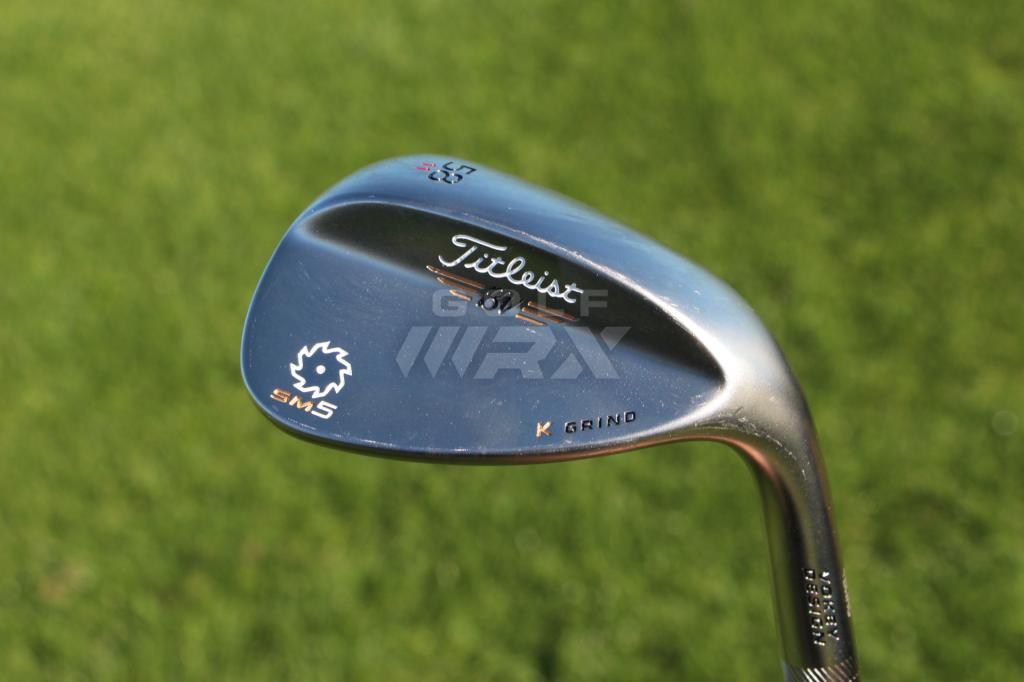

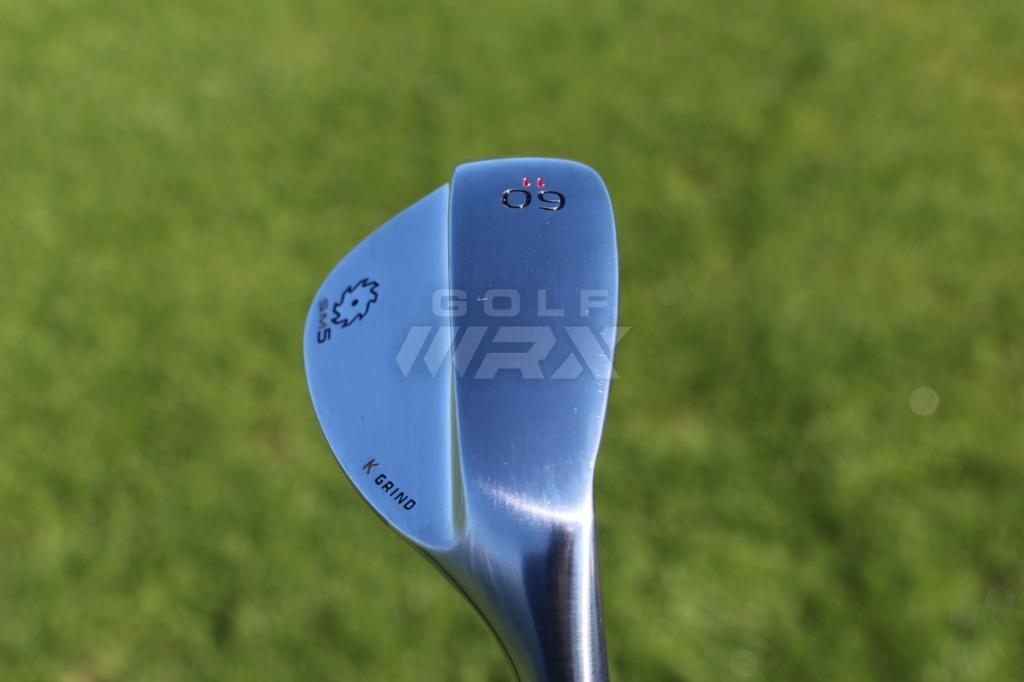

  • K Grind: Wide sole with increased bounce and enhanced camber. Swing type: Neutral/Digger. Condition type: Medium/Soft.
