Callaway Big Bertha Fusion drivers and fairway woods



As we all know, the USGA limits drivers to a certain size (460 cc), and COR (coefficient of restitution), which is 0.83. Since companies, such as Callaway, have already reached those limits — or somewhere very close to those limits — improvement continues elsewhere to design drivers that can positively impact golfers.

While many new drivers on the market use adjustability features to accomplish this, Callaway’s new Big Bertha Fusion drivers, and fairway woods, use advanced composite materials, head shaping and weight placement with the goal of making the most forgiving clubs possible.

From a company that’s been using composite materials for over a decade, Callaway’s Big Bertha Fusion drivers and fairway woods introduce a new material called “Triaxial Carbon,” combined with a unique, high-MOI driver head shape that stretches weight back away from the face.

According to Callaway, triaxial carbon is 65 percent lighter than titanium and 35 percent thinner than the forged composite used in recent drivers from the company. Because of how the materials in the carbon composite are woven, the triaxial carbon is stiffer, allowing the driver to be constructed thinner without losing strength.

Callaway uses the new material in the crowns of both the drivers and the fairway woods, and in the soles of the drivers, too.

Read more about the drivers and fairway woods below, which will be available in stores on September 30, and join the discussion about the clubs in our forums.

Big Bertha Fusion Driver

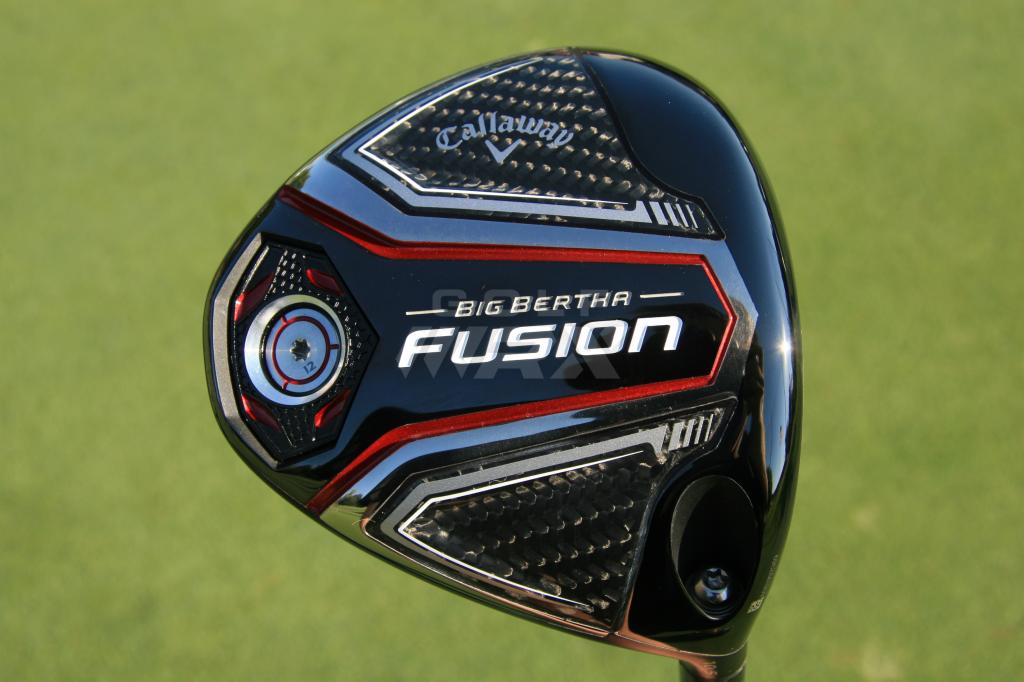

In the driver, an “exo-cage” made of aerospace-grade titanium holds the triaxial carbon material, which is used in both the crown and on the toe and heel of the sole.

By using triaxial carbon, Callaway was able to save 35.4 grams of weight that was repurposed low and back for higher MOI (moment of inertia), a measure of forgiveness, and in the heel of the driver, making it more draw-biased. This also allowed Callaway to lower CG, thus reducing backspin and raising launch.

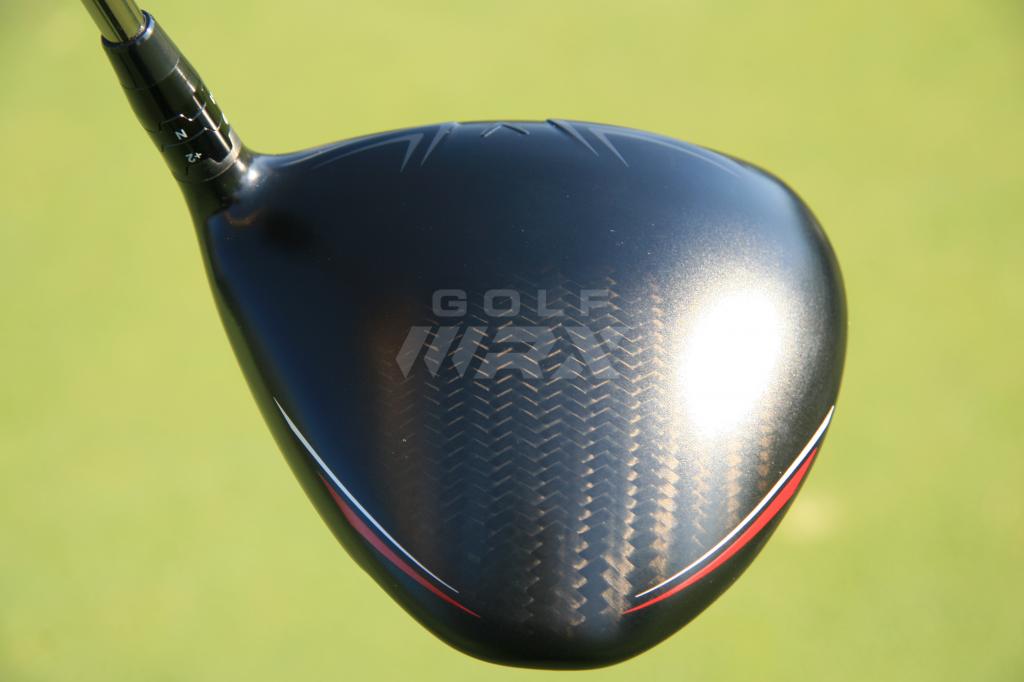

The crown consists of two parts: A chopped fiber forged composite in the front, and triaxial carbon in the rear

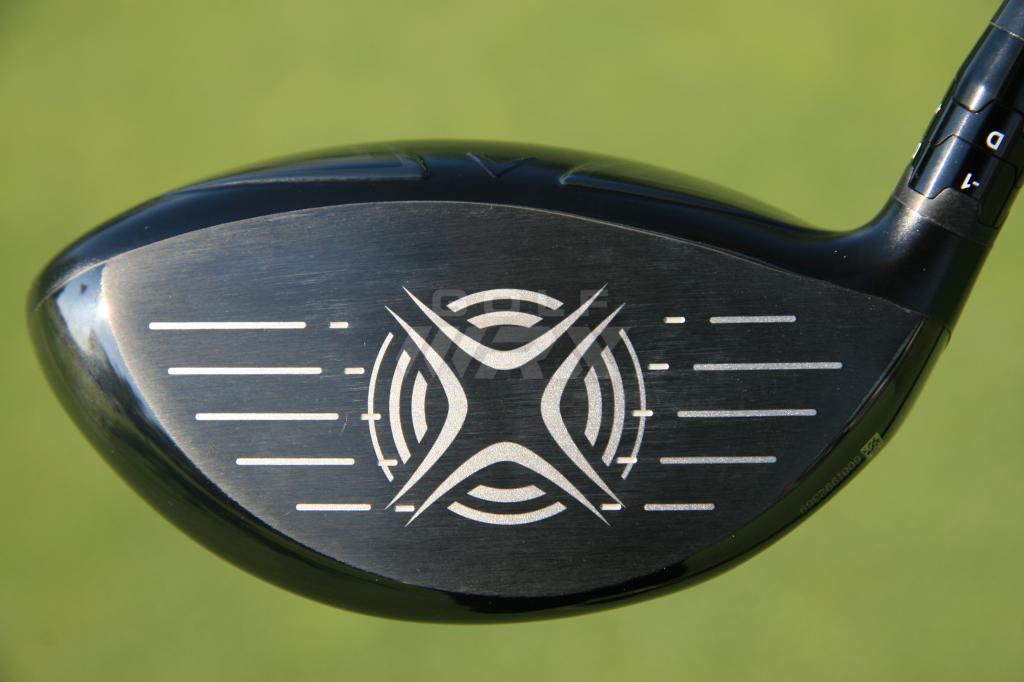

According to Callaway, the drivers have up to 17 percent higher MOI than the XR 16 drivers. Like the XR 16 drivers, the Big Bertha Fusion drivers also have Speed Steps — the fruits of work with Boeing — on their crowns for more speed than a smooth surface, due to the aerodynamic quality of the design.

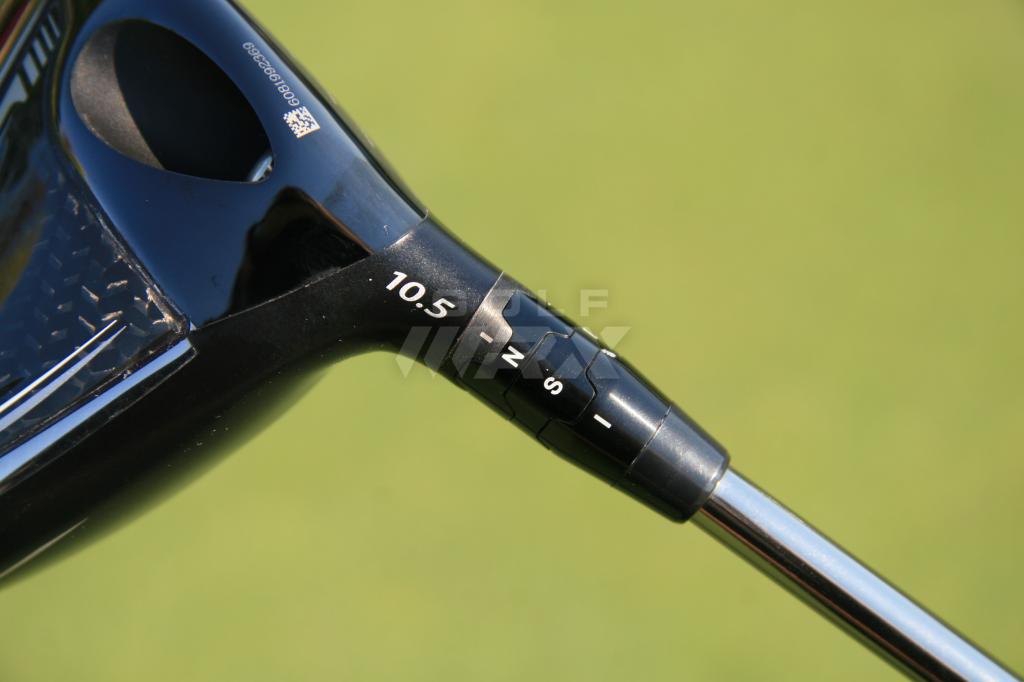

The driver also includes Callaway’s OptiFit hosel that allows users to adjust loft independent of face angle settings.

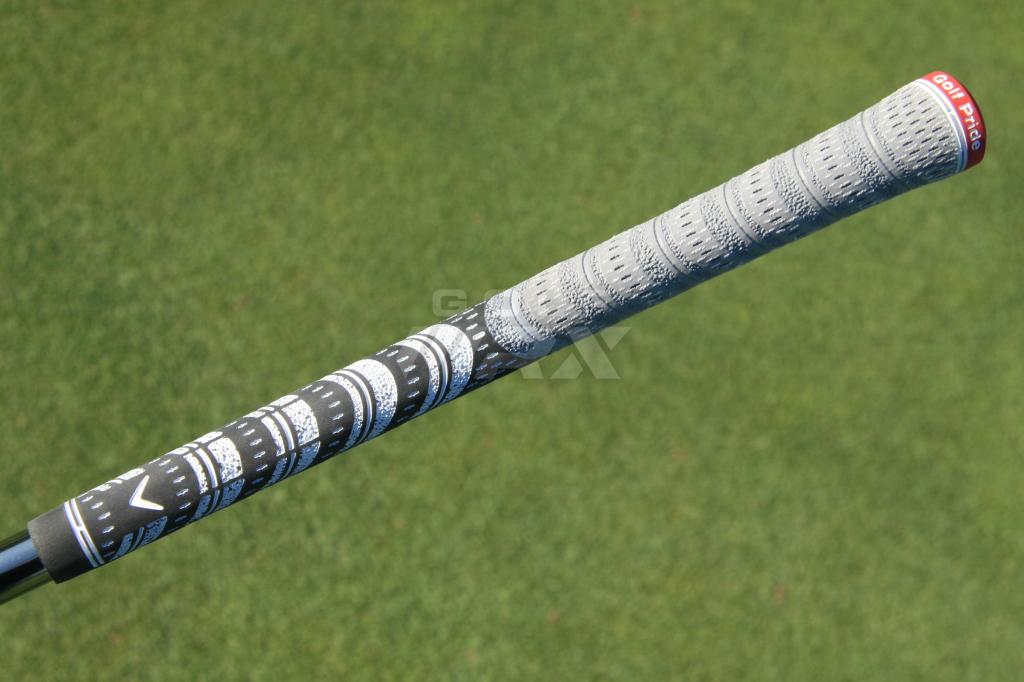

Stock shafts will be a UST’s new Recoil shaft made for drivers, and Mitsubishi Rayon’s new Diamana Red Board. Consumers will be able to choose from the 45.5-inch stock shaft option, and a 44.5-inch shaft that has a slightly heavier weight in the back of the driver head to adjust for swing weight.

The drivers carry a MAP of $399, and will be available in 9, 10.5 and 13.5 degree lofts.

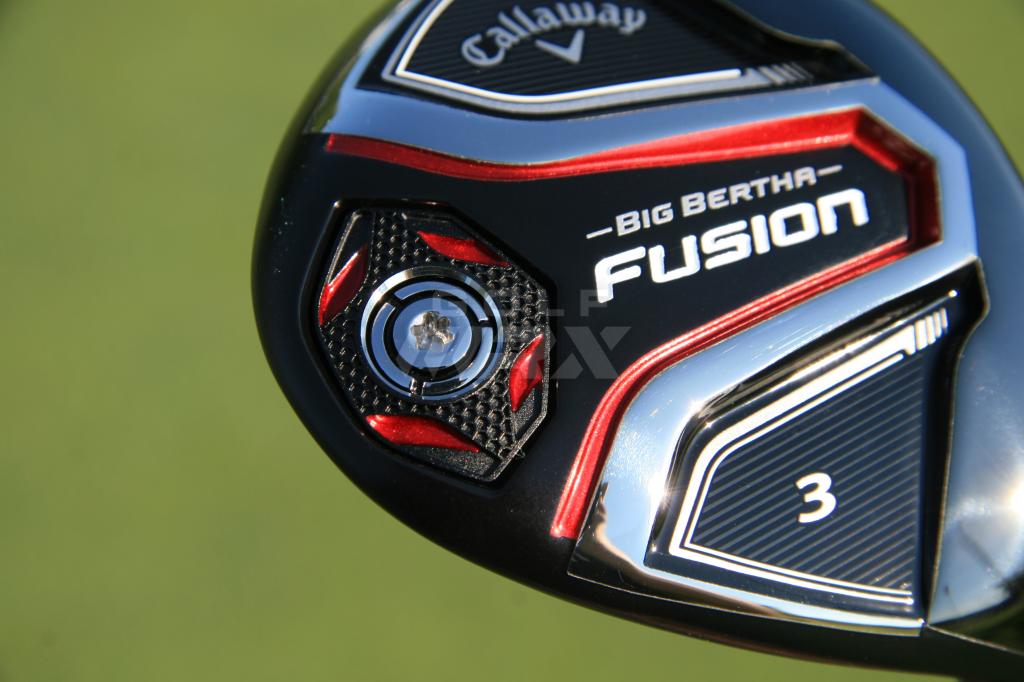

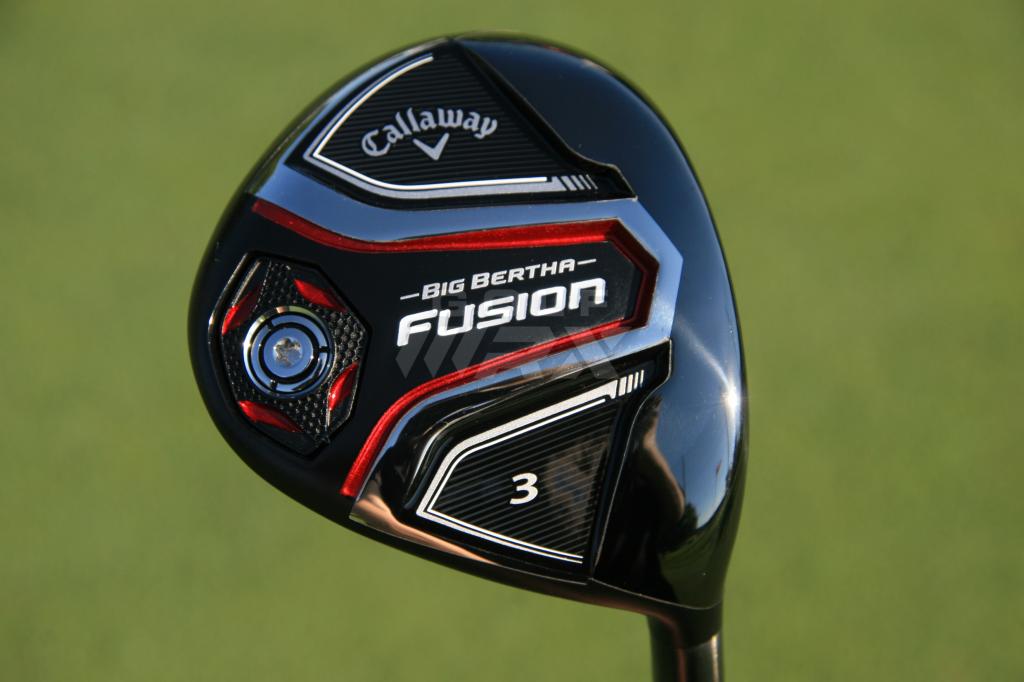

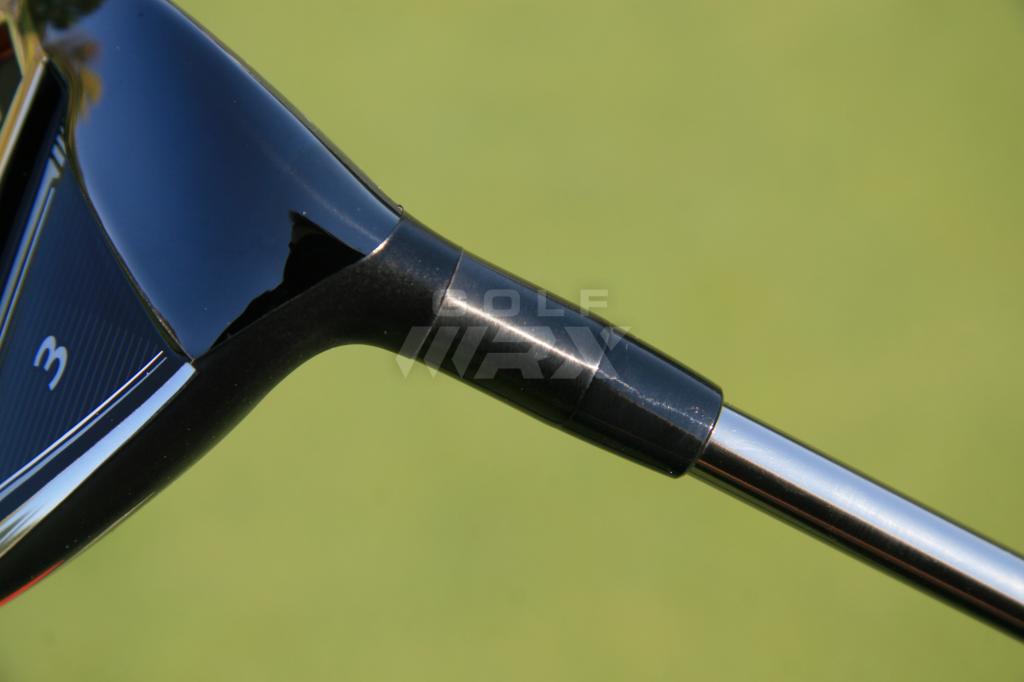

Big Bertha Fusion fairway woods

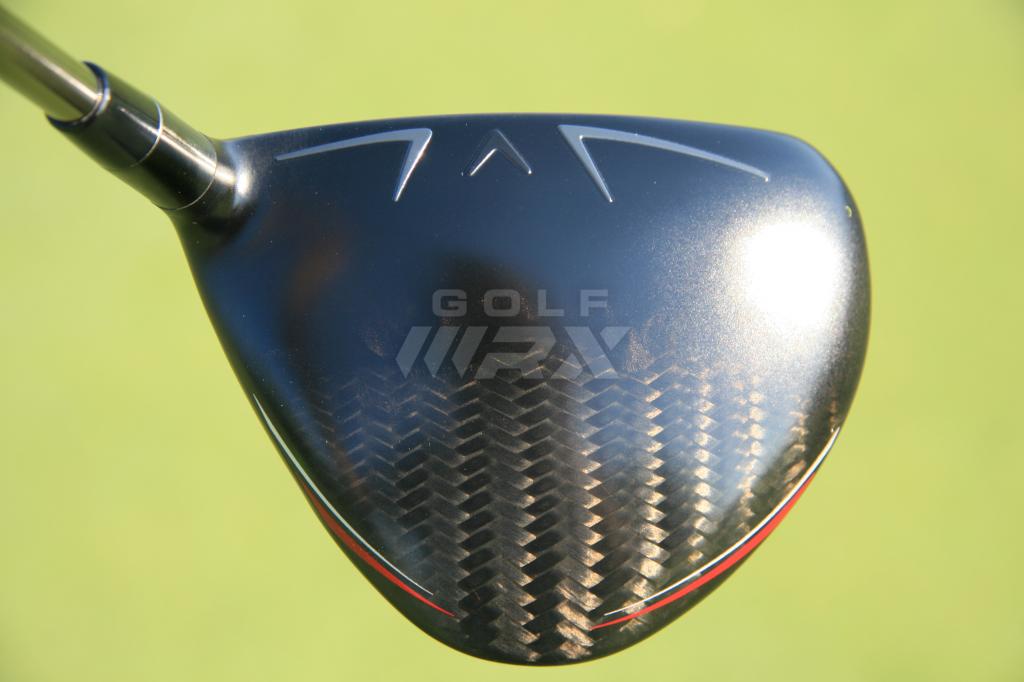

Like the Big Bertha Fusion drivers, the fairway woods also have the lighter triaxial carbon in their crowns. In total, the crowns weigh a feathery-light 5.8 grams, compared to the XR 16 crowns — made from stainless steel — that weigh 26 grams, according to Callaway.

With a lighter crown, Callaway was able to reposition weight low and back in the club for higher launch and higher MOI, and lower CG.

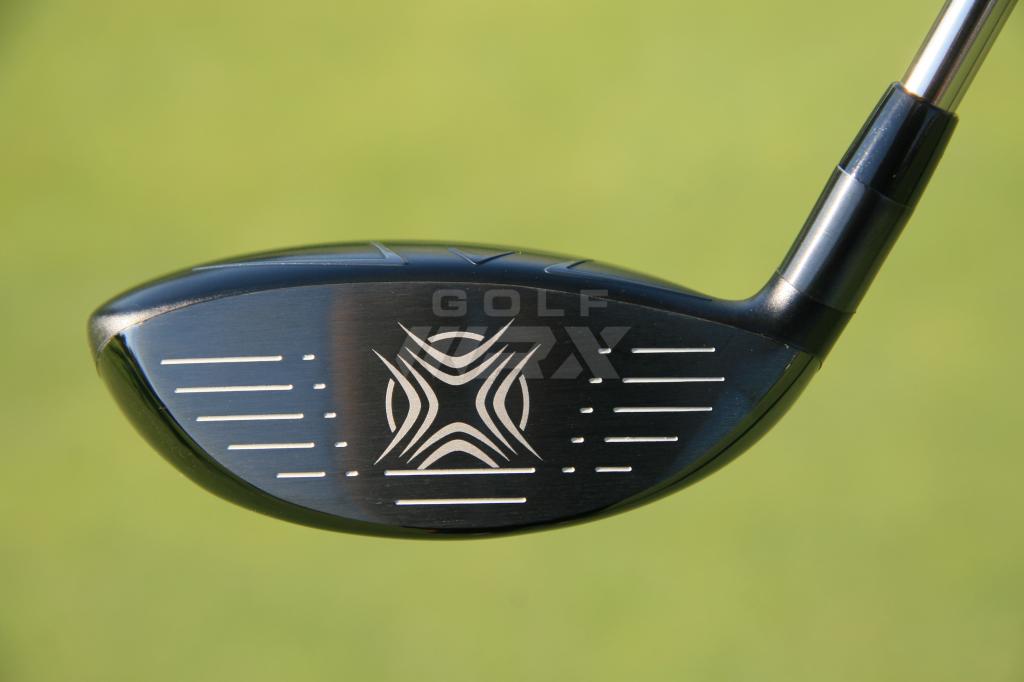

The fairway woods come with a Hyper Speed Cup Face for higher ball speeds on off-center hits, and the Speed Step crown for higher club head speed and less drag. The sole shape was also designed to reduce turf interaction, thus improving versatility for shots hit off the ground.

The Big Bertha Fusion fairway woods will sell for $249, and come available in 3-, 5- and 7-wood options.

Join the discussion about the new Big Bertha Fusion drivers and fairway woods in our forums.
