Gear Effect Basics: How off-center hits cause slices and hooks

Published

on

On the lesson tee, I frequently hear players say that the club twisted or slipped out of their hands at impact. So I ask them, “Why do you think it twisted?”

They usually explain that they did something to cause the club to twist or slip. This shows me that most golfers still don’t understand what is really going on at impact, which often leads them to try to fix an issue that never existed.

Have you ever noticed that this twisting of the club never happens when you flush it down the fairway or at the pin? That’s a big clue as to what’s causing the issue.

Line It Up

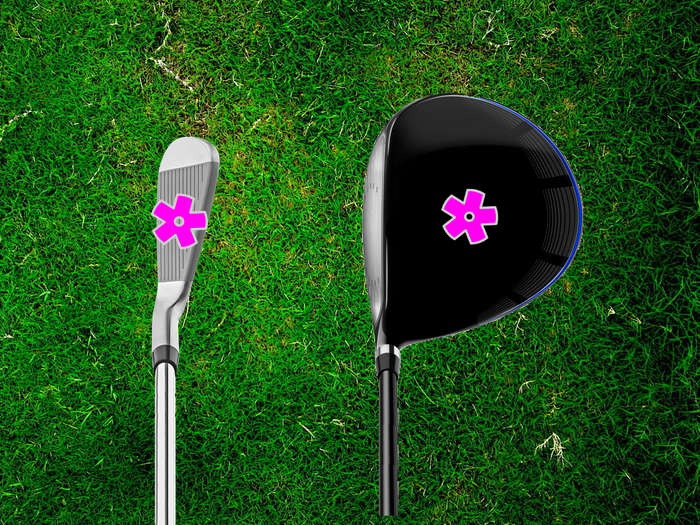

Both golf balls and golf club heads have what we call a center of mass (COM). This is the point around which the mass of the club head and the ball is evenly distributed, and can be thought of as the middle of the club head, as shown below.

com

When the COM of a club head and ball line up at impact, we get that great feeling we call “hitting the sweet spot.” But what happens when we don’t hit the sweet spot?

The Twist

Think about what would happen if a car collided with a lamp post. If the car and lamp post were to line up perfectly for the collision, the car would stop dead in its tracks. But if the car were to hit the lamp post with one of its headlights, the car would spin off violently. The same thing happens with a golf club at impact.

If the COM of the ball and the COM of the club head do not line up perfectly at impact, the club head spins. For example, if the ball were to be struck on the toe of the club, the point of contact on the face would twist around the COM of the club. That would open it up in a clockwise direction (for a right-handed golfer).

twist

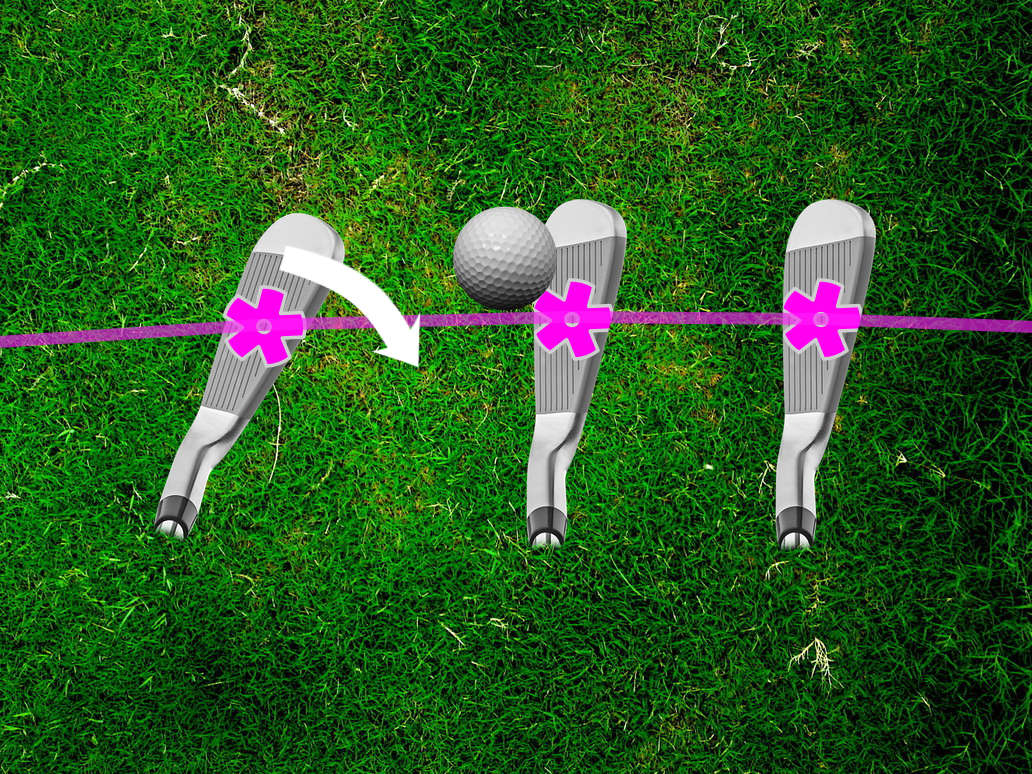

In the graphic above, the club head (moving right to left across the screen) hits the ball on the toe, causing a clockwise twisting in the direction of the white arrow.

How violent is this twisting? Watch the video below I made of some off-center impacts.

You can see that the twisting is quite dramatic, and it sends a lot of vibration up the club shaft and can actively twist the club in golfers’ hands no matter how tight they hold it.

It also leads many golfers to believe that they twisted the club actively, which wasn’t the case. This often leads golfers to grip the club tighter and tighter in an effort to stop the twisting. It’s futile, however, because there is a massive amount of torque created at impact. Further, a tighter grip can cause the swing to become less fluid and kill speed and coordination, leading to more off-center shots.

Curves

Hitting off-center shots also does something interesting to the ball at impact.

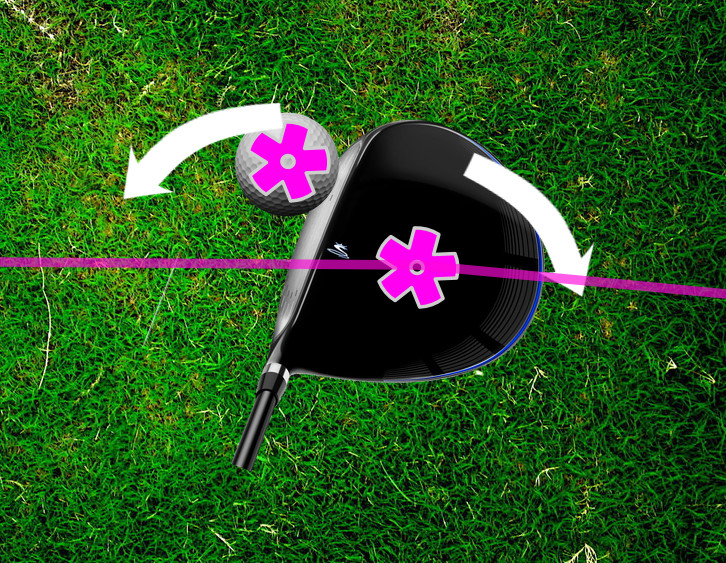

During the violent collision, the club head and ball can act like a pair of gears. So while a toed shot causes the club head to open up clockwise, the ball is twisted counter-clockwise (more accurately, the spin axis of the ball is tilted slightly more to the left). This causes the ball to have more draw/hook spin, or less fade/slice spin, depending on the impact conditions.

driver gearing

While it might seem counterintuitive at first, a club head that is opening at impact can cause draw shots thanks to what’s called “Gear effect.” The opposite is true as well: shots hit off the heel actually close the face, creating a shot that has more fade/slice spin or less hook/draw spin. Gear effect is also massively heightened when golfers have a wood or hybrid in their hands for reasons I will explain in an article that will be published at a later date.

Spin Doctors

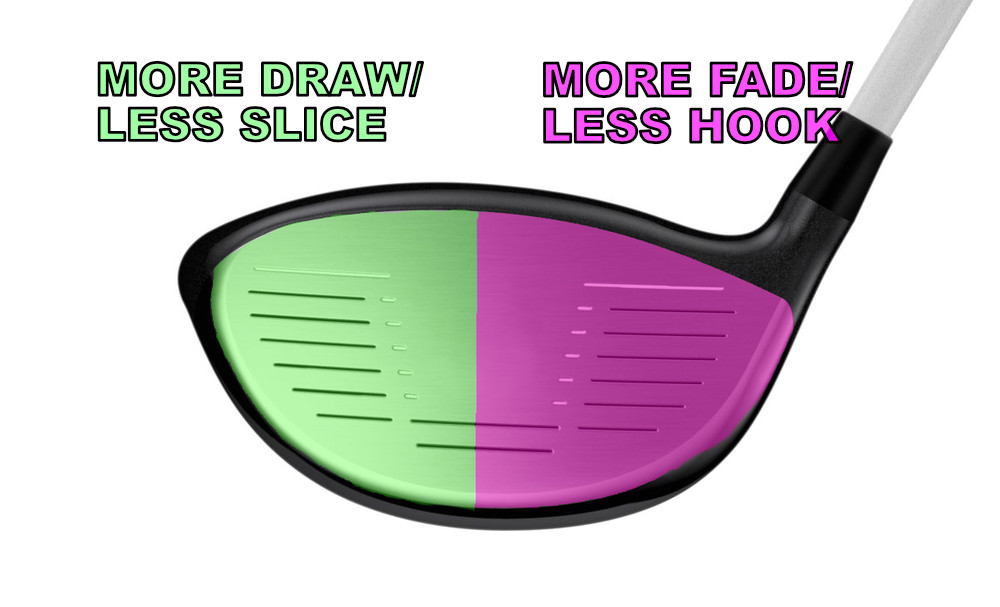

driver face

Gear effect is vital to understand if you are to fix your own swing and ball flight issues, because not understanding it could lead to you trying to fix the wrong thing.

For example, say a player were to make a great swing, presenting the club head with a neutral path and a neutral club face at impact. In theory, this would hit a perfectly straight shot.

If that shot were struck out of the heel of the club, however, the shot would start left and slice off to the right, leading the player to believe they had come over-the-top and cut across the ball. I often see this self diagnosis on the lesson tee when the exact scenario occurs. This player will then go off and attempt to fix the over-the-top move, which was never the issue in the first place.

“YOU HAVE TO KNOW WHEN A BAD SHOT WAS CAUSED BY A POOR FACE/PATH COMBINATION VERSUS SIMPLY TOE-ING OR HEELING THE BALL.”

Actions You Can Take

Most people take for granted that they are hitting the sweet spot, yet I consistently see it as one of the main issues with the vast majority of golfers. For that reason, it is vital that you build both an increased understanding of what you are doing at impact (through feedback and awareness), as well as an increased ability to improve it.

So here is a simple exercise I get all my players with strike issues to do. Even players without strike issues should do this occasionally, just to make sure no poor patterns are creeping in unknowingly.

Step 1

mark ball

Mark a range ball with a dry erase marker pen.

Step 2

place ball

Place the ball as shown. You can tee it up or lay it on the ground. All the matters is that the dry erase marker dot is on the back of the ball facing the club head at address.

Step 3

see strike

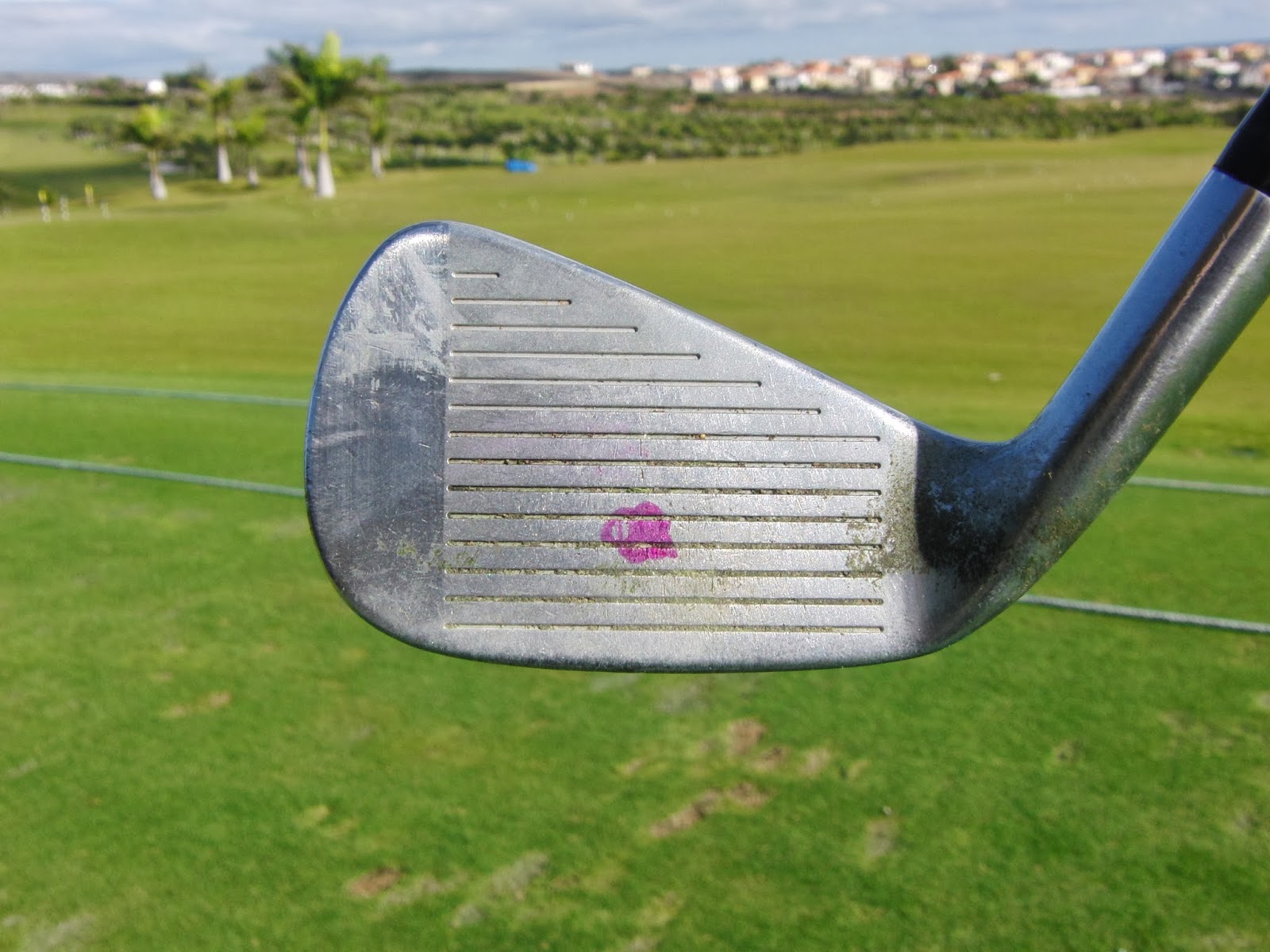

Hit the shot, and check your club face to see where you contacted the ball.

To be great at something takes consistent practice of the fundamentals. Golfers hear so much about the fundamentals of grip, stance and posture, but they are worthless if they don’t strike the sweet spot. So when golfers become aware of their faulty contact point and get to work on fixing it, big improvement often occurs — to their swing and to their scores.

Starting taking a marker pen with you to the range if you want improved consistency, extra distance, better feedback and more awareness about your strikes. It will allow you to better diagnose the causing your poor shots so you can eliminate them from your game.

Editor’s Note: Adam is Author of the amazon bestseller “The Practice Manual,” where he discusses some of these concepts and more. You can purchase the book here.
