How does the iPING putter app work?

Published

on

Golf is becoming more and more technological. Well, strictly speaking, the game is the same but the clubs you use and the innovations available to help analyze your swing and your ball flight are advancing fast. Here in the engineering department at Ping, we use simulation and measurement tools today that Karsten Solheim would have dreamed about. It is a great time to be a sports scientist.

iPING’s Beginnings

I remember the day in 2006 when we decided to create our own fitting software using launch-monitor data from new devices on the market such as Vector and TrackMan. I’d spent much of the previous year testing and validating a predictive ball-flight model that could take speeds, angles and spin rates and paint any golf shot into a 3D environment.

Our aim with our nFlight fitting software was to bring fitting into the 21st Century by applying real analysis to launch-monitor data and give meaningful fitting recommendations. We pioneered a few things like optimal shot bands, dispersion ellipses and gapping analysis. A couple of years later we started to talk about applying MEMS technology to measuring a club during a fitting. MEMS (Micro Electro Mechanical Systems) are small, lightweight sensors that measure movement. The devices contain two main types of sensors – three-axis gyroscopes that measure rotational movement (yaw, pitch and roll), and three-axis accelerometers that measure straight-line movement (x, y and z). These sensors are used in many different industries and can track any kind of movement, but they aren’t infallible – they drift over time and there is noise in the data. It’s not realistic to expect the sensors to keep an accurate track of the position of an object for long periods of time, but they are perfect for measuring short-duration movements.

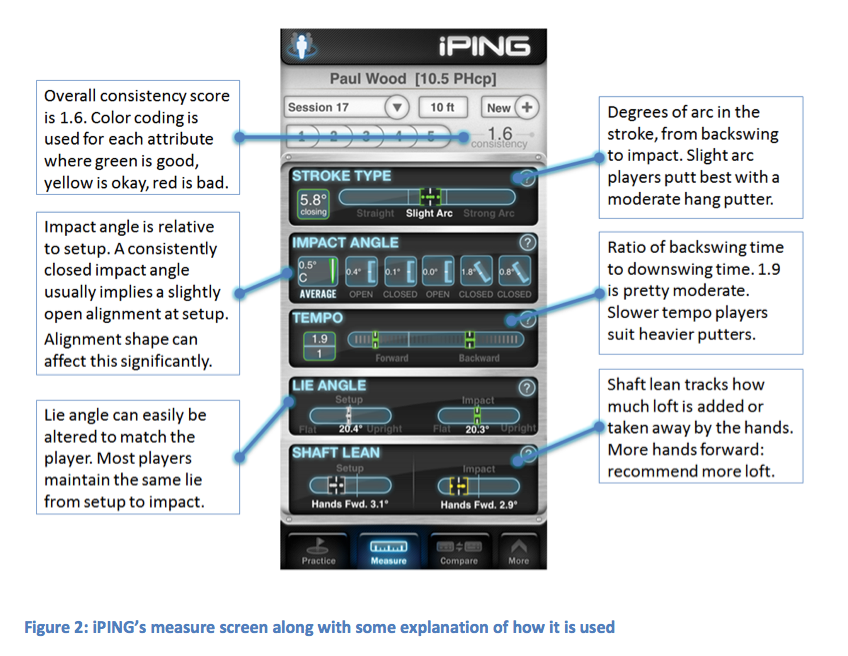

One of our engineers had the idea to take an iPhone 4 and strap it to a putter, using the sensors in the phone itself to measure a putting stroke. I was pretty skeptical about both the sensor quality in the phone and the extra weight affecting the putting stroke, but I was happy to be proven wrong on both counts. The phone is placed close to the grip and doesn’t affect the swing weight of the putter much at all. The extra weight is easily detectible by a golfer but not distracting, even to our tour players. We also verified that the device doesn’t change the putting stroke and gives us accurate enough readings, all for the cost of a plastic cradle.

iPING reliably captures the closing angle (stroke type), impact angle, tempo, shaft lean and lie angle. It is important to note that iPING has no way to know where the hole is, which is typical for any MEMS device. As a result, you will see that many of the attributes we track are internal to the stroke, say from address to impact. We can’t tell you whether the putter face was open or closed to the target because we can’t know where the target is, however, the sensor does know which way is down by measuring gravity and this is how we measure a real shaft lean and lie angle.

Consistency is Key

So, what benefit do we get from tracking a putting stroke? Well, primarily we want to measure consistency. All our research with elite players and tour players shows that even though the motion of their putting strokes varied, the single thing they all have in common is a high degree of consistency when compared to higher-handicap players. Based on our experiments, it doesn’t seem to matter how much arc is in your stroke, if you align at the hole or consistently left or right, or if your tempo is quick or slow, so long as there is consistency in the stroke. The key was that we established a relationship between the consistency (standard deviation, the statistical term for it) of any given attribute when repeated over five putts and a player’s handicap.

Figure 1 (below) shows this relationship for closing angle. We put this together to create a score for a five-putt session in iPING that rates your consistency over five attributes against players of a certain handicap. So if your score for a session is 9.0, you putted like a typical 9-handicap player. Using this score gives players an instant understanding of what is good and bad, and allows someone to quantify whether one session is significantly better than another. For example, you can use this in practice to measure technique changes. Just try using iPING outside in the wind and then inside on a flat green to see what impact that has on your consistency.

Consistency_of_Stroke_Type_vs_ Player_Handicap

iPING Data

When we use iPING in fitting we can take stroke type, impact angle, tempo, shaft lean, and lie angle readings to dial in the best putter for your stroke. Figure 2 shows how we would take each of the five main attributes and recommend a putter that will improve a player’s consistency. This is based on a lot of experiments in the putter lab.

There are a few things that stand out from the nearly 10 million putts registered on iPING.

  • There is no such thing as Tour tempo. Tour players have an average tempo of close to 2.0 on iPING, but there are some as low as 1.4 and some over 2.5, all with good putting numbers on the tour.
  • Beginner golfers often have a very flat lie angle and upwards of 10 degrees of arc in the stroke. We really don’t ever see this among elite golfers, which would suggest it is detrimental to producing good results. The average tour player has about 5 degrees of arc in his or her putting stroke (on a putt from 10 feet).
  • The general public tends to add a little loft with the hands on average; elite and tour players tend to de-loft the putter a little.
  • Even among the very best players, very few have the putter face totally square to the hole at address. Some good tour players consistently line up 4 or 5 degrees to one side of the hole. Since we have no evidence that it’s important to consistency, it’s not something we try to “fix.” If putts are consistently missed left or right, then a choice of alignment features and/or hang angle can help that.

The ability to acquire and analyze large sets of information from tools like iPING has certainly helped us answer some big questions about putter design and fitting, and hopefully help a few people make some more putts.

IPing_How_to
