Are titanium drivers really that much better than wood drivers?

Published

on

Let’s forget about center of gravity, moment of inertia, weight adjustability and turbulators for a moment. I know it’s difficult, but bear with me.

The golf industry has made significant (and I mean significant) improvements in driver technology in recent decades. I started playing golf with a wood driver and quickly found my way into the metal wood family, which was replaced by titanium shortly afterward. I hardly stopped to think about buying the newest technology, but it always seemed to help.

It made me wonder, how much better are titanium drivers of today than the wood drivers we played 30 and 40 years ago? If it’s starting to sound like I’m introducing results to an experiment, that’s because I am.

For my experiment, I dug out an old “wood” from the garage, along with my current driver and then tested them on a Trackman. To test the two against each other, I hit 10-to-15 shots with each driver, doing my best to create the same swing and launch conditions for both clubs, and let the numbers tell the story. I was a little afraid of hitting hard range balls with the wood driver, so for this test I dug into the shag bag and pulled out some old tournament golf balls.

unnamed (3)

There were a couple of major differences in the two clubs that affected performance. The wood driver was 43 inches long and built with a steel shaft. The shaft felt soft and whippy, and in my estimation, it was probably something close to a True Temper Dynamic Gold R300, maybe even softer.

unnamed (4)

My modern driver, a TaylorMade R9 SuperTri, which was built with a Fujikura Motore F1 75-gram S-Flex shaft, measured 44.5 inches.

unnamed (1)

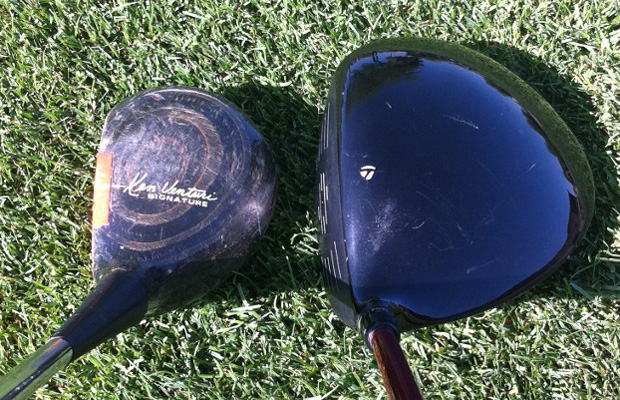

The two competitors meet at center-ring before the battle begins.

Below are my results to the experiment.

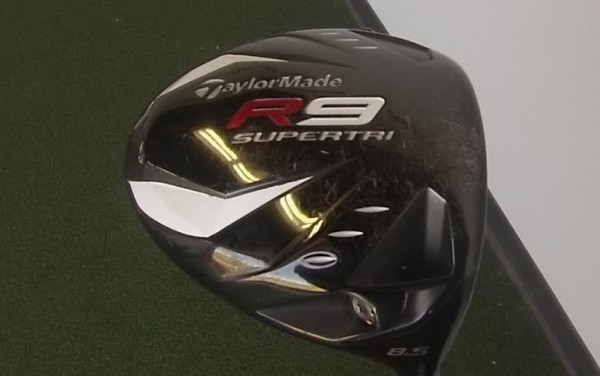

New School Driver

Illustrated in the images below, you can see both the dispersion and the averages for the group of drives I hit. My thought was to try to swing with the same speed on each shot, with the same golf balls, to identify the difference between the clubs.

unnamed

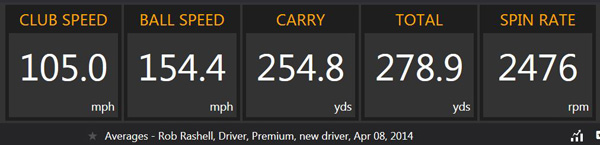

New Driver Data: Avg. Launch Numbers, 10 Drives

newvsold1

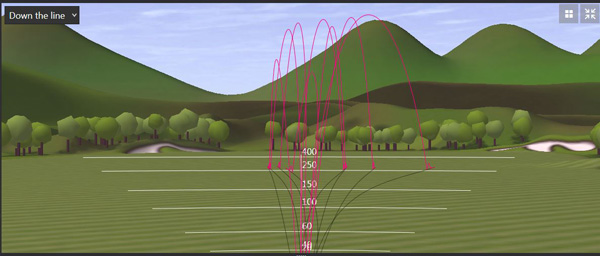

Dispersion

oldvsnew6

Old School Driver

unnamed (2)

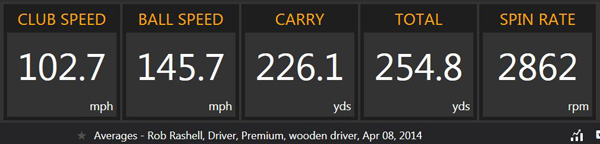

Old Driver Data: Avg. Launch Numbers, 10 Drives

newvsold2

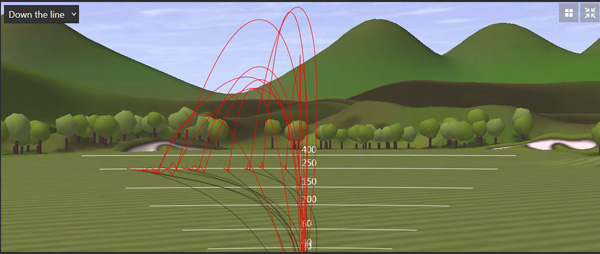

Dispersion

oldvsnew5

Observations

The wood driver had a strong left bias which could have been the result of:

  • The weak steel shaft, making the timing of the strike more difficult.
  • More likely, it was the lack of bulge and roll on the face of the wood driver, making a center strike even more valuable.

You can see from the Trackman numbers of the wood driver that the face was pointed 0.2 degrees to the right of the target on average, with a swing path that was 4 degrees right. This path and face relationship should create a nice little draw, not a snap hook.

The modern driver’s average path and face numbers were only slightly different — path 2.5-degrees right and face 0.7-degrees right — yet the ball flights were markedly different. Modern drivers are built with a lot of bulge and roll to help the player in the case of an off-center hit. The point of impact on the driver face more important than any other factor, and it was even more important in the days of wood drivers!

I wasn’t overly concerned about the static loft of each driver because Trackman gives you dynamic loft, or the loft of the club at impact, which you can see was only slightly different between the two. The average dynamic loft for the wooden driver was 13.9 degrees at impact while the modern driver was 14.1 degrees.  Their respective launch angles varied only slightly as well (0.5 degrees). I wanted these numbers to be as close as possible to show the difference in performance between the two clubs under similar circumstances.

Shot for Shot

I was able to get two swings with the exact same club head speed.

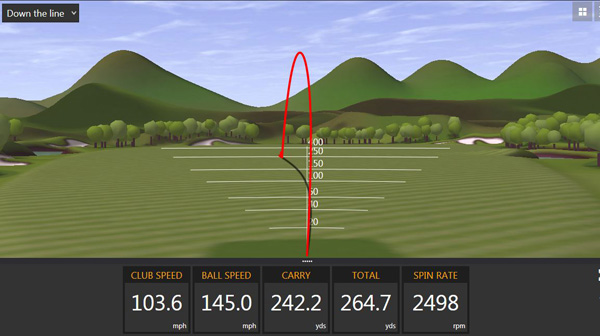

Old Driver

oldvsnew7

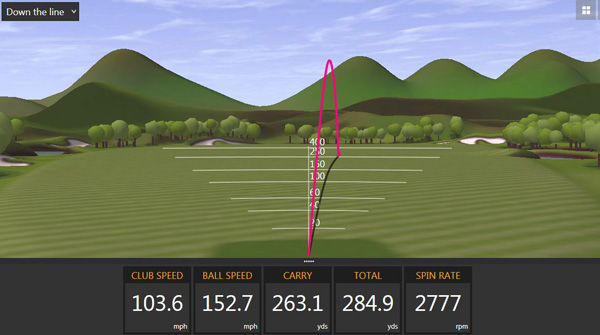

New Driver

oldvsnew8

Observations

There’s only a few differences in the individual shots, but they clearly have a tremendous impact on the flight of the golf ball. The angle of attack with the modern driver is about 3 degrees more “up” than the wooden driver and both dynamic loft and launch angle were higher for the wooden driver, even though I was hitting up less. The most likely explanation comes from center of gravity location, gear effect and the point of impact.

With path and face angle numbers being similar, you’d expect the curve of the ball to be similar. The tilt of the axis of the golf ball should be similar with a center strike on both clubs, but Trackman tells us this likely didn’t happen for either shot. Spin Axis is the amount of tilt in the axis of the golf ball at impact: a negative number means the left side of the golf ball tilts lower by degrees causing a right-to-left ball flight, while a positive number means the right side of the golf ball tilts lower by degrees causing left-to-right flight.

You can see the glaring difference in the spin axis number between the two shots; negative 8.0 and positive 1.5. That’s almost a 10-degrees difference. With the wood driver, the strike was more than likely to the toe side of the face and without a lot of bulge and roll, the result was a severe hook. With the modern driver, the strike was more than likely lower on the face and towards the heel, causing the ball to launch a little lower (gear effect), and the technology of the face (more gear effect) caused the ball to actually fade.

Conclusion and Thoughts

The wood driver, if you can find one, could be used as a great practice tool. The importance of the center strike is really valuable and using a smaller head with a higher degree of feedback (slices and hooks) can help you improve. However, by producing 20 yards more distance with a tighter dispersion, the new driver is difficult to argue against.

It’s eye-opening how driver design technology influences not only distance but the curve of golf shots. Bulge and roll, which aids in gear effect, works to hit the ball undeniably straighter and farther. So how much better is titanium than wood? Short answer – a lot.

The guys at sports science conducted a similar experiment with Rory McIlroy as their test dummy (he’s decent at golf). Watch the video here.
