Study: Center of Pressure movements need to change for different shots

Published

on

Every wonder why one golfer is so proficient with his driver, but cringes when has has a wedge in his hands? Another golfer may be an excellent short iron player, but he is scared stiff of his long irons. Is it all just skill level and practice?

For years, I’ve been obsessed with finding ways to build the tools I need so that I could validate the notion that “one optimal swing type for a complete range of golfers’ needs” just doesn’t make sense.

It seems to me that teaching just one swing type without showing a golfer how to adjust for each particular shot is very much like trying to select one car to suit all the family’s needs. Basically, it’s just a series of comprised decisions that invariably never meets the total needs.

Since 2010. I’ve been building digital tools that will finally inspire us to validate that “there is an optimal swing pattern for each and every type of golf shot and all golfers will need to acquire several of them to have a complete game.“

Working with a medical company called Patientech Vista in Winnipeg, Manitoba, Canada, our team developed a golf pressure mat called BodiTrak that measures center of pressure.

By measuring the average position of a golfer’s vertical forces while in either in a “static” (set up in the address positions for various shots) and or “dynamic” position to capture complete swing data using sound as the trigger for determining impact and the  web cam off your laptop for integrated video, we now can now bring center of pressure, or C.O.P. golf pressure mapping to the masses.

What you will see below are actual screen shots of the BodiTrak user interface.

A bit about BodiTrak: BodiTrak is a highly portable golf pressure mat that can be rolled up into a trim carrying case, weighs approximately 8 pounds and can be used both indoors and outdoors on any type of lie, putting, chipping, downhill and even side hill lies and sells for under $2,000.

Dr. Sasho MacKenzie, a well-known golf biomechanist from St. Francis Xavier University in Antigonish, Nova Scotia, Canada and I did the initial validation of the BodiTrak Golf Pressure Mat as compared to an AMTI Force Plates that many of the top researchers in golf use. The results were positive and the trace patterns near match up in near identical fashions.

Much of the information we all can now capture has never been seen before, in particular the C.O.P. traces from the unusual lies, downhill lies, sidehill lies and so forth.

Pressure mapping itself is not a new topic. All successful golfers innately understand the significance of proper weight and balance issues. But until now, the lack of portability and high costs of force plates have restricted validating weight and balance issues. Most of the data collected to date has been restricted to but an elite group of researchers, biomechanists and advanced golf academies.

Recently, an article was written comparing the brake effect of a baseball player to golf, and this was just the encouragement that I needed to reach out and submit this article. It turns out that this brake effect is exactly what we refer to in our pressure mapping system as the power trace.

While conducting an early spring symposium at Holland Golf College in Prince Edward Island earlier this year, I ran through all 43 golf students on the golf pressure mapping device. The results were obvious and very interesting, and I’d like to share them here with you.

Hockey is Canada’s national sport, and it’s easy to understand that so many of the Holland College group I was testing were well versed in slapshots. I was very curious to see if many of these young golfers that had the power trace actually knew what they were doing to create the power. Amazingly, most did!

It turns out that in hockey (just it as in baseball), the most powerful slapshots are produced when the front foot is used as a brake, slowing down the forward momentum providing resistance to hit against. This is a well-established fact among hockey players and makes total sense. Otherwise, you would be sliding forward and very little power would be generated in a slap shot if this technique wasn’t used.

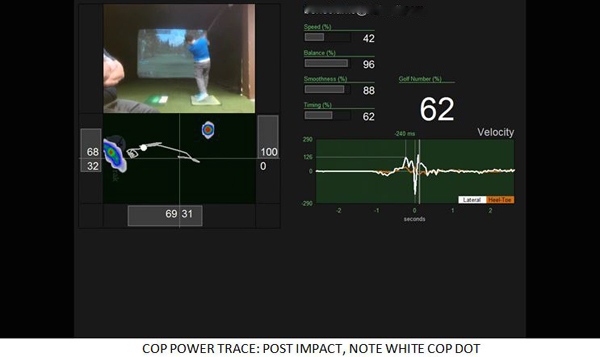

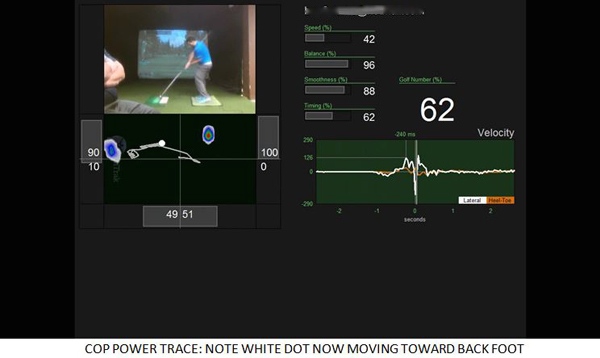

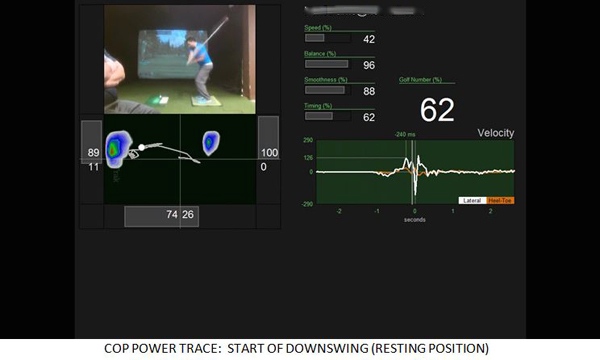

The power trace illustrated below indicates that the C.O.P. DOT (white dot) moves hard to the front foot even before the golfer completes his backswing. I refer to this as the “resting” position. Next, the vertical forces in the C.O.P. trace reverse toward the back foot just prior to impact, allowing the golfer to create the resistance that generates his impressive power.

When polling the students, I asked this distinguished group of power hitters to describe their short iron and wedge play. Most indicated that their irons was not their strong suit. This made perfect sense. For if you use this C.O.P. power trace for all your shots, you are effectively pulling up prior to impact, which may not be ideal for short iron play.

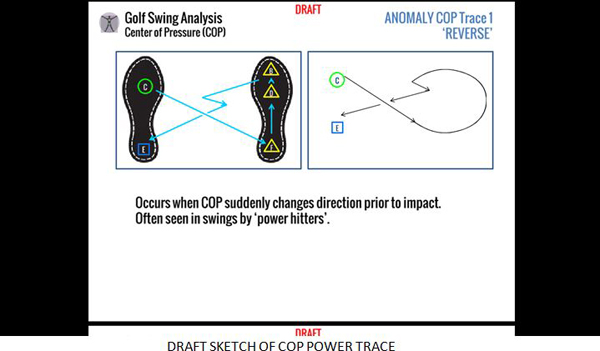

Below is a great example of the C.O.P. power trace collected at my Holland College symposium. By the way, if you slow down the new D.N.A. golf shoe add by FootJoy, you’ll see the same C.O.P. Trace they are showing on their pressure map.

Image-01

Image-02

Image-03

Image-04

Image 05

A Holland College player selected by his peers as the best iron player. The same player as above C.O.P. iron trace.

Image-06

C.O.P. Linear Trace: Irons

When these power trace hitters were questioned about their personal iron play, I also asked all of their power trace peers who was the best iron player in their group.

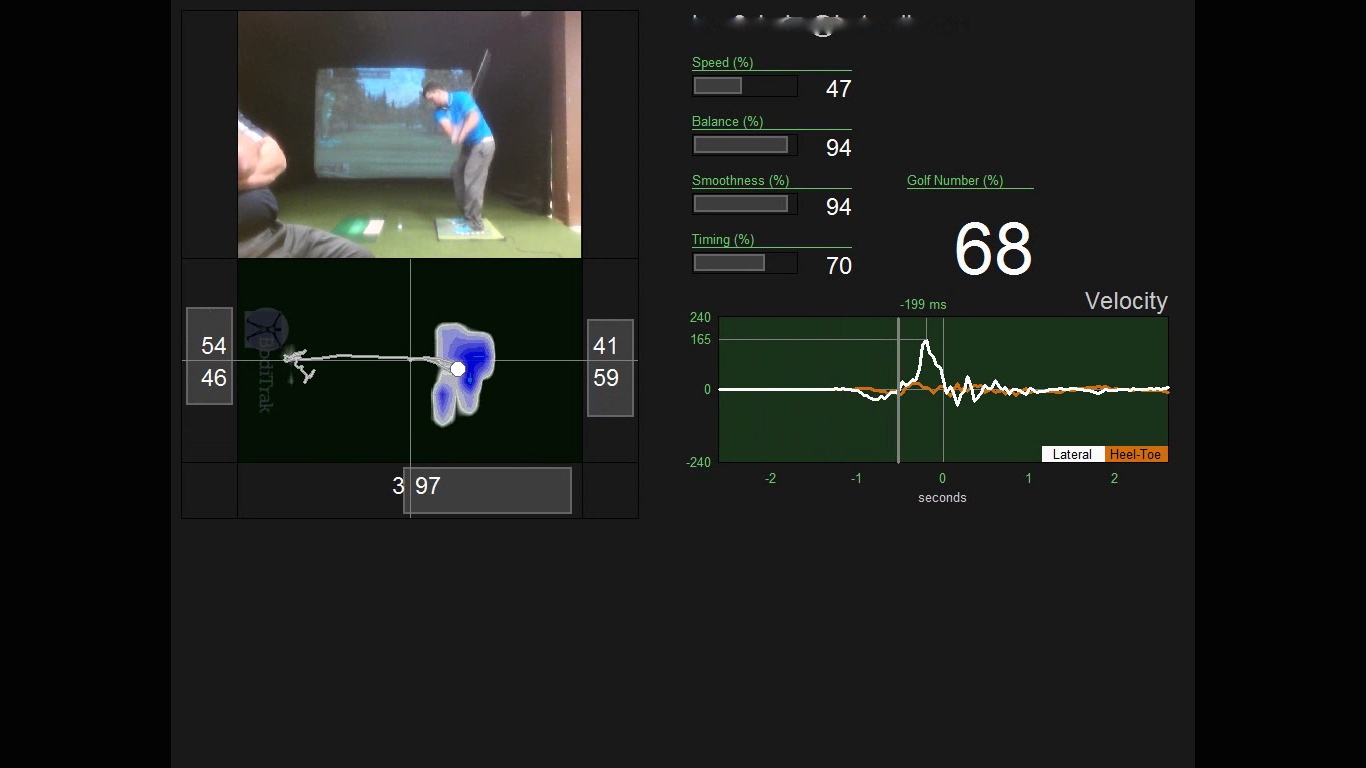

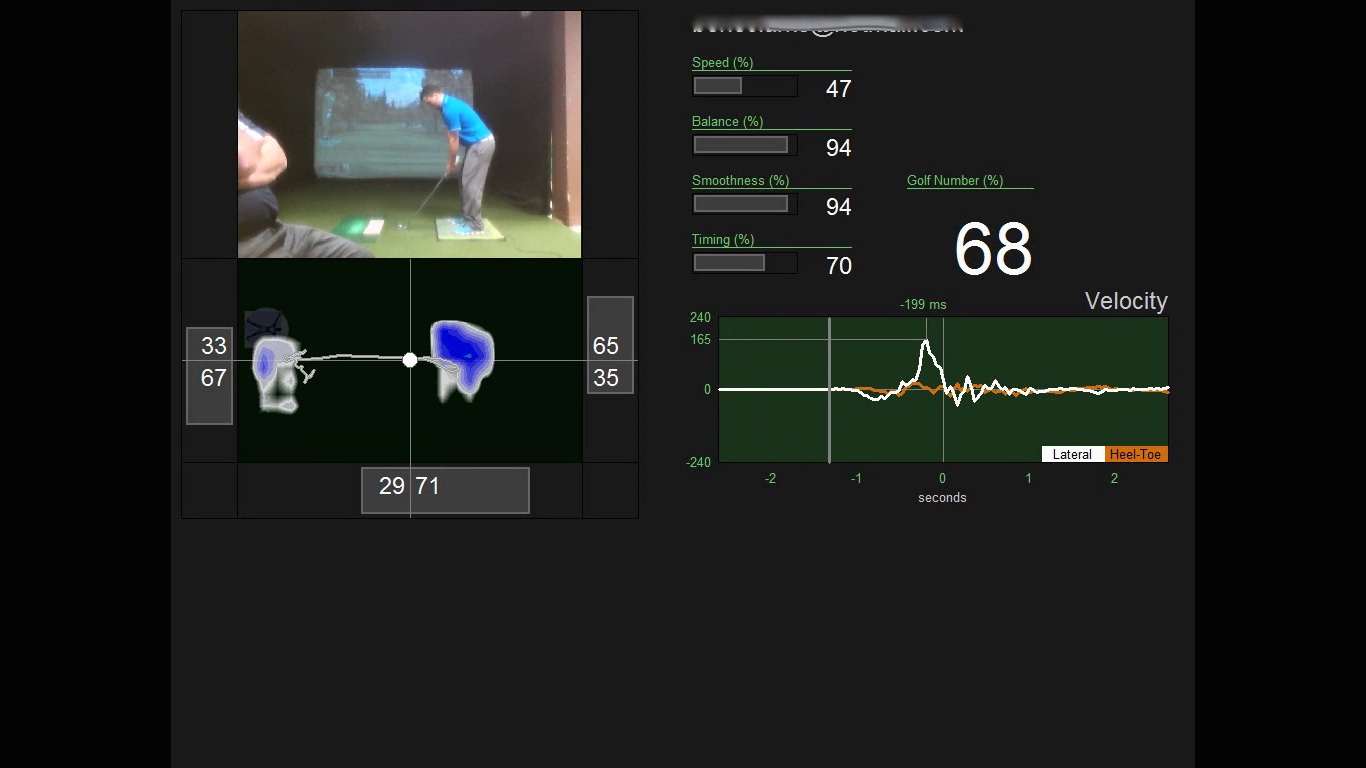

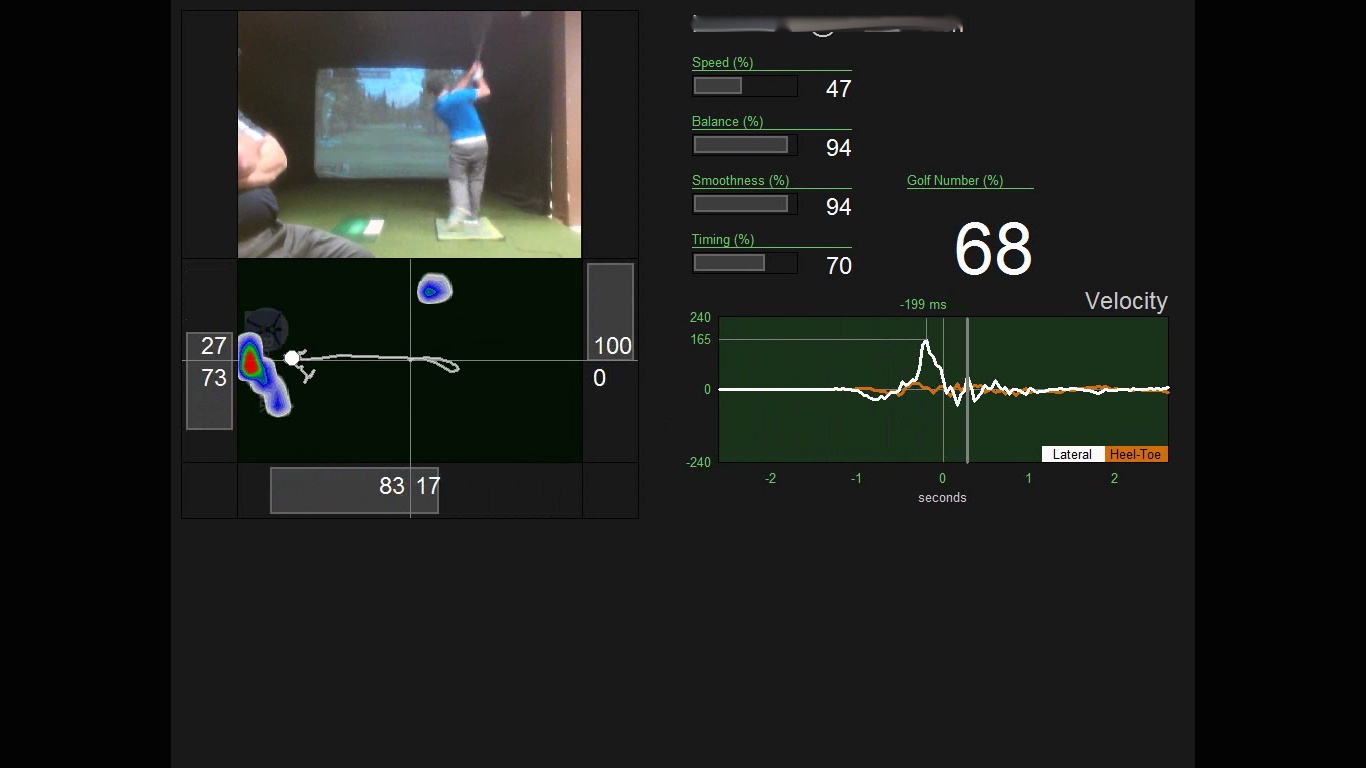

The same golfer, Ben, who used the power trace with his driver, demonstrated a completely different C.O.P. trace with his irons!

Screenshot (50)Screenshot (51)Screenshot (52)

Through thousands of hours testing with the BodiTrak Golf Pressure Mapping device, I’ve come to call this C.O.P. trace “linear,” as it illustrates the a golfer’s transfer of a weight in very simplistic manner: straight back and straight through.

In actual field testing, I’ve found that this linear C.O.P. trace is used by very accurate golfers and a very reliable C.O.P. trace of a golfer with strong short iron performance, where power generation is not a crucial part of the optimal overall result.

Of all the various C.O.P. traces, the linear trace is not the most powerful, but it does seem to represent the most accurate C.O.P. trace for short iron play.

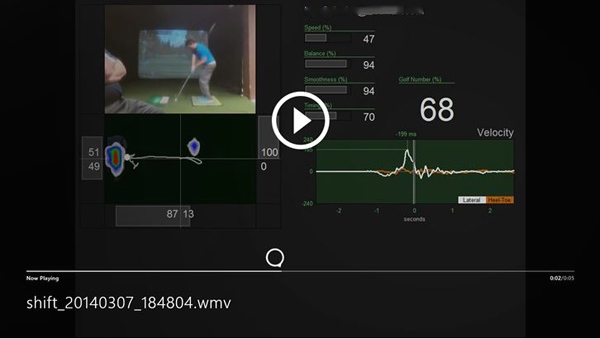

I’ve posted the power trace at on Youtube for your greater scrutiny.

[youtube id=”kdOYrn9ckgo” width=”620″ height=”360″]

While C.O.P. analysis is purely research at its infancy, it’s very clear that the ideal C.O.P. trace for optimal distance is not the one that is to be used for optimal control. Each set of clubs, be that driver, fairway woods, irons and the likes, all will have their own optimal C.O.P. trace patterns. That is not likely a revelation to most.

Finally, a solution to understanding that one swing for all shots is not an optimal solution. This science shows that predictable traces serve each particular shot required and help golfers quantify feel. Unfortunately, as I learn more and more about C.O.P. golf pressure mapping, my lifetime obsession to prove my notion has not subsided, rather it has grown.
