Mizuno T20 wedges: Let’s get spinning

Published

on

Spin.

We’re always trying to reduce it with our driver and increase it with our wedges for maximum control, but with the rules of golf being so strict, how do actually achieve a performance gain? Simple engineering…

This is the Mizuno T20 wedge.

It’s been a few years since we have seen a T (teardrop) wedge from our friends at Mizuno, and there is good reason.

Let’ get into a quick history lesson: before the JPX900 series was introduced, Mizuno had quietly been realigning the product cycles of the MP and JPX lines. You might remember back a few years ago now before the MP18s hit the scene that there was a bit of a lull in the MP line—so much, in fact, there was even a thread here on GolfWRX asking “Is Mizuno not making MP irons anymore?”

It was a naturally curious question to a company that always had very standardized release cycles, but it was a long-term play that has paid off tremendously. We now get “T” wedges with MP irons (MP20s to be exact), and we should (from everything I know) continue to see “S” Silhouette (more rounded profile) wedges with future JPX lines.

Before we get to what’s new, how about we first talk about what will be staying the same

  • Grain Flow Forged HD – like all new Mizuno irons, the T20s are made using the same forging process to increase the density of the material in the clubhead for an improved solid feel.
  • Boron – this little element when added to the 1025e mild carbon steel used in the wedges (we’re talking trace amounts equating to 3ppm – parts per million) increases the strength of the material by 30 percent—how crazy is that for chemistry? This improves groove life and has ZERO effect on club feel.
  • Variable Width & Depth Quad Cut Grooves – Like previous T and S wedges, the T20s will have quad cut grooves that will vary in shape based on the loft of the club. Lower lofted wedges are more narrow and deeper, while higher lofted wedges are wider and more shallow since impact happens at lower speeds this increases spin consistency.
  • Same beautiful Teardrop profile from address

So what’s new?

Flow. Just like the MP20s, engineers are bringing more a more extreme CG (center of gravity) shifting philosophy, or as Mizuno explains it, increased vertical moment of inertia to the wedges. As much as you (well maybe not “you,” depending on who you are) might think “a wedge is just a wedge” and loft is the only deciding factor for spin, you couldn’t be further from the truth. By relocating the CG throughout the set and changing the sweet spot height, engineers can further alter the launch and spin precisely for each loft.

It’s about gear effect—the higher you hit above the CG the less spin the ball with have, and the closer to or lower you make impact compared to the CG the more spin you will create. Either way these are wedges, so a 50 degree, for example, is still going to spin, but it is now more controllable (think less likely to ballon or get too high on full shots). On the other side of the equation, a 60-degree wedge will allow for even MORE trajectory and spin control for the low flying quick checkers with zip.

Now about that spin.

By the Rules of Golf, you can’t make grooves sharper, you can’t increase their volume, and you can only have so much surface roughness (sorry but that old Spin Doctor wedge is HIGHLY NON-conforming). So what do you do? You change the way you think about that surface roughness…

Hydroflow Micro Grooves

Instead of traditional laser etching parallel to the grooves, Mizuno engineers took a concept from the high-performance tire world and went perpendicular to the grooves and parallel to the direction the ball moves up the face to channel moisture away. This directional tread has proven to increase spin on shots especially in conditions with moisture up to 1,200 RPM (on a 60-yard shot), that’s a very tangible number. It’s not just about spin either: the more the friction that can be created also means more control on launch angle and less of a “floating” ball flight. That’s how those low zippers keep zippin’!

Don’t think for a second that Mizuno just changed the etching and was done with it. The process went through multiple iterations to figure out how they could improve its life (beyond the boron) and the solution was to etch before the chroming process to elongate the lifespan. The other groovy take for the T20s is the actual reconfiguration of the grooves. To get the bottom groove closer to the leading edge without having it disorient the overall look of the club and making it appear that the heel or toe is thinner on one side. The lowest groove has been shortened and centered.

All of these refinements; CG, micro-grooves, and reconfigured scoring lines add up to one thing: more control and improved shotmaking with your wedges.

Finishes, specs, and grinds

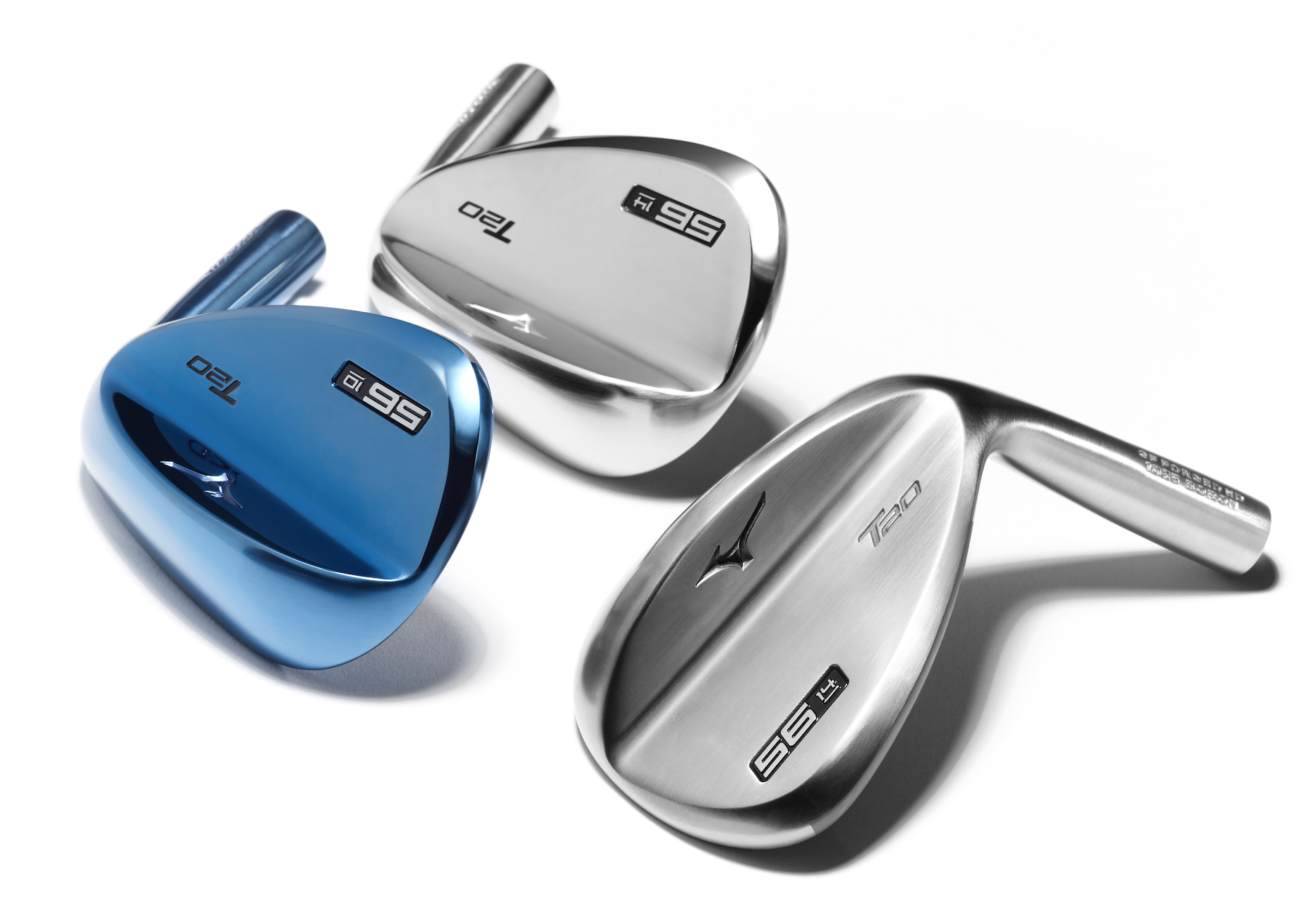

The wishes of many have been answered when it comes to the T20s, there will be a RAW finish (happy dance time) along with traditional chrome and the signature blue ion. Leftys will only be able to get chrome, but all the same options will be available as far as lofts and grinds.

Coming in lofts from 46-60 degrees, the grind options progress depending on the loft and bounce. Going from full-soled in the lower lofts to more aggressive back edge, and heel-toe relief in the 60 degree. These sole shapes came directly from Mizuno’s craftsman that worked with players and prototypes to determine exactly how the bounce and sole shapes should work in harmony.

All of this has come together to create Mizuno’s finest wedge to date.
