Are you properly managing your club face? Try this experiment

Published

on

Recently, I performed an experiment on how golfers manage their club faces. I was curious to see how I could instinctively resolve the problem of executing a straight shot with an extremely open-face grip, as well as an extremely closed-face grip. Although both “golfers” are me, we will refer to the golfer with the extreme open-face grip as Owen and the golfer with the extremely closed-face grip as Chuck.

To perform the experiment, I used three different forms of measurement (video, FlightScope and BodiTrak) to capture and analyze data and make observations about how innate athleticism unconsciously solved the problem. My hope is that some of these observations might prove to be missing links to your quest to control the golf ball better — and that you might learn to trust your inner “athlete” on the course more often.

*Remember that these observations are not absolutes. They are simply one man’s way of resolving a problem. I do believe, however, that some of the observations I make will be useful images to help others resolve their stray ball flights.

Let’s start off with the FlightScope data. Note the obvious differences between Owen and Chuck’s use of the face-to-path relationship. Chuck instinctively swung the club head well out to the right to manage his club face that was pointing so drastically to the left. Note the exact opposite tendencies with Owen.

Note The rightward Swing Direction and Closed Club Face.

Note the rightward swing direction and closed club face for Chuck.

Note the leftward swing direction and open face of the OFG Athlete.

Note the leftward swing direction and open club face for Owen.

Now take a closer look at the BodiTrak information. Note how Chuck has less pressure on the backswing leg at the top of the swing and significantly more pressure toward the target leg at impact. Chuck instinctively recognizes that the more lateral his motion is toward the target, the golf club will be delivered into impact sooner than normal, and result in more of an open-faced position.

Note the smaller amount of pressure on the Trail Foot for the CFG Athlete.

Note how 63% of Chuck’s pressure is on the trail foot at the top part of his backswing.

Note the higher degree of pressure on the lead leg at impact of the CFG Athlete.

Note how 73 percent of Chuck’s pressure is on his lead foot at impact.

Note the exact opposite tendencies with Owen, who applies more pressure on the backswing leg at the top of the swing and makes less of a move laterally toward the target at impact. Owen recognizes that the hands and arms need more time to square up a club face that is so open, which can be achieved by making a later, smaller lateral move towards the target.

Note the higher amount of pressure on the Trail Foot for the OFG Athlete.

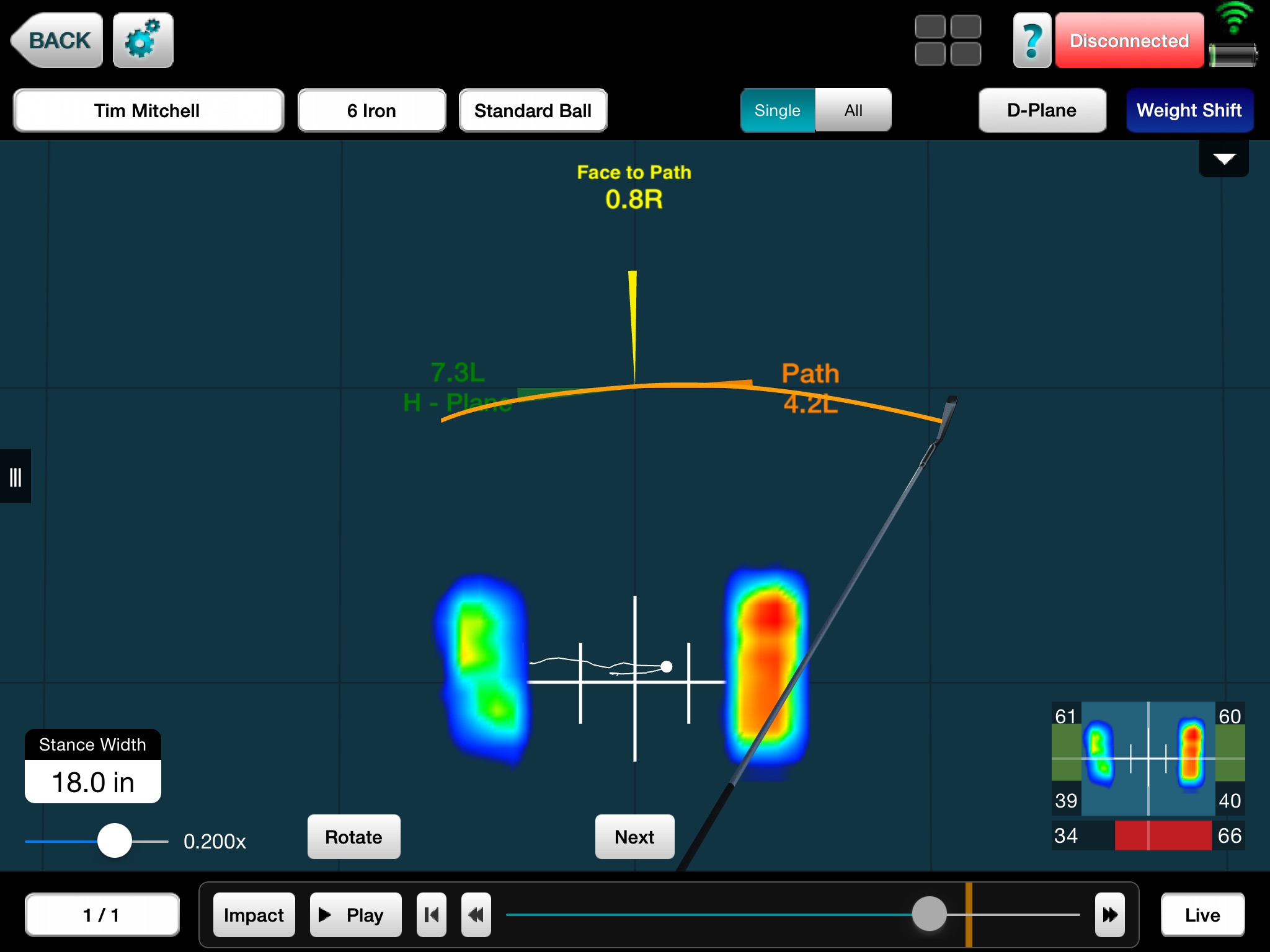

Note how 66 percent of Owen’s pressure is on the trail foot at the top part of his backswing.

Note the smaller degree of pressure on the lead leg at impact of the OFG Athlete.

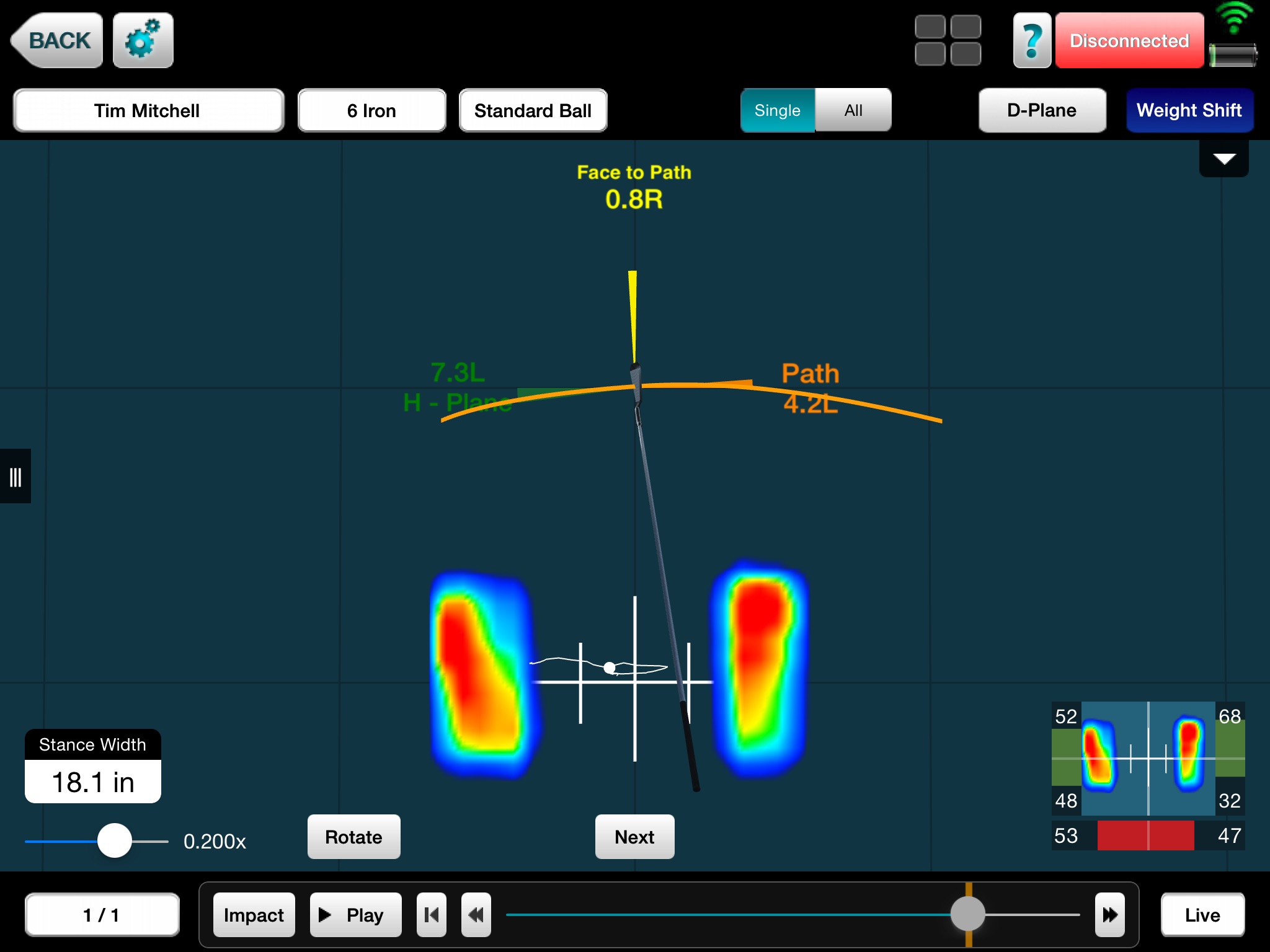

Note how 53% of Owen’s pressure is on his lead foot at impact.

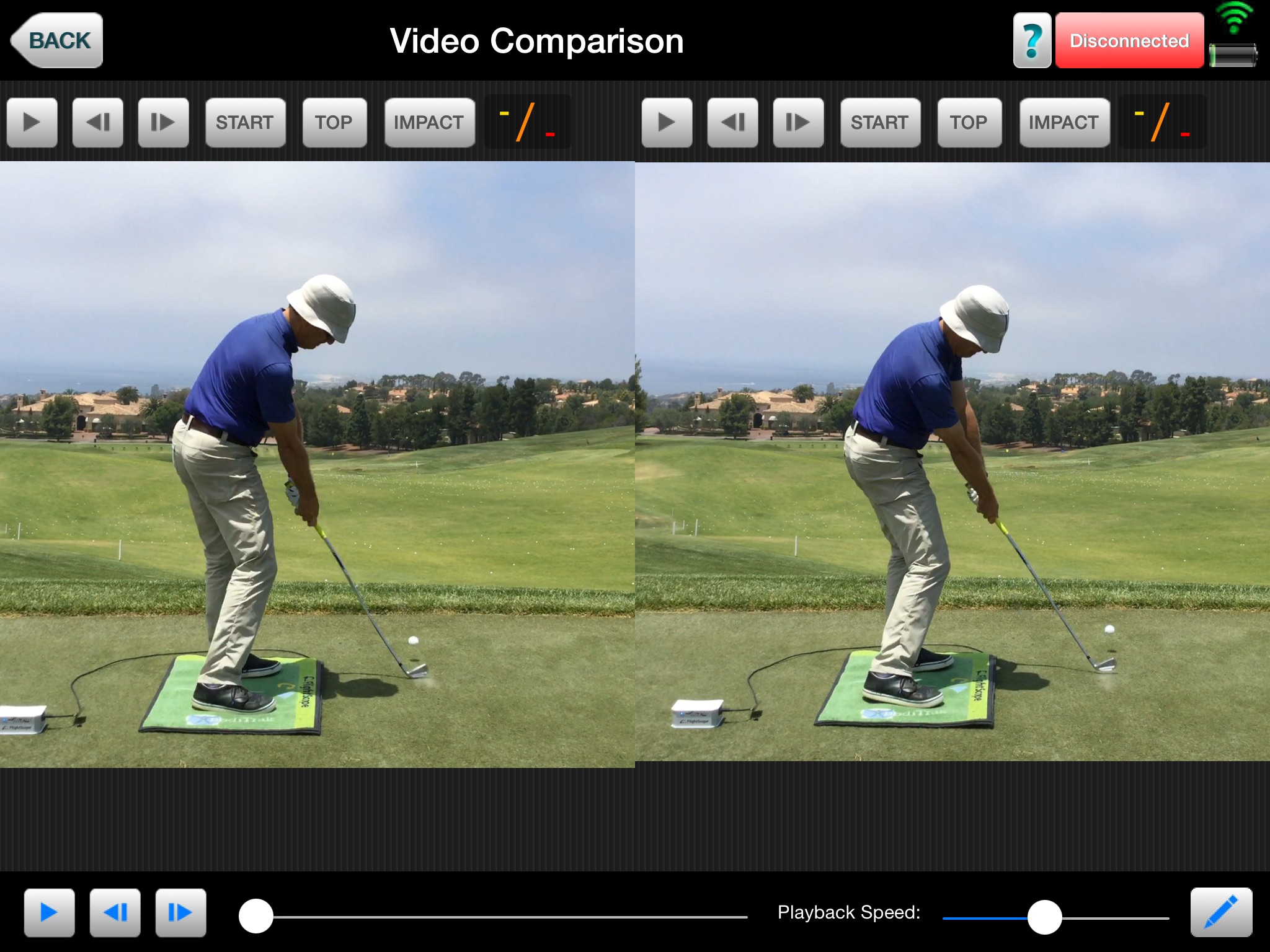

Finally, let’s take a look at the Video, starting with the set up. Chuck (right images) has the trail arm lower at the address position compared with Owen’s (left images), simply due to the different grips.

OFG is on the Right. CFG is on the Left.  The different grip changes the arm positioning at set up.

Chuck is on the right. Owen is on the left. The different grips changes their arm positioning at set up.

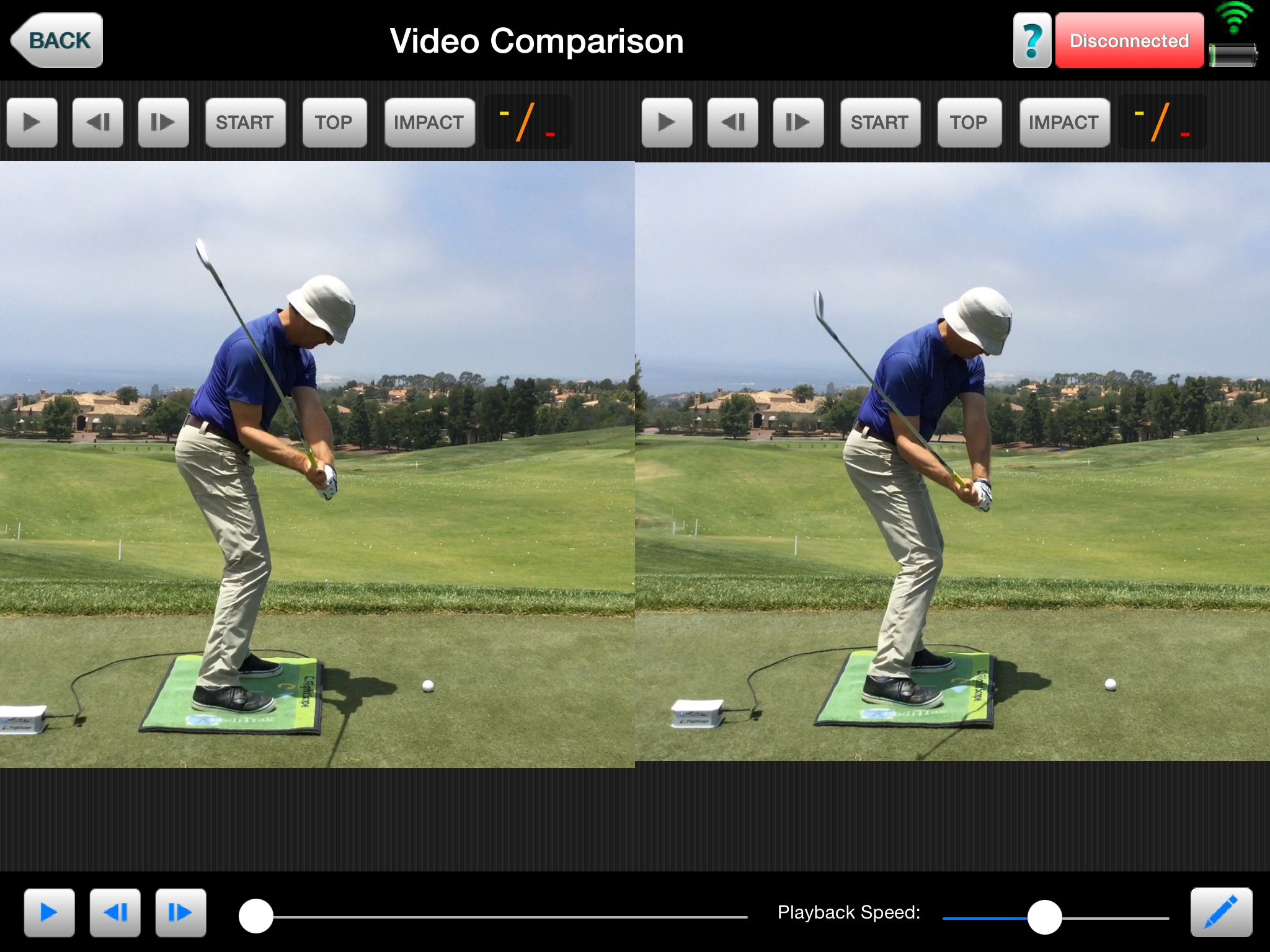

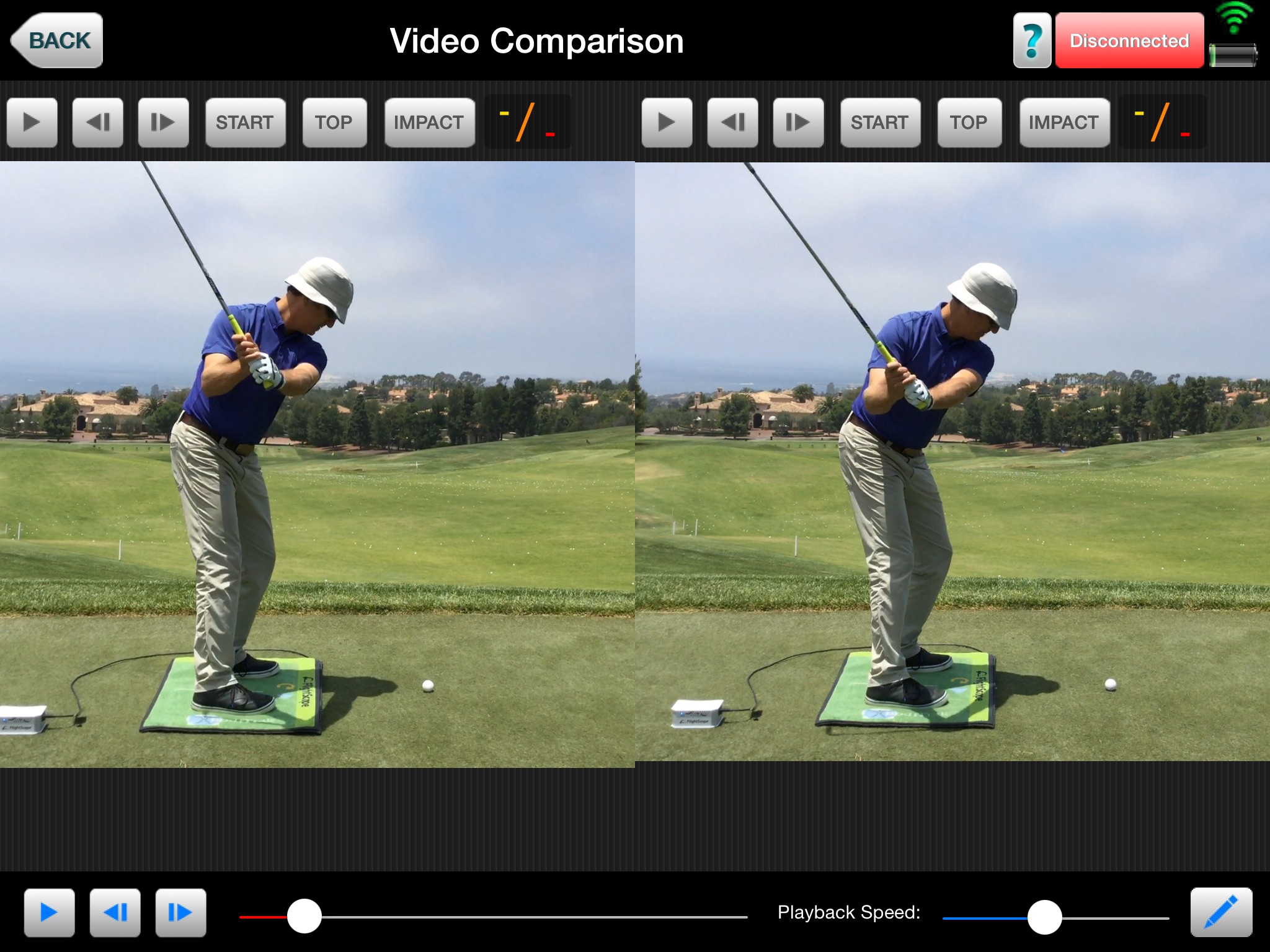

When the lead arm is parallel to the ground, Chuck has made a bigger turn away from the target and flattened his shoulder plane in an effort to set up his body to deliver the golf club on a more shallow downswing plane. He has started to cup his wrist in an effort to get the club face into more of an open-faced position.

Owen, on the other hand, is doing the exact opposite. He is trying to bow his wrists in an effort to make the club face more closed. He is not making as big of a turn on the backswing and his arm swing is more in front of his chest because he instinctively knows that he must prepare his body to swing left on the down swing to help manage his very open club face.

It is interesting to note how each “athlete” is preparing himself early during the backswing to help manage the drastic club face positions. Most backswings take approximately three times longer than the downswing. They are trying to maximize the additional time of their backswing motion.

The bigger turn of the CFG Athlete results with visually seeing more of the Left Leg and a Deeper Arm Swing.

Chuck’s bigger turn results with visually seeing more of his left leg and a deeper arm swing.

At the top of the backswing, the characteristics of the previous position have continued their evolution. Chuck continues to make a bigger turn and cup his wrists. Owen continues to bow his wrists and make a smaller turn. Both positions are ultimately trying to give each respective golfer a better chance of succeeding by delivering the golf club on a path that will help them match up or manage their club face position.

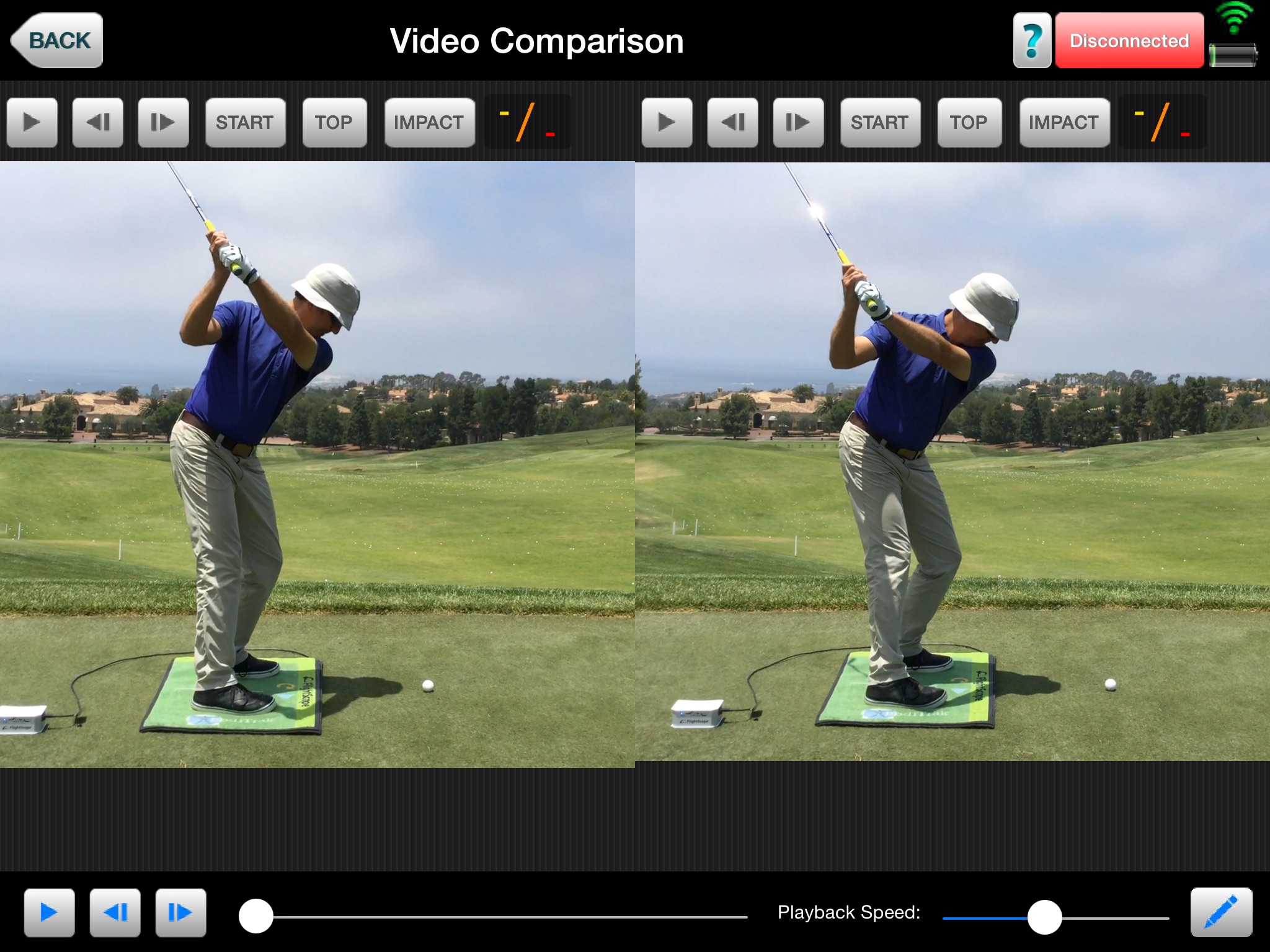

Top of Backswing

Note the different wrist conditions of each athlete, trying to neutralize their drastic club face positions. Note Owen’s smaller turn, resulting in more upright arm plane.

Now each athlete hopes to reap the rewards of their preparation. The downswing delivery of the golf club is producing a very different path for both Owen and Chuck. Owen is unwinding his body sooner, and delivering the golf club with a more upright shaft position. This should lead to a path that is more left of the club face at impact. Chuck is unwinding his body later and delivering the golf club with a more shallow shaft position. This should lead to a path that is more right of the club face at impact.

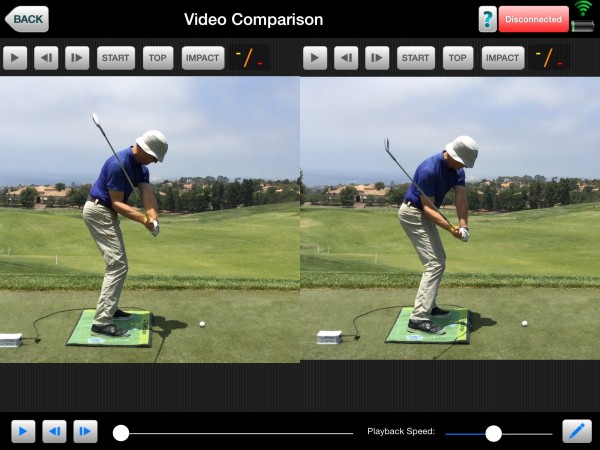

Downswing Delivery

Note the different club face and shaft positions of each athlete. Even with bowed wrists, Owen’s club face is still open, and the shaft is on the lead arm. Note the exact opposite characteristics for Chuck. Also note Owen’s earlier unwind of his body.

The athletes have completed their mission, just past impact. Chuck continues to unwind his body later in the downswing sequence. This later unwind was instrumental in helping Chuck swing his golf club more right through impact. Owen has turned his body more towards the target at impact. This earlier unwind helped Owen swing the golf club more left through impact.

Post Impact

Both athletes succeeded! Chuck’s club face is still pointing to the right, past impact, for less of a hook. Owen’s club face is still pointing left, to help produce less of a slice.

In conclusion, because a primary goal of each golfer is to hit straight shots, managing his or her club face is an extremely important component to that execution. My hope is that each measuring device gave you clues to help solve the problem of managing your club face and hitting straighter shots.
