2020 Mizuno E21 wedges: High performance reimagined

Published

on

New design, new construction, and a new way to look at what a high-performance wedge can be—these are Mizuno E21 wedges.

When talking about new clubs and the technology being utilized by engineers, the conversation eventually turns to mass properties and how adjusting them within the clubhead helps to create higher-launching lower-spinning shots. This is great when talking about drivers and fairway woods, but at the other end of your bag, high-launching, low-spinning shots are the enemy of great wedge play and distance control.

The key to hitting lower-launching, higher-spinning wedge shots is making contact below the center of gravity lower on the face. To help players achieve these optimal launch conditions, the Mizuo E21 utilizes multipiece construction to place the center of gravity higher in the head than ever before.

More photos and discussion in the forums.

Mizuno E21 wedge technology

Mass properties play a massive role in the performance of any club. By design, wedges are the heaviest full swing clubs in the bag. This gives designers more mass to move around. To get the most of the Mizuno E21’s performance, the focus was to relocate as much mass higher and deeper in the head without sacrificing both looks and feel. The only way to do this was by using a hollow body construction.

The E21 wedge brings together a 1025 Grain Flow forged boron face and hosel with a 431 Stainless steel back, this helps the wedge maintain the soft and solid feel Mizuno is known for while also increasing groove durability. Don’t think that because a wedge is packed with technology it makes it a club meant for higher handicap golfers either—any golfer can benefit from improved wedge technology, the same way we can all benefit from hitting higher launching, lower spinning drivers.

More photos and discussion in the forums.

The new E21 wedges even offer the exact same, if not thinner appearance from address than the Mizuno T20’s even though the back of each wedge looks extremely different—again, just like with drivers, something that looks different is different for a reason.

Soles designed for versatility

Beyond the new and improved mass shifting the E21 wedges provide, the most important part of the wedge is the sole, and Mizuno R&D pulled out all the stops when configuring the soles of these wedges to fit a wide variety of players.

They come in both a narrow and wide sole option, but unlike with irons where a wide sole is generally reserved for game improvement clubs, the wide sole models of the E21 have been configured for maximum versatility. Mizuno is not the only OEM offering versatile wider sole wedges, Callaway has the “X” grind, and Titleist with the low bounce “K”, to give you a few examples.

The wide sole E21’s have a lot of heel and toe relief along with a lot of front and back camber to keep the leading edge closer to the ground for those tight lies around the greens.

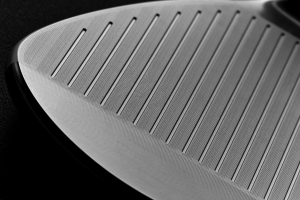

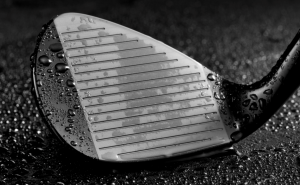

Mizuno Hydroflow Micro Grooves

Just like with last year’s release of the T20 wedges, instead of using traditional laser etching parallel to the milled grooves, Mizuno engineers took the concept of tread from high-performance tires and went perpendicular to the grooves and parallel to the direction the ball moves up the face to channel moisture away.

This directional tread has proven to increase spin on shots especially in conditions with moisture up to 1,200 RPM on a 60-yard shot. It’s not just about spin either: the more the friction created also means more control on launch angle and less of a “floating” ball flight. That’s how those low flying “zippers” really zip!

The other part of this groovy tale has to do with the reconfiguration of the grooves. Just like with the T20, the lowest groove on the E21 wedges has been shortened and centered. This puts it closer to the leading edge without having it disorient the look of the club from address and making it appear that the heel or toe is thinner on one side.

By bringing together the new CG placement with leading groove technology and reconfigured soles, Mizuno is once again changing the way players think about wedge performance.

More photos and discussion in the forums.

Price, availability, and specs

The E21 wedges will be right-hand only and available this October with the exact date upcoming and priced at $200 per club.

The stock shaft is the KBS HI Rev 110 Wedge flex in black ion finish, along with a Lamkin ST Hybrid grip

Mizuno E21 wedge loft and bounce availability

More photos and discussion in the forums.
