Callaway Apex, Apex Pro Irons: What you need to know



Apex Irons


  • Construction: Forged body (1025 carbon steel), 17-4 stainless steel faces
  • Irons available: 3-PW, AW, SW
  • Price: $1,199 steel, $1,399 graphite
  • Stock Shaft: True Temper XP 95 (steel)

Two years in a row, Callaway’s original Apex iron was voted the top-performing players iron on our Gear Trials: Best Players irons list. For 2016, the company is releasing the much-anticipated follow-up, which uses a new face construction to offer golfers more distance through a higher trajectory and additional ball speed.

Here’s what you need to know about the new Apex irons.

  • The new irons use Callaway’s 360 Face Cups, which the company currently employs on its Big Bertha, XR and XR Pro irons. The technology has been an important part of Callaway’s resurfacing as a performance leader, especially with its fairway woods and hybrids. The 2016 Apex marks the first time Callaway has used its Face Cup technology in a forged iron.

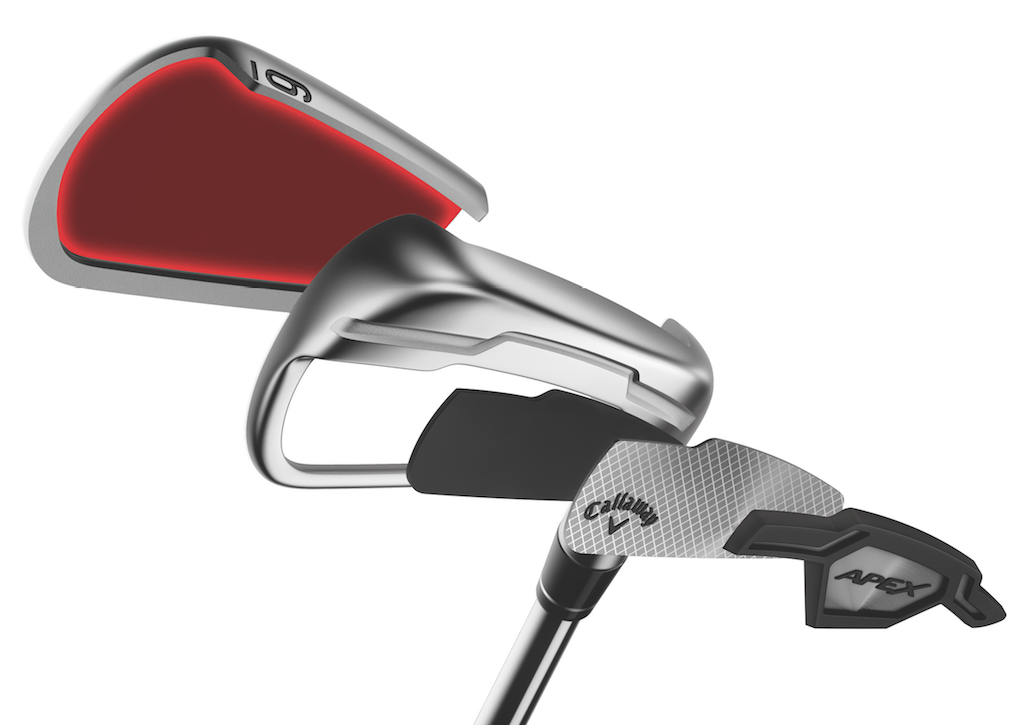

The wrap-around Cup Face design (red) creates face thicknesses of 0.150 inches on top and 0.050 inches on bottom. The original Apex irons had thicknesses of 0.150 inches on top and 0.300 on bottom.

  • Face Cups are used on the Apex long and mid irons (3-7), and their wrap-around design makes the club faces thinner and more flexible. The Face Cups are made of 17-4 stainless steel, and laser welded to the irons’ 1025 carbon steel forged bodies.


  • The original Apex irons used 455 carpenter steel club faces. Their “face plates” were also welded to the 1025 carbon steel bodies. According to Scott Manwaring, director of design at Callaway Golf, the company made the switch to the 17-4 stainless steel because it allowed engineers to better control the thickness and shape of the Face Cups for better performance.


  • In the Apex short irons (8-SW), where golfers aren’t looking for maximum distance, the company uses 17-4 stainless steel face plates rather than Face Cups to improve consistency.

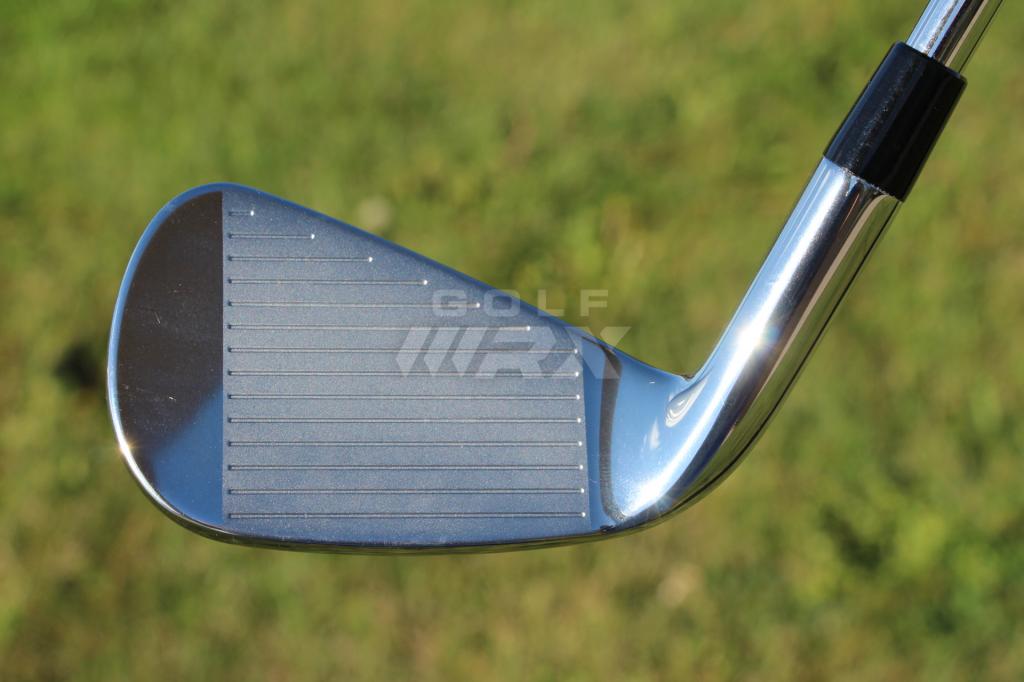

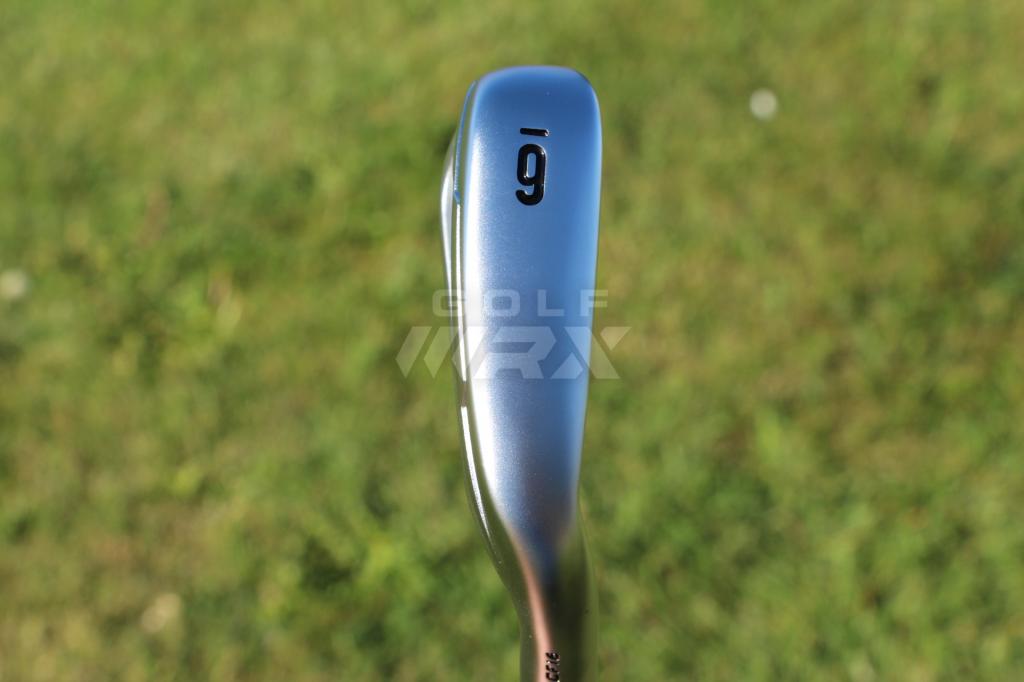

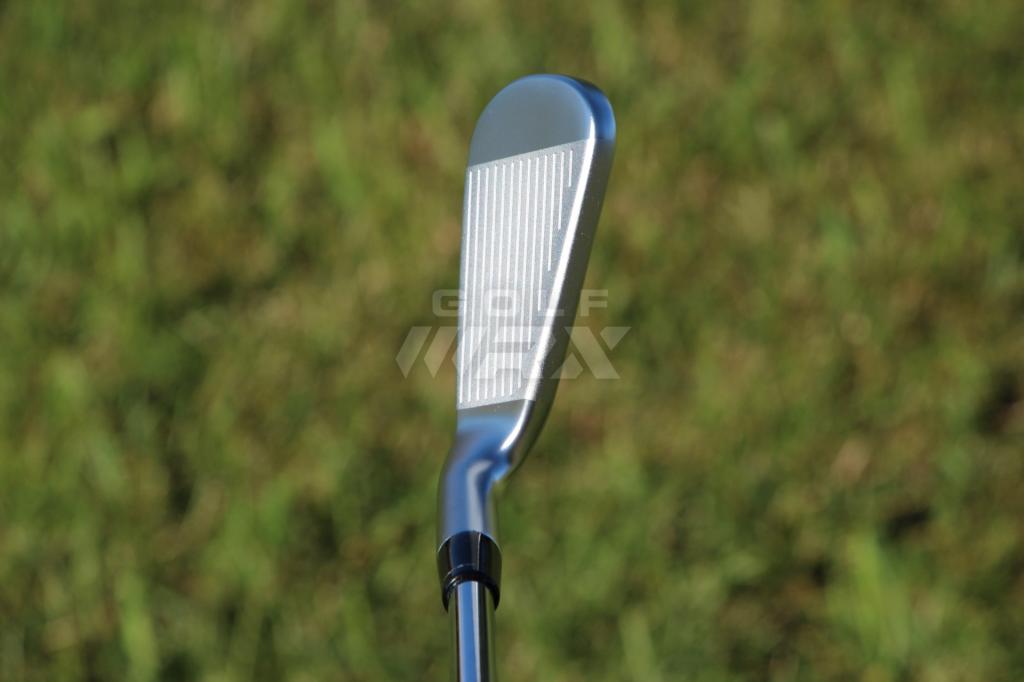

At address: An Apex 6 iron.

  • According to Manwaring, the Face Cups increase launch angle by approximately 1.5 degrees. The coefficient of restitution (COR), also increased from 0.800 to 0.820.


  • The new Apex short irons are more compact than the original Apex irons, with face lengths that are shorter to offer golfers an improved appearance and more control over their trajectory.


  • The sound and feel of the irons is tuned with a TPU material, nicknamed a “snubber” by Callaway’s R&D team. It is pressed against the back of the club faces to tune vibration without losing ball speed.

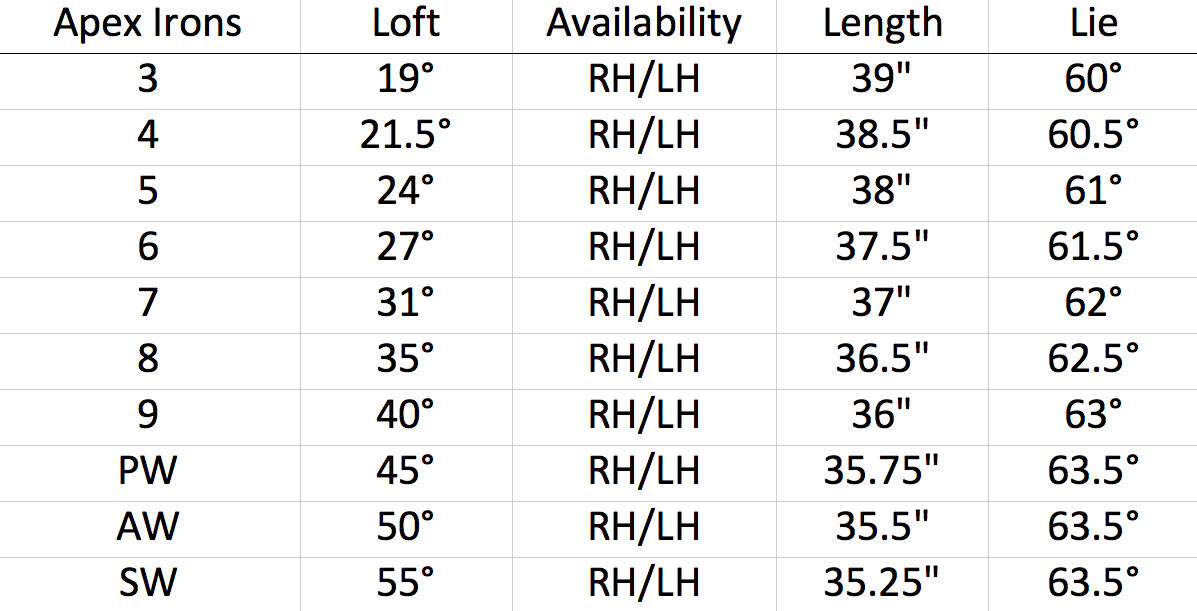

The new Apex irons retain the same lofts as the original Apex irons.

Apex Pro Irons


  • Construction: Forged from 1025 carbon steel, tungsten (3-5) and stainless steel (6-7) weights used.
  • Irons available: 3-PW, AW
  • Price: $1,199 steel, $1,399 graphite
  • Stock Shaft: True Temper Project X (steel)

Golfers who are a fit for Callaway’s Apex Pro irons won’t be looking for the huge distance and forgiveness offered by the Apex irons. Their solid-face, 1025 forged carbon steel construction emphasizes consistency and trajectory control, as well as the looks, feel, feedback and workability that the best golfers in the world desire.

Here’s what you need to know about the new Apex Pro irons.

  • Callaway received feedback that golfers preferred the looks and feel of the company’s X-Forged ’13 irons, but enjoyed the trajectory of the original Apex Pro irons. The new irons blend the best aspects of the two tour-favorite models.
  • To blend the looks of the X-Forged ’13 and the performance of the Apex Pro irons, engineers created a multi-material, three-hole weighting scheme similar to Callaway’s MD3 milled wedges that uses between 8-10 grams of tungsten in the 3, 4 and 5 irons to lower center of gravity (CG).
  • The mid irons (6, 7) use stainless steel weights, while the weight ports in the short irons and wedges go unfilled to raise CG. The weighting system is not visible, and is positioned behind the “Forged” badge on the irons back side.

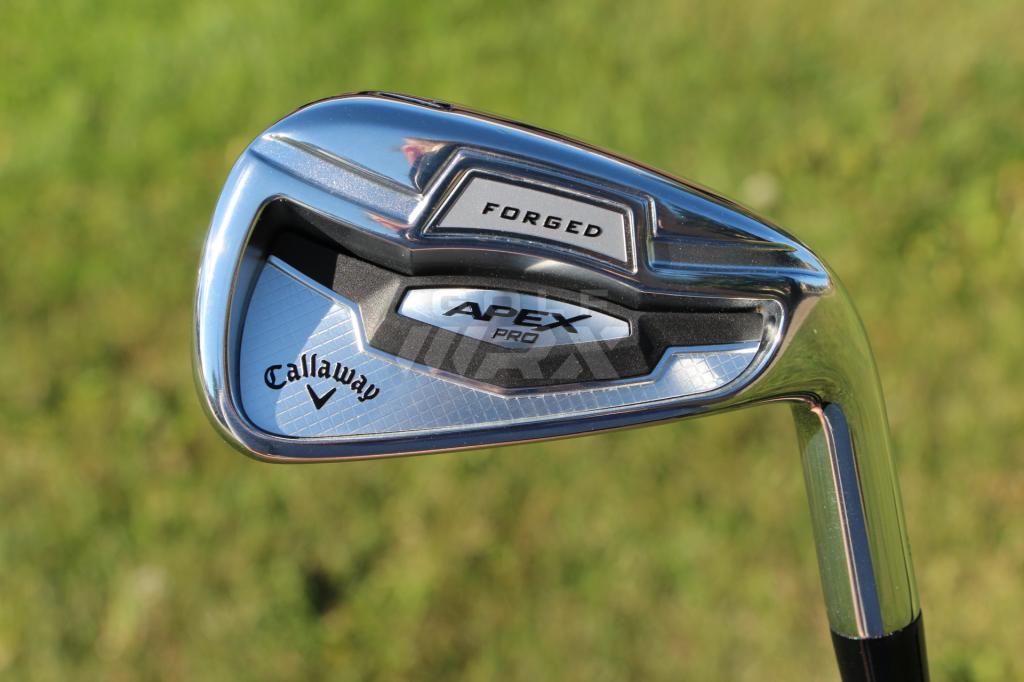

The Apex Pro irons use a hidden, multi-material weighting system underneath the forged badge that tunes trajectory throughout the set.

  • The Apex Pro irons have a high-polished, chrome finish that was preferred by Callaway’s Tour Staff, as well as in internal tests. The original Apex irons had a satin chrome finish.
  • Expect the performance of the new Apex Pro irons to be very similar to the original Apex Pro irons, with a shape, sound and feel that will remind golfers of the company’s X-Forged ’13 irons.

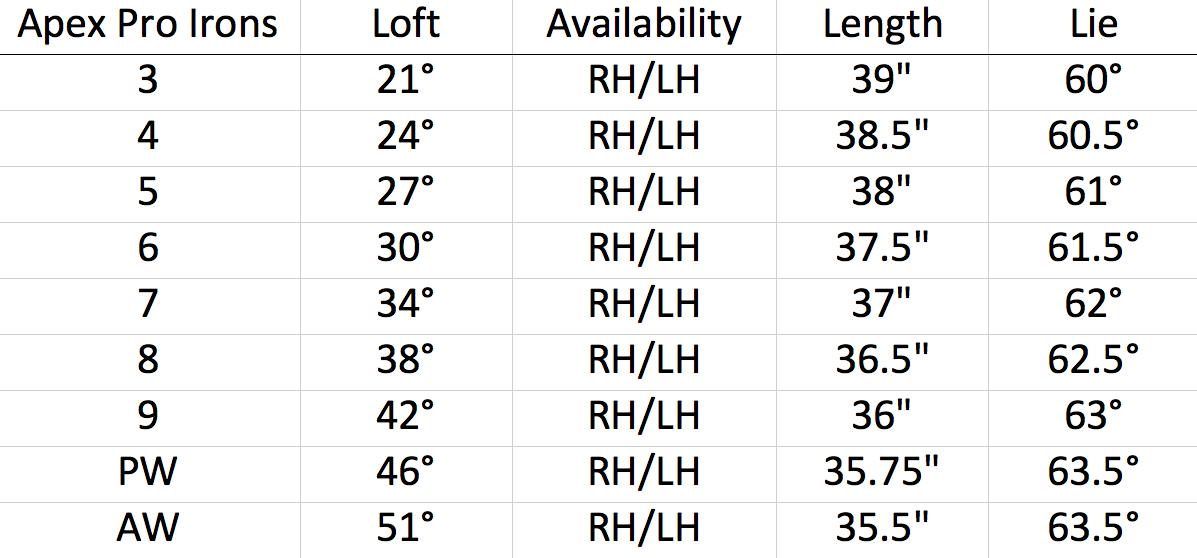

The new Apex Pro irons retain the same lofts as the original Apex Pro irons.


See what GolfWRX Members are saying about the Apex and Apex Pro irons in our forum.
