Callaway Big Bertha Alpha 816 DBD Driver: What you need to know

Published

9 years ago

on

Callaway’s Big Bertha Alpha 816 Double Black Diamond Driver ($499.99) is available in lofts of 9 and 10.5 degrees for right-handed and left-handed golfers. Stock length is 45.5 inches. Stock swing weight is D4. It’s in stores Sept. 18, 2015.

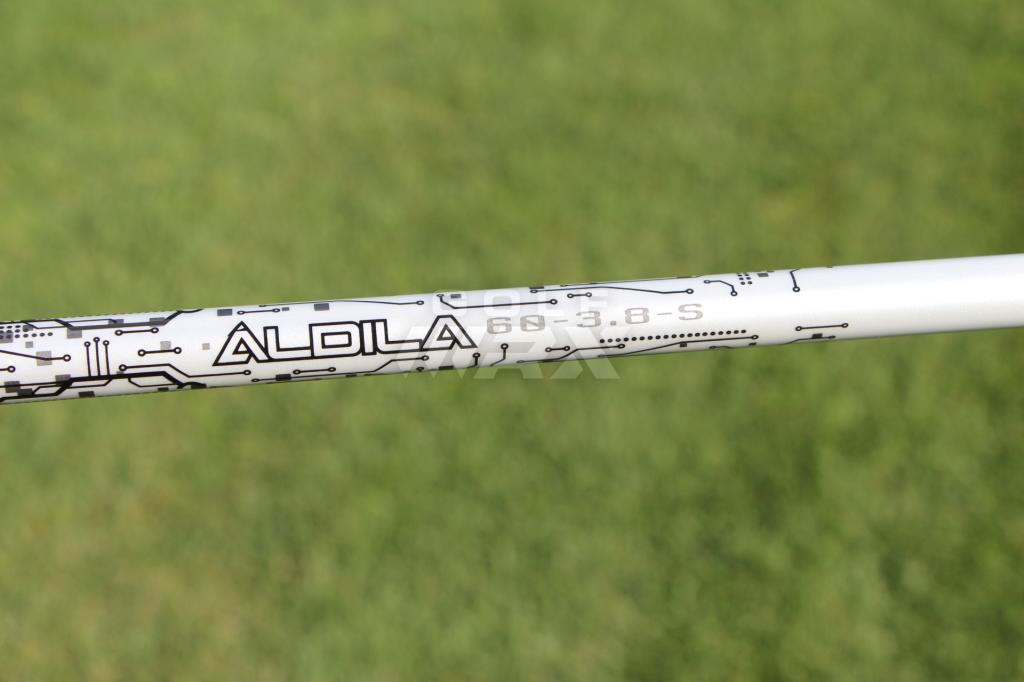

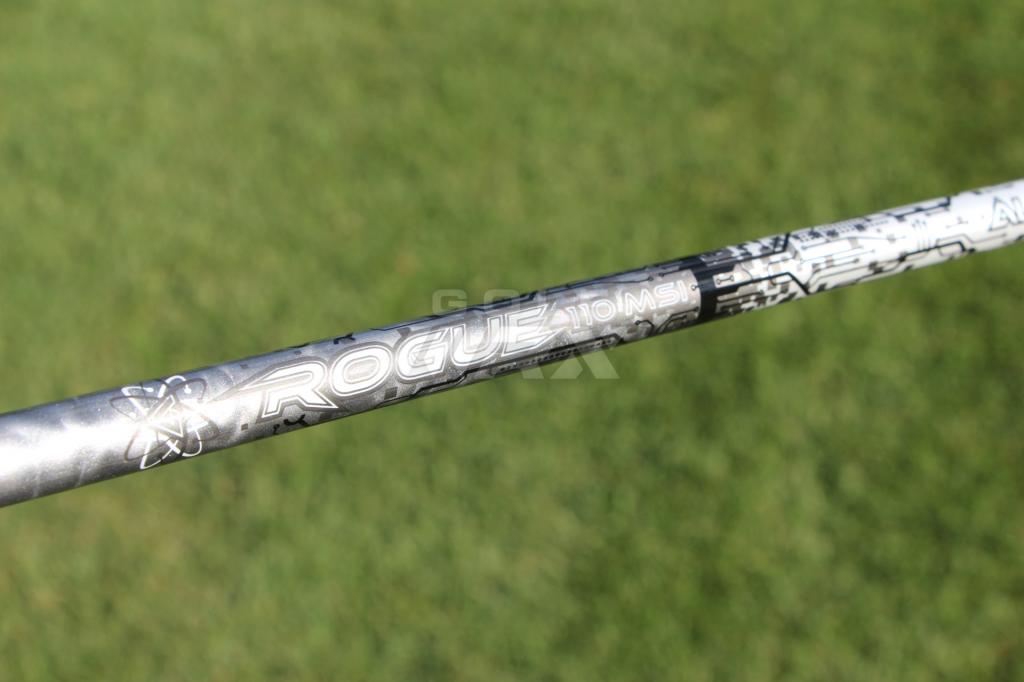

Stock Shafts: Aldila Rogue I/O 60 (60-gram range), Mitsubishi Rayon Diamana D+ 70 (70-gram range)

What you need to know

48ea61bf9f381198c94be5bfb3e8c41e

f9450827e5bbd99560398b733977768a

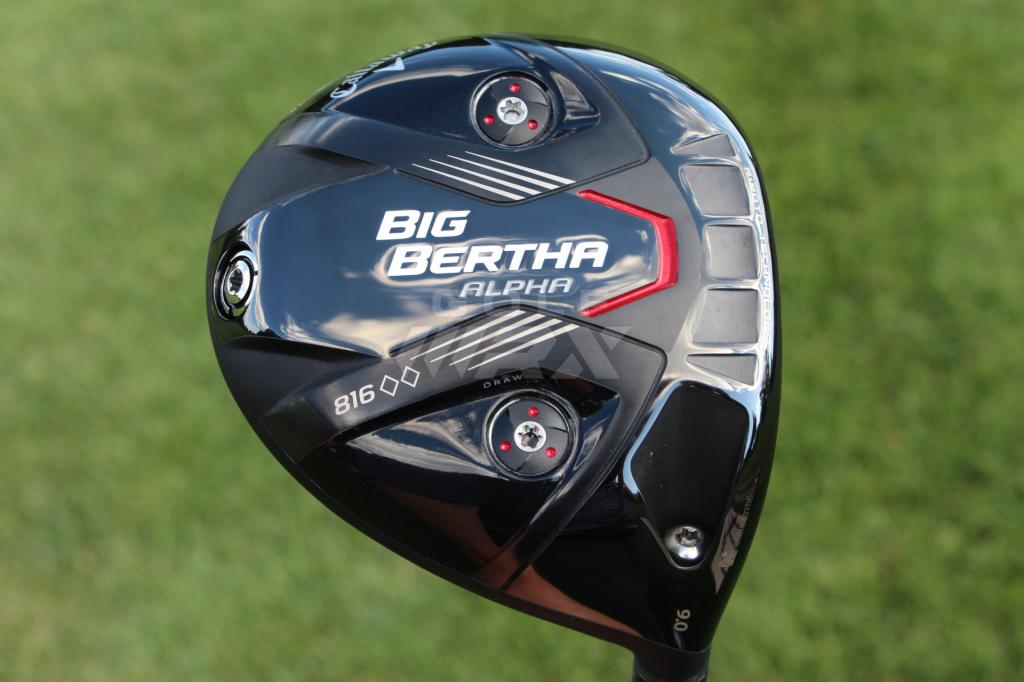

Two “Distance Chambers” create four possible CG locations.

  • The Big Bertha Alpha 816 Double Black Diamond, or DBD, has two “Distance Chambers” in the center of the sole — one closer to the heel, one closer to the toe — that allow golfers to vary the position of the driver’s Gravity Core for more draw bias (heel position) or more fade bias (toe position). Because of the Gravity Core’s design (read on), this creates four distinct CG positions: high toe, low toe, high heel, low heel.

c7df51af64a6f2ee6b9ae4415629d8b5

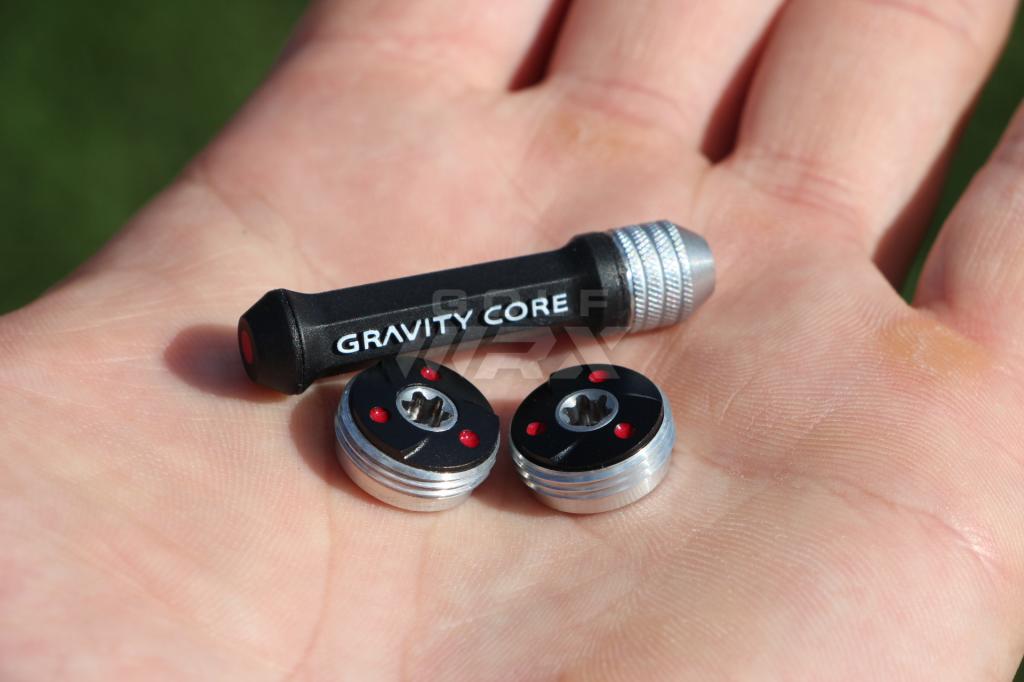

  • The Gravity Core, a stick-shaped object made of carbon fiber and tungsten, has a heavy end and a light end. In the past, Callaway advised golfers who needed a higher-spinning ball flight to position the Gravity Core heavy-side up in the club head, while golfers who required a lower-spinning ball flight were told to position the Gravity Core heavy-side down. This is still true with the new design, but…

“WE’RE SHIFTING THE FOCUS OF HOW WE’RE FITTING THE ALPHA DRIVER TO BE MORE ABOUT BALL SPEED AND LESS ABOUT SPIN RATE,” SAID EVAN GIBBS, CALLAWAY’S MANAGER OF PRODUCT PERFORMANCE.

  • The spin rate difference between the Gravity-Core-up and Gravity-Core-down positions with the Big Bertha Alpha 816 Double Black Diamond driver has been reduced from about 300 rpm in previous versions to 200 rpm because of the Gravity Core’s shorter design.
  • Callaway advises that golfers position the Gravity Core in the heavy-side-up orientation if they tend to contact their drives high on the club face, and in the heavy-side-down orientation if they tend to contact their drives in the middle or the bottom of the club face. Doing so moves the center of gravity (CG) more in line with impact area, which enhances ball speed. Callaway testing showed that 40 percent of golfers create more ball speed with the Gravity Core in the up position.
121c3e40c373d01395b84d63cca7186e

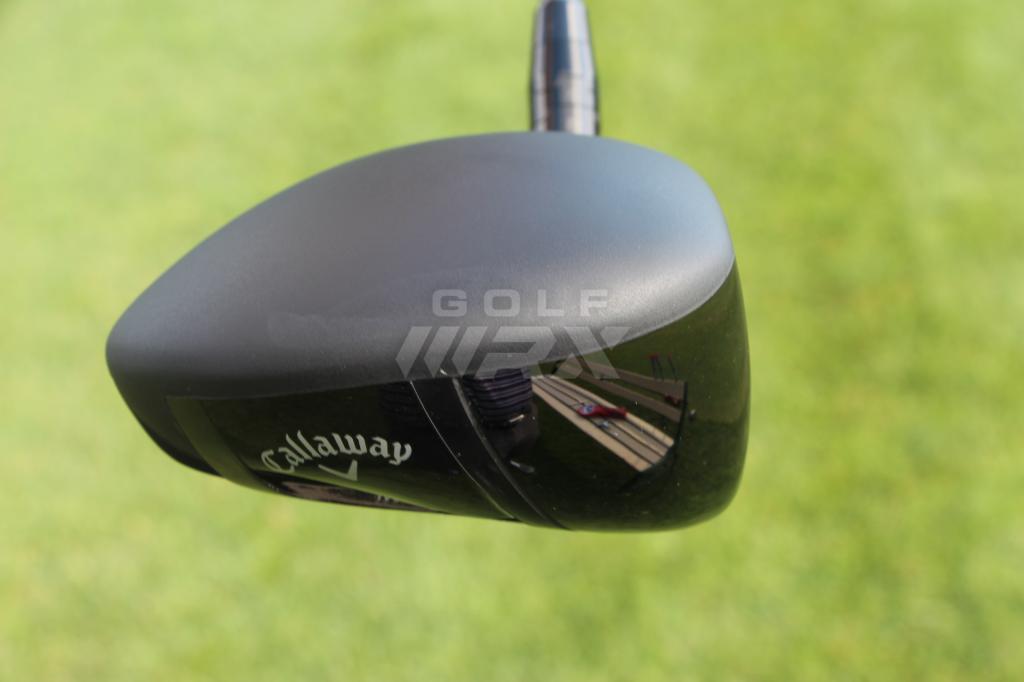

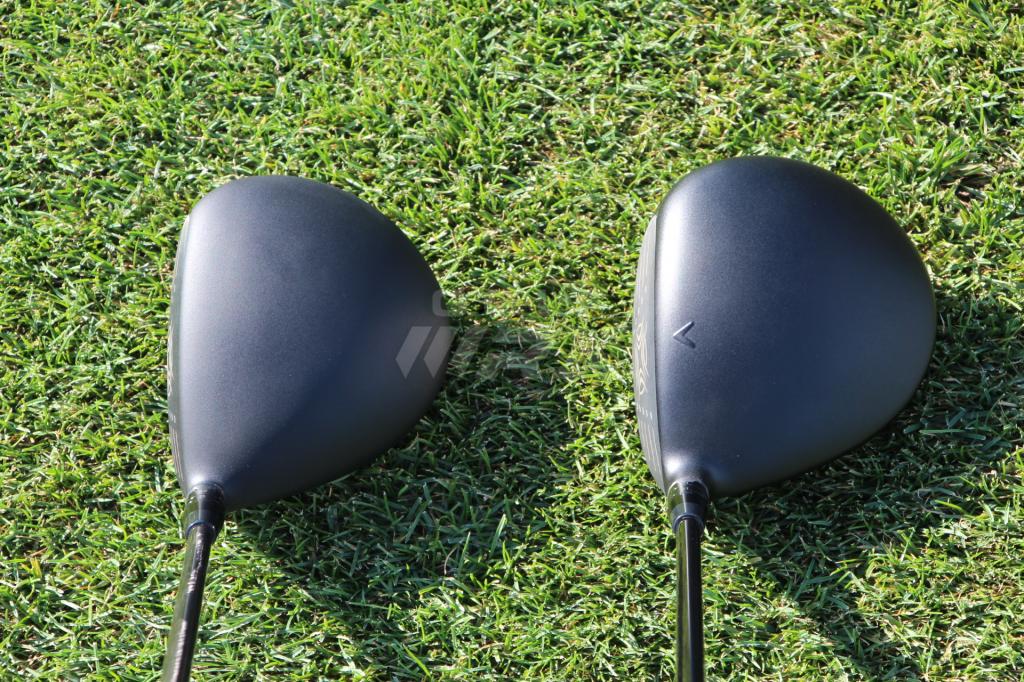

The DBD is all business at address with a matte black crown, no alignment aids and a slightly opened face angle.

“RATHER THAN DEMONSTRATE HOW MUCH WE CAN CHANGE SPIN AS WE DID WITH OUR PAST ALPHA DRIVERS, WE WANTED TO CREATE TWO TRAJECTORIES THAT ARE DESIRABLE TO TOUR PLAYERS,” GIBBS SAID.”BASED ON FEEDBACK AND TESTING, 200 RPM WAS THE SWEET SPOT.”

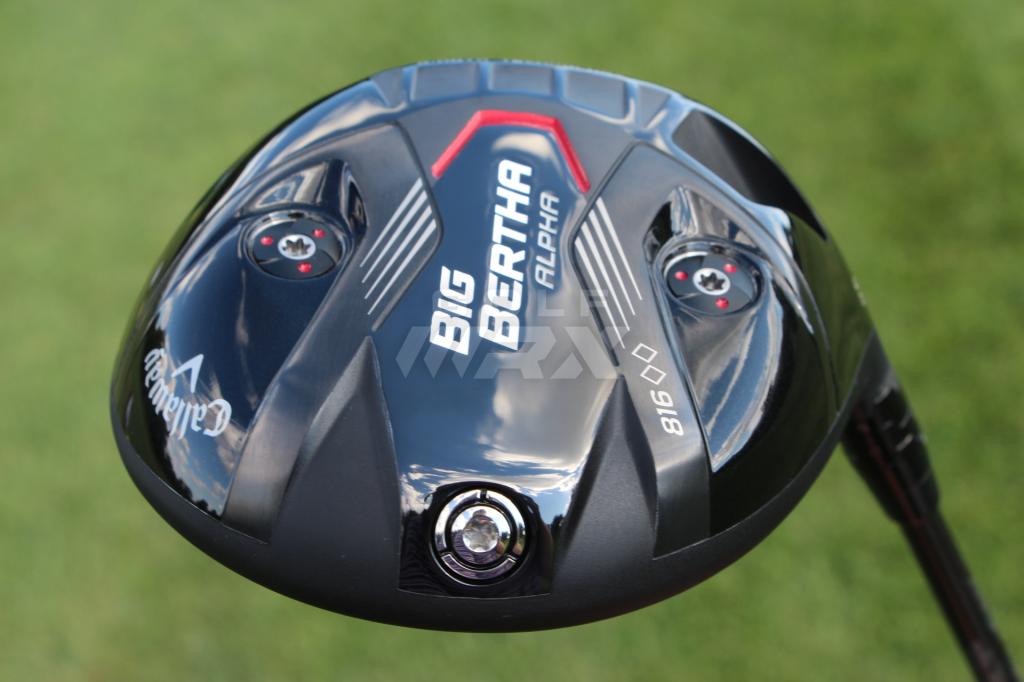

cab8dc6b1066c140bc23b0017e1b5ef4

The rear weight adds forgiveness, but it’s not meant to be adjusted by consumers.

  • The dual Gravity Core ports were made possible by the elimination of Callaway’s previous adjustable weight ports, which were used on the Big Bertha Alpha (2014) and Big Bertha Alpha 815 (2015) drivers to give golfers the ability to fine tune draw and fade bias. Their removal created the discretionary weight possible for the new design.
  • Like the Great Big Bertha driver, the Big Bertha Alpha 816 DBD has a Forged Composite Crown, a structure that helps move weight lower in the club head. It also uses the same Advanced OptiFit Hosel, which gives golfers a 3-degree range of loft adjustability. So a 9-degree driver can be adjusted to lofts of 8 degrees, 10 degrees and 11 degrees. Each loft can also paired with an individual lie angle of either standard (S) or draw (D), which makes the lie angle more upright.
  • The total weight of the Big Bertha Alpha DBD is 327 grams with Aldila’s Rogue I/O 60 shaft, which uses Aldila’s R.I.P. (Reverse Interlaminar Placement) Technology to give the shaft less torque, increased tip stability and a tighter feel.

More Photos
