The latest patents from Nike, Titleist and TaylorMade
Many of the patents major OEMs apply for with the U.S. Patent and Trademark Office take several months to a year to get published, or made public. In other words, companies begin working on a technology and apply for a patent (if it’s something unique enough that the parties in question believe they alone should profit from for the term of a patent) well before we, the general public, are able to hear about it.
Still, it’s interesting to examine the technologies that some of the highest-paid equipment wonks in the world are working on, even if these specific models never make it market, as we did at the beginning of February.
Now, let’s take a look at some recent filings from the major OEMs you know and love.
Nike Iron

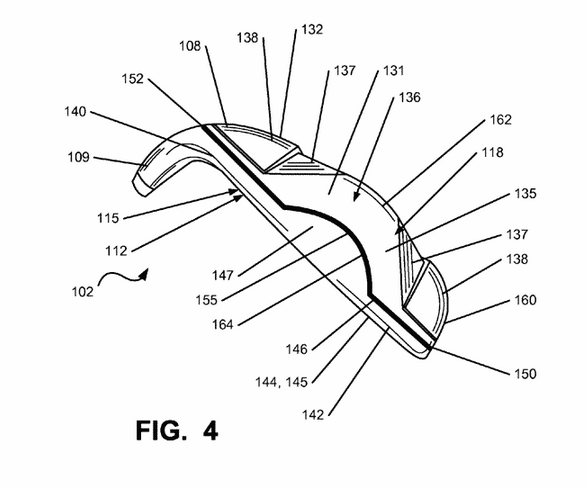

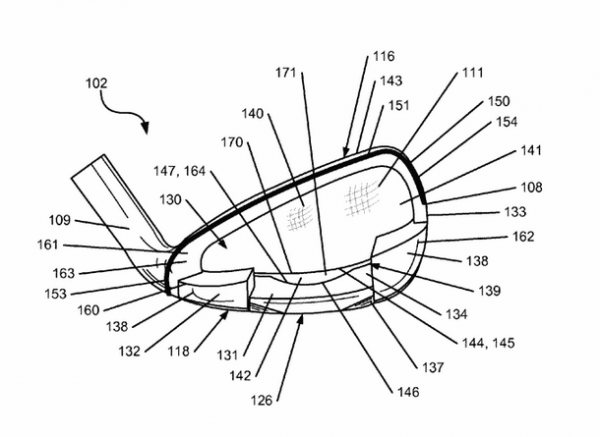

It seems at The Oven they’re working with a protoype design that looks like the above. Certainly, the design appears to trend more towards the “game improvement” iron type than a players club.
The prototype seems to be a composite of several materials fused together, as is commonplace among recent distance-improving clubs.
The filing doesn’t give away much in terms of the details of the materials used in the club, obviously, but it does provide a look at the design and how the component parts fit together.
See the full patent filing here.
Titleist Iron

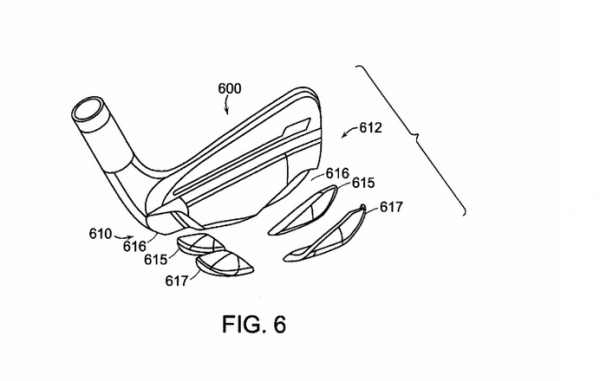

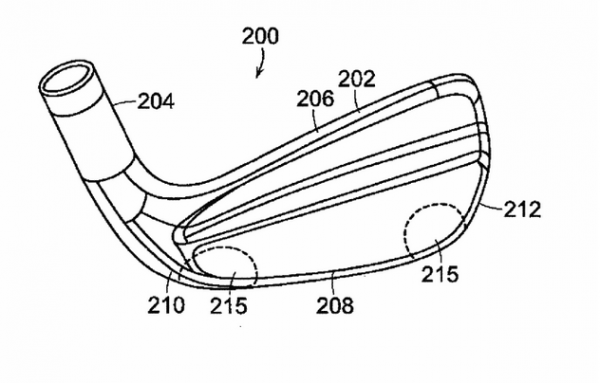

Titleist is developing a co-forged iron, according to a recent patent filing, which is technologically very interesting.
As the filing states:
[the] invention creates…an iron type golf club head from a pre-form billet that already contains two or more materials before the actual forging process resulting in a multi-material golf club head that doesn’t require any post manufacturing operations such as machining, welding, swaging, gluing, and the like.
Thus, the great players iron manufacturer is attempting to produced a multi-component club with superior feel, as the elements will be joined during the forging process, rather than after.
The club is due to have “a body portion having a striking surface made out of a first material, and at least one weight adjustment portion made out of a second material encased within the body portion; wherein the at least one weight adjustment portion is encased monolithically within the body portion of the golf club head without any secondary attachment operations.”
See the full patent filing here.
Titleist Wedge
From an “if it ain’t broke don’t fix it” standpoint, It’s interesting to see Titleist working on a new wedge design. However, the company has continuously worked to improve their wedges, and appears interested in introducing some CG tweaks into their wedge offerings as they continue to pursue the holy grail of increased spin.
The Fairhaven, Mass company tips its hand with this passage from the filing:

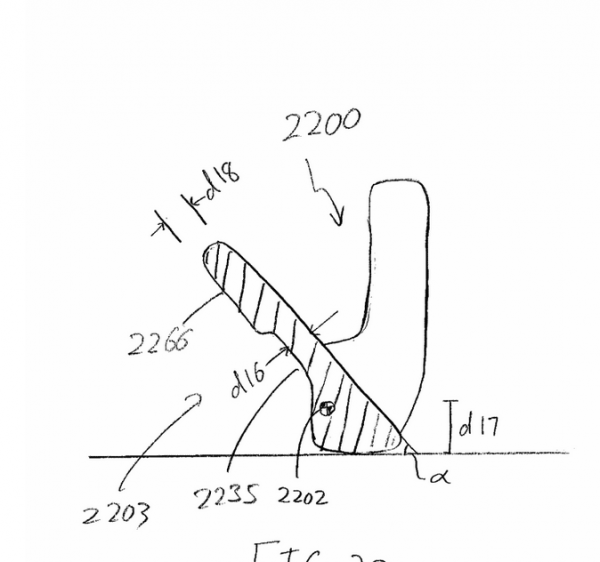

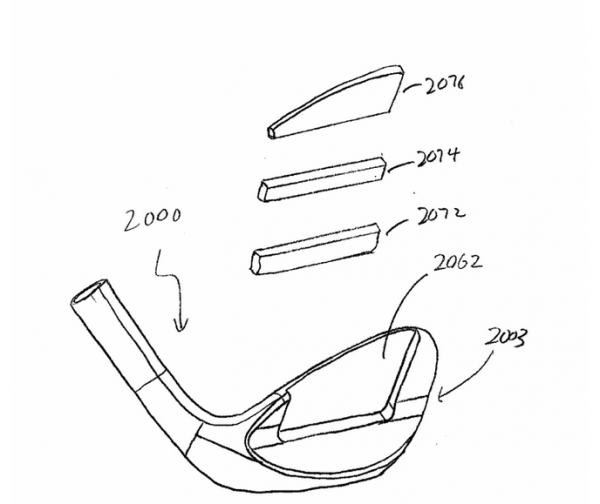

In addition to the increased backspin benefits that can be achieved by maximizing the CG location of a wedge type golf club, maximizing the CG location will also allow for increased performance characteristics such as increased ball speed and increased launch angle that correlates into increased trajectory, increased accuracy, and increased control. Increased ball speed will yield increased shot distance. If an increased spin is desired while keeping shot distance constant, the wedge loft will have to be increased, a characteristic which will mitigate the ballspeed increase while adding even more backspin to the ball, yielding even more overall stopping power or accuracy.
See the full patent filing here.
TaylorMade Driver
In a great surprise to nobody, TaylorMade is continuing to work on driver technology.
The patent in question relates to a club design intended to maximize aerodynamic performance through club construction. The specific ways the company is seeking to accomplish this can be guessed at by looking at the drawings submitted with the patent filing.
Given this and a few of the designs from January, it appears a move away from the “traditional” driver shape may be again on the horizon, with concerns about aerodynamics, rather than MOI dominating this time around.
See the full patent filing here.
