Understanding swing direction vs. swing path

Published

on

With the advent of launch monitors that track the club and ball interactions in 3-D, we are able to see things that we “thought” we saw while using video. Knowing that video only shows us a 2-D representation of what’s going on, it’s easy to confuse your swing direction with your swing path!

In this article, I would like to help you understand the differences so you can hit the ball more consistently than ever before.

Swing Direction

Whenever someone hits a shot off-line, they tend to step back and audit the direction of their divot and base their “fix” on moving their swing path and subsequent divot in a more target-ward direction. This sadly, is incorrect in two ways:

  1. Trackman has shown us that the starting direction of the golf ball is mostly controlled by the direction of the face, and not the path at impact
  2. The divot only tells us the general swing direction at the bottom of the arc — nothing more!

I know it is tough to comprehend that divots do not tell you much about swing path, angle of attack, the lie angle of the clubs, starting direction, or even ball curvature, but it’s been proven over and over with the Trackman and its D-Plane data. (See www.leitzgolf.com for several great videos on understanding more about the D-Plane.)

NOTE: You can always move your swing’s direction by altering your aim at address, ala Fred Couples, however, for the sake of this article we are going to assume you are always going to line up square to your ball’s target line.

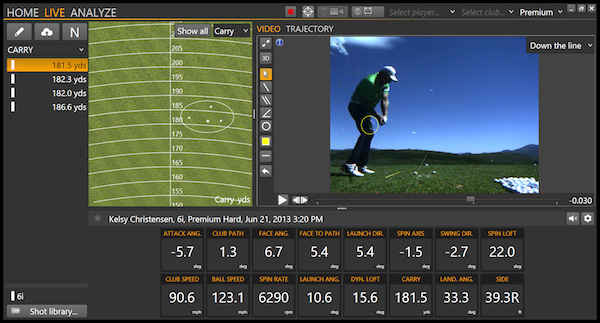

So what does this all mean? The swing’s direction is simply how far left or right of the target line the “direction of the swing” is aimed at the bottom of the swing arc. So, if you look at the photo above you will see that the swing direction of this player is -2.7 degrees, or a couple degrees from out-to-in relative to his intended target line, which is shown by the thin white line running through the ball.

If you wanted to define where the swing’s actual direction is going, then you would obviously look at your divots. But if you wanted to know what the swing’s true path was at impact, then you would need one other piece of information to complete the puzzle.

Swing Path

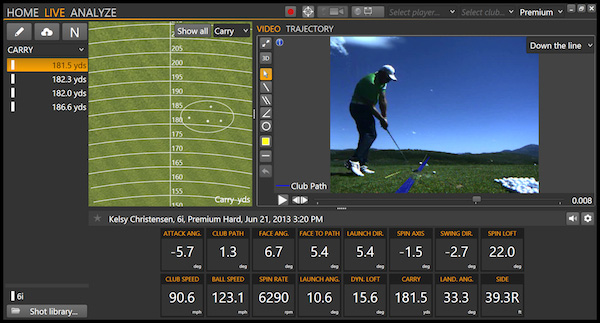

So to this point, we have define what our swing direction is and how to understand where it is going by looking at the direction of our divots. But how do we know what our swing path is doing when we hit the ball? Your swing path is defined as how far left or right of the target line the club head is traveling through impact. Look at the photo above, and you will see that the swing direction is -2.7 degrees, however you must take into account your swing’s angle of attack in order to understand true path of the club head at impact.

When you hit down on a golf ball, your path is shifted to the right (for a right-handed golfer), and when you hit up on a golf ball your path is shifted more left. With the longer clubs, this is a 1:1 ratio, but with the shorter clubs is not quite that much. So by examining the data above, you can see that indeed the swing direction was out-to-in, but this player hit down on the ball -5.7 degrees and this shifted his actual path to 1.3 degrees from the inside (shown by the blue line). Thus, this player was hitting very slight push draws with leftward pointing divots when his face angle was left of his path.

NOTE: For the purpose of this article, we are going to assume you have a very consistent angle of attack with the iron you are hitting. Obviously, if you hit exaggeratedly “down” or up on the ball then you can get some funky numbers, but we will pretend that you are making the same swing over and over.

Therefore, once again, it is very important that you don’t confuse swing direction with swing path, or you can foul up your whole motion by working on the incorrect thing. If you have a chance and can find someone who has a launch monitor such as the Trackman or the Flightscope, you should hit a few balls with them in order to truly define your actual swing path. If you do so, you can be assured that you will always work on the correct thing.

Hopefully this clears up the swing direction vs. swing path debate once and for all. Take your time and enjoy the process to becoming a better ball striker!
