TESTING: Fujikura Atmos “Tour Spec” Red vs Atmos Red driver shafts

Published

on

For an average golfer, what’s the difference between a regular Fujikura Atmos Red shaft and a “Tour Spec” Atmos Red? That’s what we wanted to find out.

In our new club testing series, average golfers will be hitting either different shafts or different club heads, testing them against each other. The process will simply be to hit an equal number of shots with each shaft or club head, eliminating any outliers, and then report the numbers. These are all one-variable tests. Since the club tests are all done at Club Champion in Royal Oak, Michigan, the testing is under direct supervision of professional fitters.

First, some information about both shafts in this test.

Fujikura Atmos Tour Spec Red 6S facts

Fuji says: “New for 2017, the Atmos Tour Spec line is geared towards the performance golfer looking to keep the ball flighted down with low spin. Continuing with our iconic ‘Tour Spec white’ paint, Atmos is a true tour flighted line of shafts with a simple color coding – red as the higher launching, blue as mid launch, black as the lowest launch – similarities include keeping the handle flexes the same for feel, but adjusting mid and tip sections for launch and spin to achieve your desired ball flight.”

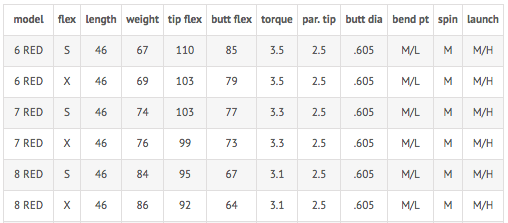

Specs

Fujikura Atmos Red 6S facts

Fuji says: “New for 2018, we’re excited to introduce the higher launching and softer profile Atmos. The Atmos has a similar design profile to the Tour Spec version, but is geared towards fitting a wider spectrum of golfers. The Atmos has a consistent, smooth feel, and has the red launch profile to signify the higher flight and spin… the blue profile is for mid launch and spin performance.”

Specs

The Test

We had two testers each hit the Fujikura Atmos Red Tour Spec 6S against a Fujikura Atmos Red 6S. Player A is a lefty and a 17-handicap. Player B is a righty and a 9-handicap. Both fight shots to the left (one being a slice, one being a hook, respectively). Here’s what happened when they both hit the shafts:

Player A

 Atmos Red TS Red 6SAtmos Red 6S
Club Speed91.6 mph91.4 mph
Ball Speed128.3 mph127.1 mph
Smash factor1.401.39
Spin Rate5339 rpm5194 rpm
Side129.8 L143.9L
Launch14.8 degrees16.0 degrees
Carry186.6 yards185 yards
Total198.4 yards196.1 yards
Height92 feet97 feet
Attack Angle-3.6 degrees-3.4 degrees

Player B

 Atmos TS Red 6SAtmos Red 6S
Club Speed103.4 mph104.3 mph
Ball Speed150.2 mph150.8 mph
Smash Factor1.45 1.44
Spin Rate2652 rpm2915 rpm
Side74.1 L65.8 L
Launch Angle12.1 degrees11.4 degrees
Carry246.5 yards242.7 yards
Total272.0 yards267.2 yards
Height88 feet89 feet
Attack Angle-0.9 degrees-2.0
