Cleveland Gives New TFi 2135 Satin Putters A Face Lift

Published

on

Cleveland has launched its new TFi 2135 Satin putters that combine model-specific face milling with its familiar raised sightline to help golfers achieve better speed and alignment.

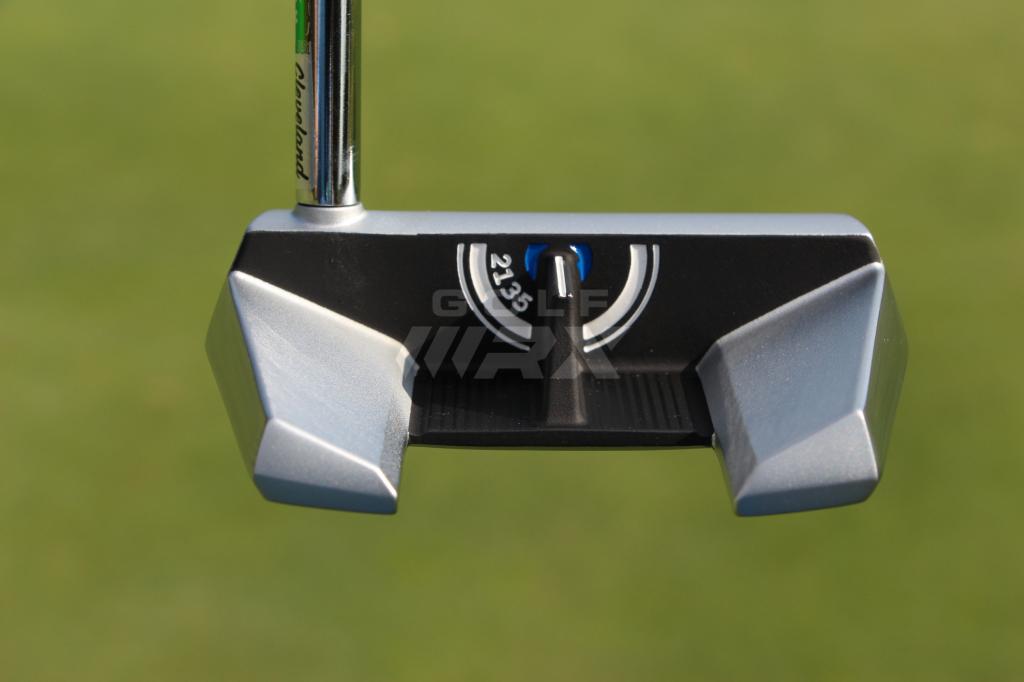

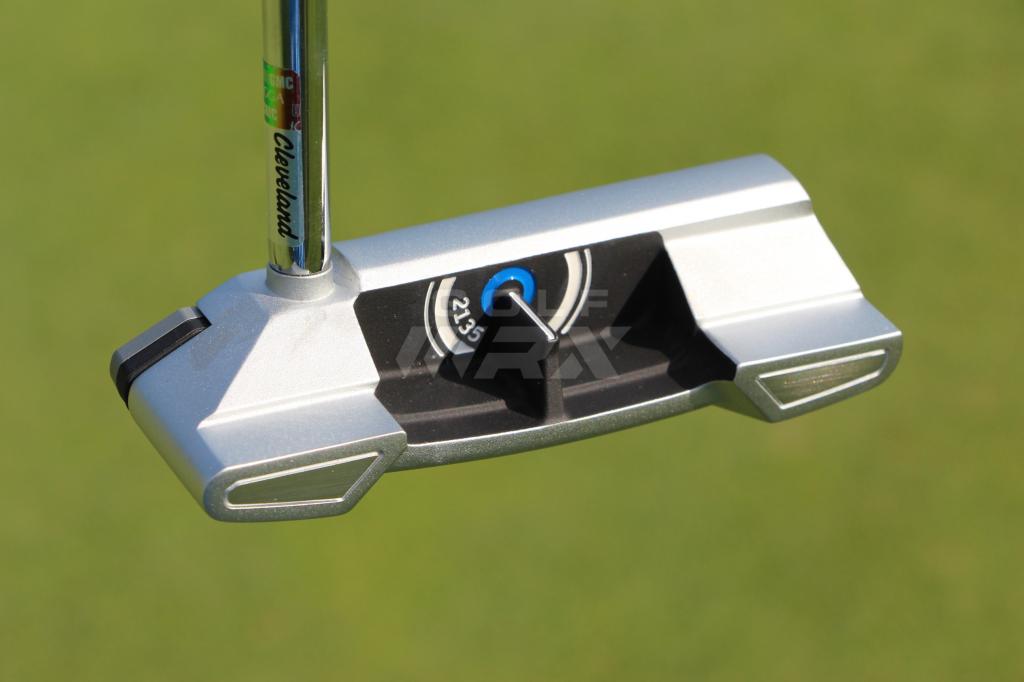

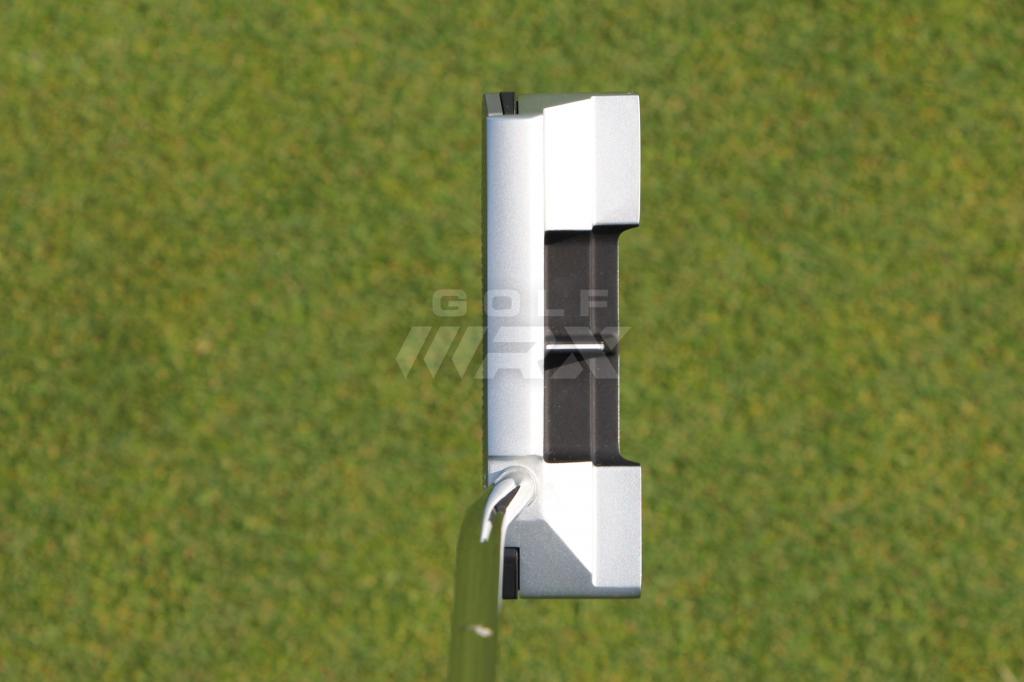

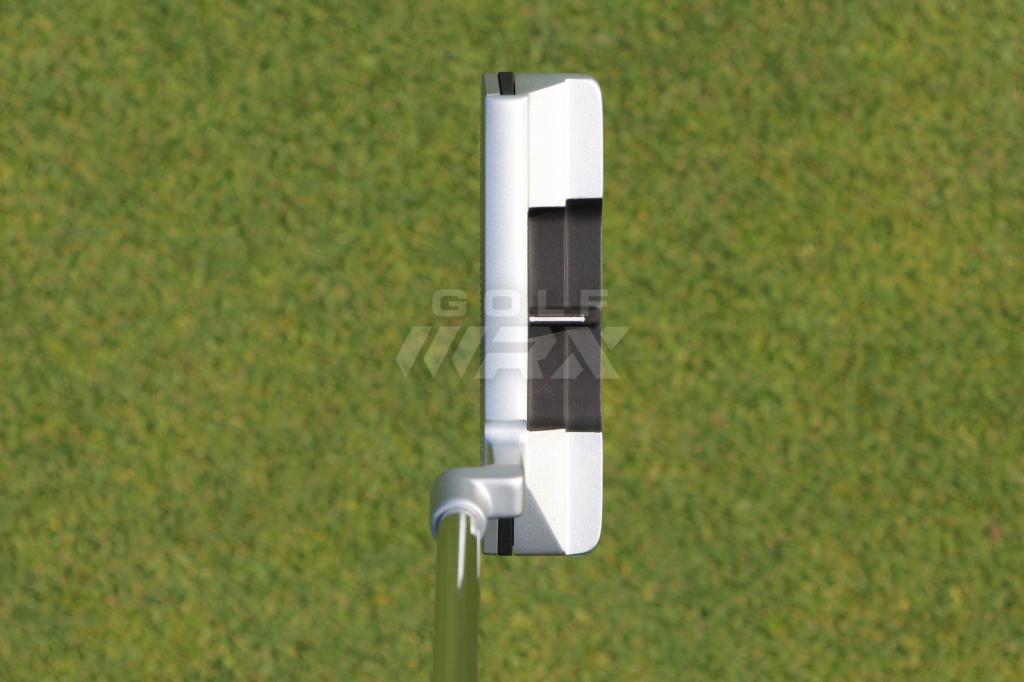

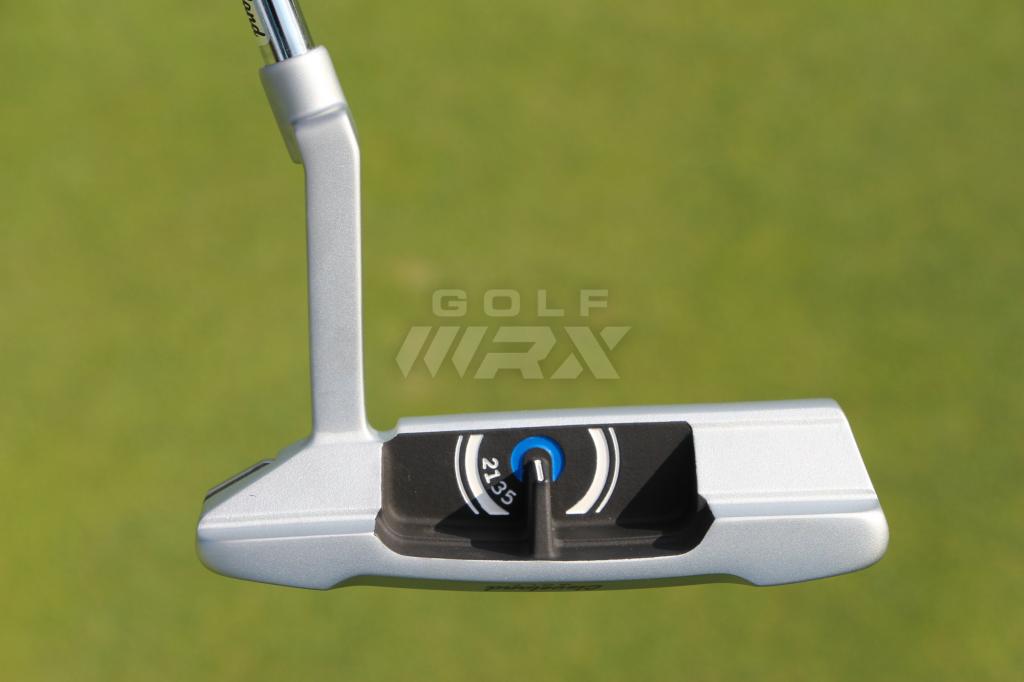

The original TFi 2135 putters used a raised sightline that was 21.35 millimeters off the ground, which is also the height of the equator of a golf ball. According to Cleveland, the technology helps golfers better align their putters, see their line more easily, and address the ball in the center of the putter more consistently. Here’s a video to explain how it works.

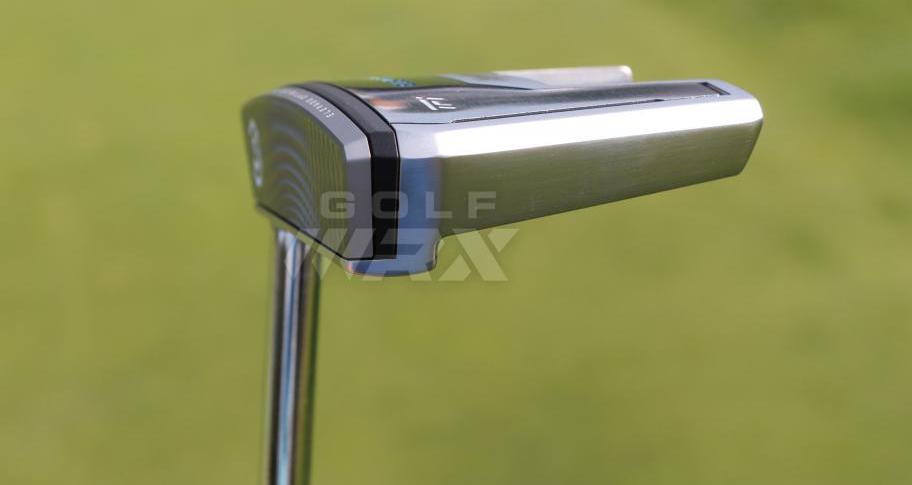

That “2135” technology is back again, but with a whole new look. Compared to the original TFi 2135 putters, the most noticeable difference is a new satin finish that has a greater contrast with the sightline. The milling on the face is where these putters have really changed, however, and why they’re built for better speed control.

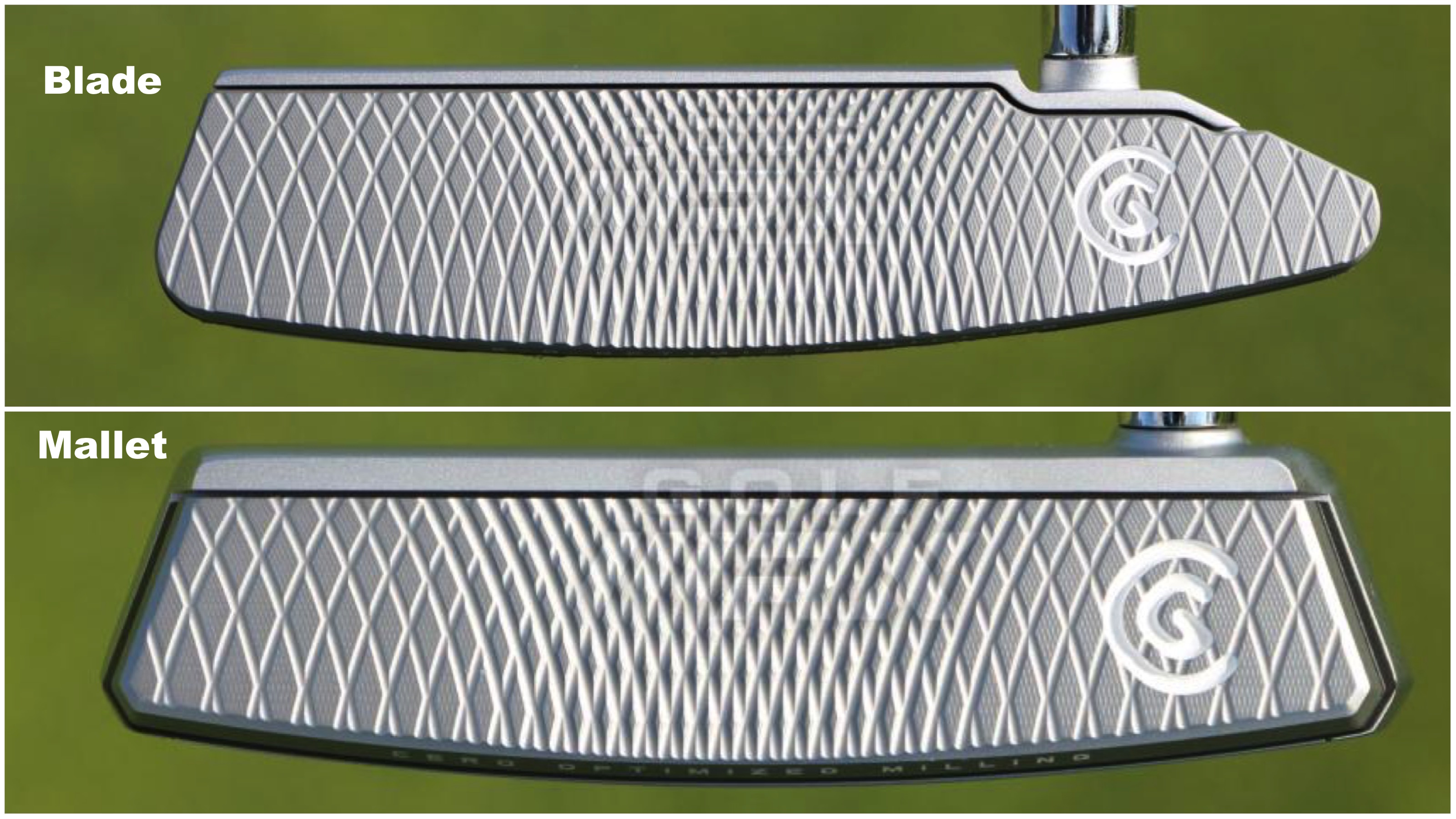

MilledFace

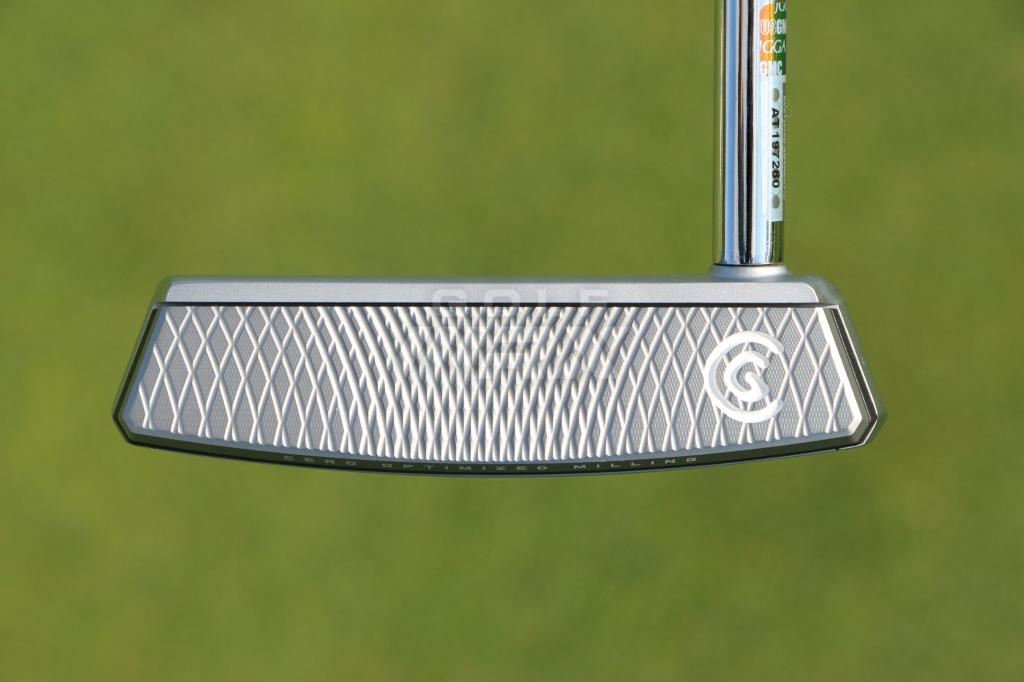

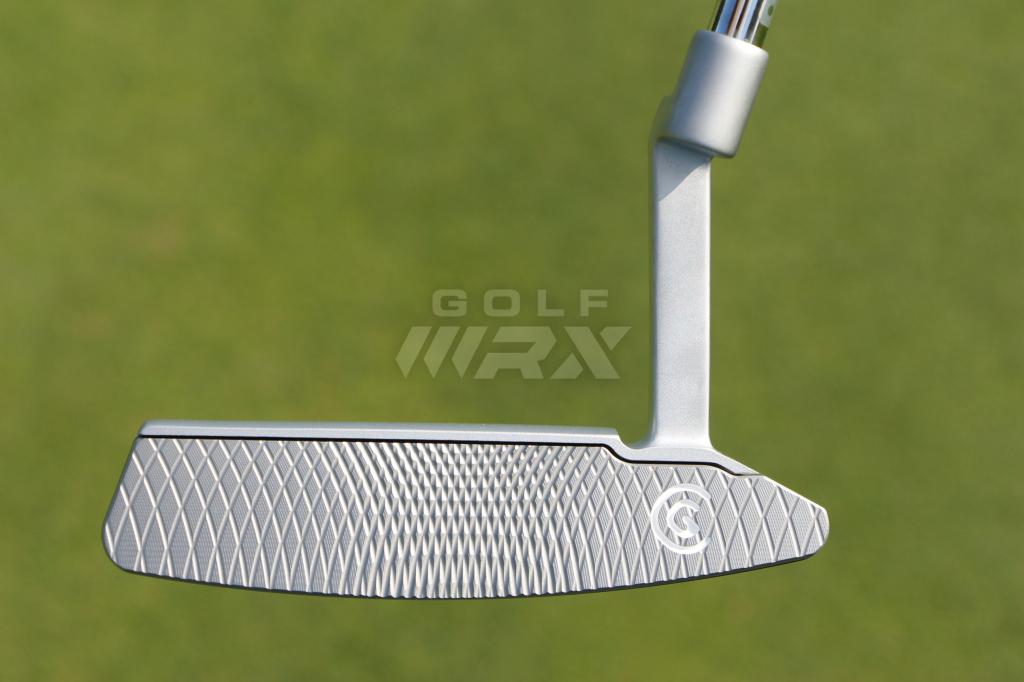

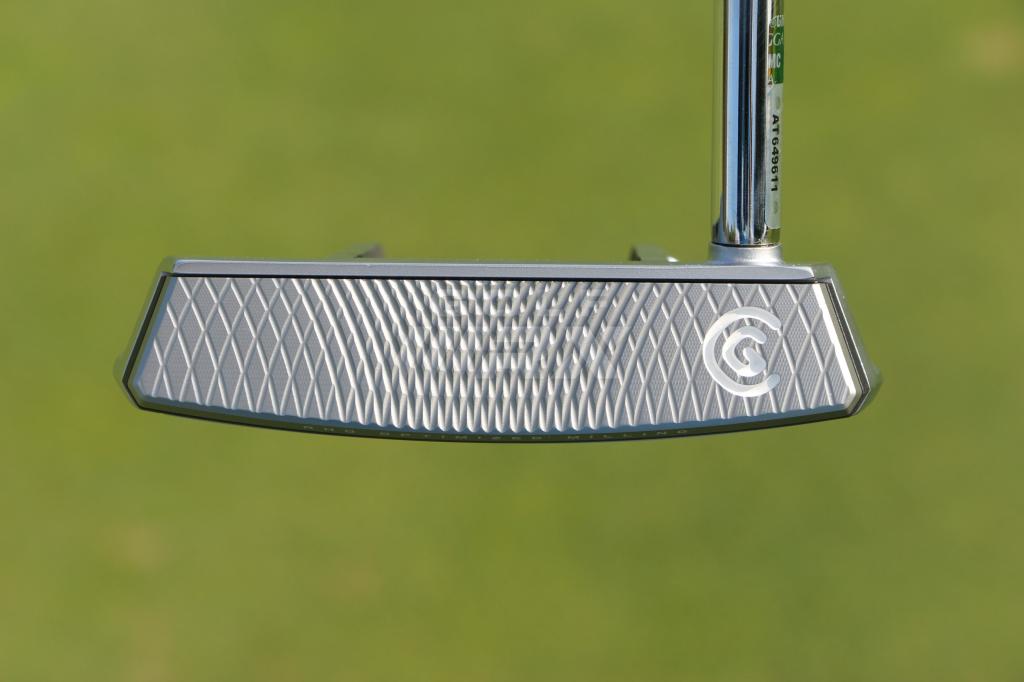

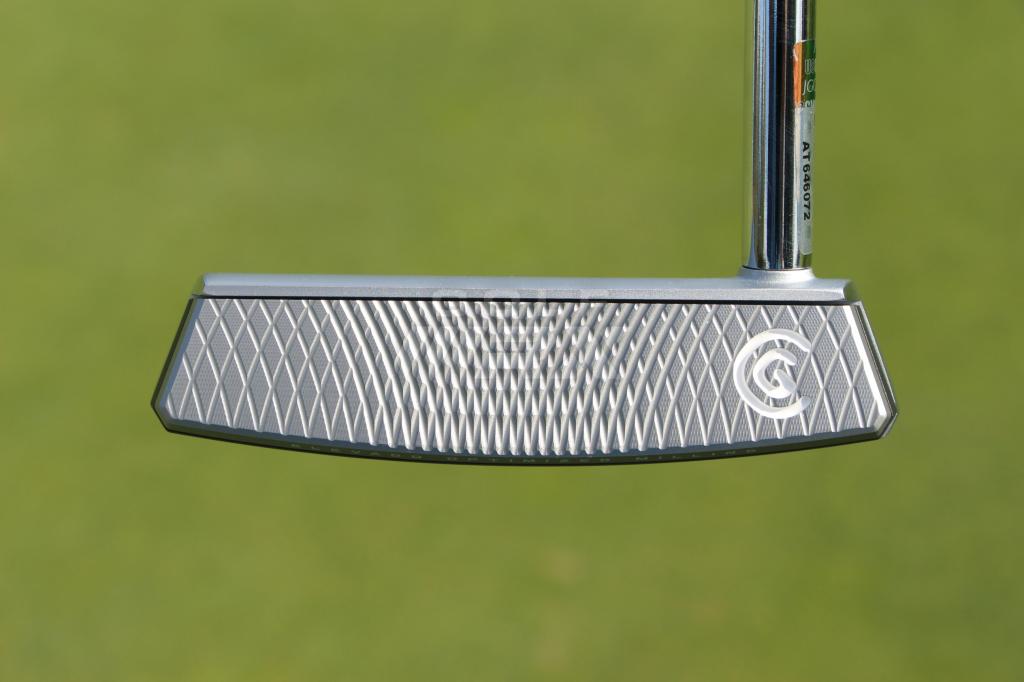

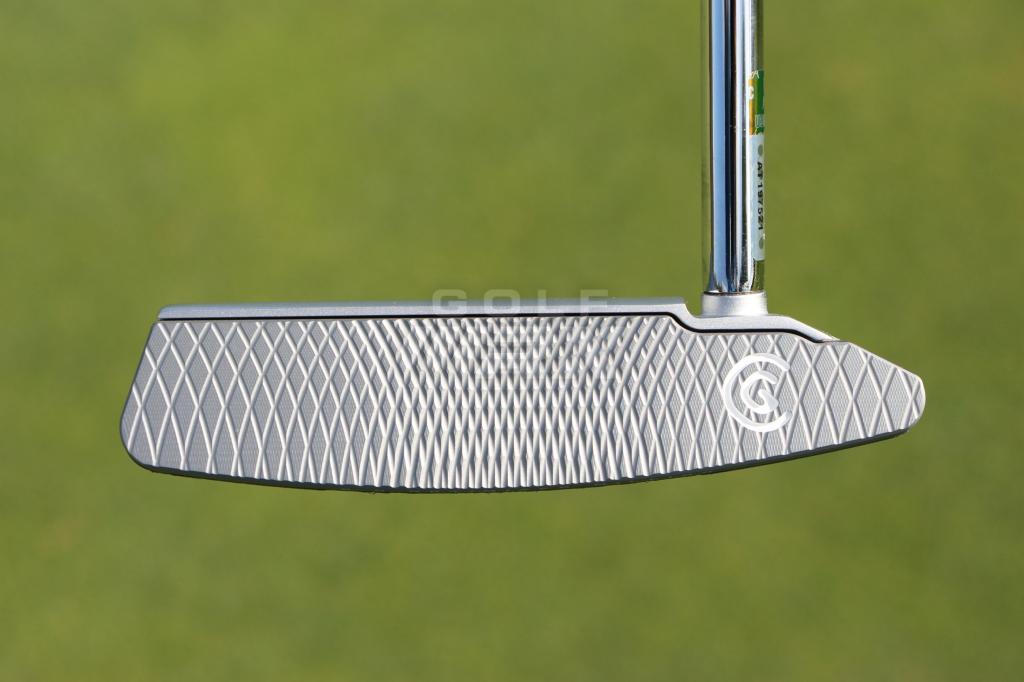

As you can see in the image above, the milling lines are condensed near the center of the putter faces and spread out progressively as they move toward the toe and the heel. That’s to help the ball come off a bit faster when it’s struck off-center. Since fewer milling marks will create less friction, the ball will bounce off the face faster where the milling marks are more spread out.

But that’s not all.

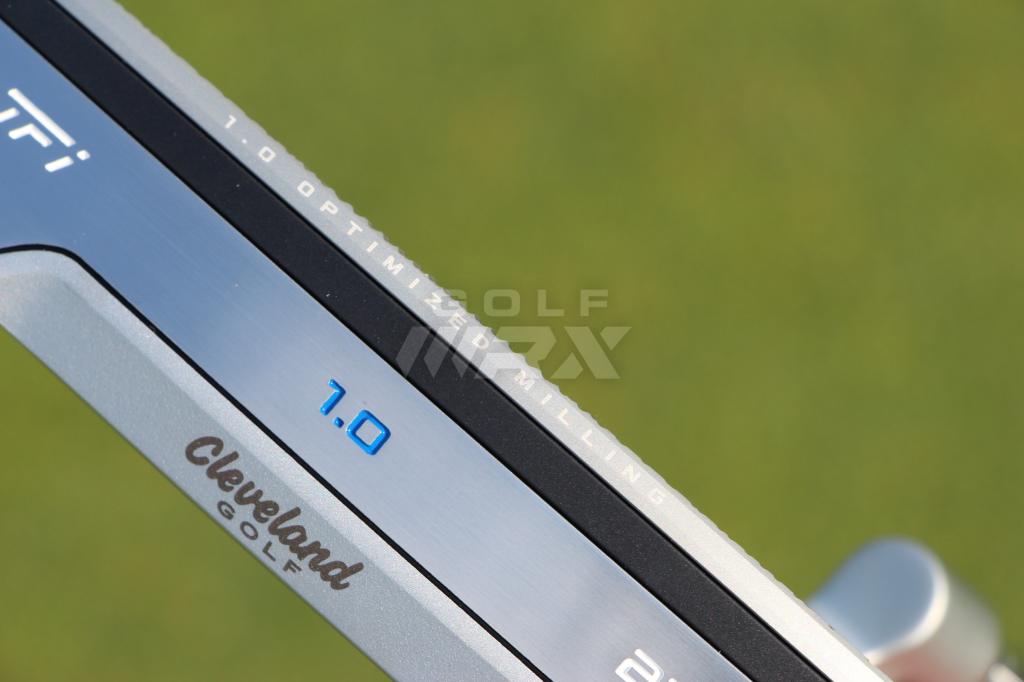

Each separate head model — since they have a different moment of inertia (MOI, a measure of forgiveness) and a different center of gravity (CG) — has specially designed face milling. More specifically, the higher MOI models (re: mallets) have a more gradual variation of mill marks, while the lower MOI models (re: blades) have a more rapid variation. For golfers, this simply means more forgiveness on off-center strikes with each of the putters, hopefully leading to better consistency, speed control, and fewer three putts.

c99bbe6e18e8c807fc540416751f4b84

For the familiar soft feel of the TFi 2135 putters, Cleveland uses a TPU (thermoplastic urethane) insert to dampen vibrations at impact. This combines with three-times deeper milling on the face to create a softer feel then the original TFi 2135 putters and previous iterations of Cleveland putters.

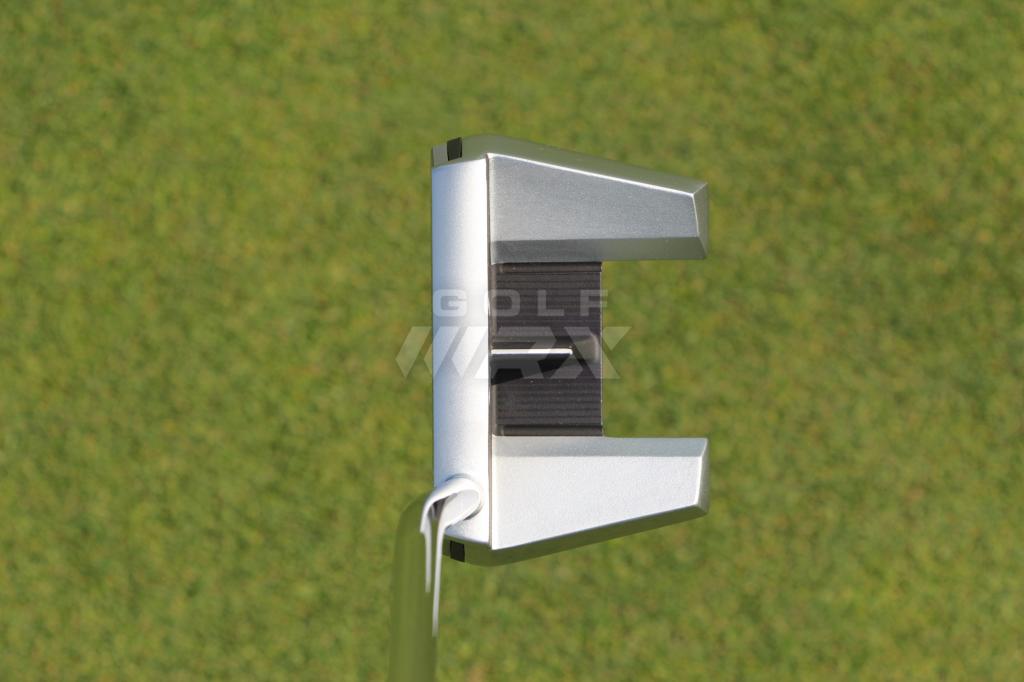

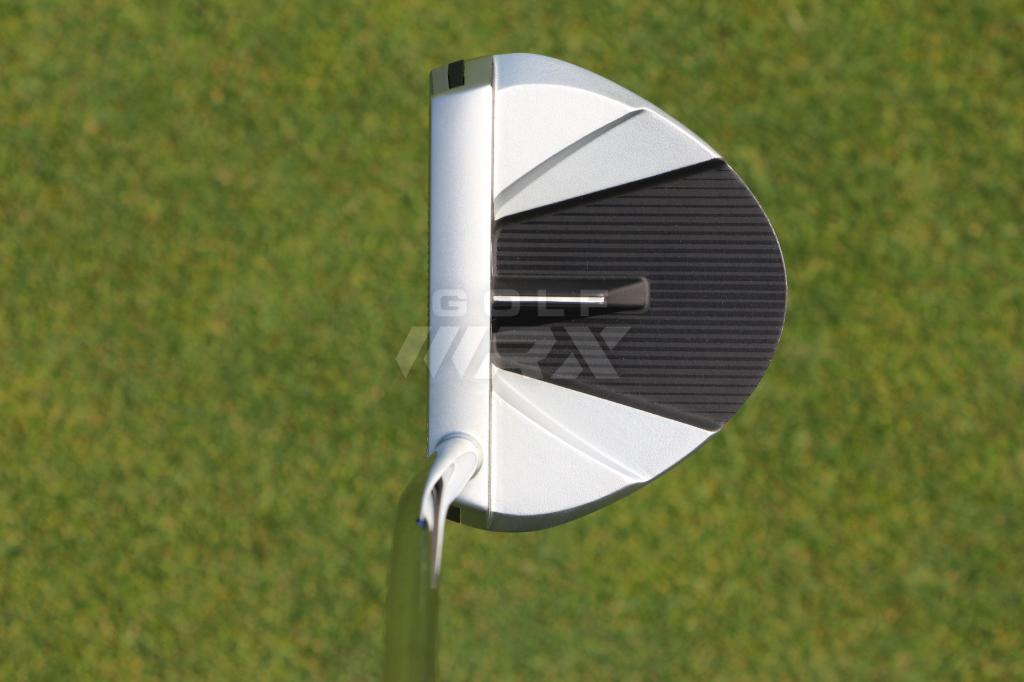

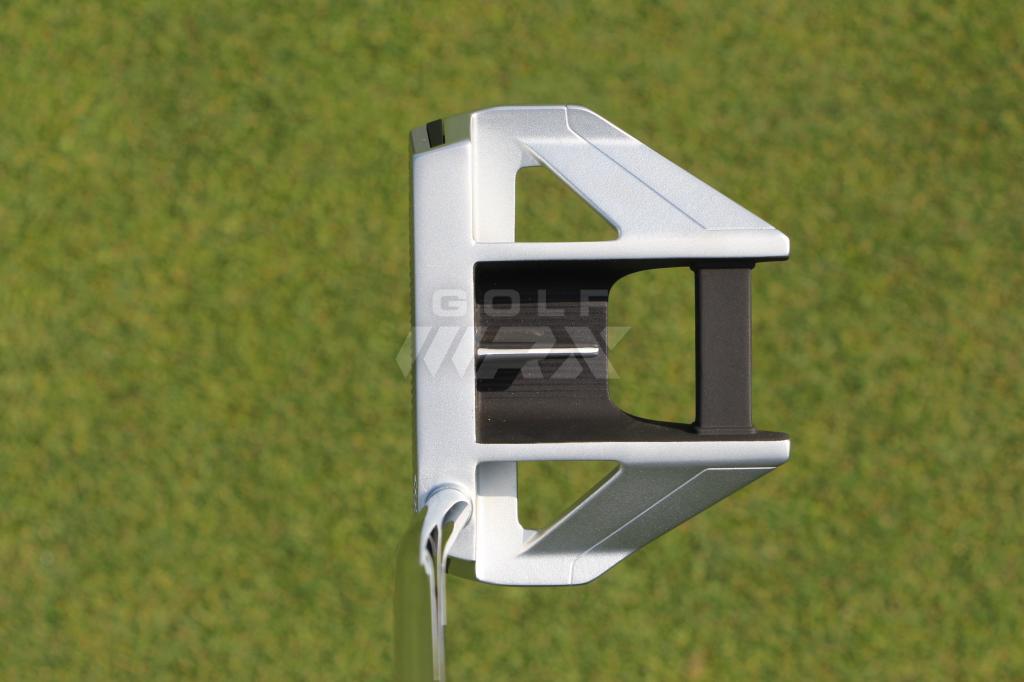

Cleveland’s new TFi 2135 putters will be in stores September 15 in six different head models. The mallet and blade putters will sell for $149.99, and the counter-balanced putters (8.0 and Elevado CB) will sell for $179.99. The putters come stock with either a Lamkin TFi 2135 blue grip or a Cleveland Oversized grip. Cleveland Oversized Counterbalanced grips are also available for a $10 upcharge.

Discussion: See what GolfWRX members are saying about the 2135 Satin putters

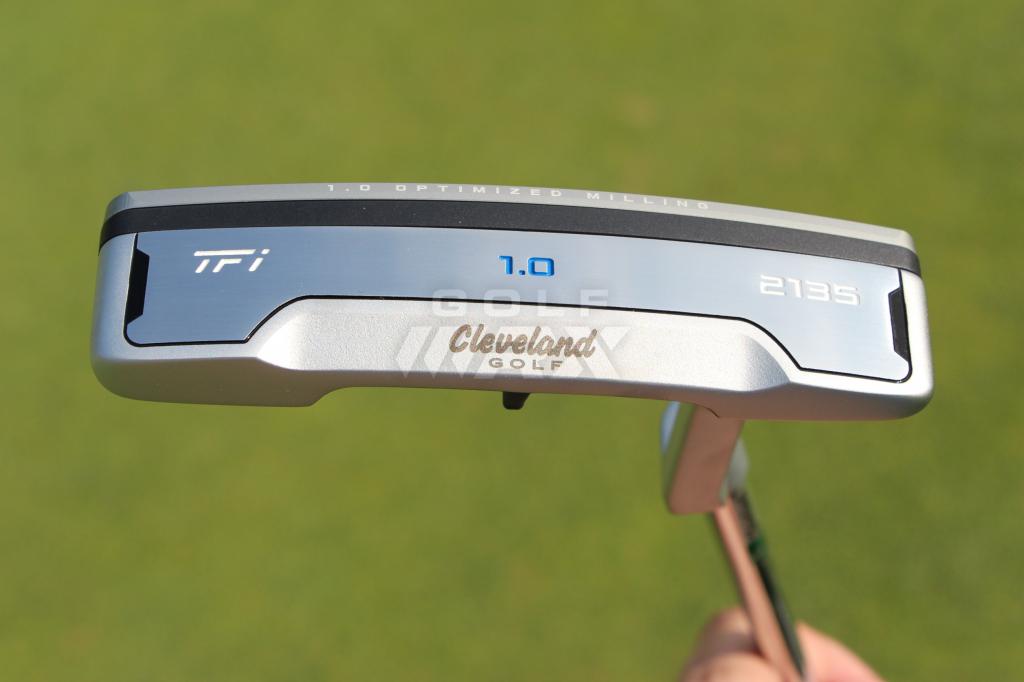

TFi 2135 Satin 1.0

  • Head Type: Blade
  • Hosel Type: Plumber’s Neck
  • Length: 33, 34 and 35 inches
  • Lie Angle: 70 degrees
  • Loft: 3 degrees
  • Head Weight: 345 grams
  • Grip Weight: 85 grams
  • Dexterity: RH/LH

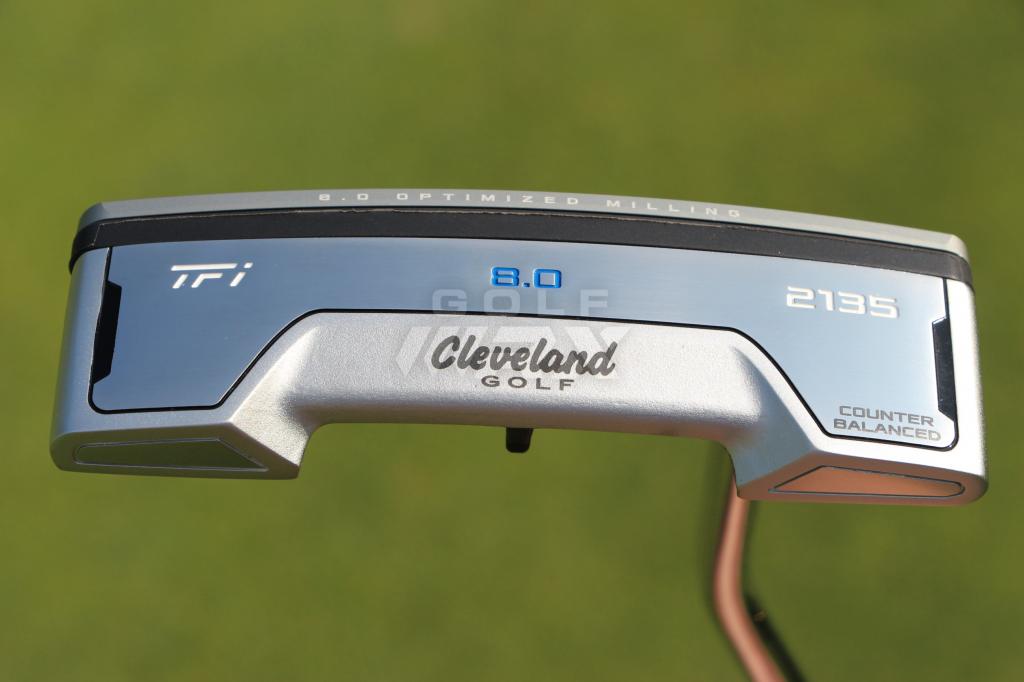

TFi 2135 Satin 8.0

  • Head Type: CB Blade
  • Hosel Type: Single Bend Heel
  • Length: 35 and 38 inches
  • Lie Angle: 70 degrees
  • Loft: 3 degrees
  • Head Weight: 405 grams
  • Grip Weight: 148 grams
  • Dexterity: RH Only

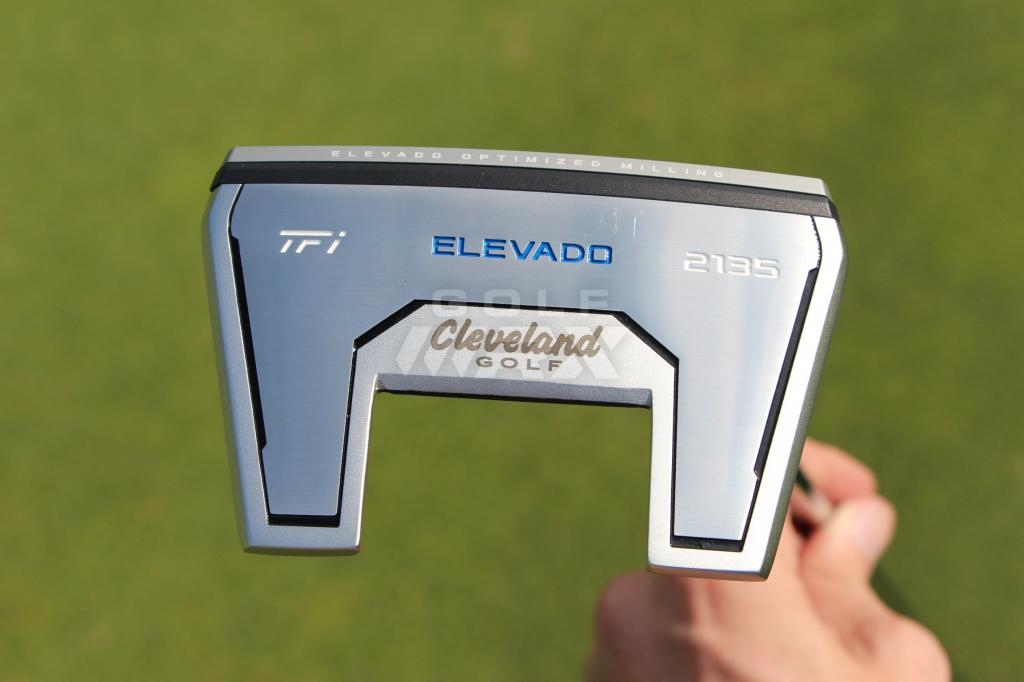

TFi 2135 Satin Elevado

  • Head Type: Mallet
  • Hosel Type: Single Bend Heel
  • Length: 33, 34 and 35 inches
  • Lie Angle: 70 degrees
  • Loft: 3 degrees
  • Head Weight: 370 grams
  • Grip Weight: 85 grams
  • Dexterity: RH Only

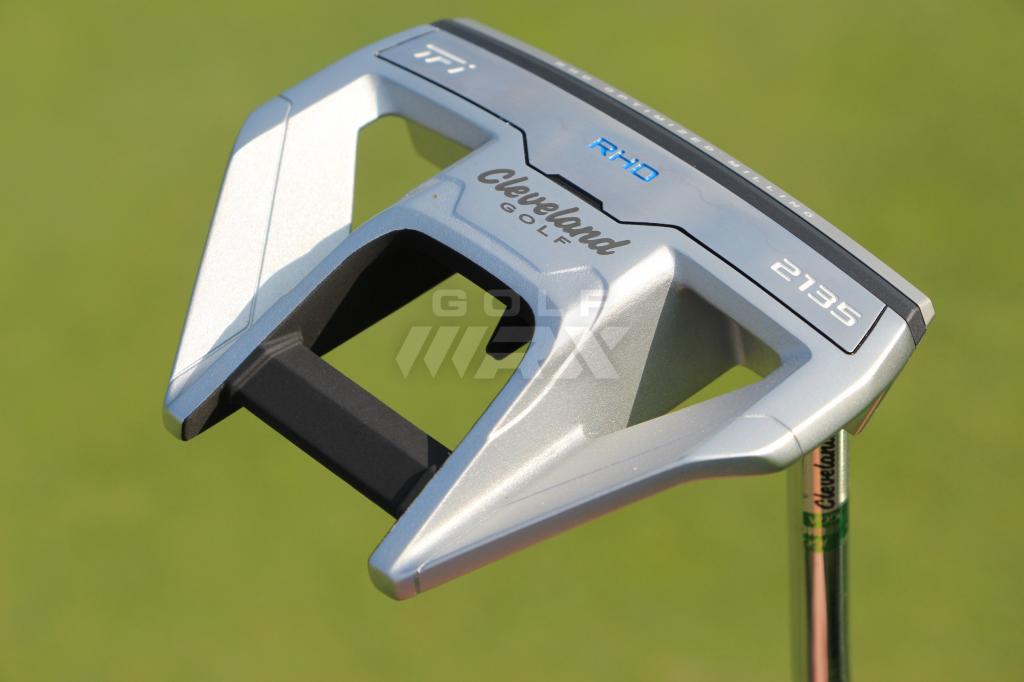

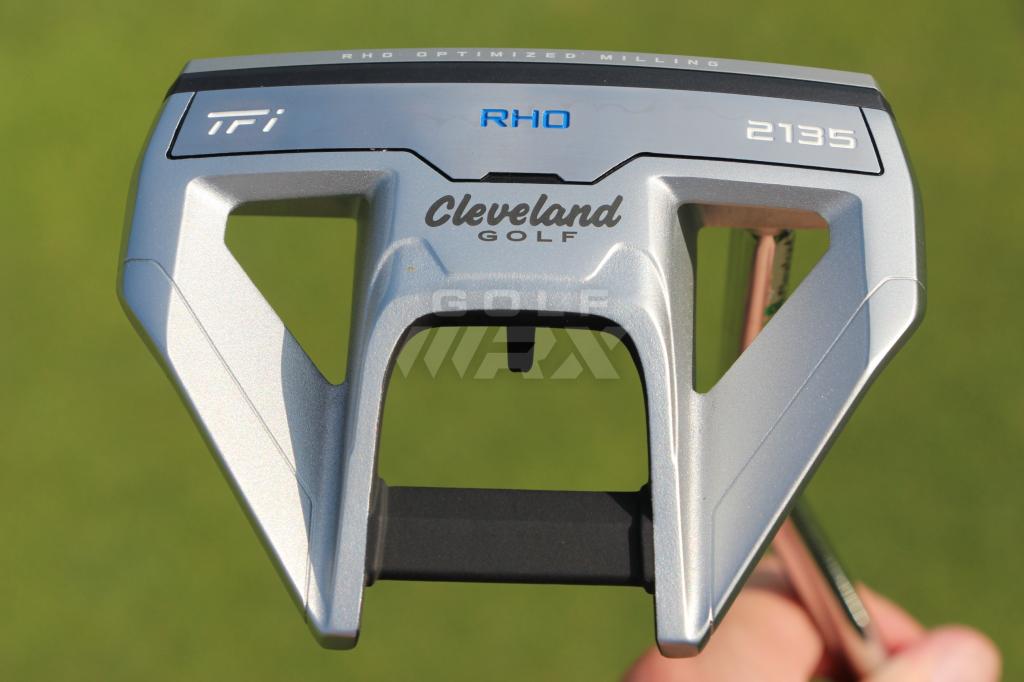

TFi 2135 Satin Rho

  • Head Type: Mallet
  • Hosel Type: Single Bend Heel
  • Length: 33, 34 and 35 inches
  • Lie Angle: 70 degrees
  • Loft: 3 degrees
  • Head Weight: 370 grams
  • Grip Weight: 85 grams
  • Dexterity: RH Only

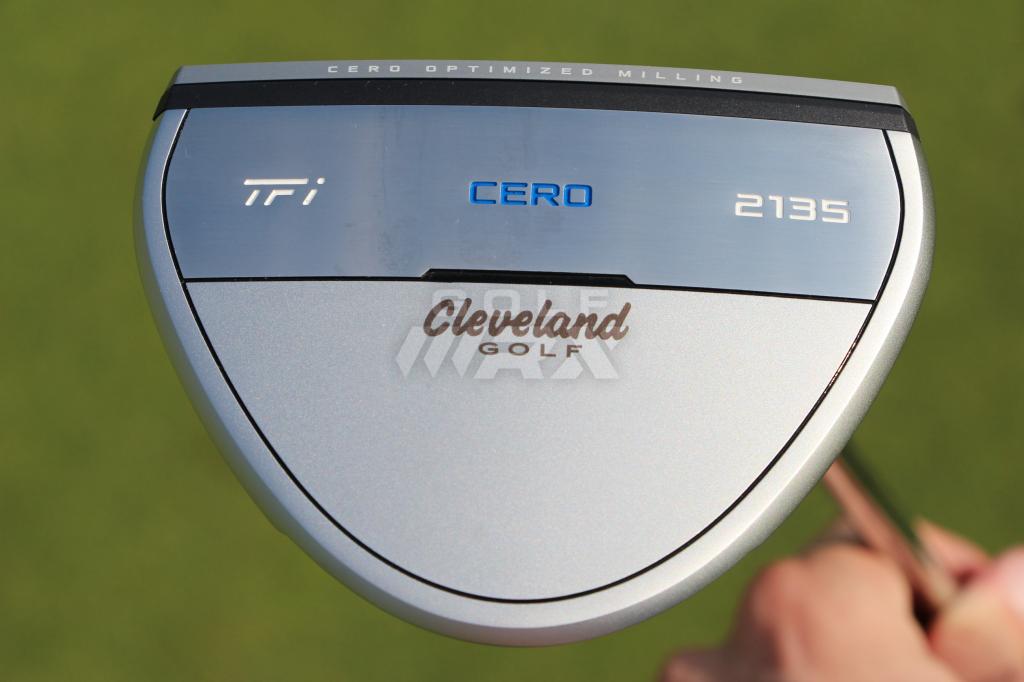

TFi 2135 Satin Cero

  • Head Type: Mallet
  • Hosel Type: Single Bend Heel
  • Length: 33, 34 and 35 inches
  • Lie Angle: 70 degrees
  • Loft: 3 degrees
  • Head Weight: 370 grams
  • Grip Weight: 85 grams
  • Dexterity: RH Only

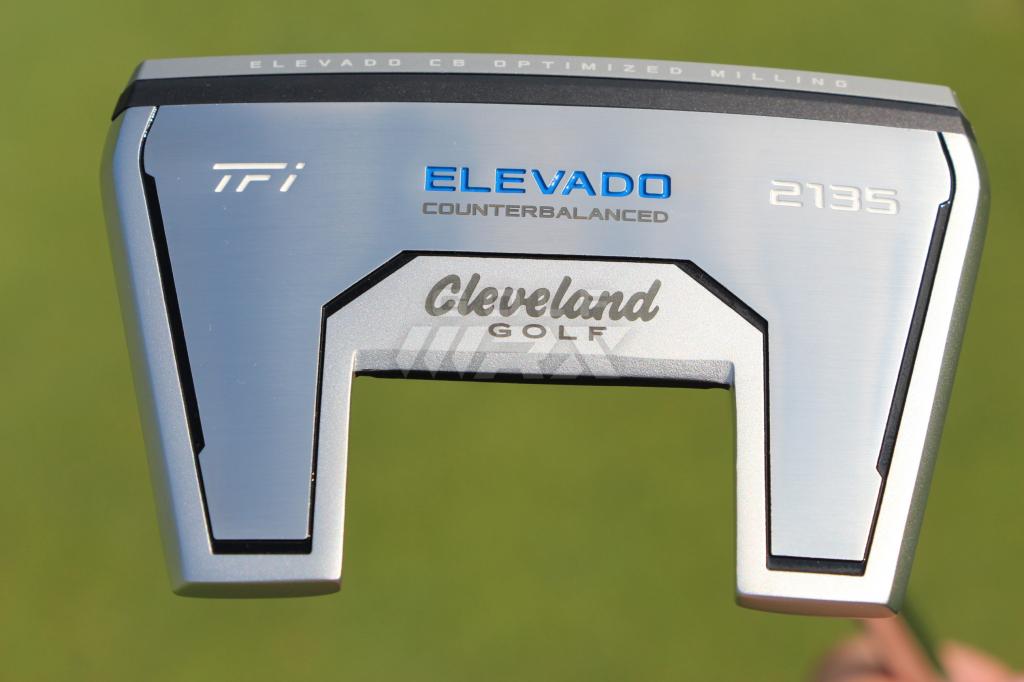

TFi 2135 Satin Elevado CB

  • Head Type: CB Mallet
  • Hosel Type: Single Bend Heel
  • Length: 35 and 38 inches
  • Lie Angle: 70 degrees
  • Loft: 3 degrees
  • Head Weight: 405 grams
  • Grip Weight: 148 grams
  • Dexterity: RH Only

Discussion: See what GolfWRX members are saying about the 2135 Satin putters
