Equipment

Callaway XR Drivers, Fairway Woods and Hybrids

Published

on

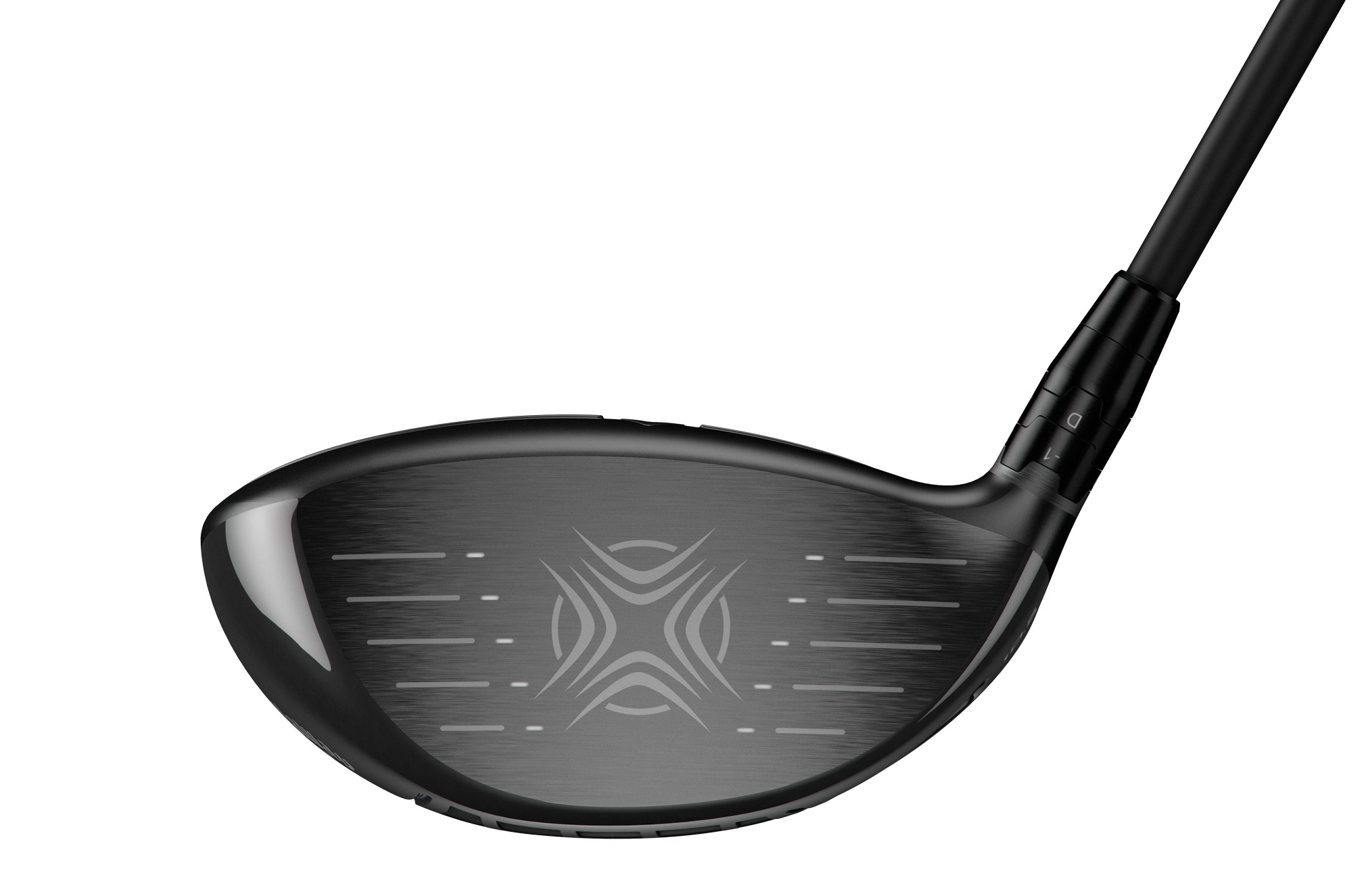

Callaway’s XR drivers, fairway woods and hybrids use the company’s new-and-improved Hyper Speed Face Cup technology to produce faster ball speeds — without skimping on forgiveness.

The new Hyper Speed Face Cup has an even thinner, lighter face than its predecessors. The lighter face gave Callaway engineers the ability to move the center of gravity (CG) slightly lower in the club heads, as well as add a bit more perimeter weighting. The results? Higher-launching, lower-spinning shots and club heads that are more consistent on mishits.

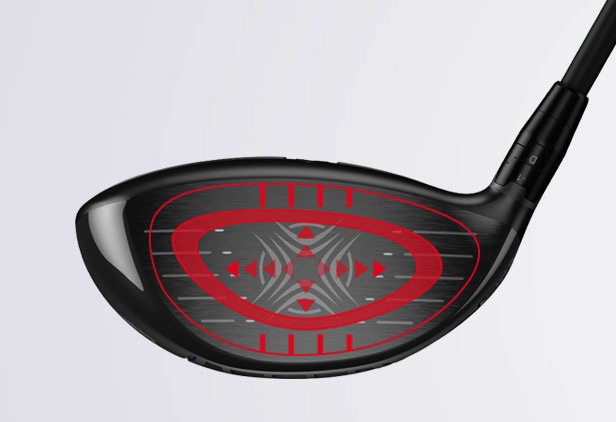

SPEED-FROM-R-MOTO-FACE-TECHNOLOGY

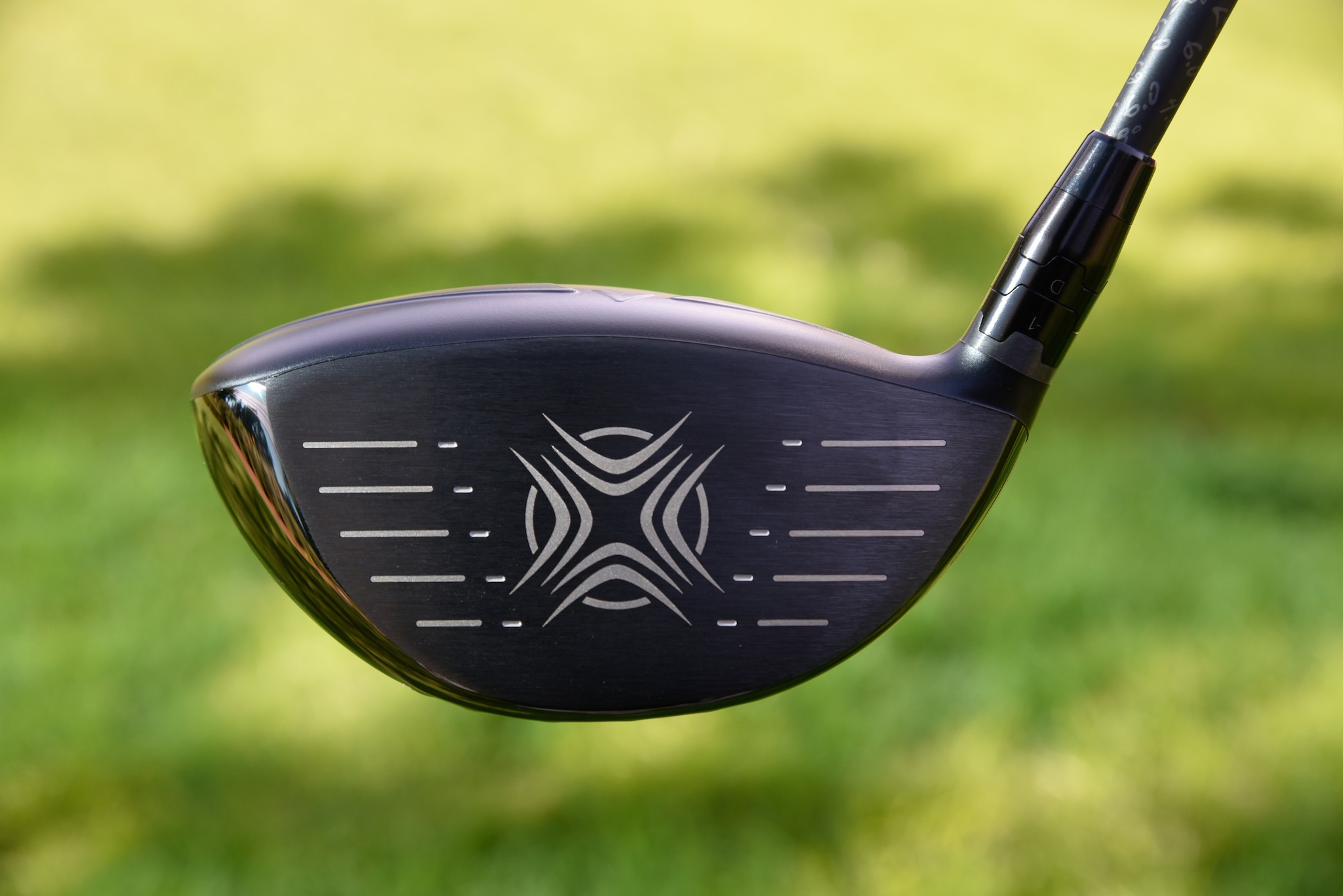

To lighten the face of the XR and XR Pro drivers, Callaway added what it calls “R-Moto” — also used on its Big Bertha Alpha 815 drivers — which is a series of ribs that connect the face to the crown and the sole. The structure reduces weight in the face by as much as 10 percent, and also transfers energy more efficiently, says Evan Gibbs, Senior Manager of R&D for Woods at Callaway Golf.

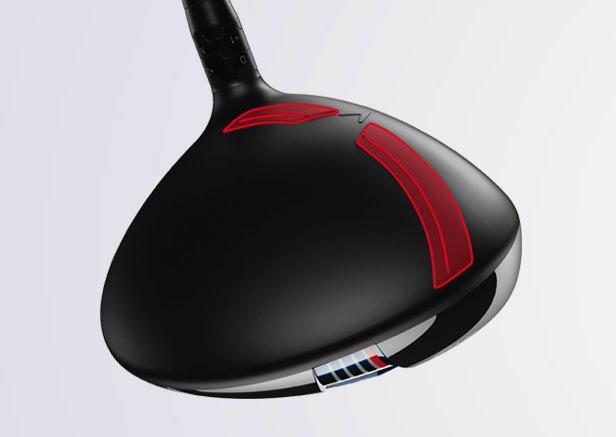

Callaway’s Speed Step Crown

Callaway also tackled an airflow issue with the XR line. With golf clubs, there’s a tendency for air to separate from the club head’s surface as it moves through space, which increases turbulence and drag.

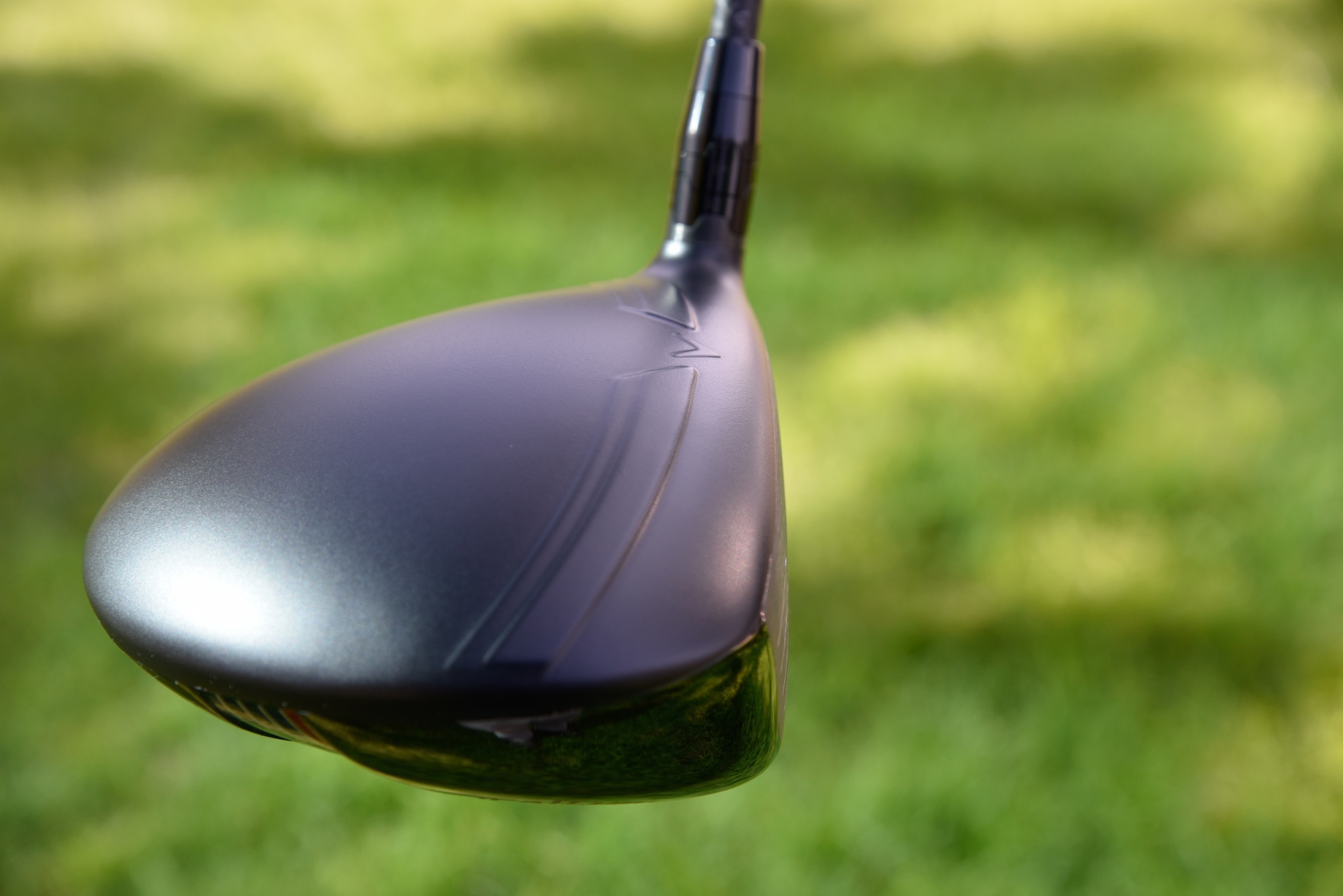

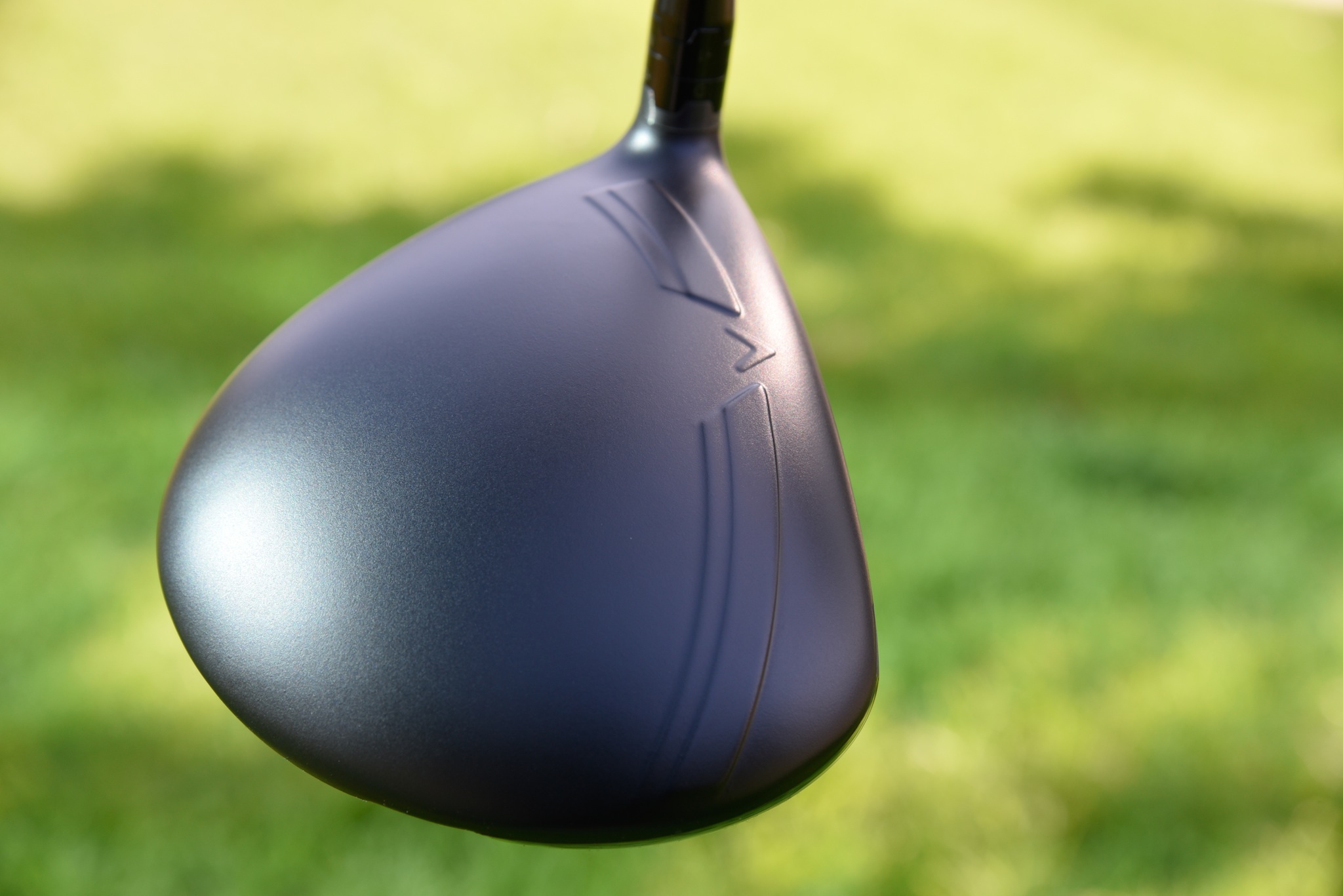

Callaway’s XR driver uses the company’s new Speed Step crown (gallery above) to improve aerodynamics, while the XR Pro has an aerodynamically-enhanced Forged Composite Crown to slightly boost club head speed.

“THE SPEED STEP CROWN AND THE AERODYNAMIC HEAD SHAPE WORK TOGETHER TO KEEP THE AIRFLOW ATTACHED TO THE CLUB HEAD FOR AS LONG AS POSSIBLE,” SAYS GIBBS.

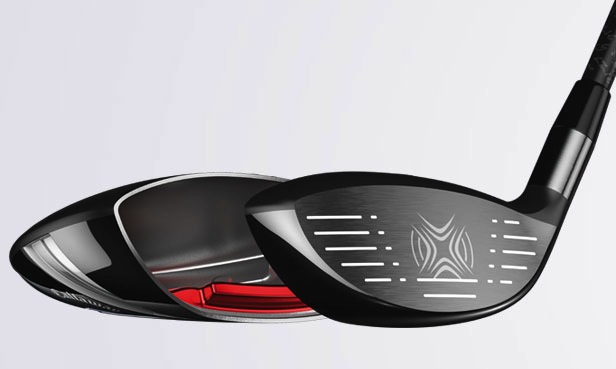

MORE-DISTANCE-WHERE-YOU-NEED-IT

The XR driver, fairway woods and hybrids also use what Callaway calls an Internal Standing Wave — a forward-leaning weight pad behind the face that helps lower CG for reduced spin and more ball speed.

Like the drivers, Callaway’s XR fairway woods and hybrids were also the beneficiary of aerodynamic improvements.

Callaway’s XR line offers two different driver models (Standard and Pro), three different fairway wood models (Standard, Pro and Deep) and two different hybrid models (Standard and Pro).

The standard models are the most forgiving option throughout the line for players who need more spin, forgiveness or both. The Pro versions have more compact head designs and offer a lower-spinning trajectory

xr-fwy-3-deep-face-2015

The XR Pro 3 Deep fairway wood (14 degrees) is a specialty 3 wood model with a deeper (read taller) face than the Pro model. It combines a larger face with a lower-spinning trajectory to create a club that golfers can use from the tee as a second driver, as well as from the fairway.

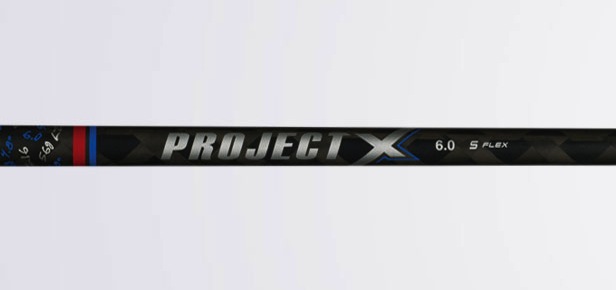

SPEED-FROM-MAXIMUM-SHAFT-LOAD

The XR line’s stock shafts are True Temper’s Project X LZ, which are designed to help golfers to maximize shaft load at the top of the swing transfer more energy into the ball at impact.

Standard XR drivers, woods and hybrids will be available in stores on Feb. 20, 2015, and the XR Pro and XR Deep models will be available on March 20, 2015.

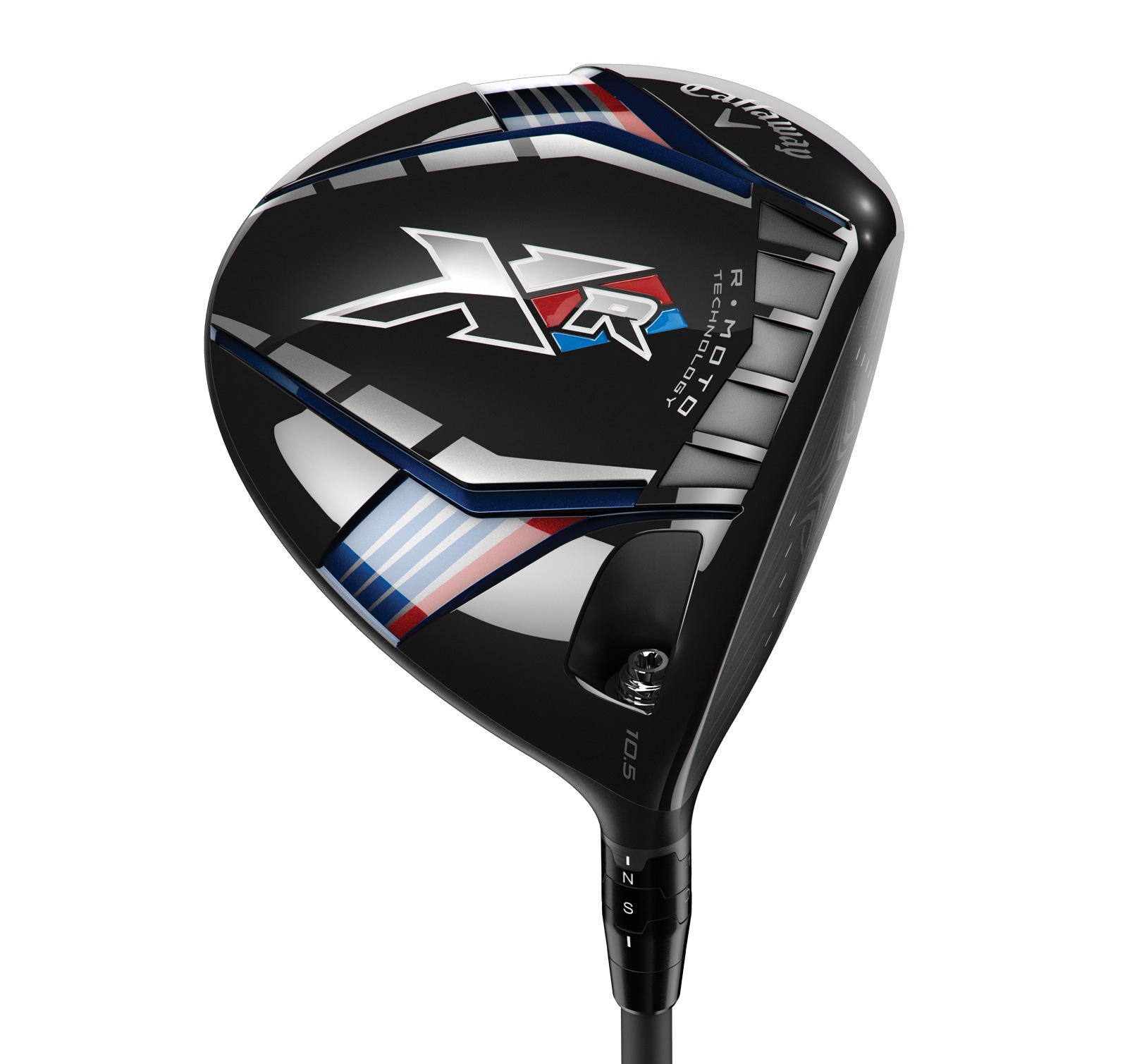

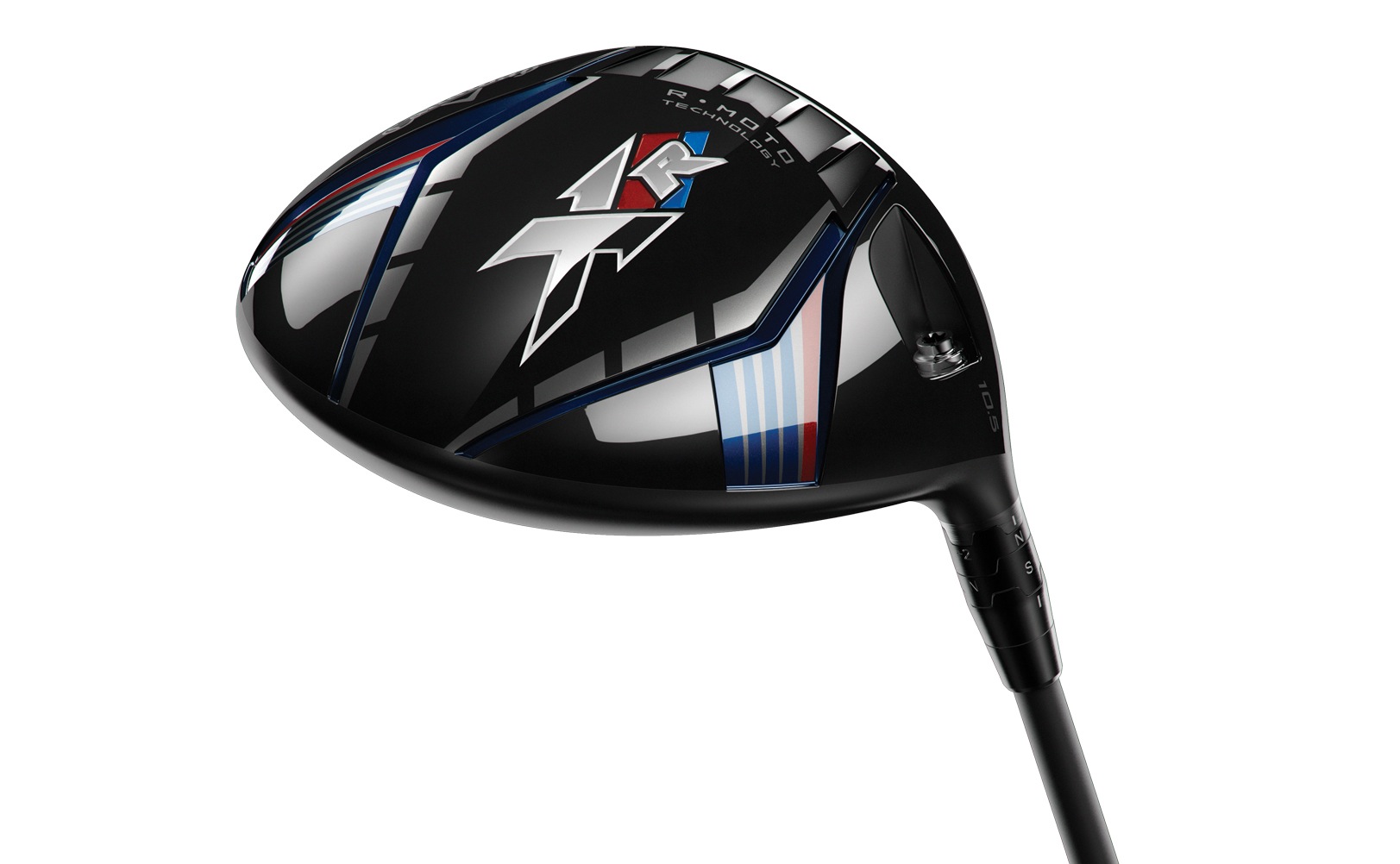

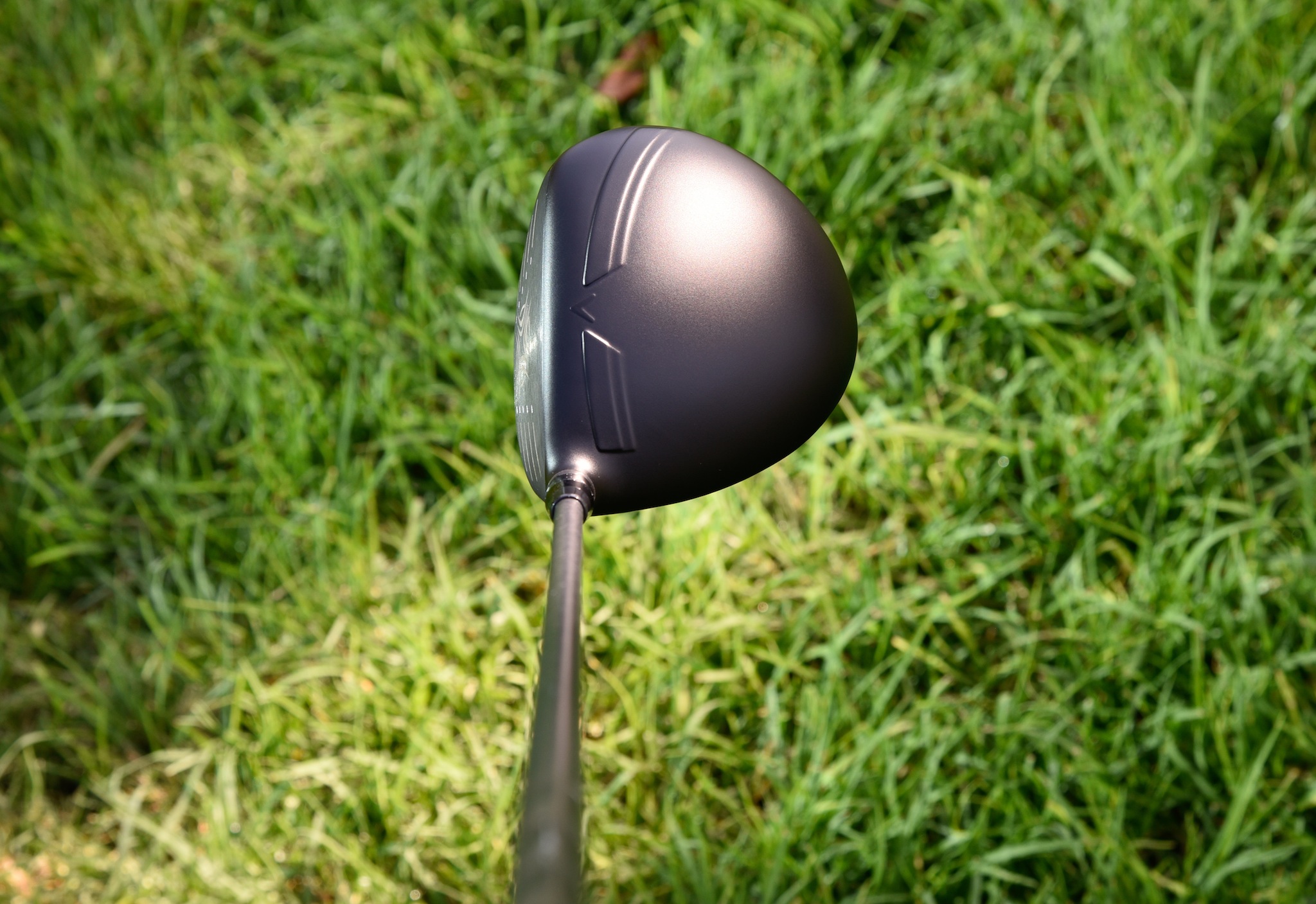

XR driver

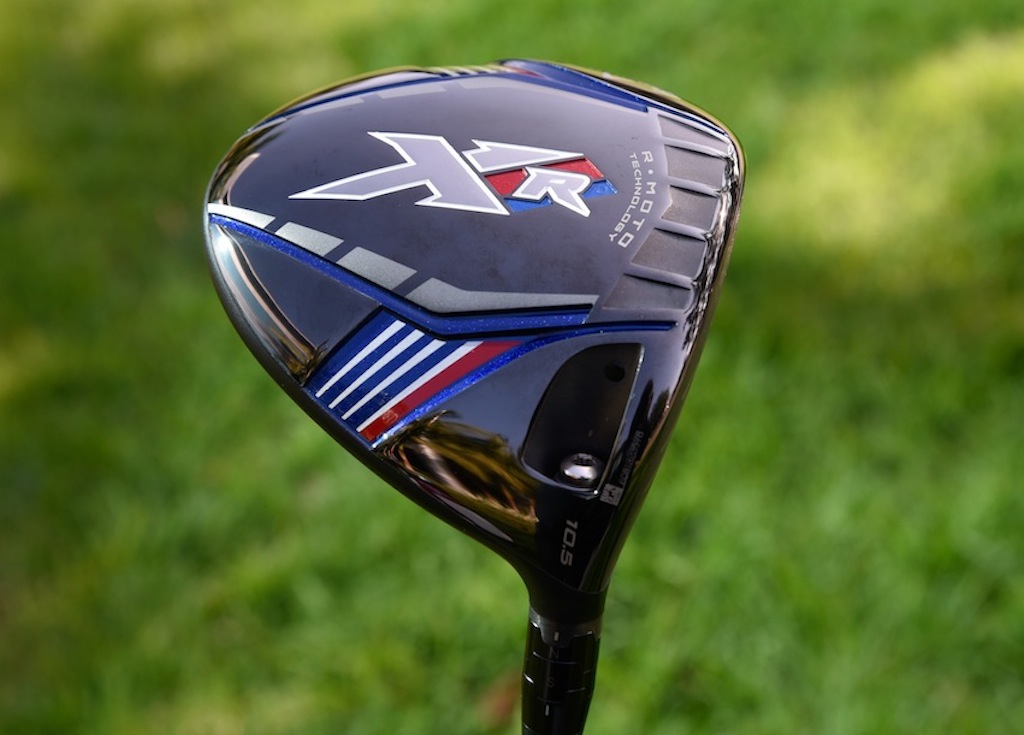

XR Product Shots-130 copy

Price: $349
Lofts: 9, 10.5, 12 and 13.5 degrees
Shaft: True Temper Project X LZ (Mitsubishi Rayon Bassara 52, no charge)

Design Features:

  • Speed Step Crown
  • R-Moto face
  • OptiFit Hosel offers 8 different loft/lie configurations

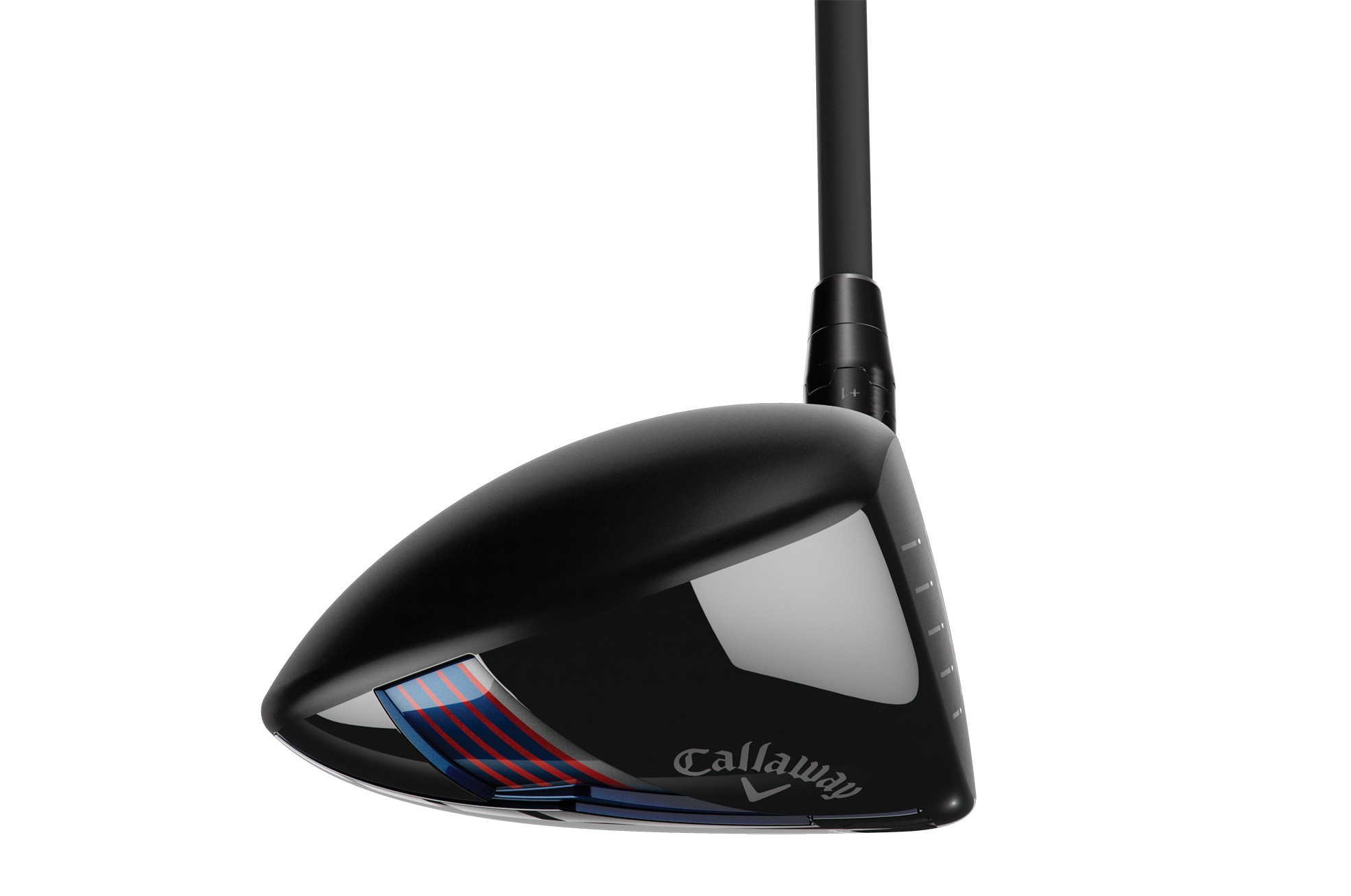

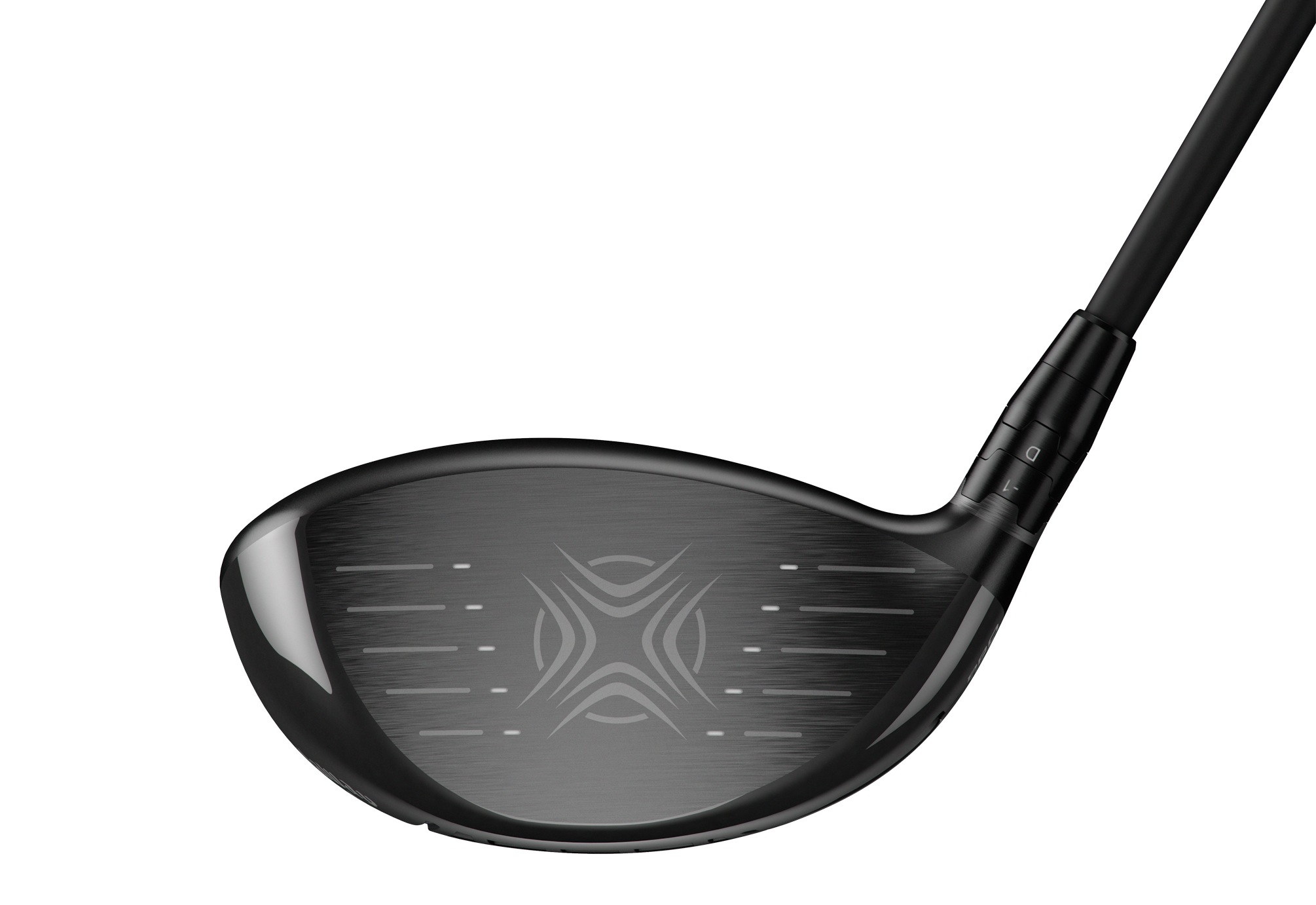

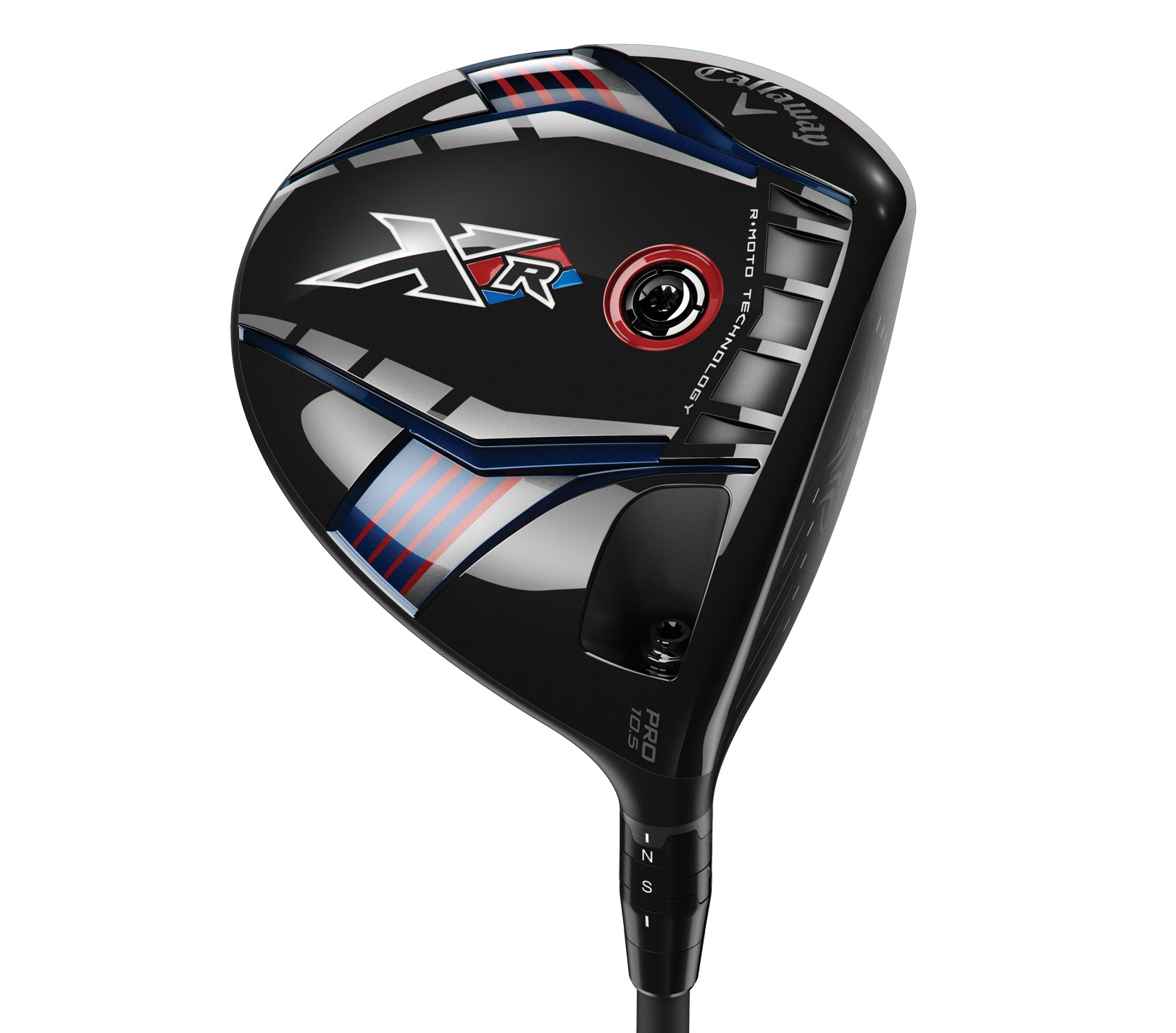

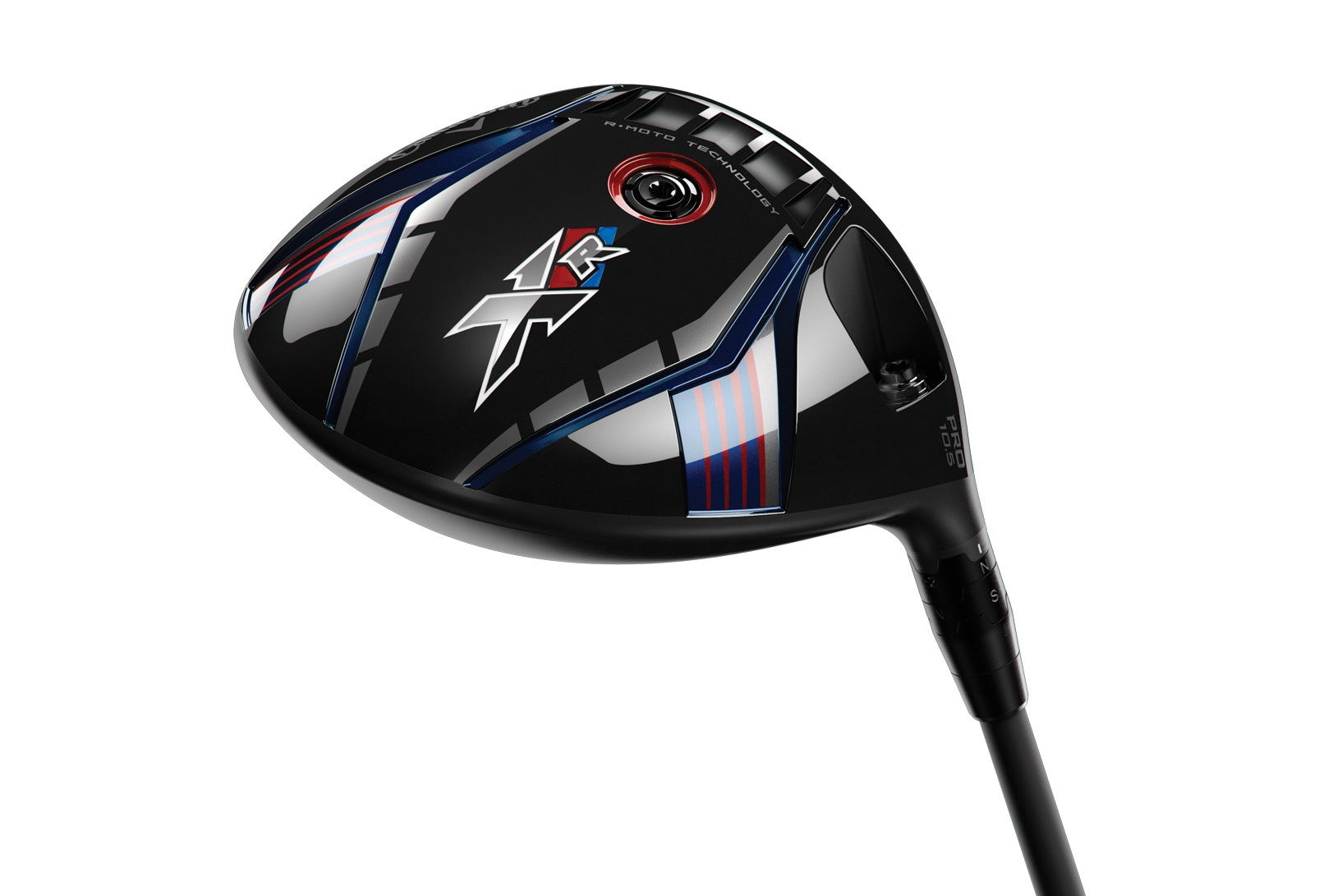

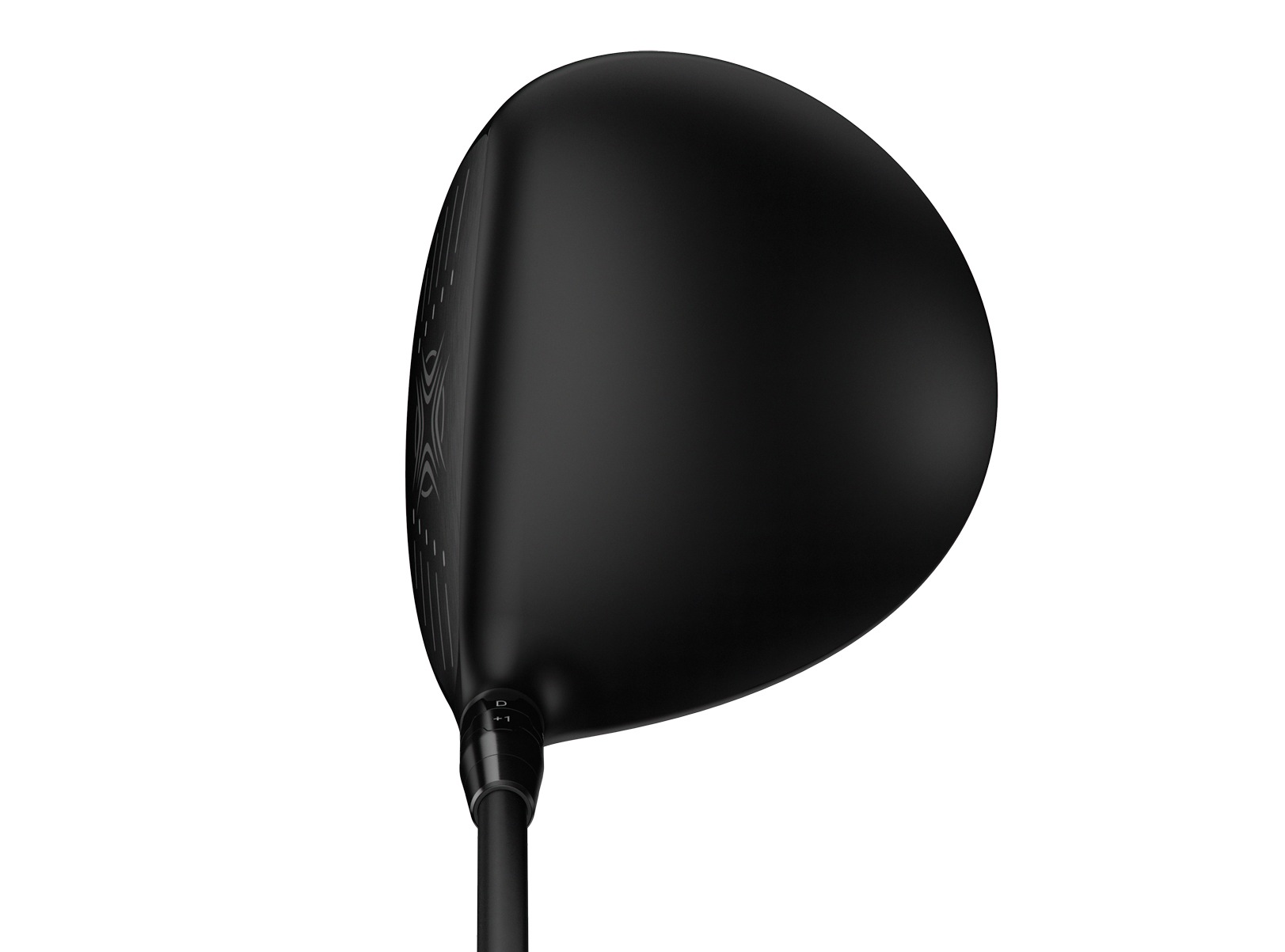

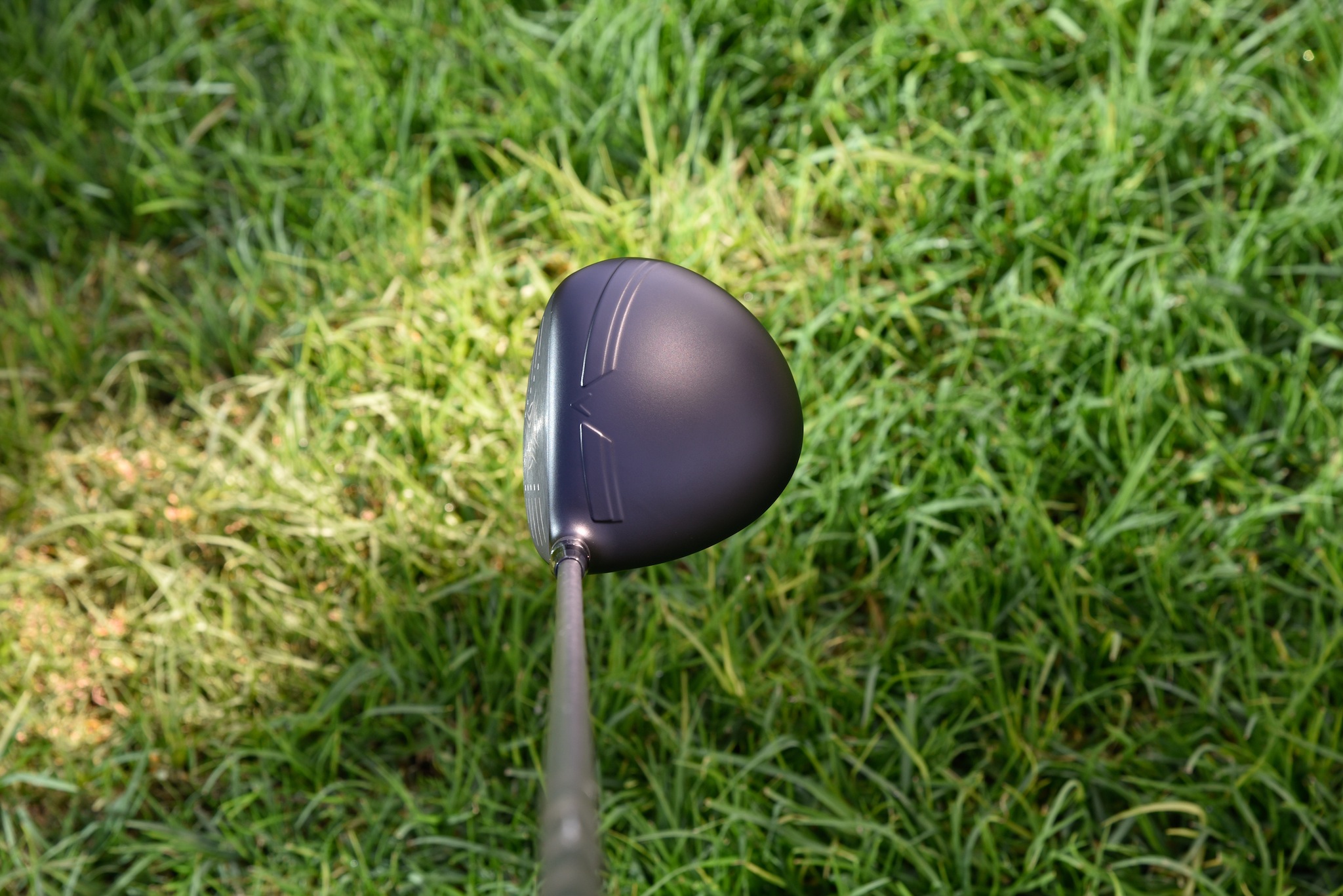

XR Pro driver

xr-driver-pro-address-2015

Price: $399
Lofts: 9 and 10.5 degrees
Shaft: True Temper Project X LZ (Matrix Black Tie and Fujikura Speeder 565, no charge)

Design Features:

  • R-Moto Face
  • Forged Composite Crown (lowers spin by 300 rpm compared to X2 Hot, according to Callaway)
  • Aerodynamic head design
  • OptiFit adjustability

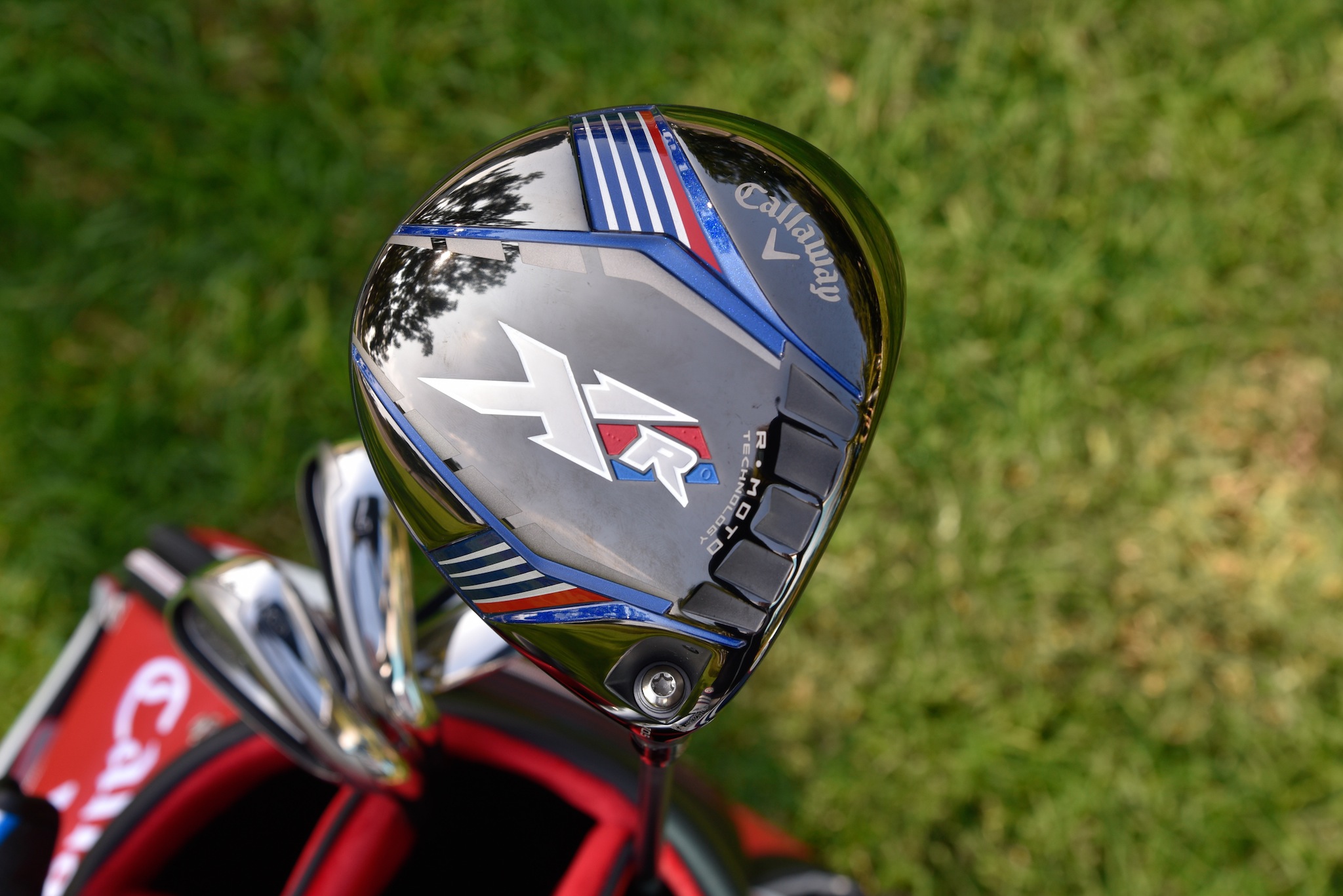

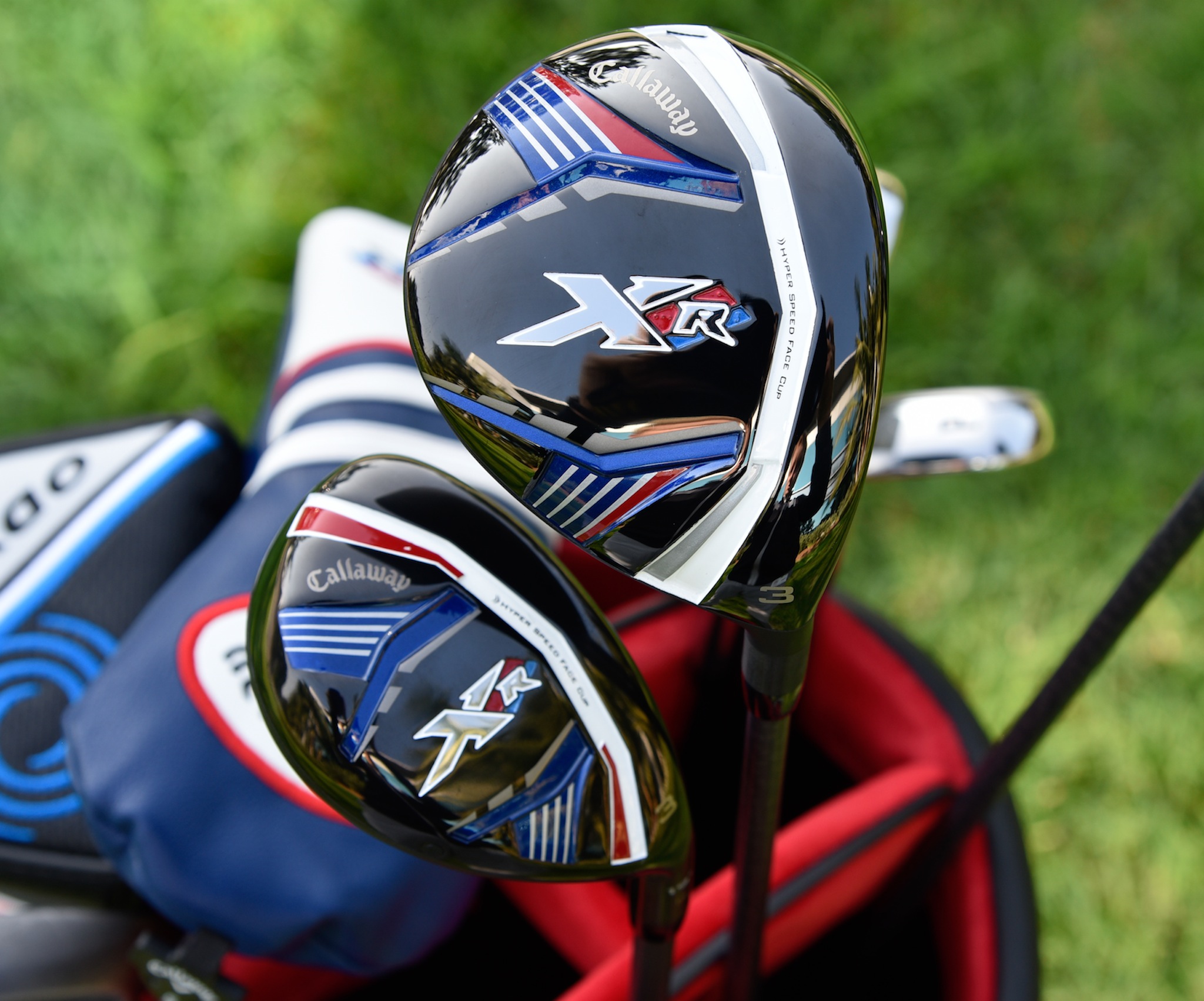

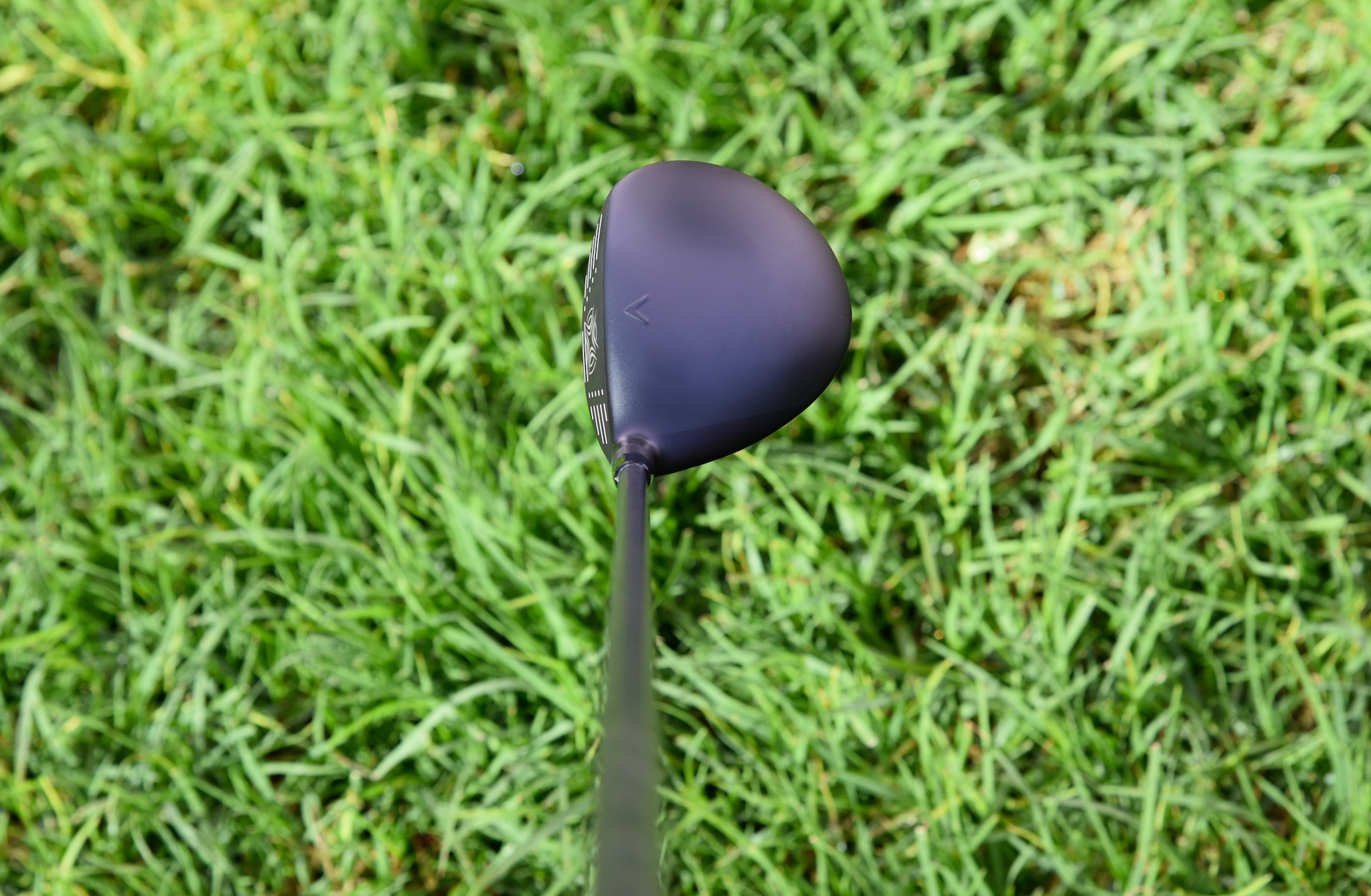

XR fairway woods

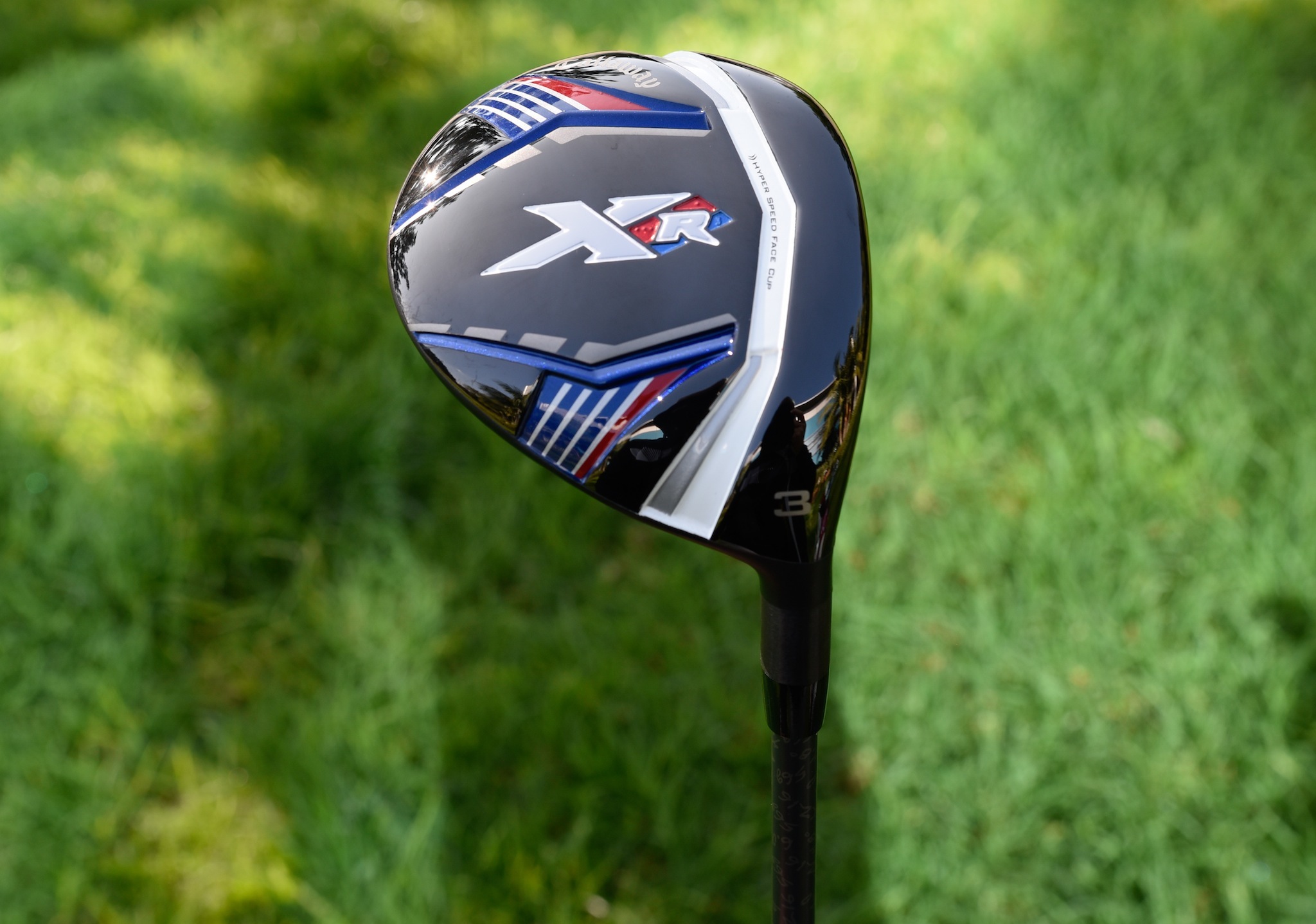

XR Product Shots-187 copy

Price: $229
Lofts: 15, 17, 19, 21, 23 and 25 degrees
Shaft: True Temper Project X LZ

Design Features:

  • Forged Hyper Speed Face Cup
  • 200 less rpm of spin compared to X2 Hot woods
  • Redesigned head shape — flatter leading edge, higher toe, shallower face height

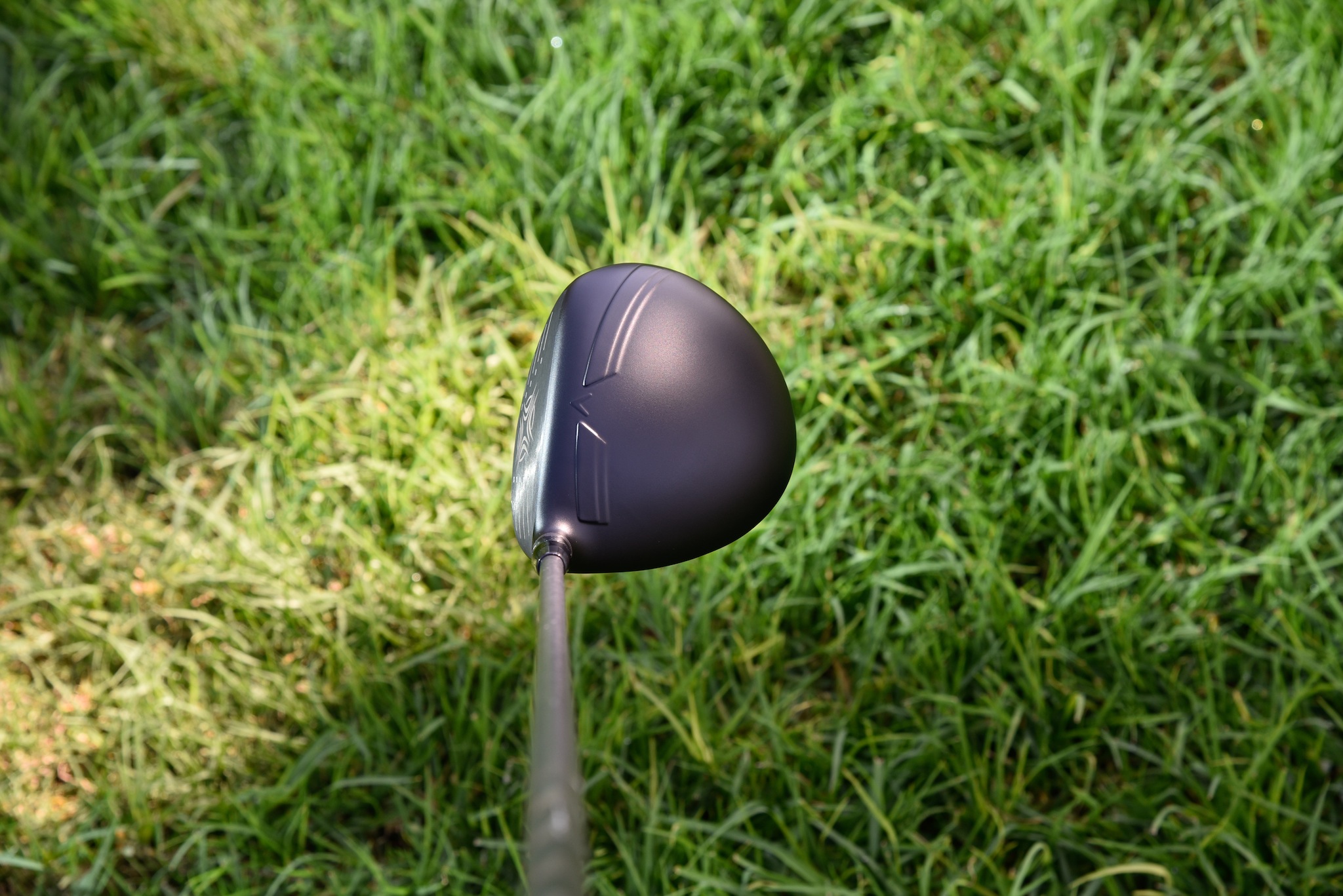

XR Pro fairway woods

xr-fwy-pro-address-2015

Price: $239
Lofts: 14, 16 and 18 degrees
Shaft: True Temper Project X LZ
Design Features:

  • Forged Hyper Speed Face Cup
  • Internal Standing Wave for lower CG
  • Deeper face for better performance off the tee, and a more sloped crown to make working the ball easier, especially hitting a draw.

XR Pro 3 Deep fairway woods

xr-fwy-3-deep-address-2015

Price: $239
Lofts: 14 degrees
Shafts: True Temper Project X LZ

Design Features:

  • Forged Hyper Speed Face Cup
  • Internal Standing Wave for lower CG
  • Progressive face height and deeper face are designed primarily for shots off the tee

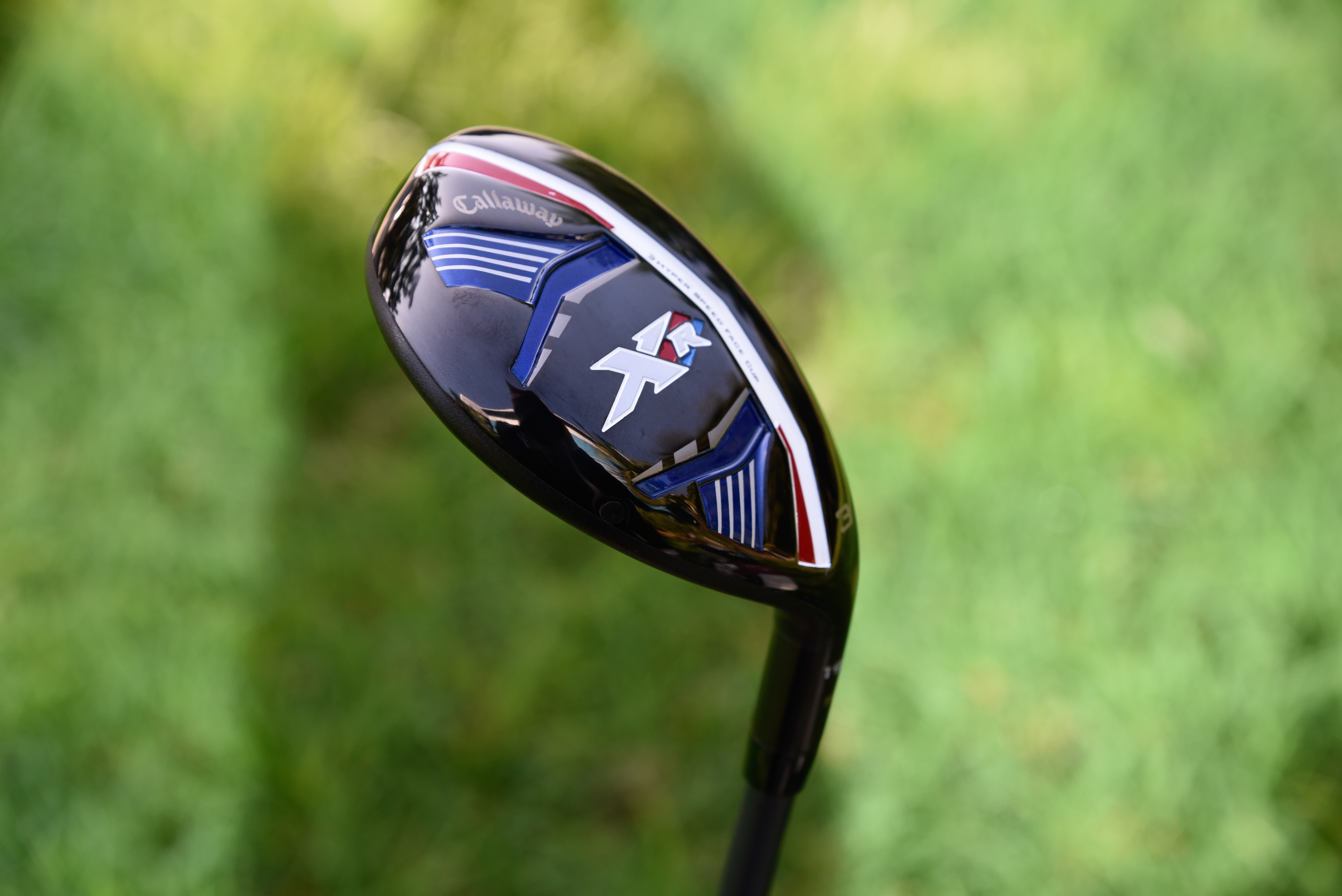

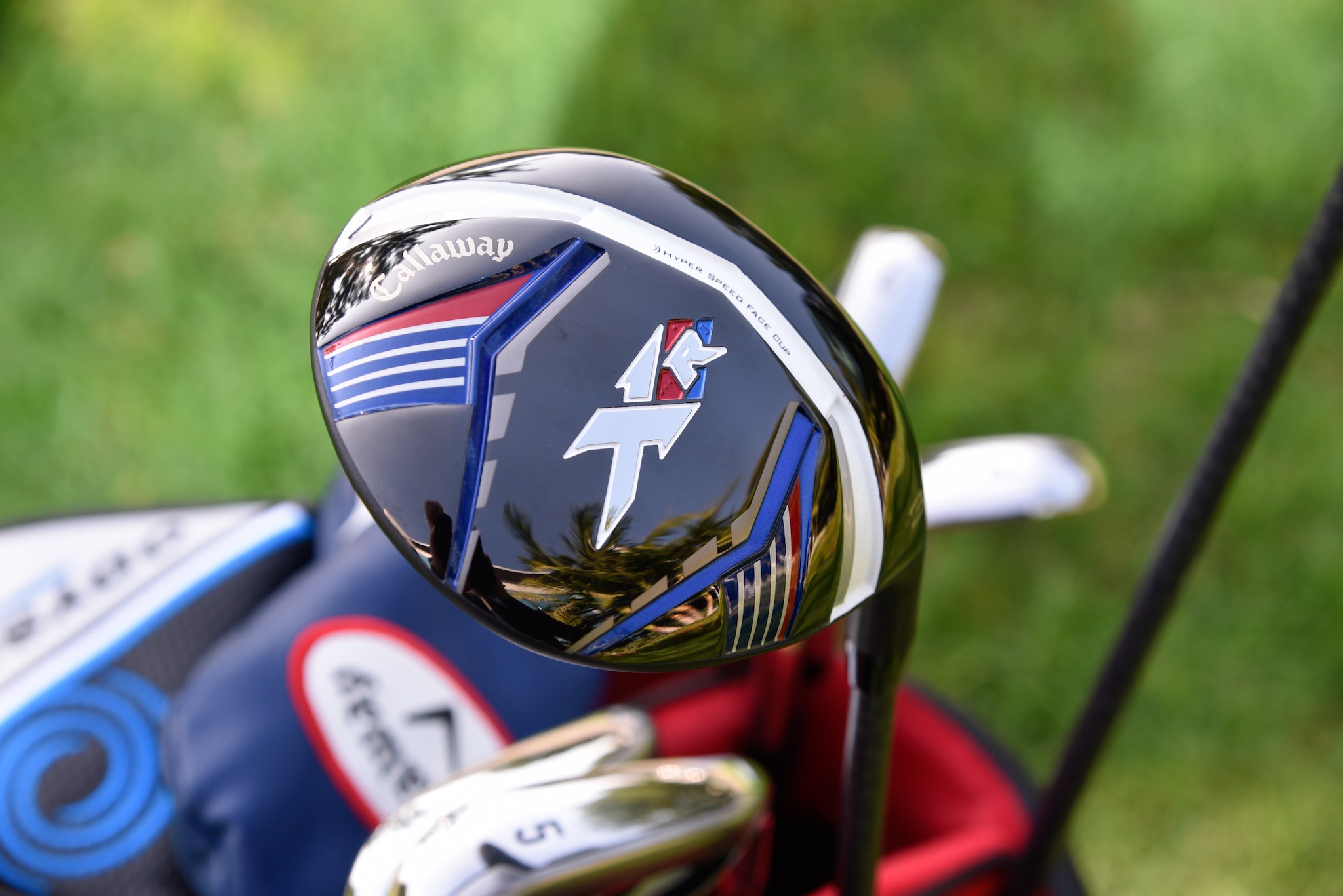

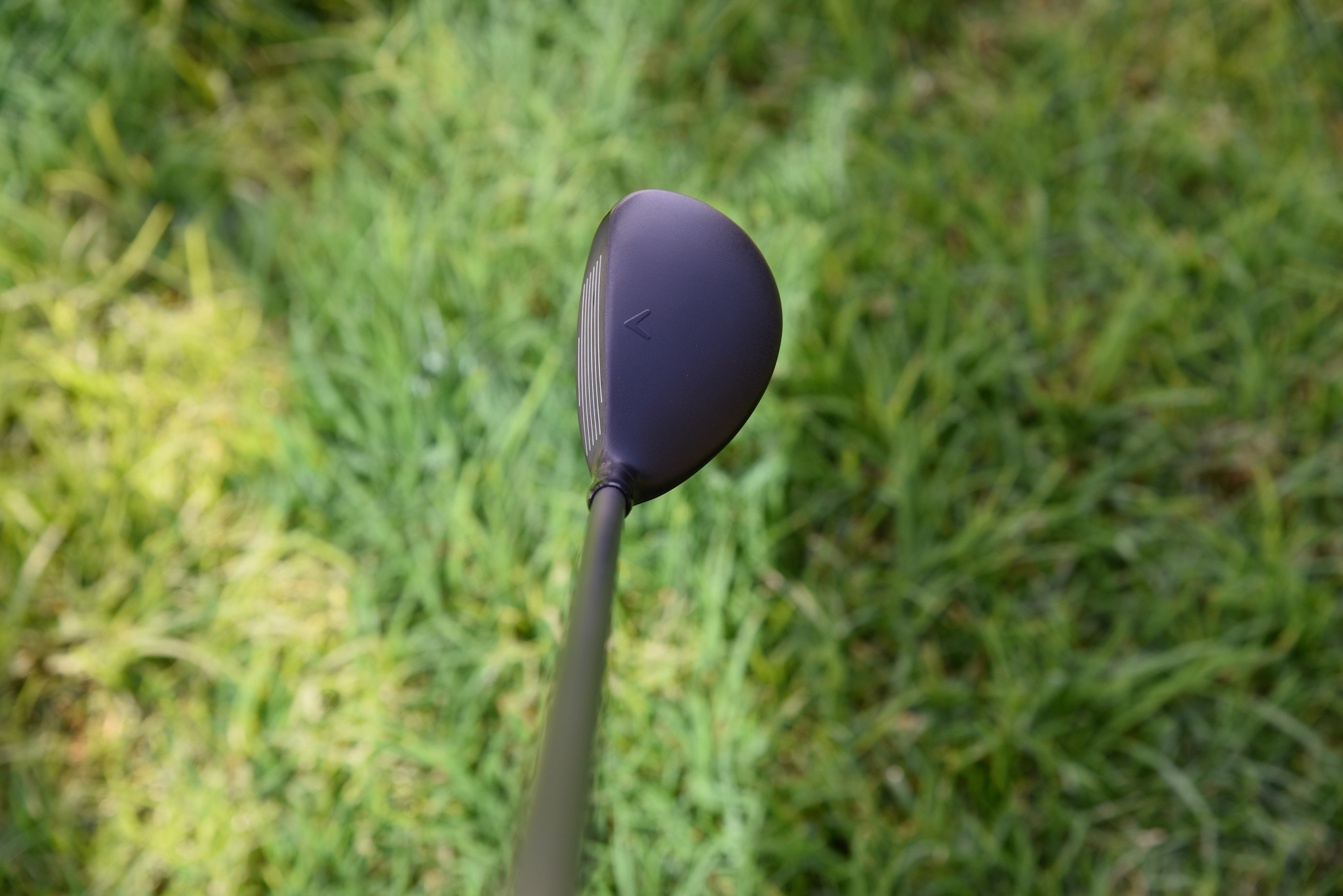

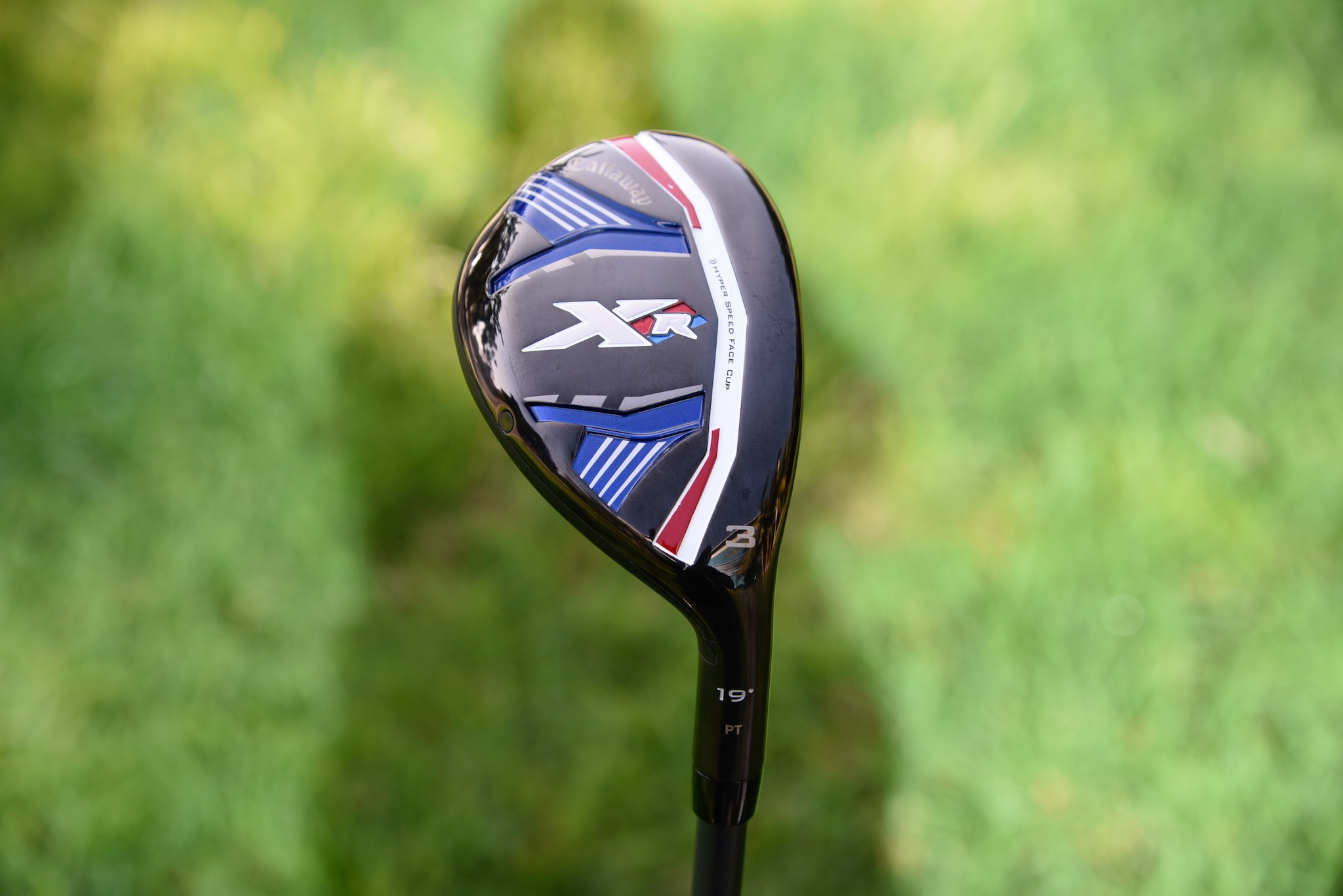

XR Hybrid

1200x580-XR-Hybrids-Press-Center-bold-bg

Price: $219
Lofts: 19, 22, 25 and 28 degrees
Shaft: True Temper Project X SD

Design Features:

  • Forged Hyper Speed Cup Face
  • Redesigned head shape and repositioned weight for 46 percent lower CG than X2 Hot hybrids
  • Internal Standing Wave for higher MOI and ball speed

XR Pro Hybrid

Price: $229
Lofts: 16, 18, 20 and 23 degrees
Shaft: True Temper Project X LZ
Design Features:

  • Compact head design for better players
  • Forged Hyper Speed Face Cup
  • Redesigned head shape for lowest CG ever in a Callaway hybrid
  • Internal Standing Wave for MOI and more ball speed
