Do you need a $1000 shaft?

Published

on

For $1000, a golfer can buy a lot of clubs — a driver, a few fairway woods and possibly even a few wedges. But unless that golfer went through a custom fitting, the $1000 worth of clubs he or she bought are likely going to fall short in distance, accuracy or both.

For golfers who want to leave absolutely nothing on the table, adjusting a driver’s loft or swapping stock shafts isn’t going to cut it. They need a club head and shaft to work together to give them the perfect launch and spin numbers, and they want it to feel perfect, too.

All that feel and performance comes at a price, however. For example, the aftermarket Matrix M3 “Black Tie” shaft that U.S. Open winner Justin Rose used in his TaylorMade R1 driver at Merion costs around $320. And get this — two other shafts used by golfers in the U.S. Open field made Rose’s shaft look cheap.

Aldila Rogue

Aldila Rogue

Aldila’s Rogue shaft is still in the testing phase, but John Oldenburg, vice president of engineering for Aldila, said that if it does come to retail it will cost around $1000.

The reason for its high price? Like most graphite shafts, it’s the materials. The Rogue uses what are called “pitch” fibers in its design, which are much stiffer than the graphite fibers used to make Aldila’s other shafts.

According to Oldenburg, the stiffest graphite fibers currently in play on the PGA Tour have a modulus of 65 million pounds per square inch, or 65 msi. The Rogue’s pitch fibers have almost double the modulus — 125 msi.

The stiffer materials allow Aldila to create a shaft that’s lighter and stronger than previous shafts, with very low torque. For Lee Westwood, who used the shaft in a Ping G25 driver at the U.S. Open, the Rogue created a lower-launching, lower-spinning ball flight that propelled him into a tie for 15th finish.

Click here to see what members are saying about the Aldila Rogue shaft in the forums.

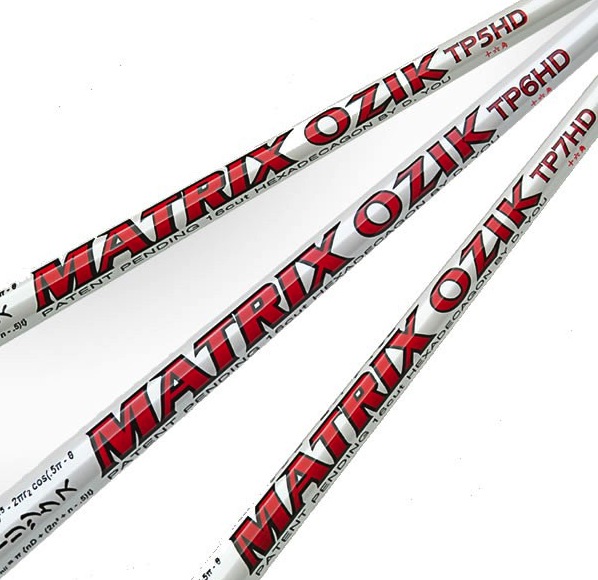

Matrix Ozik TPHD

Matrix Ozik TPHD

Like U.S. Open winner Justin Rose, runner-up Jason Day also used a Matrix shaft in his driver and fairway wood. But Day’s Matrix Ozik TPHD shaft costs more than three as much as Rose’s 6M3  — about $1000.

Click here to see all the clubs and shafts used by Jason Day.

Like the Aldila Rogue shaft, the Ozik TPHD shafts are made with exotic materials and special constructions that offer increased strength and improved performance. Chris Nolan, executive vice president of global operations for Matrix, said one of the leading factors of the TPHD’s high price tag is a material called Zylon, which has been used to make bulletproof shirts and sells for about $2000 per pound.

“In layman’s terms, Zylon is like Kevlar on steriods,” Nolan said. “Kevlar is very tough and strong, but it doesn’t have a high modulus. Zylon has a high modulus.”

Ozik TPHD shafts also use several other special materials, such as boron and GMAT, which are arranged in a way that gives certain golfers like Day an opportunity to gain as much as 3 to 4 mph of ball speed, Nolan said.

Do you need a $1000 shaft?

Jason Day Merion

Even the experts, Oldenburg and Nolan, admit that most golfers probably don’t need a shaft that costs anywhere near $1000. So while the latest materials and manufacturing processes have allowed Aldila and Matrix to make shafts that are better than ever before, super high-priced shafts aren’t for everyone, even if cost wasn’t a factor.

As a general rule, golfers with more club head speed prefer lower torque shafts — and many tour players like Westwood like as little as possible. On the other hand, golfers with slower clubhead speeds usually need more torque. That’s why the most recent shafts from Aldila have what’s called progressive torques.

For example, Aldila’s RIPd NV shafts, which debuted in 2010, have 4.4 degrees of torque in the regular-flex models, but only 2.8 degrees of torque in the TX, or tour extra-stiff model.

Nolan has a different attitude toward torque, however. He said that Matrix is not that concerned with standard torque numbers — like shaft flex, torque tends to be measured in different ways by different manufacturers, which results in different readings. But what he said is important is the distribution of torque and stiffness throughout the entire length of the shaft, which creates stability and consistency.

As Nolan and Oldenburg both said, choosing a shaft really comes down to one thing.

“Do the numbers make sense?”

Chances are, golfers don’t need to spend $1000 for the answer to be “yes.”
